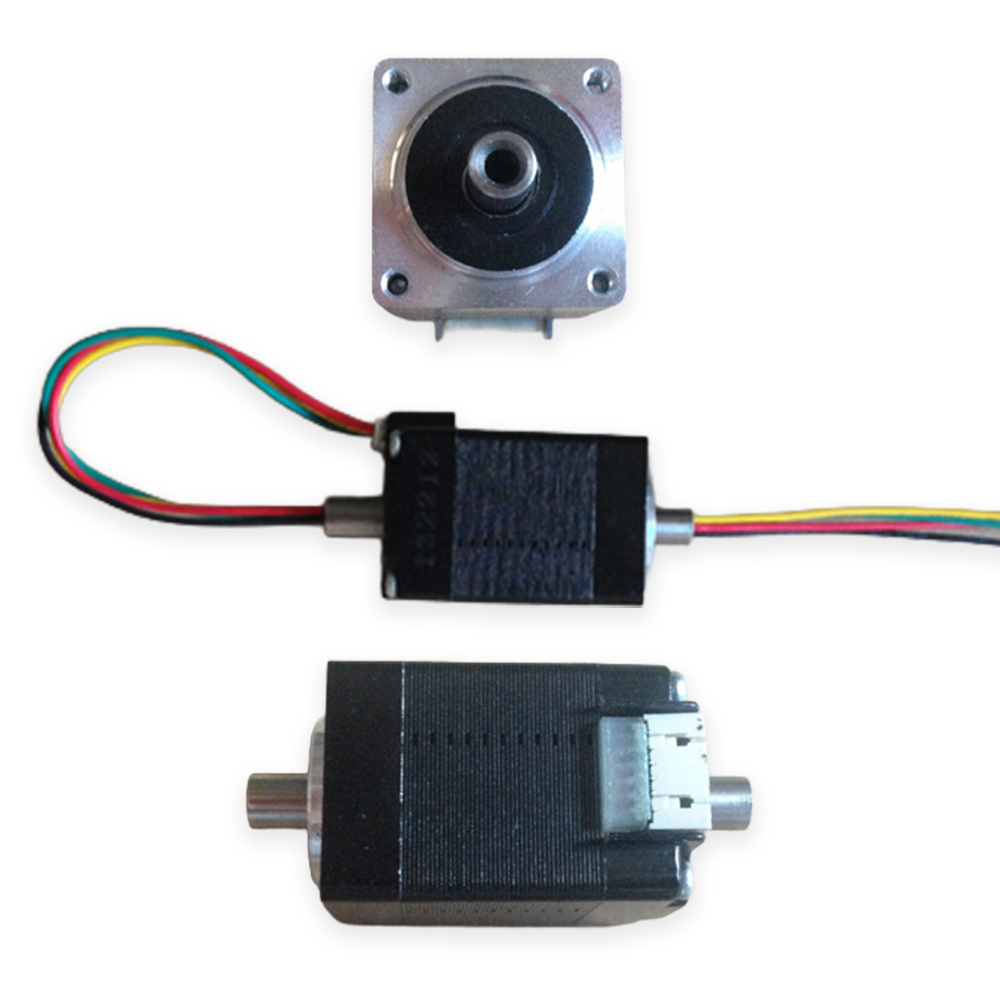

Nema 8 Hollow Shaft Stepper Motor 1.8deg 0.6A 18mNm 20x20x30mm 4-wire nema8

£25.99

Out of stock

SKU: MOT-STE-012 Category: Step Tags: Hollow Shaft Stepper Motor, nema8, Stepper Motor
Product Categories
  • 3D Printer
    • Controllers
    • Filament
    • Kits
    • Parts & Accessories
  • Arduino
    • Boards
    • Kits
    • Shields and Accessories
  • Cooling
    • Fan Guards
    • Fans
    • Heatsinks
  • Drone
  • Drones and More
    • Accessories
    • Antennas
    • Components
    • Drones
    • Kits
  • Electronics
    • Access Control
    • Cable
    • Components and Sensors
    • DIY Kits
  • LED Lighting
    • Accessories
    • Beads
    • Bulbs
    • Controllers
    • DMX
    • Downlights
    • Panel
    • Strips
  • Mechanical
    • Bearing
    • Bearings
      • Ball
      • Bushings
      • Flange
      • Grooved
      • Linear
      • Miniature
      • Needle
      • Self Aligning
      • Self Lube
      • Taper Roller
    • Fluid Transfer
    • Magnets
    • Mounts and Supports
    • Pulleys and Coupler
    • Rails and Carriage
    • Rods
    • Rods and Carriages
    • Timing Belt
  • Microcontrollers
  • Miscellaneous
  • Motors
    • Accessories
    • Coreless
    • DC Motors
    • Drivers
    • Spindle
    • Step
  • Other
  • Power Supply
  • Raspberry Pi
    • Boards and Kits
    • Shields and Accessories
  • Robotics
    • Components
    • Kits
  • Uncategorised
  • Virtual Reality
  • Description
  • Additional information

Description:

This hollow shaft hybrid bipolar Nema 8 stepper motor has 1.8 degree step angle (200 steps/revolution)

Specifications:

Manufacturer Part Number: 8HY0001-7SK
Motor Type: Bipolar Stepper
Step Angle: 1.8 degree
Holding Torque: 18m N.m
Rated Current/Phase: 0.6A
Rated Voltage 3.9V
Phase Resistance: 6.5ohms
Inductance per phase: 1.7 mH 20%(1KHz)
Insulation Resistance 100M Ohm Min. ,500VDC
Dielectric Strength 500VAC for one minute
Weight: 60g
Dimensions: 30x20x20mm
Shaft: Hollow Shaft 2.5mm Inner and 5mm Outer

What you will receive:

1 x Nema8 Hollow Shaft Stepper Motor with Connector Wire

Weight 70 g
