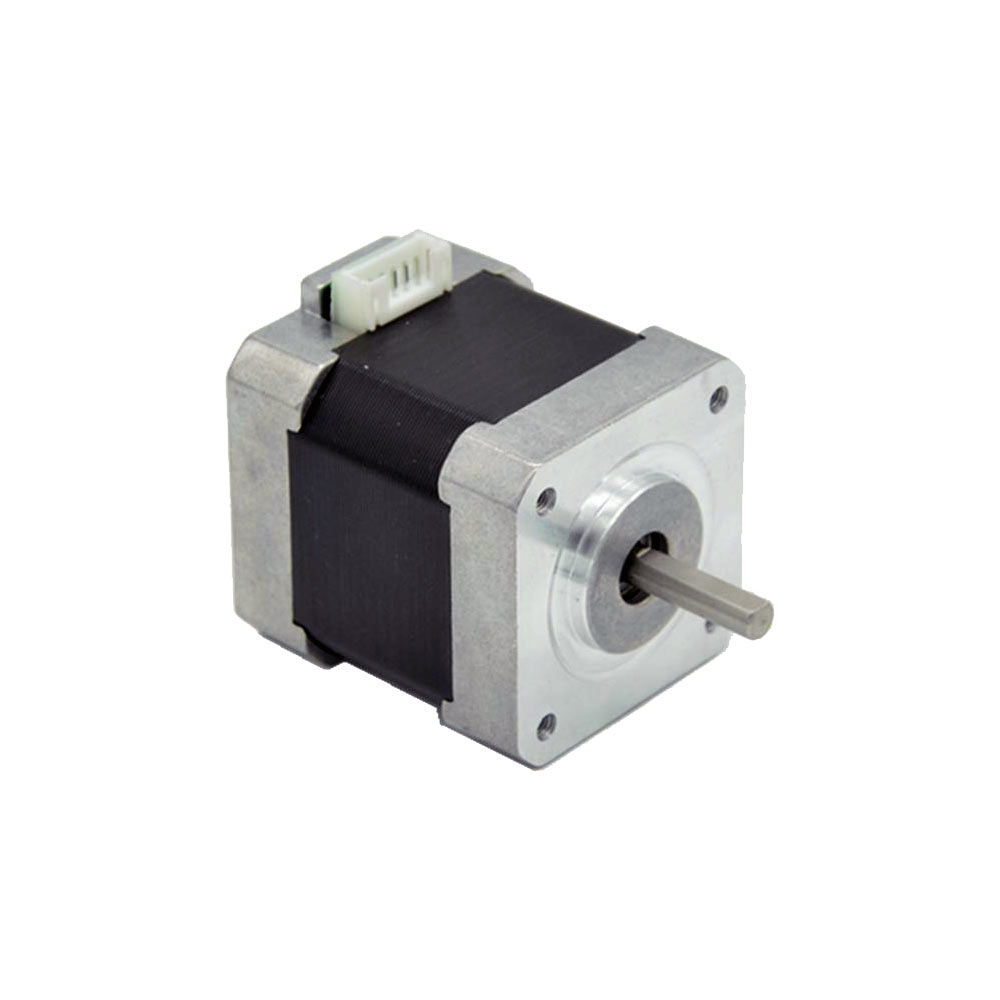

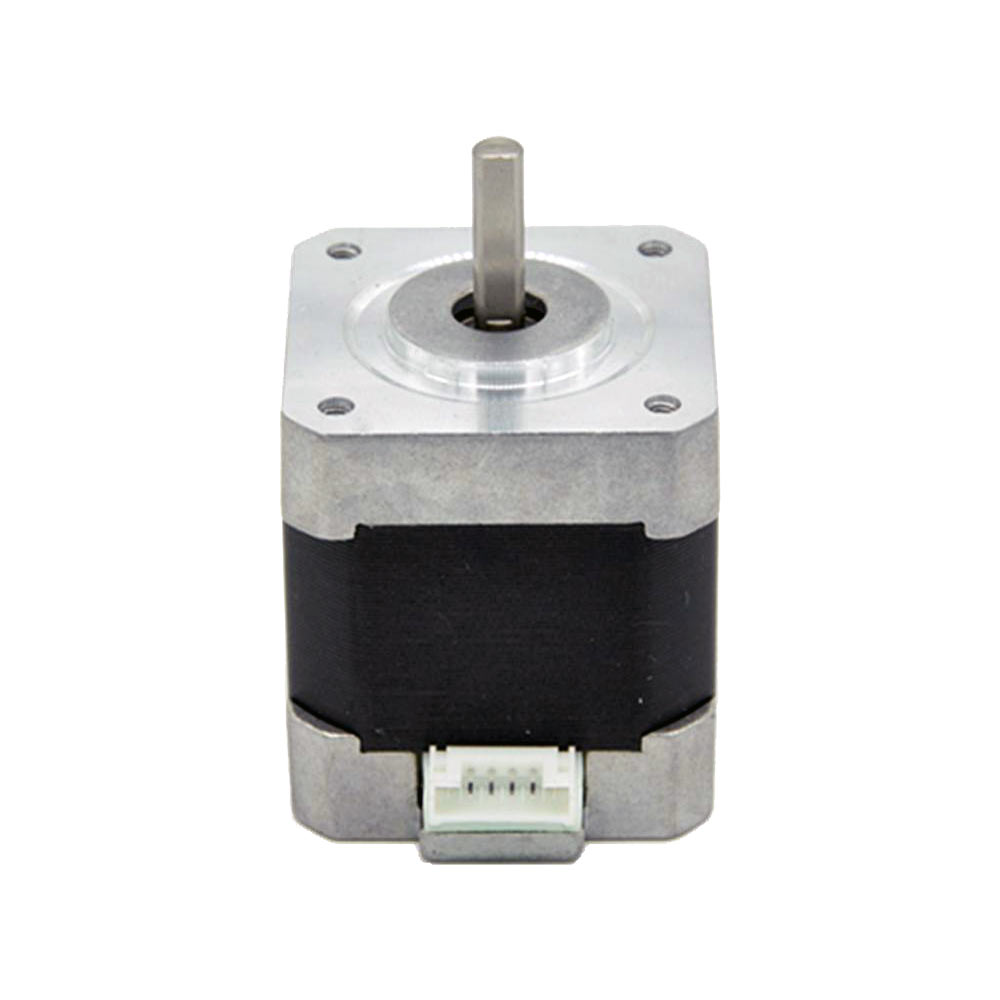

Nema17 Two Phase Bipolar 4 Lead Wire 48mm Stepper Motor

£16.99

4 in stock

Nema17 Two Phase Bipolar 4 Lead Wire 48mm Stepper Motor

£16.99

SKU: MOT-STE-032 Category: Step Tags: 4 Lead Wire, Bipolar, nema17, Stepper Motor, Two Phase
Product Categories
  • 3D Printer
    • Controllers
    • Filament
    • Kits
    • Parts & Accessories
  • Arduino
    • Boards
    • Kits
    • Shields and Accessories
  • Cooling
    • Fan Guards
    • Fans
    • Heatsinks
  • Drone
  • Drones and More
    • Accessories
    • Antennas
    • Components
    • Drones
    • Kits
  • Electronics
    • Access Control
    • Cable
    • Components and Sensors
    • DIY Kits
  • LED Lighting
    • Accessories
    • Beads
    • Bulbs
    • Controllers
    • DMX
    • Downlights
    • Panel
    • Strips
  • Mechanical
    • Bearing
    • Bearings
      • Ball
      • Bushings
      • Flange
      • Grooved
      • Linear
      • Miniature
      • Needle
      • Self Aligning
      • Self Lube
      • Taper Roller
    • Fluid Transfer
    • Magnets
    • Mounts and Supports
    • Pulleys and Coupler
    • Rails and Carriage
    • Rods
    • Rods and Carriages
    • Timing Belt
  • Microcontrollers
  • Miscellaneous
  • Motors
    • Accessories
    • Coreless
    • DC Motors
    • Drivers
    • Spindle
    • Step
  • Other
  • Power Supply
  • Raspberry Pi
    • Boards and Kits
    • Shields and Accessories
  • Robotics
    • Components
    • Kits
  • Uncategorised
  • Virtual Reality
  • Description
  • Additional information

Description:

Two phase bipolar 4 lead wire Nema17 48mm stepper motor

Specification:

Size: 42mm x 42mm x L48mm
Rated Voltage: 3.36V
Current per Phase: 1.68A
Resistance per Phase: 1.65Ω +-10%
Inductance/Phase: 3.8 mH
Holding Torque: 0.44 Nm (62 oz.in)
Rotor Inertia: 82 g-cm²
Weight: 0.38 Kg

What you will receive:

1 x Nema17 Two Phase Bipolar 4 Lead Wire 48mm Stepper Motor



Weight 400 g
