Nema 17 Bipolar Stepper 0.9deg 400 Steps 2.8V 1.68A 42x42x48mm Nema17 CNC

£17.99

6 in stock

Nema 17 Bipolar Stepper 0.9deg 400 Steps 2.8V 1.68A 42x42x48mm Nema17 CNC

£17.99

SKU: MOT-STE-018 Category: Step Tags: Bipolar Stepper Motor, cnc, Nema 17, Stepper Motor
Product Categories
  • 3D Printer
    • Controllers
    • Filament
    • Kits
    • Parts & Accessories
  • Arduino
    • Boards
    • Kits
    • Shields and Accessories
  • Cooling
    • Fan Guards
    • Fans
    • Heatsinks
  • Drone
  • Drones and More
    • Accessories
    • Antennas
    • Components
    • Drones
    • Kits
  • Electronics
    • Access Control
    • Cable
    • Components and Sensors
    • DIY Kits
  • LED Lighting
    • Accessories
    • Beads
    • Bulbs
    • Controllers
    • DMX
    • Downlights
    • Panel
    • Strips
  • Mechanical
    • Bearing
    • Bearings
      • Ball
      • Bushings
      • Flange
      • Grooved
      • Linear
      • Miniature
      • Needle
      • Self Aligning
      • Self Lube
      • Taper Roller
    • Fluid Transfer
    • Magnets
    • Mounts and Supports
    • Pulleys and Coupler
    • Rails and Carriage
    • Rods
    • Rods and Carriages
    • Timing Belt
  • Microcontrollers
  • Miscellaneous
  • Motors
    • Accessories
    • Coreless
    • DC Motors
    • Drivers
    • Spindle
    • Step
  • Other
  • Power Supply
  • Raspberry Pi
    • Boards and Kits
    • Shields and Accessories
  • Robotics
    • Components
    • Kits
  • Uncategorised
  • Virtual Reality
  • Description
  • Additional information

Description:

This hybrid bipolar Nema 17 stepper motor with 0.9 degree step angle (400 steps/revolution).

Specifications:

Nema17 Size: 42mm
Body Length: 48mm
Rated Current: 1.68A
Voltage: 2.8V
Positions Accuracy: ±5%
Resistance/Phase: 1.65±10% Ω
Holding Torque: 4.2 kg.cm
Step Angle: 0.9
Insulation Class: B
Steps per Revolution: 400 Full Step
Shaft Diameter: 5mm
Temperature: 80K
Dielectric Strenght: 500 VAC/s
Two Phase:
Black n Green, Blue n Red.
Weight: 0.35 (kg)

The stepper comes with bare wires, the order of JST connectors are Red – Green – Blue – Black, with the ridges up.

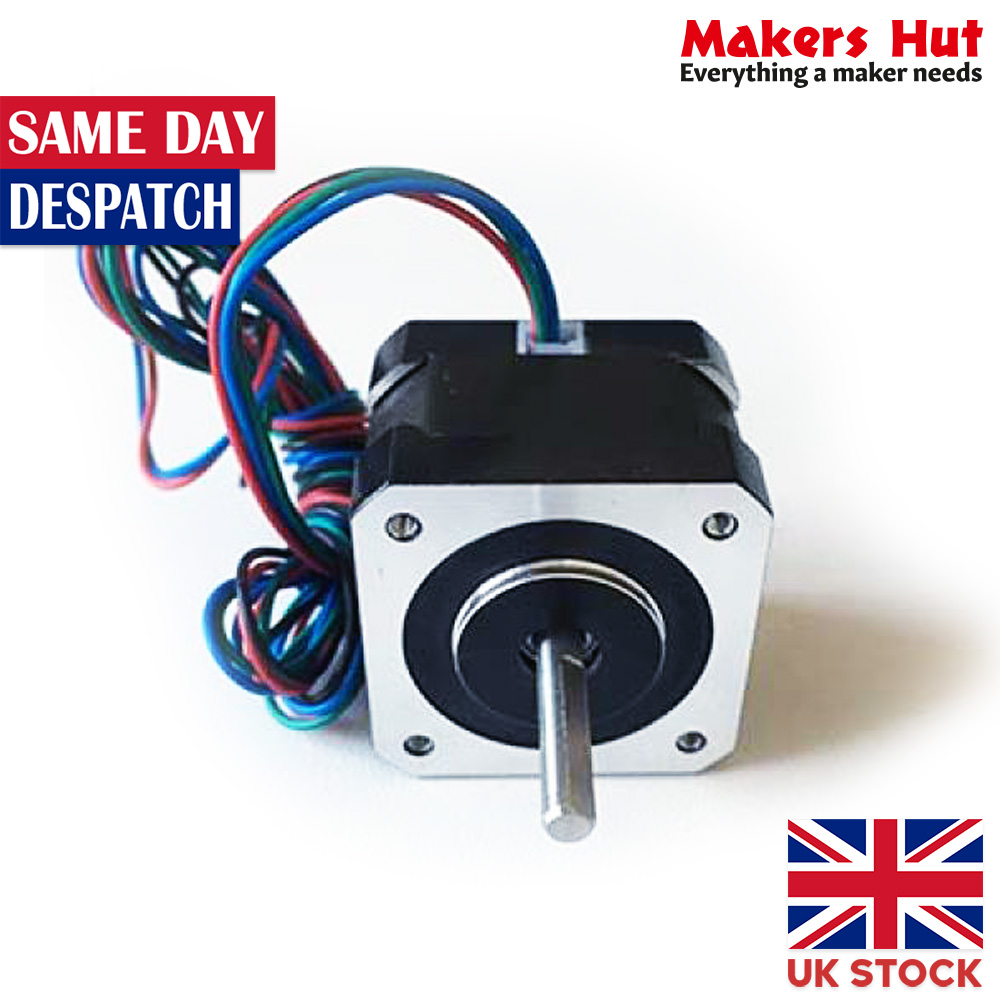

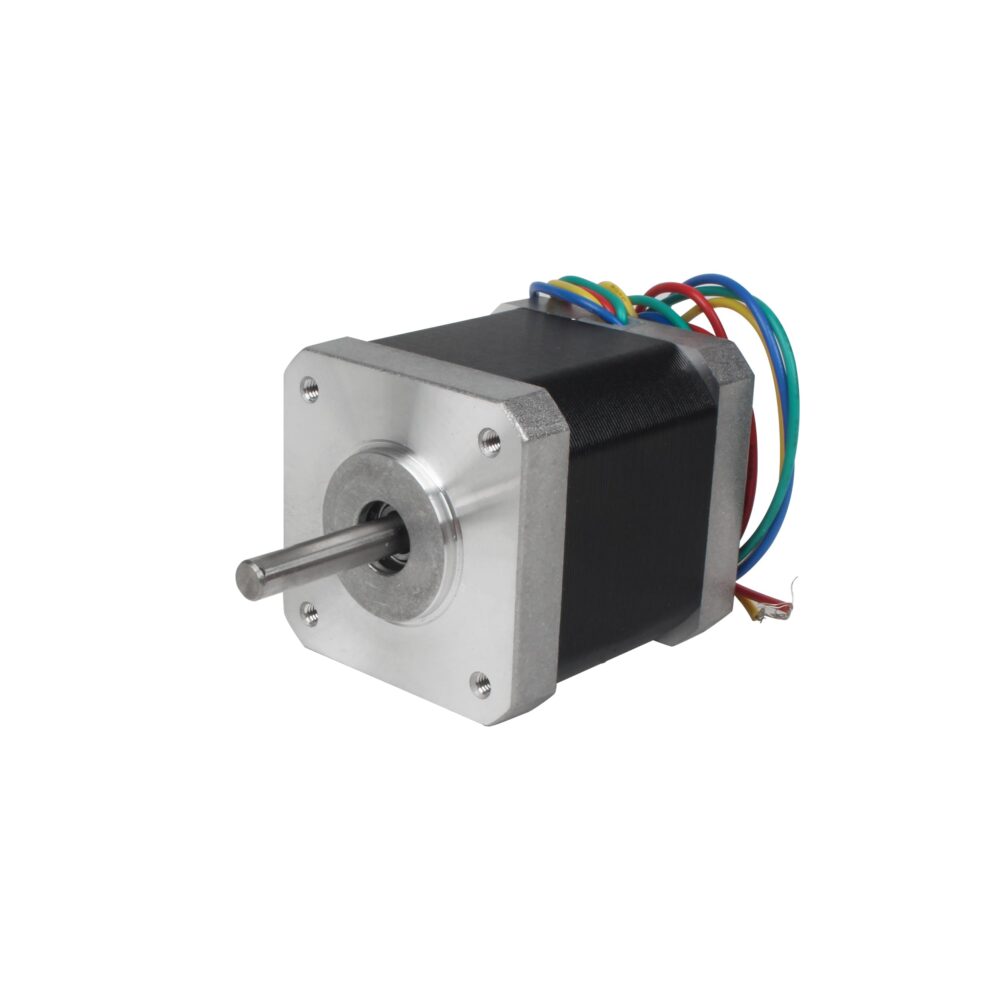

The shaft is round. The photo is for illutsration purposes only.

What you will receive:

1 x Nema17 Stepper motor

Weight 350 g
