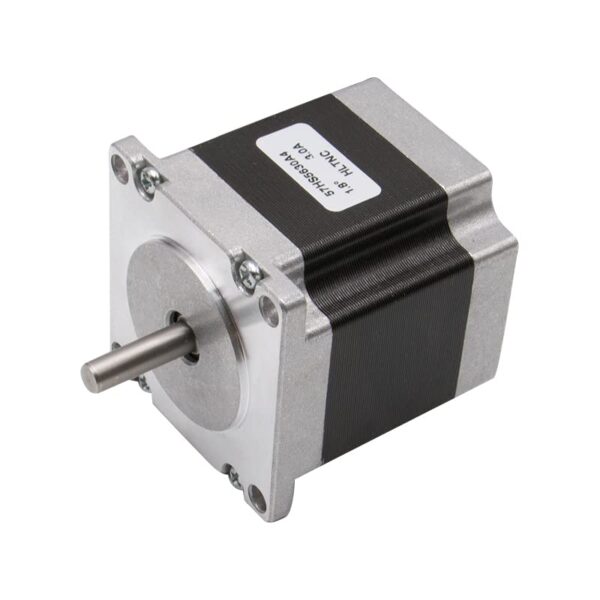

Nema23 56mm shaft 6.35mm stepper motor 56.4x56.4x56mm 1.3Nm 3A

Brand	Makers Hut
EAN	Does not apply
Ships from	Cardiff, UK

Description:

This hybrid bipolar Nema 17 stepper motor with 1.8 degree step angle (200 steps/revolution).

Specifications:

Motor Depth: 56mm
Phase: Two phase 4 lead wires bipolar stepper
Step Angle: 1.8 degree
Rated Current: 3A
Rated Voltage: 3.3V
Holding Torque: 1.3N.m
Shaft: 6.35mm round shaft

What you will receive:

1 x Nema23 Stepper Motor

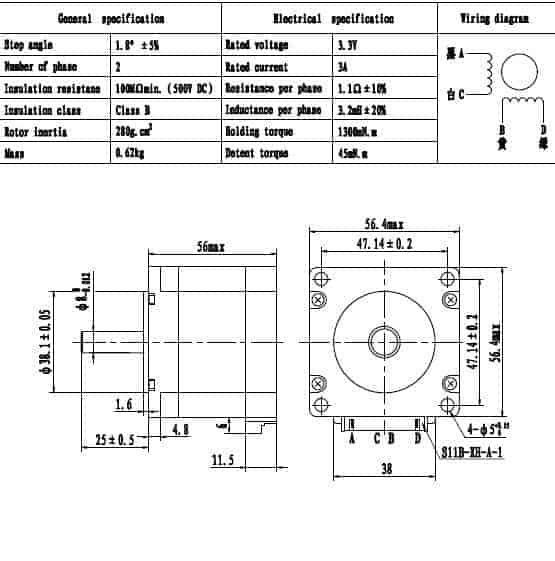

Please note the item doesn't come with S11B-XH-A-1 connector as per the drawing,
it comes with wires without connector
