Nema 17 Bipolar Stepper 1.8deg 1.5A 0.65Nm 42x42x60mm 4-wires Nema17 CNC

SKU	MOT-STE-010
Weight	450 g
Ships from	Cardiff, UK

Description:

This hybrid bipolar Nema 17 stepper motor with 1.8 degree step angle (200 Steps / Revolution)

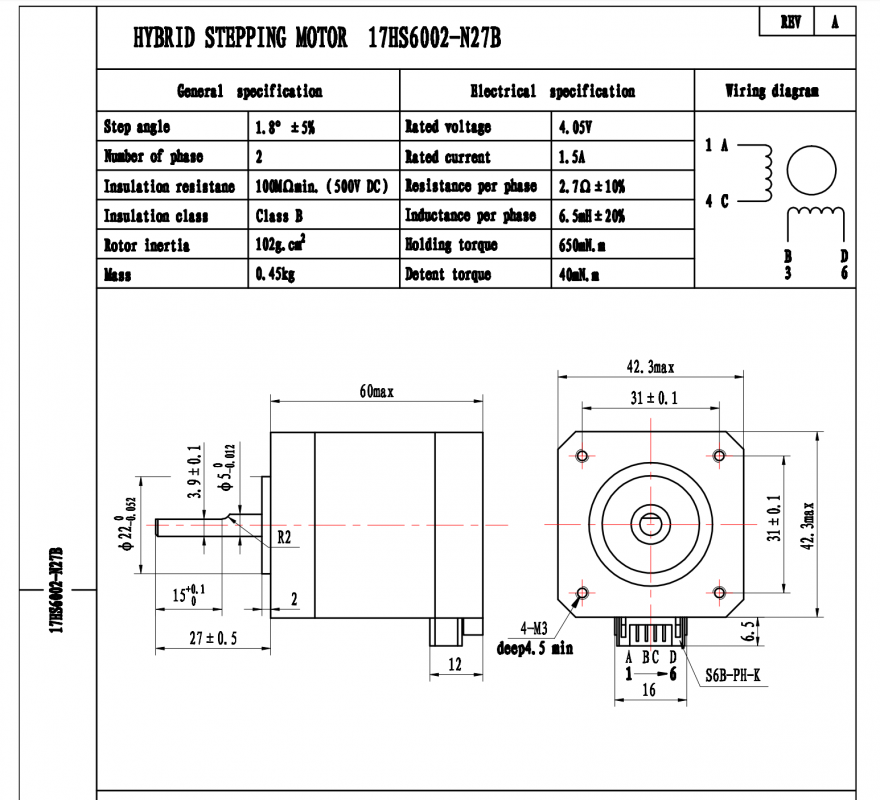

Specifications:

Manufacturer Part Number: 17HS6002-N27B
Motor Type: Bipolar Stepper
Step Angle: 1.8 degree
Holding Torque: 0.65 Nm
Rated Voltage: 4V
Rated Current / Phase: 1.5A
Phase Resistance: 2.7ohms
Recommended Voltage: 12-24V
Inductance: 6.5mH 20%(1KHz)
Weight: 450g
Dimensions: 60x42.3x42.3mm
Shaft Diameter: 5mm

What you will receive:

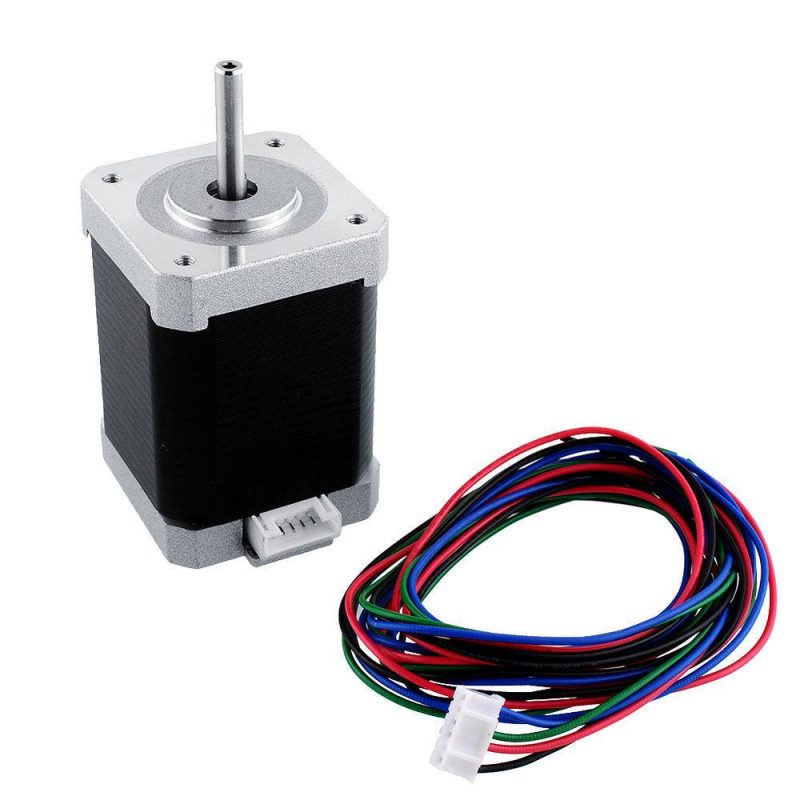

1 x Nema17 Stepper Motor with Connector Cable
