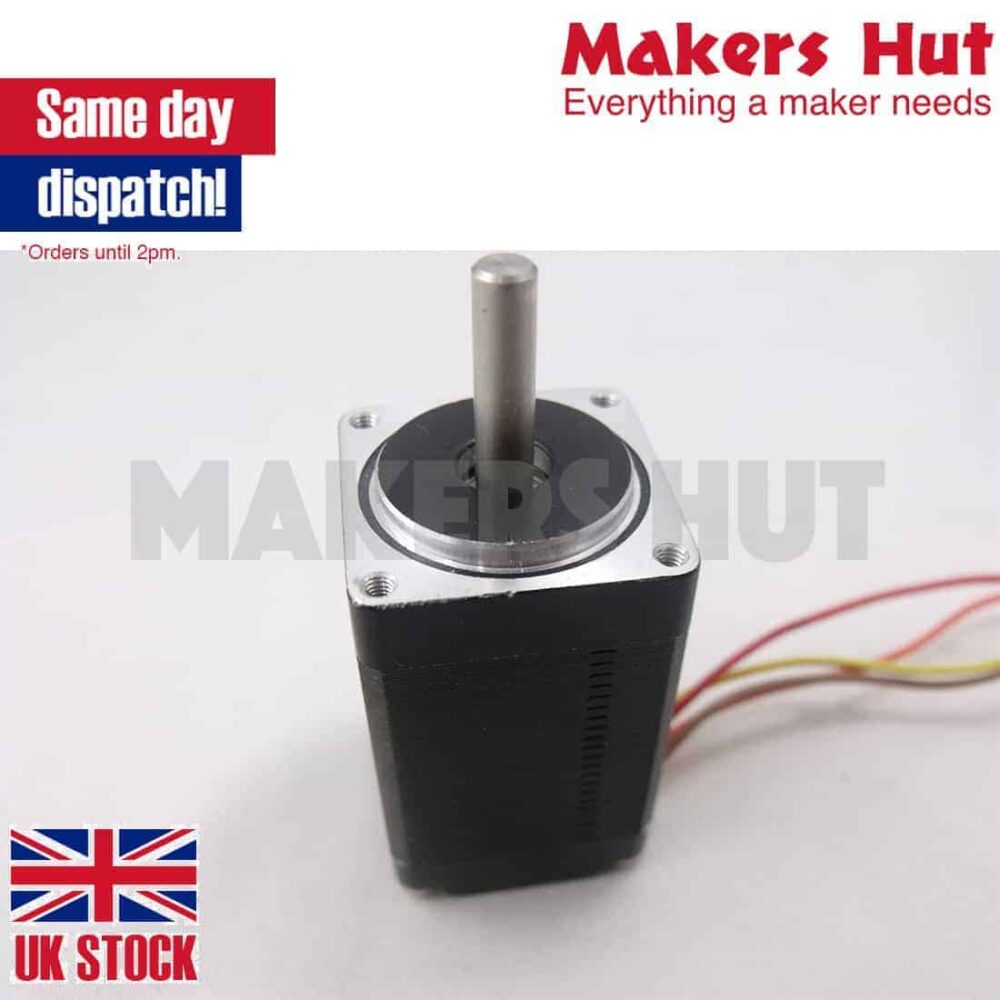

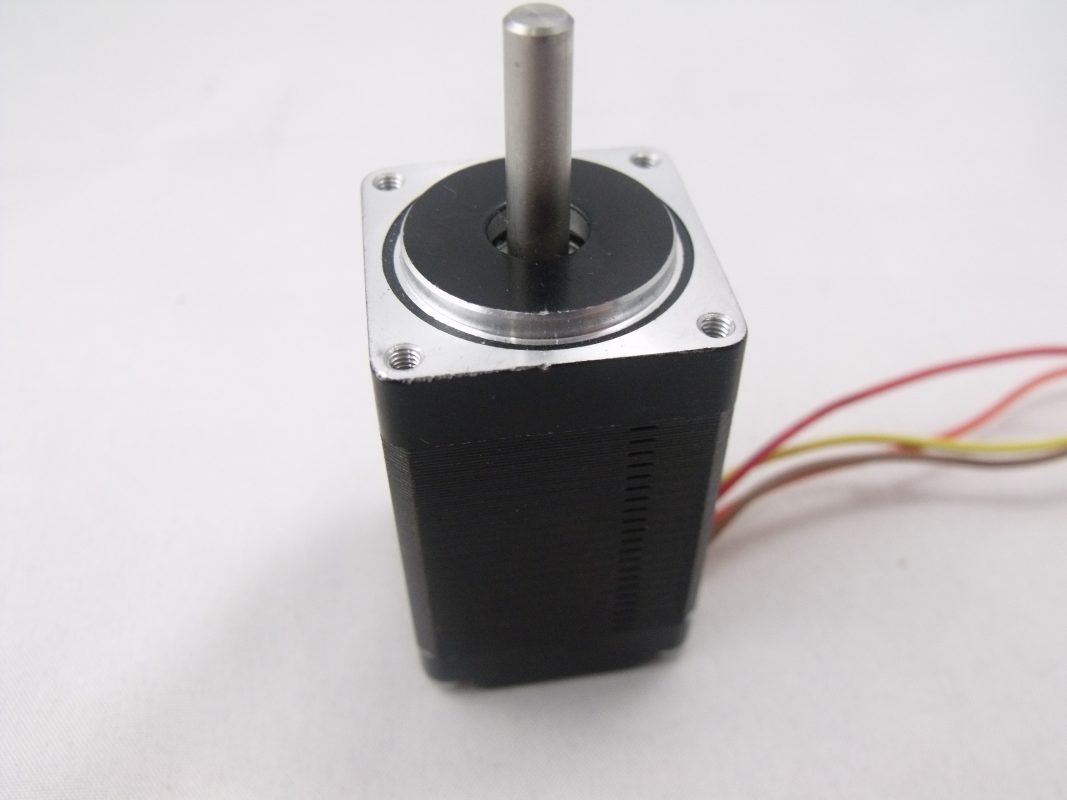

Description:
This hybrid bipolar stepper motor with 1.8 step angle (200 steps/revolution).
Each phase draws 670 mA at 6.2 V, allowing for a holding torque of 12Ncm(17oz-in).
Planetary Geared Stepper is available for this model.

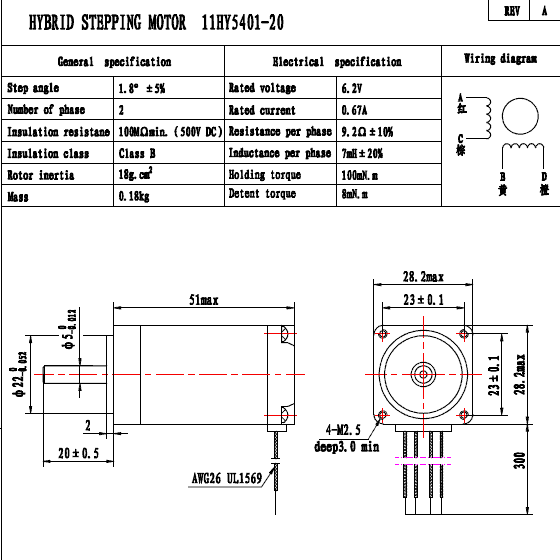

Specifications:
Stepper Motor: Bipolar 4 Lead Wires
Step Angle: 1.8
Holding Torque: 100mN.m(13.5oz.in)
Rated Current / Phase: 0.67A
Phase Resistance: 9.2ohms
Recommended Voltage: 12-24V
Inductance: 7mH 20%(1KHz)
Length: 51mm

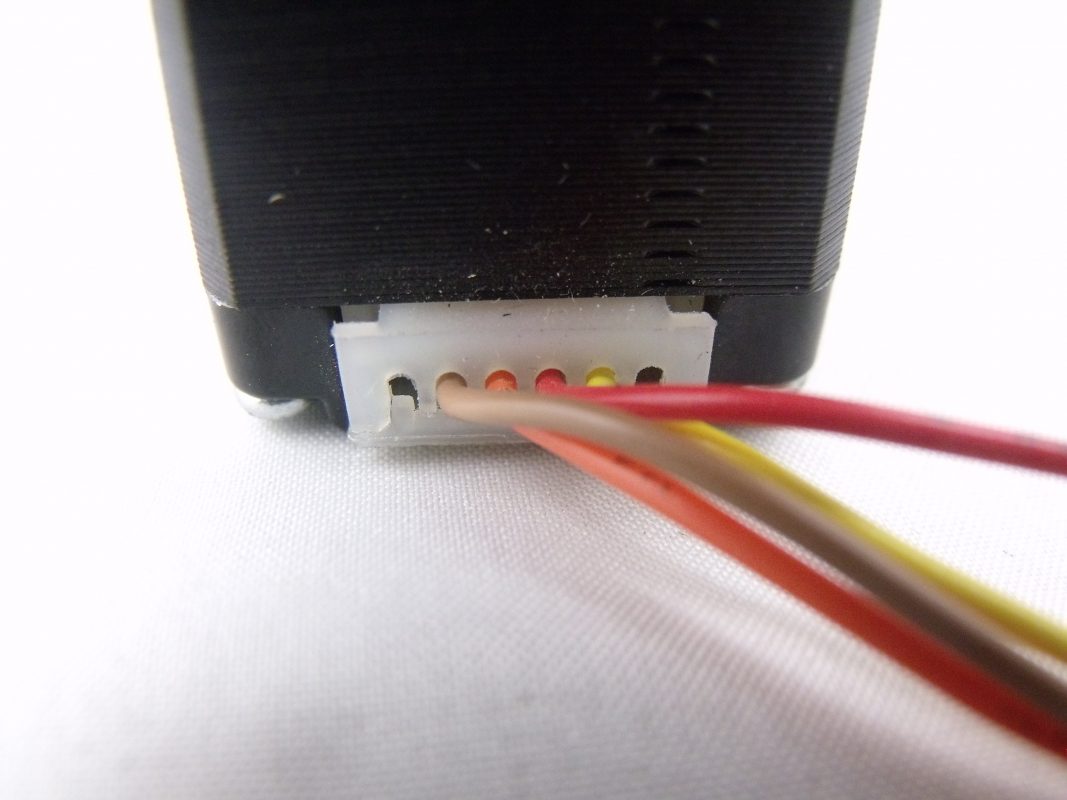

Wiring colours: A is Red, C is Brown, B is Yellow, D is Orange
What you will receive:
1 x Nema11 Stepper Motor
