2x NEMA14 Stepper Motor 50.5mm Length, 16mm Motor Shaft Flat to 3.5mm

£18.99

Out of stock

SKU: MOT-STE-036 Category: Step Tags: 3D Printer, cnc, nema14, Stepper Motor
Product Categories
  • 3D Printer
    • Controllers
    • Filament
    • Kits
    • Parts & Accessories
  • Arduino
    • Boards
    • Kits
    • Shields and Accessories
  • Cooling
    • Fan Guards
    • Fans
    • Heatsinks
  • Drone
  • Drones and More
    • Accessories
    • Antennas
    • Components
    • Drones
    • Kits
  • Electronics
    • Access Control
    • Cable
    • Components and Sensors
    • DIY Kits
  • LED Lighting
    • Accessories
    • Beads
    • Bulbs
    • Controllers
    • DMX
    • Downlights
    • Panel
    • Strips
  • Mechanical
    • Bearing
    • Bearings
      • Ball
      • Bushings
      • Flange
      • Grooved
      • Linear
      • Miniature
      • Needle
      • Self Aligning
      • Self Lube
      • Taper Roller
    • Fluid Transfer
    • Magnets
    • Mounts and Supports
    • Pulleys and Coupler
    • Rails and Carriage
    • Rods
    • Rods and Carriages
    • Timing Belt
  • Microcontrollers
  • Miscellaneous
  • Motors
    • Accessories
    • Coreless
    • DC Motors
    • Drivers
    • Spindle
    • Step
  • Other
  • Power Supply
  • Raspberry Pi
    • Boards and Kits
    • Shields and Accessories
  • Robotics
    • Components
    • Kits
  • Uncategorised
  • Virtual Reality
  • Description

Description:

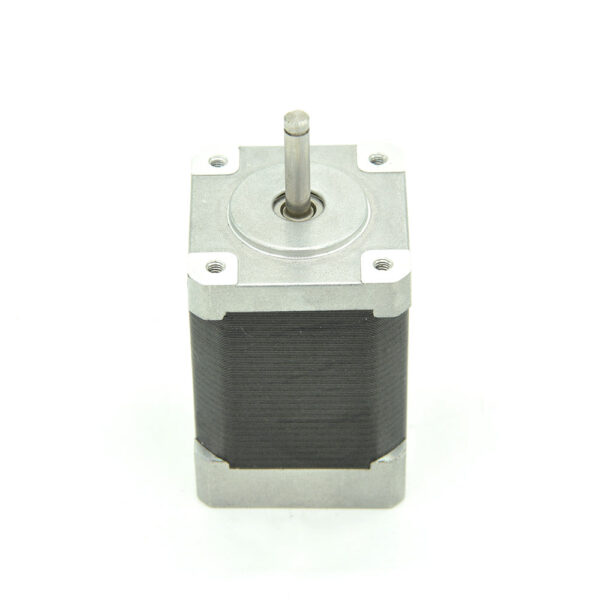

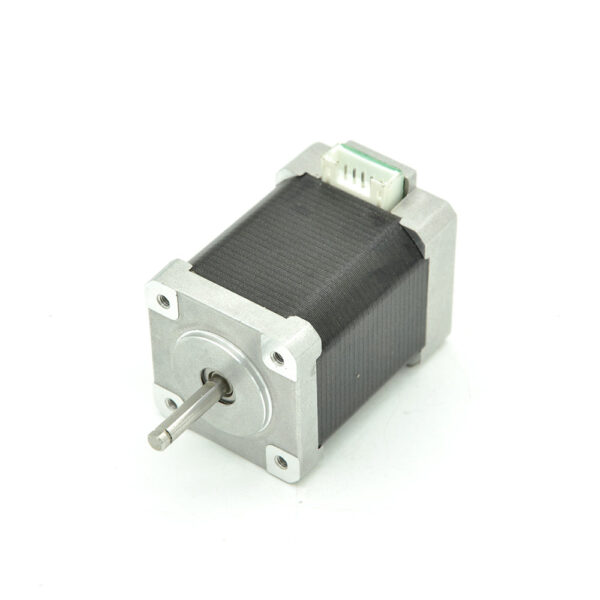

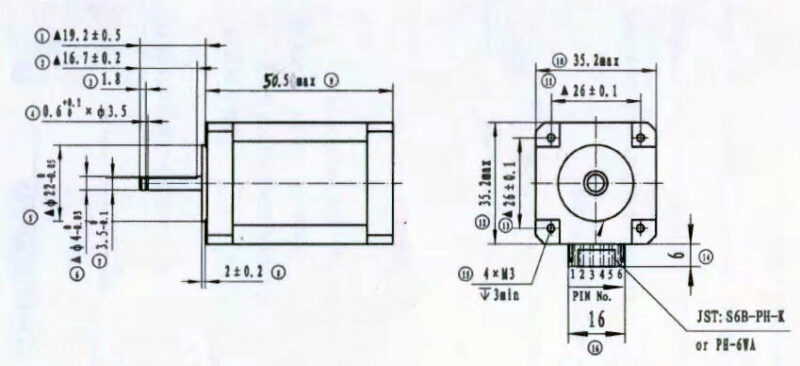

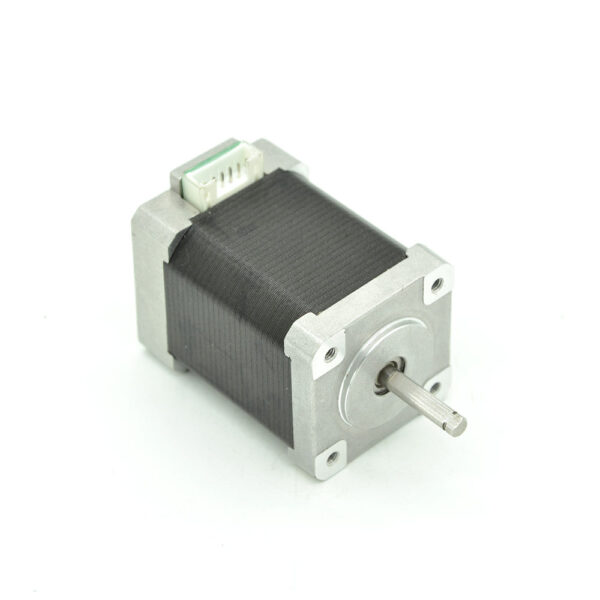

NEMA14 Stepper Motor 50.5mm Length, 16mm Motor Shaft Flat to 3.5mm (35BYGH39-2W)

Specification:

Phase: 2
Step Angle: 1.8°
Phase Voltage: 4.08V
Phase Current: 1.2A
Phase Resistance: 3.4 (1 ±15%) ohms
Inductance: 4.5 (1 ±20%) mh
Holding Torque: 230mN.m
Pull in frequency (Half Step): 3000pps
Pull out frequency (Half Step): 5000pps

What you will receive:

2 x NEMA14 Stepper Motor
