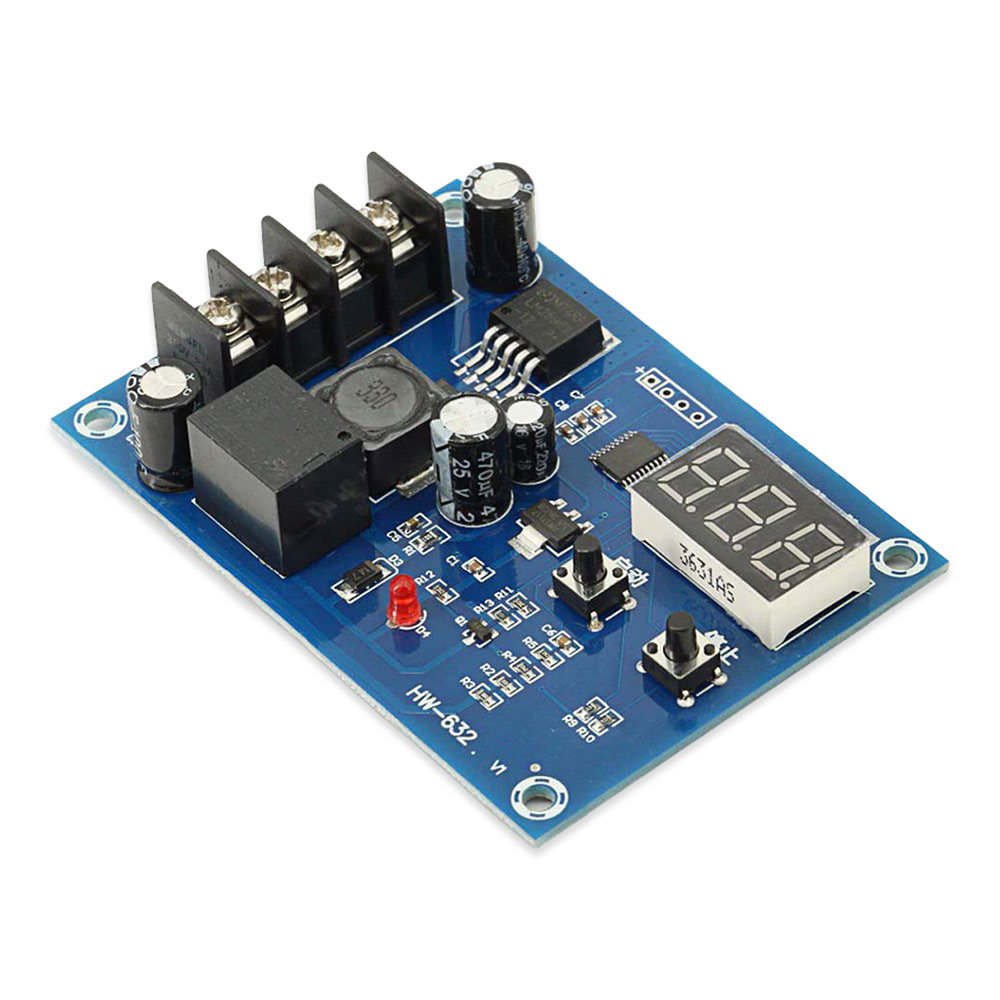

Lithium Battery Charge Control Protection Board /w LED Display XH-M603 – HW-632

£7.99

5 in stock

Lithium Battery Charge Control Protection Board /w LED Display XH-M603 – HW-632

£7.99

SKU: ELE-COM-109 Category: Components and Sensors Tags: Control Protection Board, Lithium Battery Charger, XH-M603
Product Categories
  • 3D Printer
    • Controllers
    • Filament
    • Kits
    • Parts & Accessories
  • Arduino
    • Boards
    • Kits
    • Shields and Accessories
  • Cooling
    • Fan Guards
    • Fans
    • Heatsinks
  • Drone
  • Drones and More
    • Accessories
    • Antennas
    • Components
    • Drones
    • Kits
  • Electronics
    • Access Control
    • Cable
    • Components and Sensors
    • DIY Kits
  • LED Lighting
    • Accessories
    • Beads
    • Bulbs
    • Controllers
    • DMX
    • Downlights
    • Panel
    • Strips
  • Mechanical
    • Bearing
    • Bearings
      • Ball
      • Bushings
      • Flange
      • Grooved
      • Linear
      • Miniature
      • Needle
      • Self Aligning
      • Self Lube
      • Taper Roller
    • Fluid Transfer
    • Magnets
    • Mounts and Supports
    • Pulleys and Coupler
    • Rails and Carriage
    • Rods
    • Rods and Carriages
    • Timing Belt
  • Microcontrollers
  • Miscellaneous
  • Motors
    • Accessories
    • Coreless
    • DC Motors
    • Drivers
    • Spindle
    • Step
  • Other
  • Power Supply
  • Raspberry Pi
    • Boards and Kits
    • Shields and Accessories
  • Robotics
    • Components
    • Kits
  • Uncategorised
  • Virtual Reality
  • Description

Description:

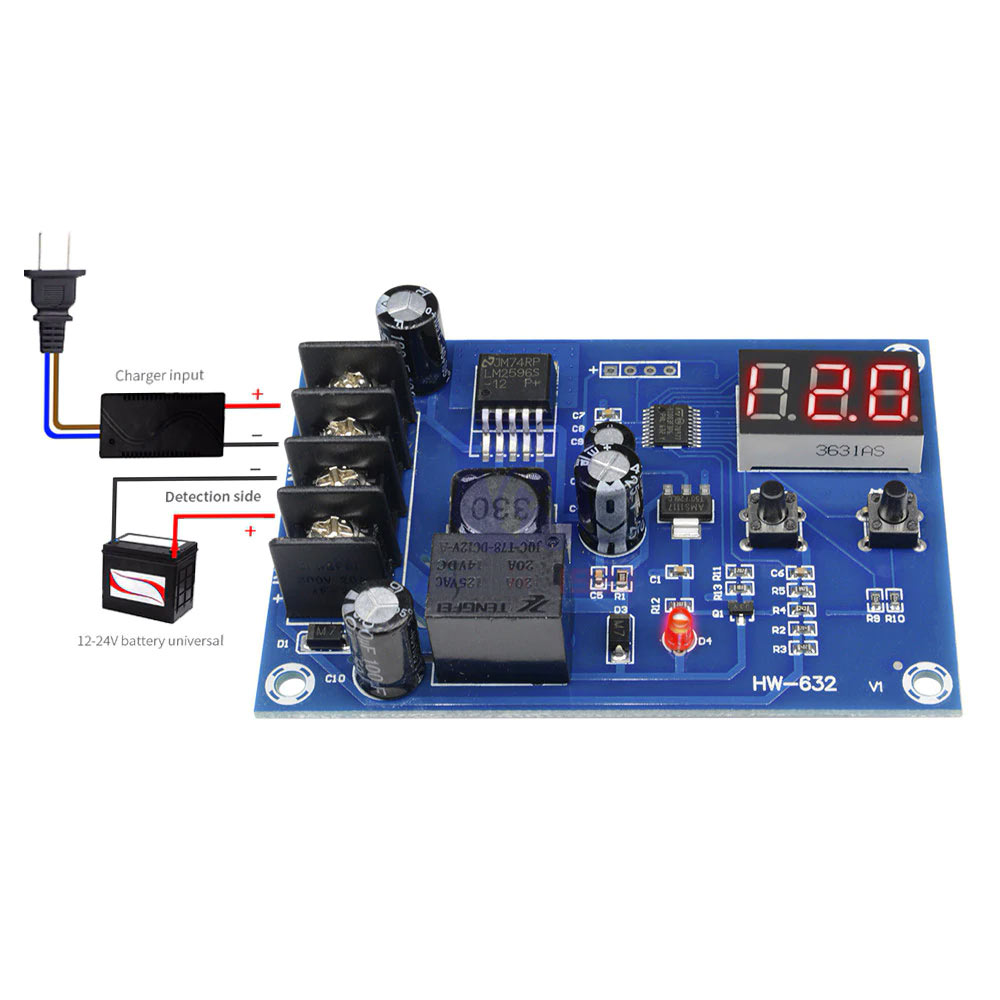

XH-M603 Charging Control Module 12-24V Storage Lithium Battery Charger Control Switch Protection Board

Specification:

Model: XH-M603 – HW-632
Input Voltage: DC 10-30V
Display Precision: 0.1V
Control Precision: 0.1V
Output Type: direct output
Voltage Tolerance: +/-0.1V
Application Fields: 12-24V storage battery

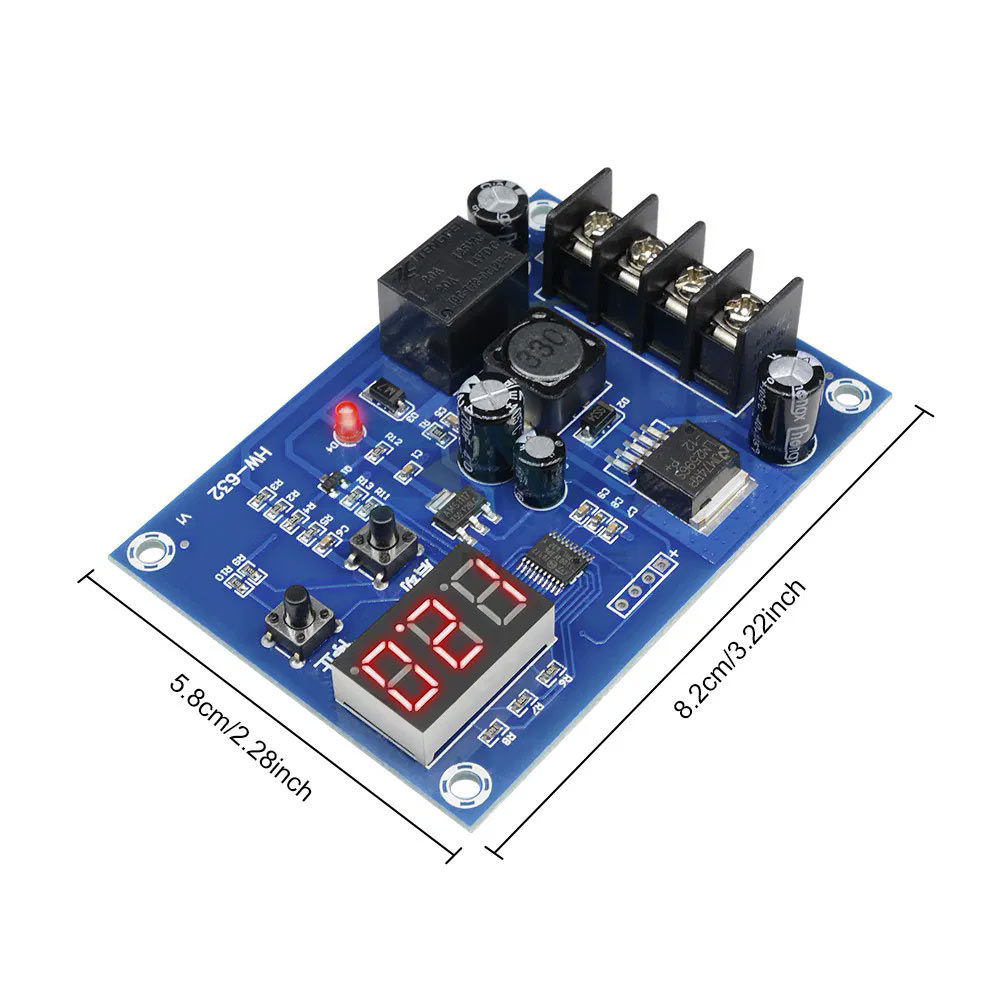

Size: 82*58*18mm

Using Method:

  1. Set Starting Voltage:in normal display voltage state,press the button will display start charging voltage;long press for 3s the digital tube will flash;you can start or stop button to set starting up charge voltage value
  2. Set Stop Voltage:in normal display voltage state,press the button will display stoping charge voltage;long press the button for 3s the digital tube will flash;you can start or stop button to set stoping charge voltage value
  3. Factory Reset:in power on state press the start/stop button at the same time,digital tube will display 888;that represents factory reset settings.

What you will receive:

1 x DC12V-24V Lithium Battery Charge Control Protection Board /w LED Display XH-M603
