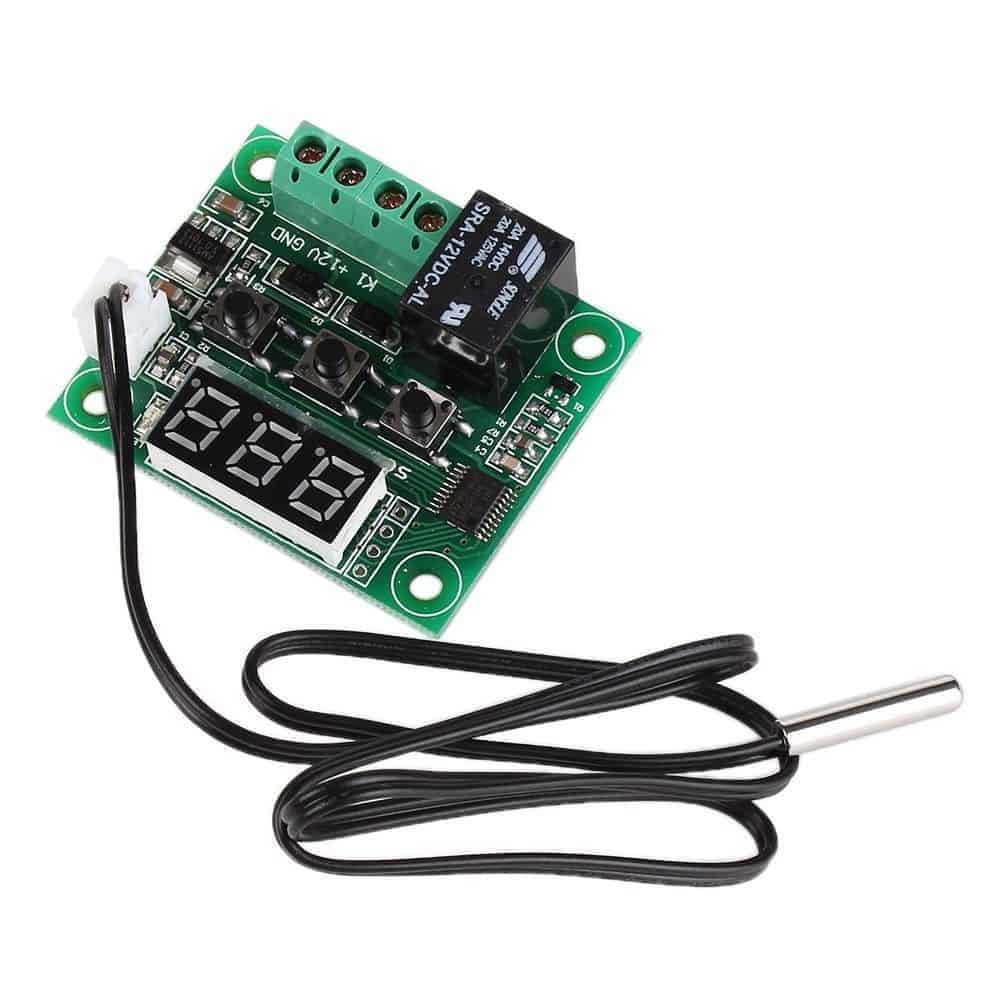

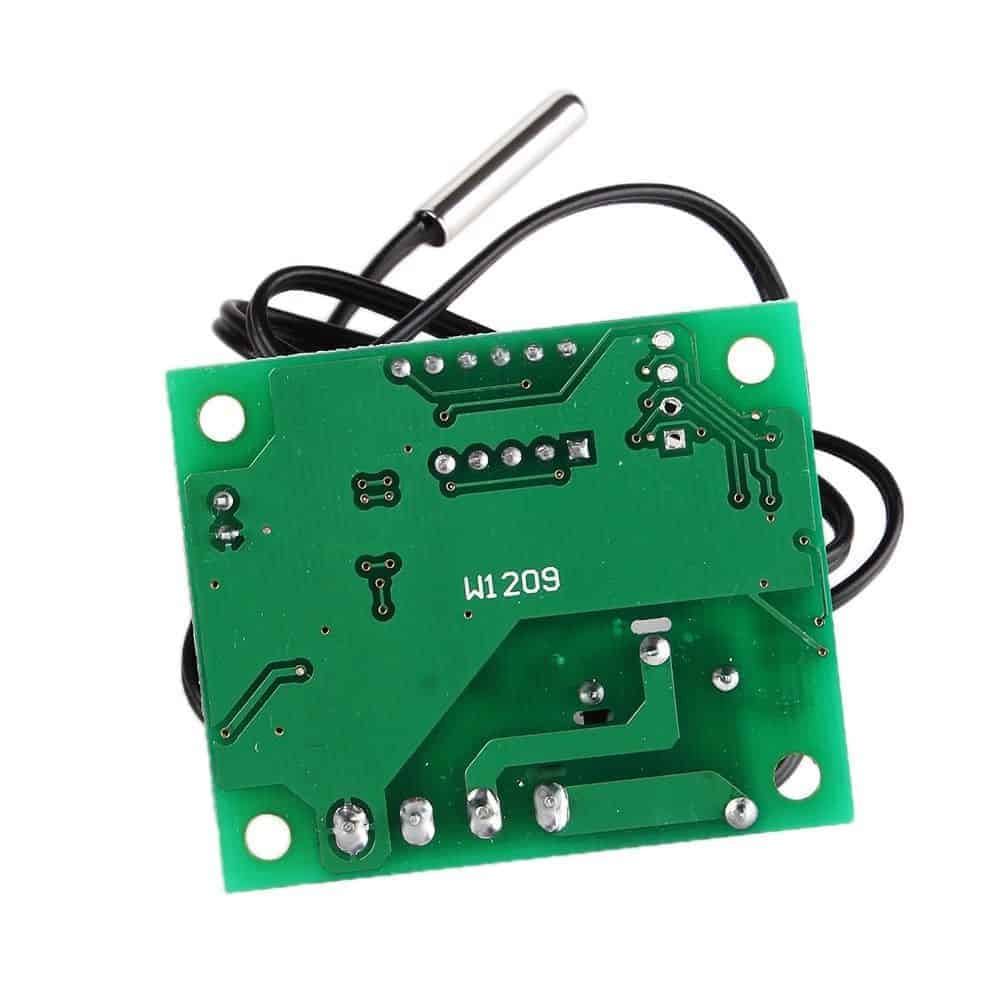

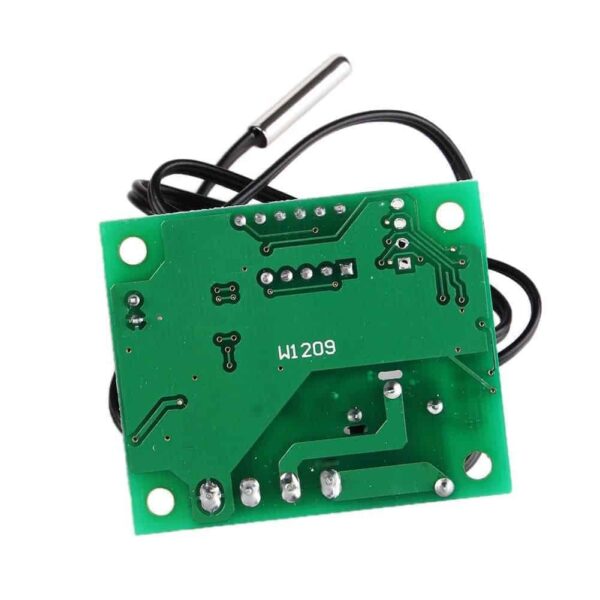

W1209 DC 12V -50 to 110 Temperature Control Switch Thermostat Arduino Raspberry

Specifications:

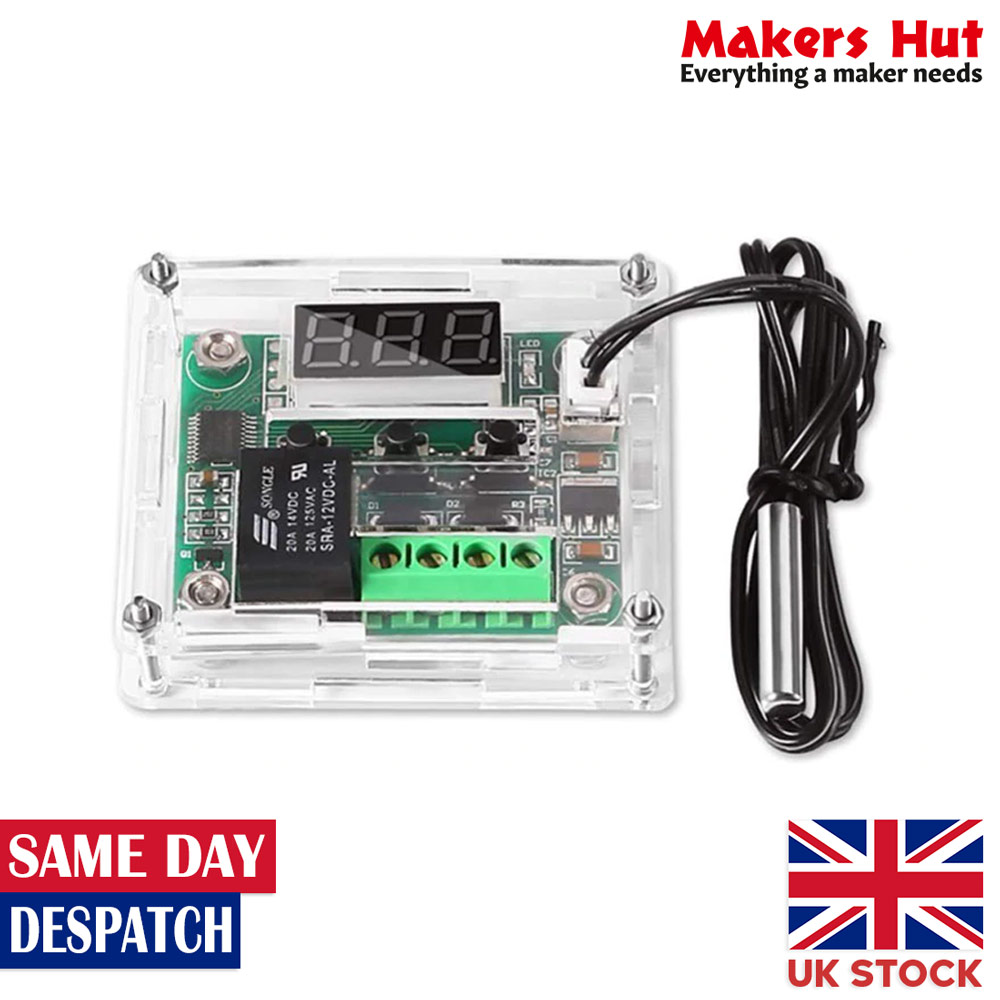

W1209 Temperature control switch with plastic case.

Specifications:

Supply voltage: DC 12V
Static Current: 35MA, attract current 65MA
Output Voltage: DC 12V

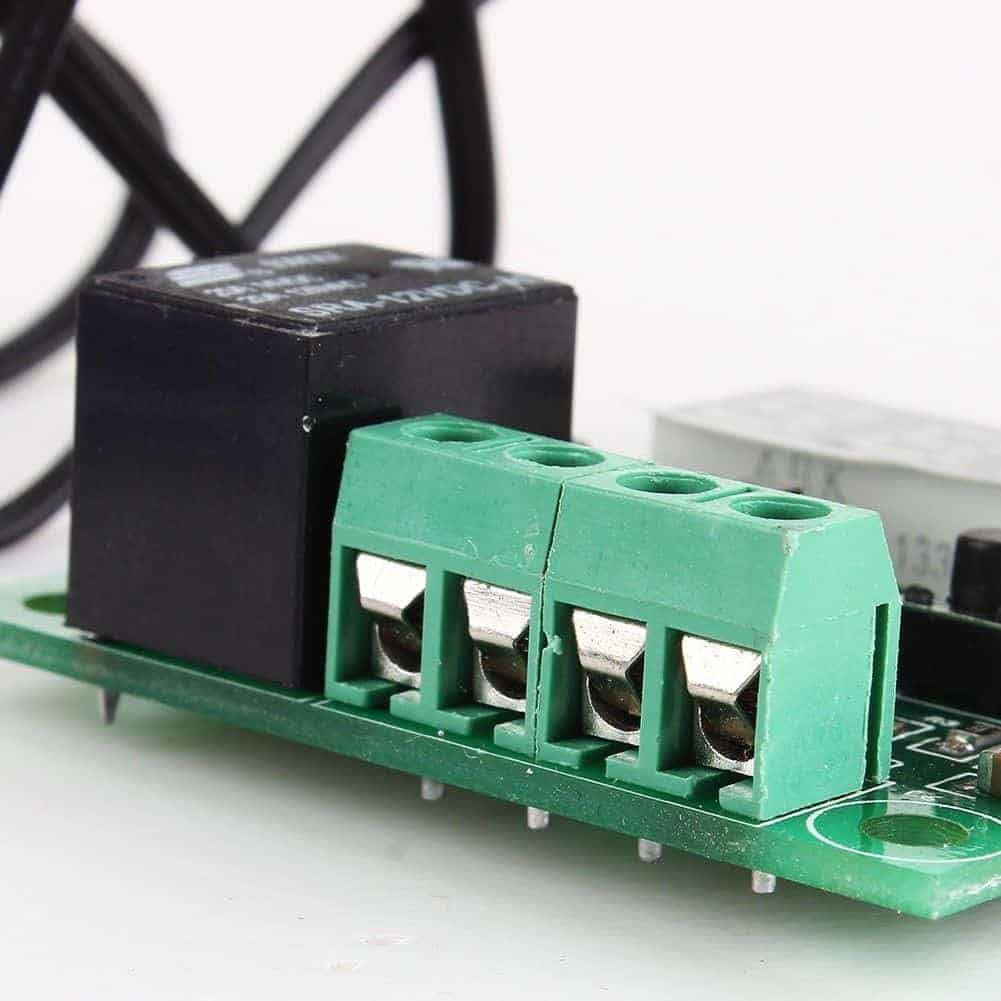

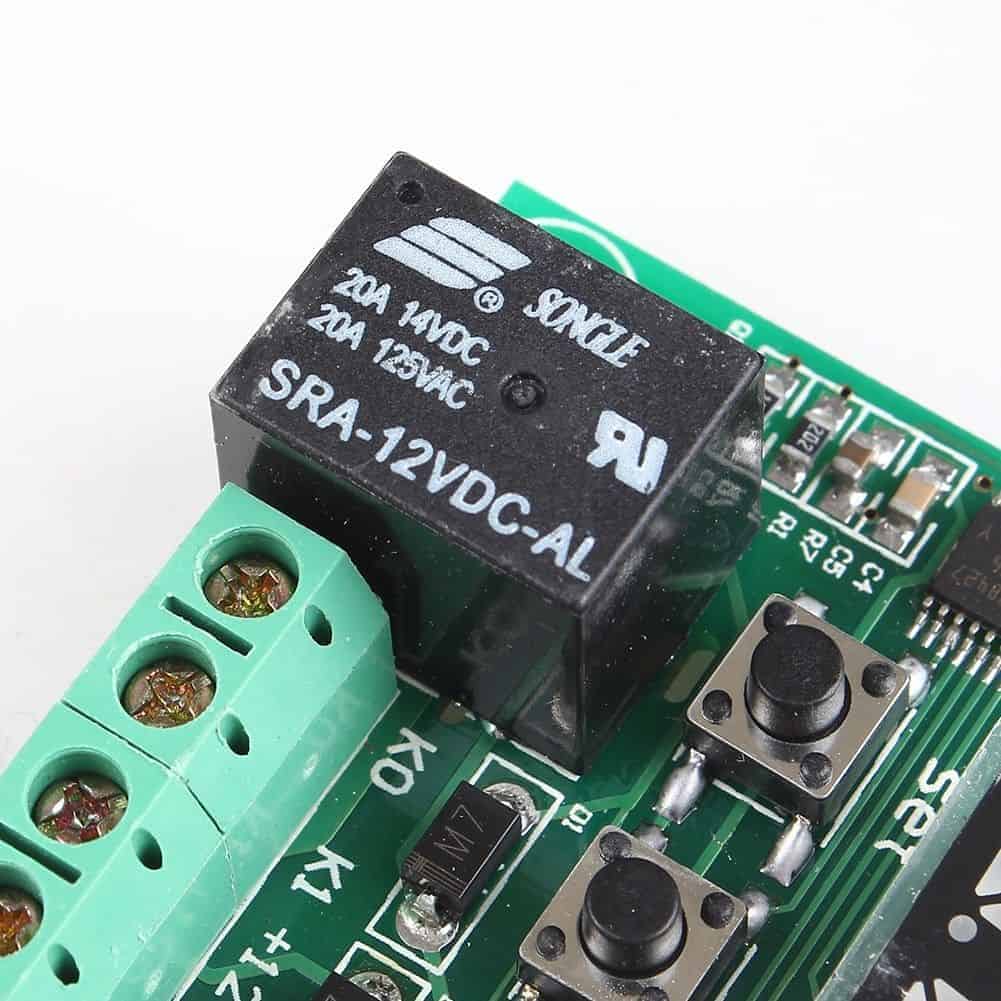

Output Power: 10A relay
Measurement Input: NTC (10K 0.5%) Waterproof Sensor
Environmental Requirements: -10 ~ 60 C, Humidity 20% ~ 85%
Dimensions: 48 x 40mm
Cable Length: About 52 cm
Temperature Control Mode: ON / OFF
Temperature Range: -50 ~ 110 C
Control Accuracy: 0.1 C
Hysteresis Accuracy: 0.1 C
Refresh Rate: 0.5S
High Temperature Protection: 0 ~ 110 C
Resolution: When temperature is 0.1 C, the resolution is -9.9~99.9, other temperature segment is 1 C

Package Includes:

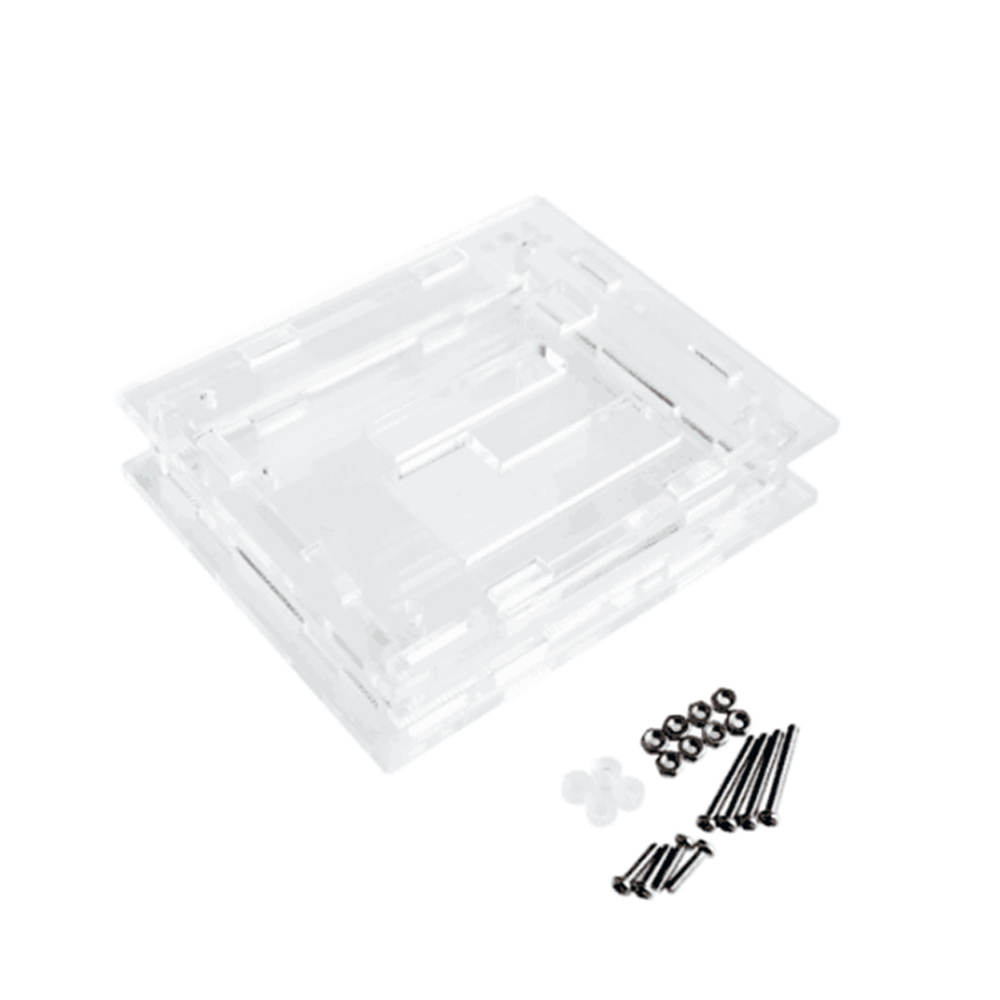

1 x Digital Temperature Control Switch with Cable and Plastic Case
