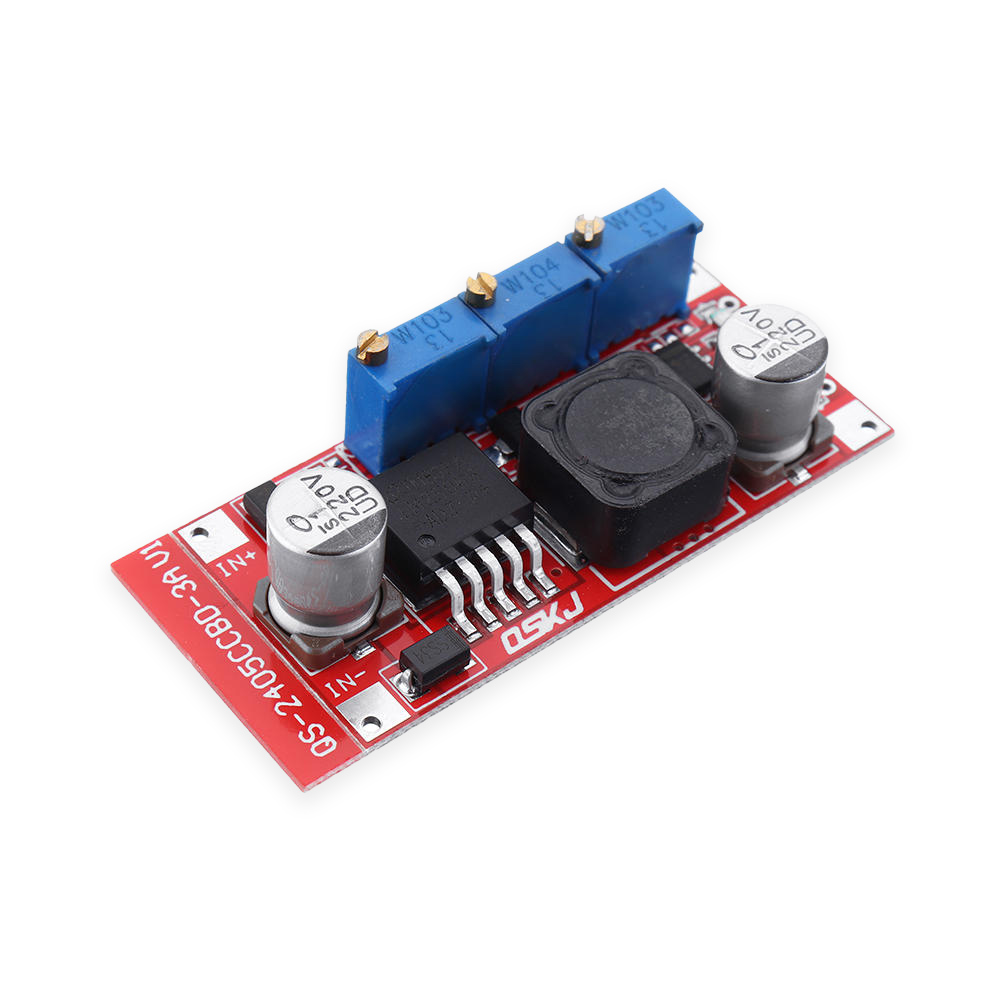

LM2596S DC-DC Step Down Module Adjustable LM2596 Constant Current Voltage

£3.99

6 in stock

LM2596S DC-DC Step Down Module Adjustable LM2596 Constant Current Voltage

£3.99

SKU: ELE-COM-083 Category: Components and Sensors Tags: Constant Current Voltage, DC-DC, LM2596, LM2596S, Step down
Product Categories
  • 3D Printer
    • Controllers
    • Filament
    • Kits
    • Parts & Accessories
  • Arduino
    • Boards
    • Kits
    • Shields and Accessories
  • Cooling
    • Fan Guards
    • Fans
    • Heatsinks
  • Drone
  • Drones and More
    • Accessories
    • Antennas
    • Components
    • Drones
    • Kits
  • Electronics
    • Access Control
    • Cable
    • Components and Sensors
    • DIY Kits
  • LED Lighting
    • Accessories
    • Beads
    • Bulbs
    • Controllers
    • DMX
    • Downlights
    • Panel
    • Strips
  • Mechanical
    • Bearing
    • Bearings
      • Ball
      • Bushings
      • Flange
      • Grooved
      • Linear
      • Miniature
      • Needle
      • Self Aligning
      • Self Lube
      • Taper Roller
    • Fluid Transfer
    • Magnets
    • Mounts and Supports
    • Pulleys and Coupler
    • Rails and Carriage
    • Rods
    • Rods and Carriages
    • Timing Belt
  • Microcontrollers
  • Miscellaneous
  • Motors
    • Accessories
    • Coreless
    • DC Motors
    • Drivers
    • Spindle
    • Step
  • Other
  • Power Supply
  • Raspberry Pi
    • Boards and Kits
    • Shields and Accessories
  • Robotics
    • Components
    • Kits
  • Uncategorised
  • Virtual Reality
  • Description

Description

Input voltage: 7-35V

Output voltage: 1.25-30V adjustable

Dropout voltage: input voltage must be higher than output voltage of 2V

Output current: 0-3A, 3A maximum

Output power: 15W(If the temperature is high, please strengthen heat dissipation)

Conversion efficiency: 92% maximum (the higher the output voltage, the higher the efficiency)

Turn lamp current: constant current value * (1% -100%), turn lamp current and constant current value linkage, such as constant current value is 3A, turn the lamp current is set to 0.1 times that of the constant current (0.1 * 3 A = 0.1A), when the value of the constant current regulation into 2A, turn lamp current is 0.1 times that of the constant current (0.1 * 2A = 0.2A). The default shipment has to adjust to the 0.1 times

Indicator light:

constant current cc indicator light red,

charging indicator light red,

full-charged indicator light blue

The output ripple: 20M bandwidth (for reference only)

Input 12V output 5V 3A 60mV (MAX)

Working temperature: industrial grade (- 40 — 85 celsius degree) (when temperature is more than 40 degrees, please reduce power, or enhance heat dissipation)

Full load temperature rise: 45 celsius degree

No-load current: 10mA typical (12V to 4.2V)

Load regulation: ± 1%

Voltage regulation: ± 0.5%

Dynamic response speed: 5% 200uS

Output short circuit protection: yes, constant current (current setting constant current value)

Connection mode: can lead directly welding on the PCB

What you will receive

1 x Adjustable LM2596S module
