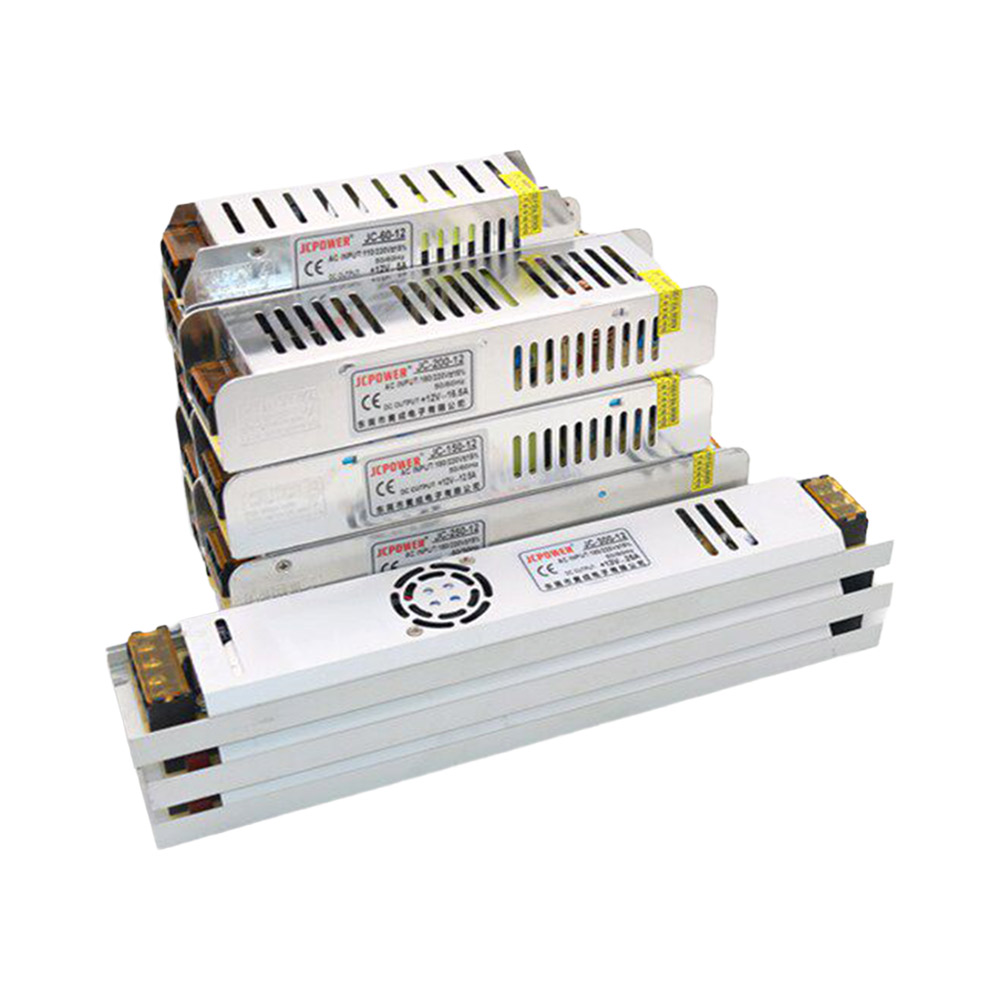

12V Long Strip Slim Switching LED Driver Power Supply Transformer

Description:

12V Long Strip Slim Switching LED Driver Power Supply Transformer

Features:

Product Name: 12V Long Switching Power Supply
Insulation Pressure Resistance: 5MΩmin(500VDC)
Output Voltage Accuracy: 5%-10% (Main circuit can be fine-tuned)
Ambient Temperature: -25-55°C
Shell Material: Metal Case / Aluminum Base
Relative Temperature: Ambient Temperature<85% No Frost

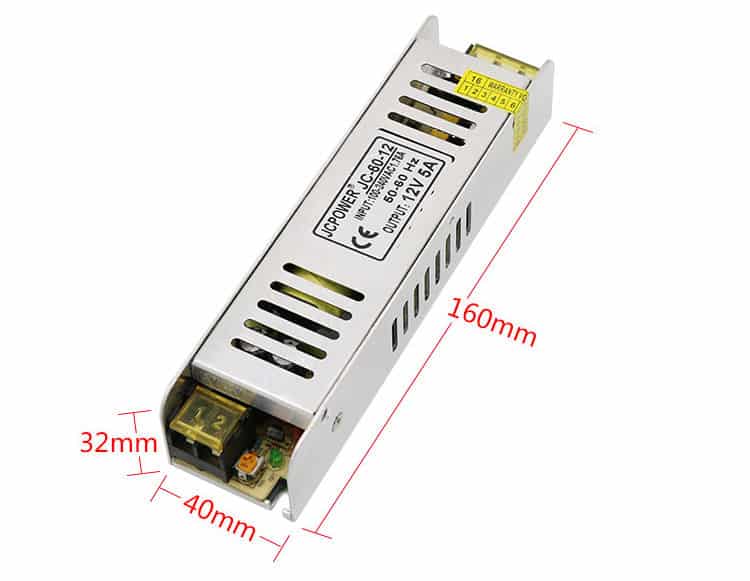

12V 5A 60W

Product Size: 160x40x32mm
Input Voltage: 100-220VAC
Output Current: 5A
Output Power: 60W

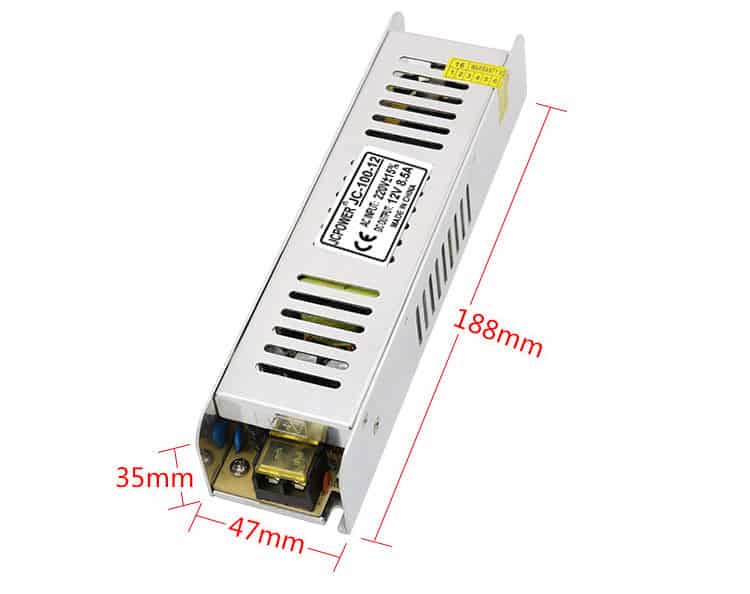

12V 8.5A 102W

Product Size: 188x47x35mm
Input Voltage: 100-220VAC
Output Current: 8.5A
Output Power: 102W

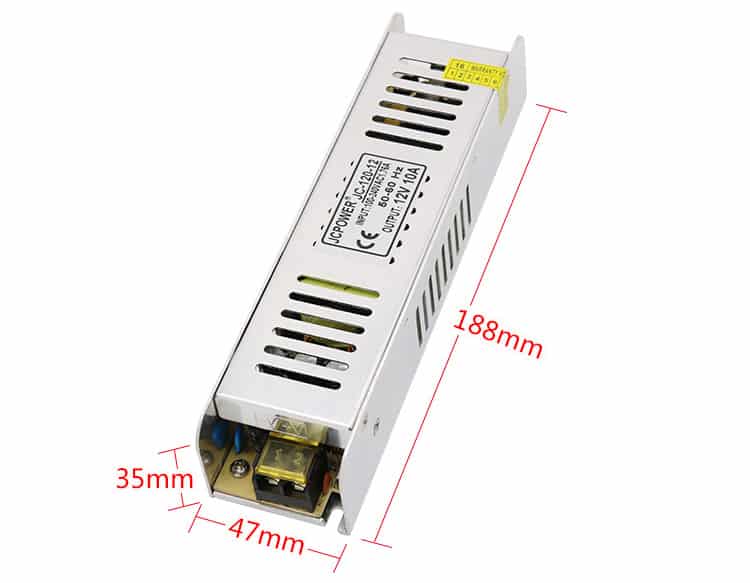

12V 10A 120W

Product Size: 188x47x35mm
Input Voltage: 100-220VAC
Output Current: 10A
Output Power: 120W

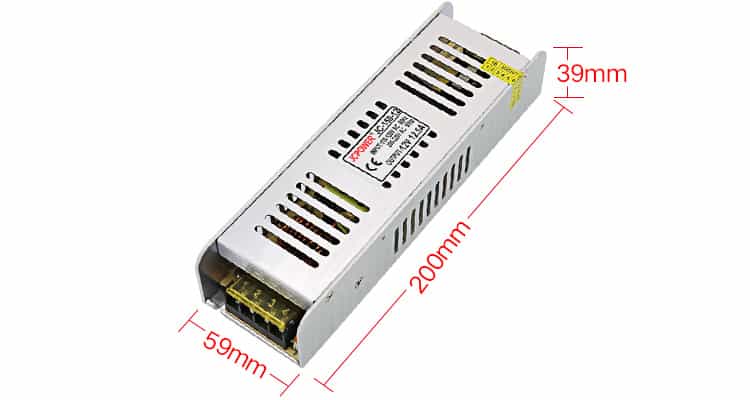

12V 12.5A 150W

Product Size: 200x59x39mm
Input Voltage: 100-220VAC
Output Current: 12.5A
Output Power: 150W

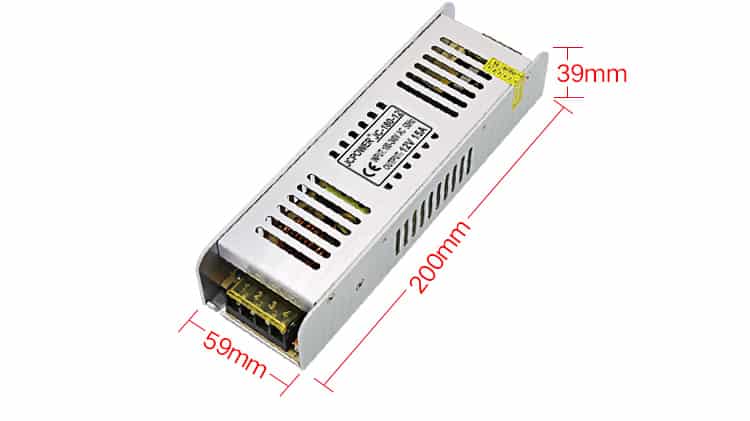

12V 15A 180W

Product Size: 200x59x39mm
Input Voltage: 100-220VAC
Output Current: 15A
Output Power: 180W

12V 16.5A 200W

Product Size: 310×52.5×22.5mm
Input Voltage: 220V±15%
Output Current: 16.5A
Output Power: 200W

12V 20A 240W

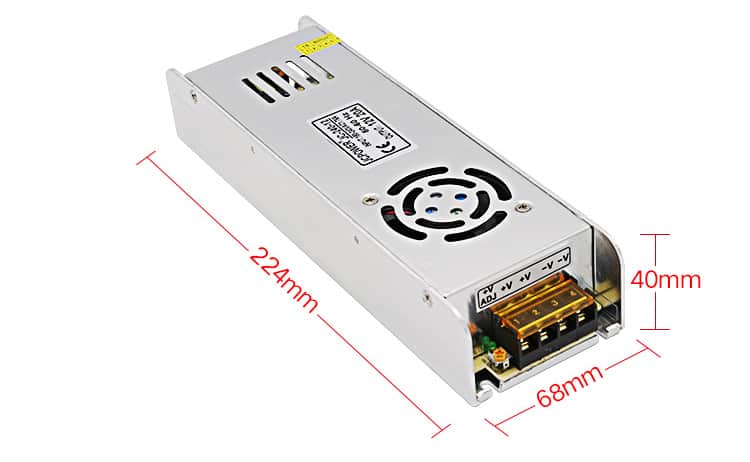

Product Size: 224x68x40mm
Input Voltage: 180-240VAC
Output Current: 20A
Output Power: 240W

12V 25A 300W

Product Size: 310×52.5×22.5mm
Input Voltage: 220V±15%
Output Current: 25A
Output Power: 300W

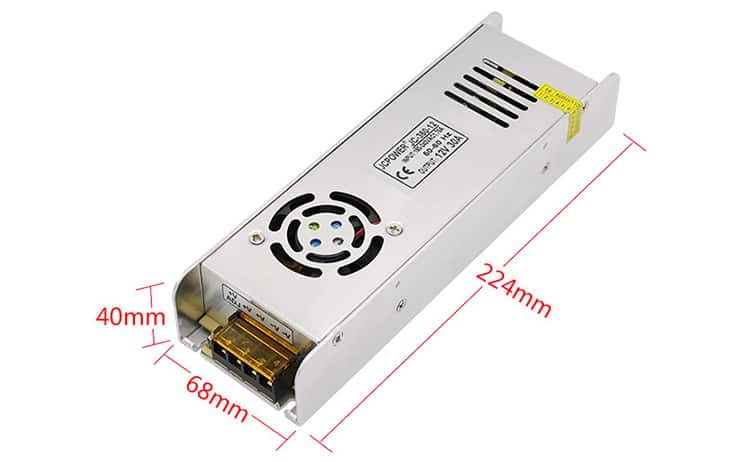

12V 30A 360W

Product Size: 224x68x40mm
Input Voltage: 180-240VAC
Output Current: 30A
Output Power: 360W



Please select capacity you would like
