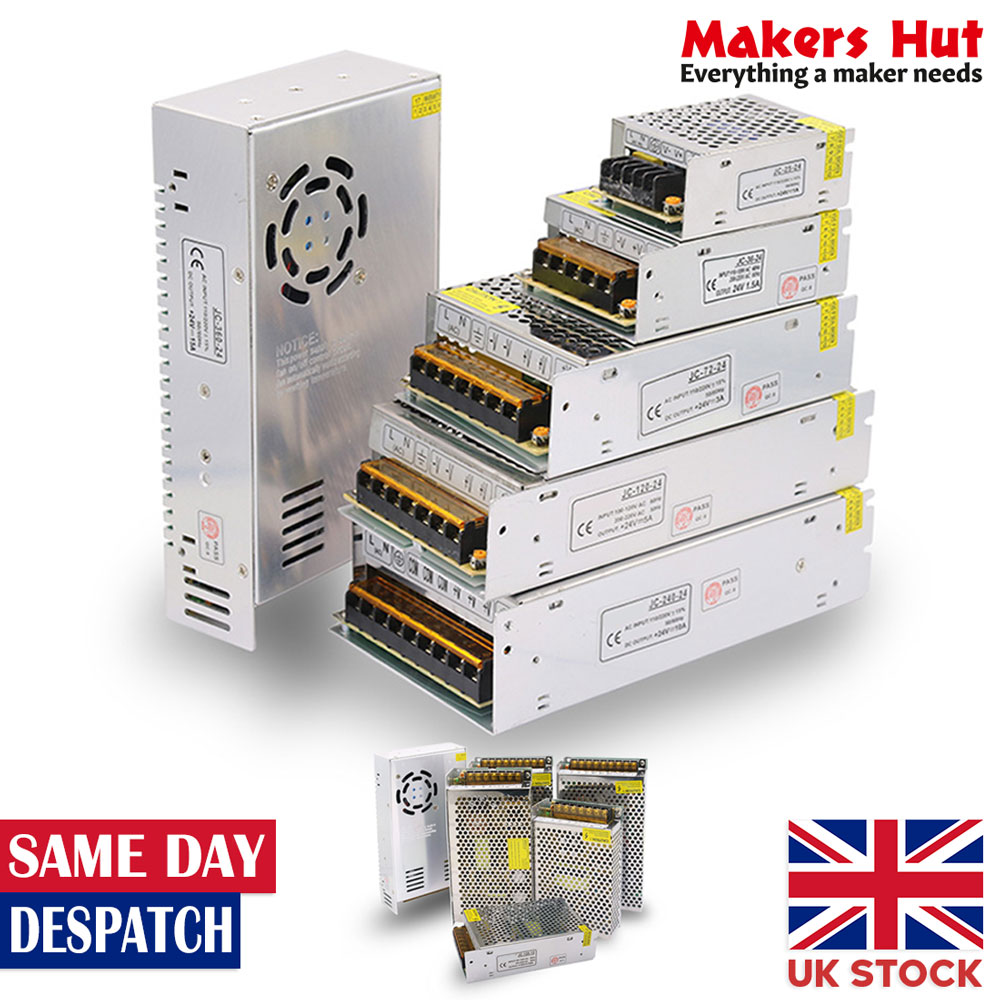

3.3V 5V 9V 12V 18V 24V 36V 48V Switching Power Supply For WS2812B WS2811 WS2813 WS2801 LED Strip Light, 3D Printer, CCTV
Specification:
- Output: 3.3V 5V 9V 12V 18V 24V 36V 48V – please select voltage and required amps
- Case Material: Metal;
- Item Name: Switching Power Supply;
- Power Type: Constant Voltage
- AC 220-240V (most models have 110V switch, please ask before purchasing)
- CE Certificates available
Features:
- Automatic protection for short circuit, over voltage, over current and high temperature.
- It is widely used in CCTV, Radio, 3D printer, LED display screen, industrial controls, broadcasting, desktop hobby, network, CNC, etc.
- Screw Terminals for connecting in and out cables
Dimensions:
| 3V 10A 30W | 160x100x42mm |
| 3V 20A 60W | 200x100x42mm |
| 3V 40A 120W | 200x110x50mm |
| 5V 2A 10W | 70x40x30mm |
| 5V 3A 15W | 85x60x33mm |
| 5V 4A 20W | 85x60x33mm |
| 5V 5A 25W | 110x80x36mm |
| 5V 6A 30W | 110x80x36mm |
| 5V 10A 50W | 160x100x42mm |
| 5V 12A 60W | 160x100x42mm |
| 5V 20A 100W | 200x100x42mm |
| 5V 30A 150W | 200x100x42mm |
| 5V 40A 200W | 200x110x50mm |
| 5V 60A 300W | 215x115x50mm |
| 5V 70A 350W | 215x115x50mm |
| 9V 5A 45W | 110x78x36mm |
| 9V 30A 270W | 215x115x50mm |
| 12V 1.25A 15W | 70x40x30mm |
| 12V 2A 24W | 85x60x33mm |
| 12V 3A 36W | 110x80x36mm |
| 12V 5A 60W | 110x78x36mm |
| 12V 6.5A 78W | 160x100x42mm |
| 12V 10A 120W | 200x100x42mm |
| 12V 12.5A 150W | 200x100x42mm |
| 12V 20A 240W | 200x110x50mm |
| 12V 25A 300W | 200x110x50mm |
| 12V 30A 360W | 215x115x50mm |
| 12V 40A 480W | 240x125x65mm |
| 12V 60A 720W | 242x137x70mm |
| 18V 3A 54W | 160x100x42mm |
| 18V 20A 360W | 215x115x50mm |
| 24V 1A 24W | 85x60x33mm |
| 24V 2A 48W | 110x80x36mm |
| 24V 3A 72W | 160x100x42mm |
| 24V 5A 120W | 200x100x42mm |
| 24V 10A 240W | 200x110x50mm |
| 24V 15A 360W | 215x115x50mm |
| 24V 20A 480W | 240x125x65mm |
| 24V 25A 600W | 242x130x68mm |
| 24V 33A 800W | 205x135x65mm |
| 24V 40A 960W | 350x135x70mm |
| 36V 4.2A 150W | 200x100x42mm |
| 36V 5.5A 200W | 220x110x50mm |
| 36V 9.7A 350W | 215x115x50mm |
| 36V 10A 360W | 215x115x50mm |
| 36V 15A 540W | 240x125x65mm |
| 36V 16.7A 600W | 215x115x50mm |
| 48V 3A 144W | 200x100x42mm |
| 48V 5A 240W | 200x110x50mm |
| 48V 7.5A 360W | 215x115x50mm |
| 48V 8.3A 400W | 215x115x50mm |
| 48V 10A 480W | 240x125x65mm |
| 48V 12.5A 600W | 240x125x65mm |
| 48V 15A 720W | 240x125x65mm |
What you will receive:
1 x Switching Power Supply ( Please Select Required Size)
Please note the pictures are for illustration purposes only, if you want to know anything specific please do not hesitate to ask us before you purchase. Thanks
