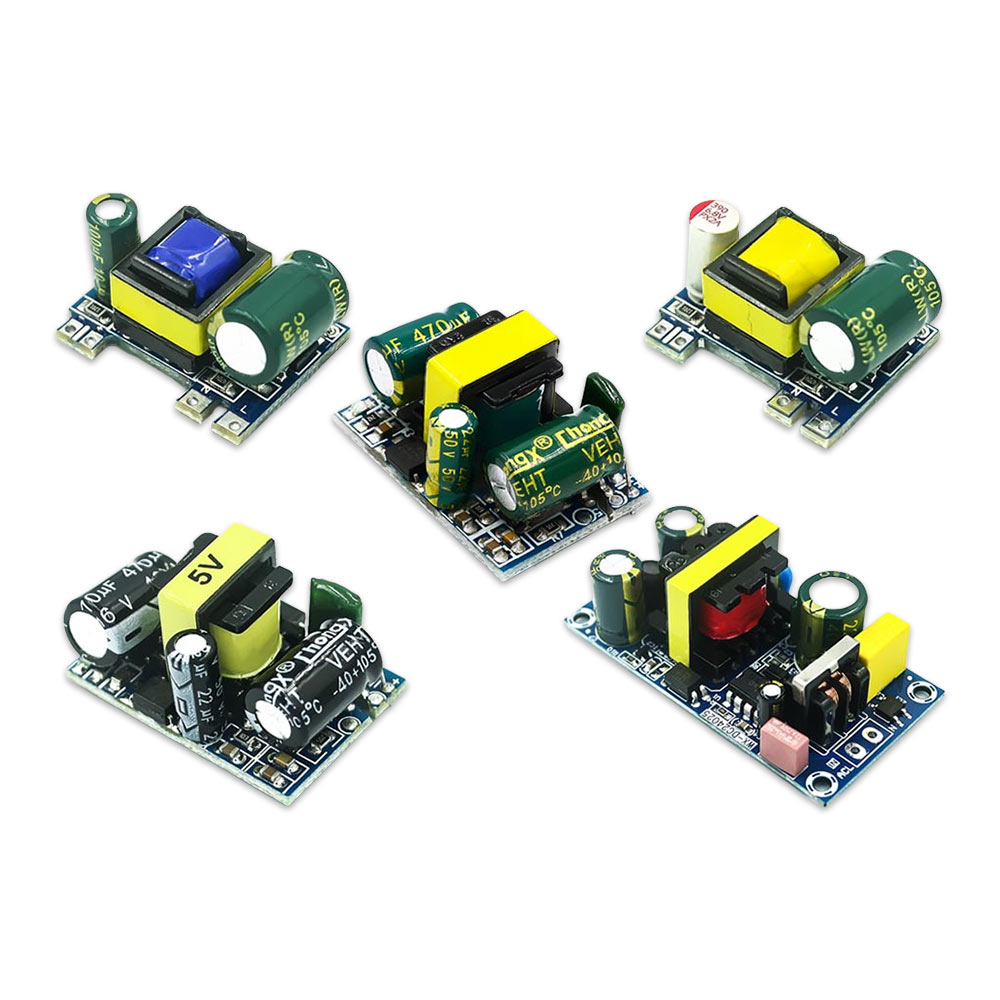

Precision 5V700mA(3.5W) / 12V2A Isolated Switching Power Supply

Description:

This power source for the isolation industrial-grade built-in power supply module, temperature protection, and short circuit protection, AC85 ~ 265 v input voltage, wide 431 precision voltage stability DC5V/12V output, with mounting holes, with input and output EMI filter circuit, small volume, stable performance, cost-effective.

Specifications:

5V 700mA (3.5W)

Output Characteristics: Multiple modules of the same voltage can be used in parallel,
To meet the needs of small space and high current
Output Voltage: 5V +-0.15V no load and full load, light load minus 0.1V,
Pick up when heavy duty, 50% of the load ripple 60mV
Output Current: 5V0mA-700mA, enter constant current operating mode at full load
Output Protection: overvoltage, overcurrent, over temperature, over power, short circuit protection, etc.
Input Voltage Range: AC50V-277V DC70V-390V
No-load Power: <0.05W Full load power: <4W
Operating Temperature: -20 degrees to 70 degrees
Output Power: 3.5W, efficiency is about 80%
Output Indicator Light: Green Light
Test Resistance: 7 ohms (4.9V) for 5V
Size: 23.6mm x 18.1mm
Weight: 6 grams

12V 300mA (3.5W)

Output Voltage: 12V -0.05+0.3V no load and full load, light load minus 0.1V,
Pick up when heavy duty, 50% of the load ripple 100mV
Output Characteristics: Multiple modules of the same voltage can be used in parallel,
To meet the needs of small space and high current
Output Protection: overvoltage, overcurrent, over temperature, over power, short circuit protection, etc.
Output Current: 12V0mA-300mA, enter constant current operating mode at full load
Input voltage range: AC50V-277V DC70V-390V
No-load Power: <0.05W Full load power: <4W *Output indicator light: green light
Test Resistance: 40 ohms for 12V (12V)
Size: 23.4mm X 18.3mm
Weight: 6 grams
Output Power: 3.5W, efficiency is about 80%

12V 2A (24W25W)

Power Protection: overload, short circuit, and over temperature protection are all available
Voltage Input: AC100V-265V
Frequency Input: 50HZ-60HZ
Output Voltage: DC12V
Output Current: rated 2A peak 4A protection
Output Power: 24W
Size: 69.2mm x 36.2mm
Weight: 45g

12V 450mA (5.4W)

Power Protection: overload, short circuit, and over temperature protection are all available
Size: 30.1mm*20.6mm
Weight: 11 grams

24V 1A (24W25W)

Power Protection: overload, short circuit, and over temperature protection are all available
Voltage Input: AC100V-265V
Frequency Input: 50HZ-60HZ
Output Voltage: DC24V
Output Current: Rated 1A Peak 4A Protection
Output Power: 24W
Size: 69.2mm x 36.2mm
Weight: 45g
