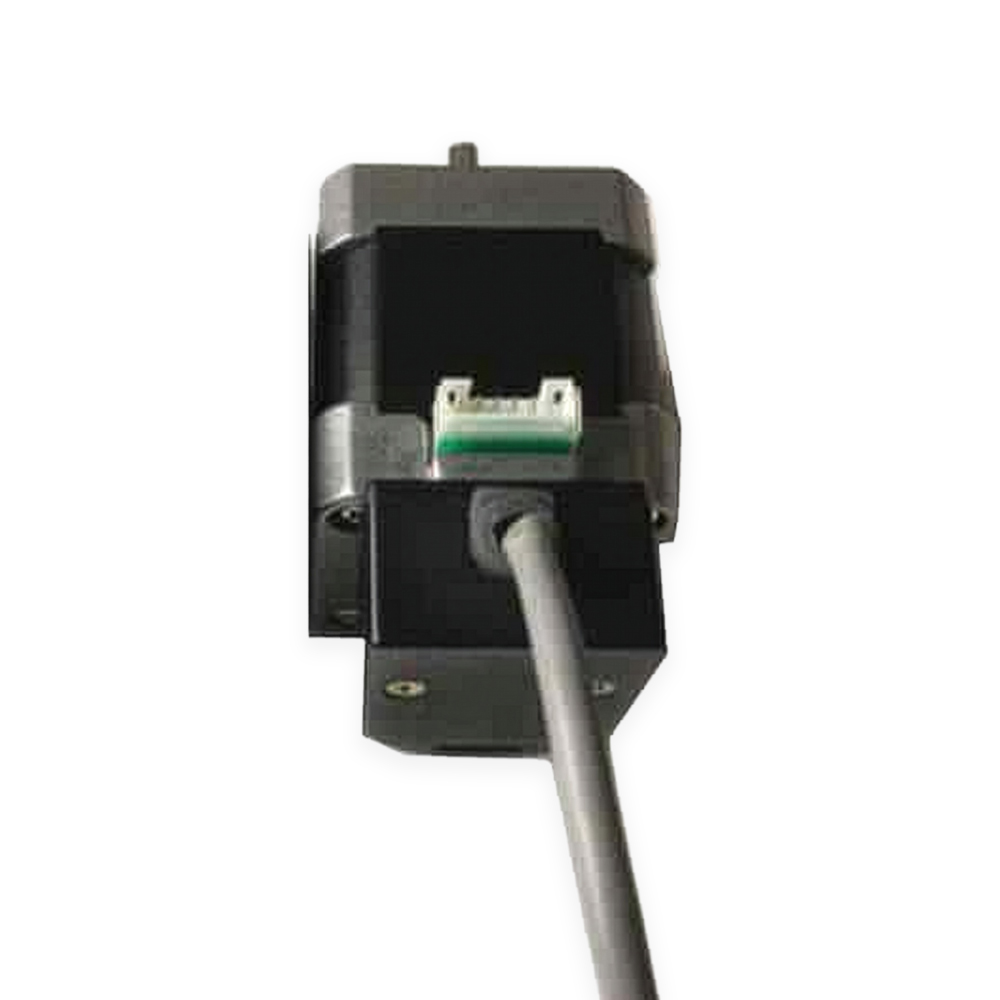

Nema 17 Bipolar Stepper 1.8deg 12v 1.2A 0.44Nm 42x42x48mm with Rotary Encoder

£43.99

4 in stock

Nema 17 Bipolar Stepper 1.8deg 12v 1.2A 0.44Nm 42x42x48mm with Rotary Encoder

£43.99

SKU: MOT-STE-025 Category: Step Tags: Bipolar Stepper, nema17, Rotary Encoder
Product Categories
  • 3D Printer
    • Controllers
    • Filament
    • Kits
    • Parts & Accessories
  • Arduino
    • Boards
    • Kits
    • Shields and Accessories
  • Cooling
    • Fan Guards
    • Fans
    • Heatsinks
  • Drone
  • Drones and More
    • Accessories
    • Antennas
    • Components
    • Drones
    • Kits
  • Electronics
    • Access Control
    • Cable
    • Components and Sensors
    • DIY Kits
  • LED Lighting
    • Accessories
    • Beads
    • Bulbs
    • Controllers
    • DMX
    • Downlights
    • Panel
    • Strips
  • Mechanical
    • Bearing
    • Bearings
      • Ball
      • Bushings
      • Flange
      • Grooved
      • Linear
      • Miniature
      • Needle
      • Self Aligning
      • Self Lube
      • Taper Roller
    • Fluid Transfer
    • Magnets
    • Mounts and Supports
    • Pulleys and Coupler
    • Rails and Carriage
    • Rods
    • Rods and Carriages
    • Timing Belt
  • Microcontrollers
  • Miscellaneous
  • Motors
    • Accessories
    • Coreless
    • DC Motors
    • Drivers
    • Spindle
    • Step
  • Other
  • Power Supply
  • Raspberry Pi
    • Boards and Kits
    • Shields and Accessories
  • Robotics
    • Components
    • Kits
  • Uncategorised
  • Virtual Reality
  • Description
  • Additional information

Description:

This hybrid bipolar Nema 17 stepper motor with 1.8 degree step angle (200 Steps/Revolution).

Specifications:

Manufacturer Part Number: 17HS5005-20B
Motor Type: Bipolar Stepper
Step Angle: 1.8 degree
Rated Voltage: 3.36V
Current per Phase: 1.68A
Resistance per Phase: 1.65-10%
Inductance/Phase: 3.8 mH
Holding Torque: 0.44 Nm (62 oz.in)
Rotor Inertia: 82 g-cm
Weight: 0.38 Kg
Shaft Diameter: 5mm

Rotary Incremental Encoder 1000 Line

Application: Matrix reading, with high impact resistance, strength capability to error correction high reliability, and installation sizes small, wide range of resolution, do not require the signal conditioning. Assembly requirements are less, and has compensation ability of motor shaft radial and axial shifting, widely used in the DC motor, with a multi-aperture for selection.

Electrical specification:

Voltage Output signal Current

Consumption

Output

Waveform

Rise

Time Tr

Fall

Time Tf

Response

Frequency

Insulation

Resistance

5V High level Low level <65mA

No-Load

Square 200ns 50ns 0-10kHz >100
 85%Vcc  0.3

Mechanical spec:

Max speed r/min Starting torque Axis maximum load Impact Anti-vibration
2400 <0.05Nm Radial 25 N Axial 15N 50G/11ms 10G 10-2000Hz
Moment inertia Work Temperature Storage Temperature Protection Degree Weight
4 x 10.-8kgm -40~85ºC -40~85ºC IP50 50g


Output phase shift

Connections:

Shielded cable wiring definition
Signal A A/ B B/ Z Z/ Vcc 0V
L circuits Green Brown White Grey Yellow Orange Red Black
T/C circuits Green White Yellow Red Black
Output channels Flat cable connection definition
A B 0V A Vcc B
A B Z 0V Z A Vcc B
A B Z A/ B/ Z/ 0V Vcc A A/ B/ B Z Z/

Note: The red defined as 0V.

What you will receive:

1 x Nema17 Stepper Motor with Encoder
1 x Connector cable

Weight 400 g
