Vibrating Mini Motor Disc – Adafruit – Haptic Feedback

Description:

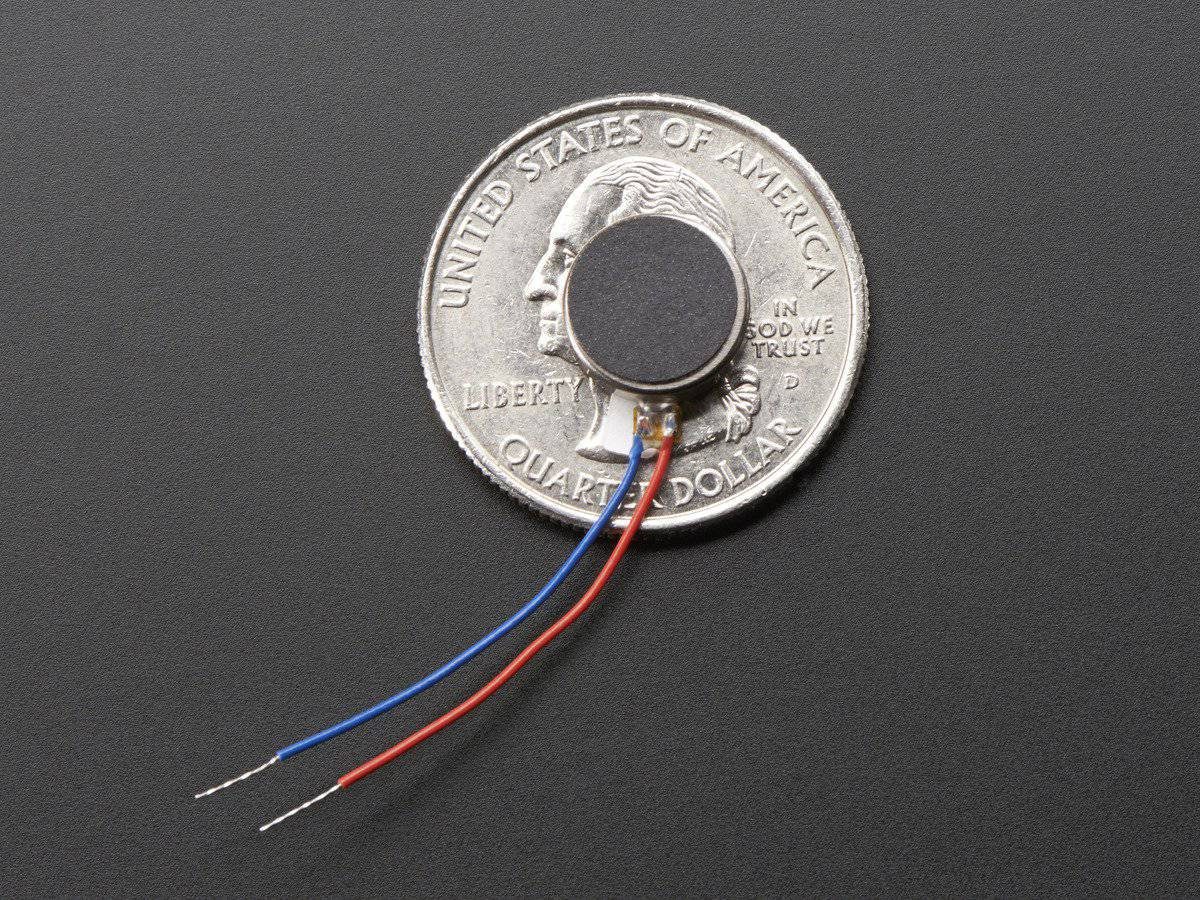

*BZZZZZZZZZZ* Feel that! That’s your little buzzing motor, and for any haptic feedback project you’ll want to pick up a few of them. These vibe motors are tiny discs, completely sealed up so they’re easy to use and embed.

Two wires are used to control/power the vibe. Simply provide power from a battery or microcontroller pin (red is positive, blue is negative) and it will buzz away. Works from 2V up to 5V, higher voltages result in more current draw but also a stronger vibration.

If you want to reduce the current draw/strength (for example, to control it directly from an Arduino pin) try putting a resistor (100 to 1000 ohms) in series. For full power control, a small PN2222 transistor can control a motor easily, some experimentation may be required!

Technical Details:

Dimension: 10mm diameter, 2.7mm thick
Voltage: 2V – 5V
5V Current Draw: 100mA,
4V Current Draw: 80mA,
3V Current Draw: 60mA,
2V Current Draw: 40mA
11000 RPM at 5V
Weight: 0.9 gram

What you will receive:

1 x Vibrating Mini Motor Disc
