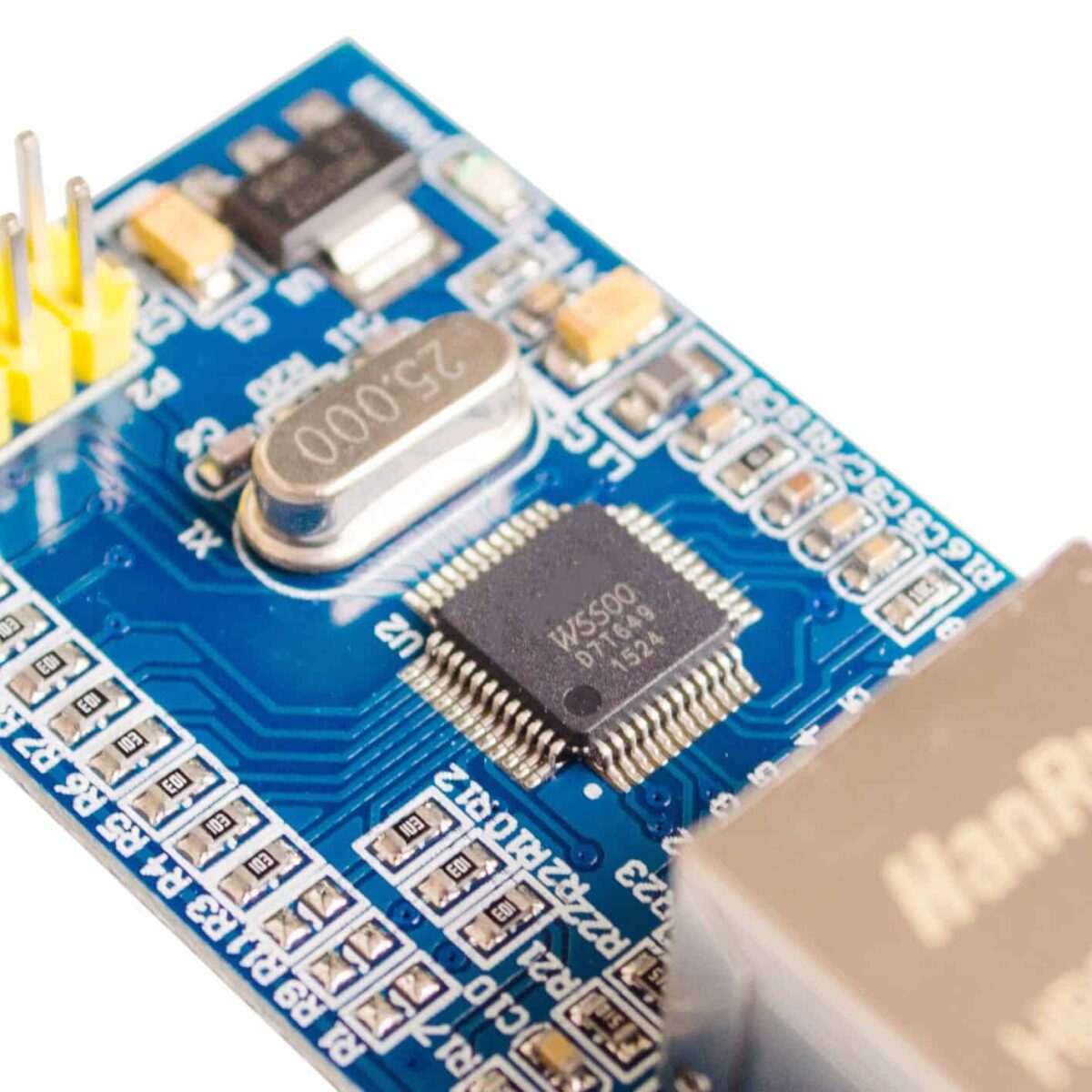

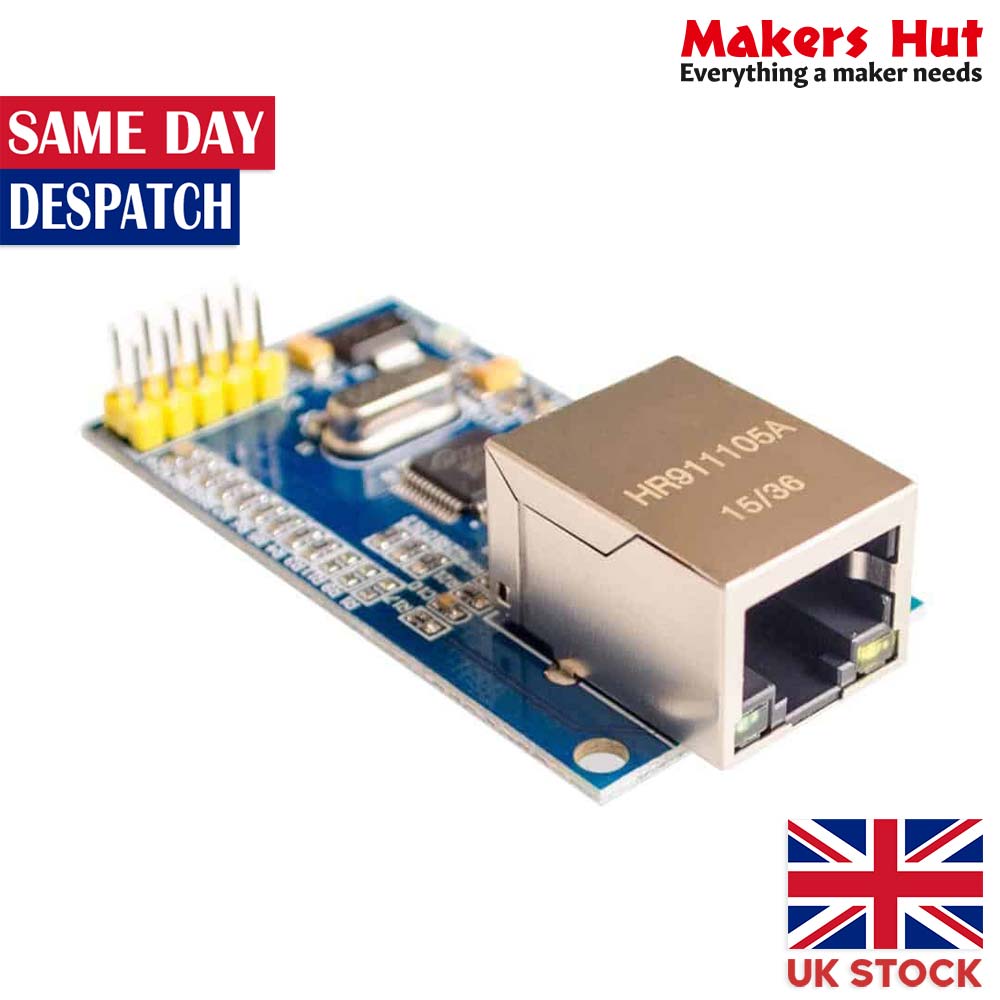

W5500 Ethernet network module hardware TCP / IP 51 / STM32 microcontroller program over W5100

£7.49

7 in stock

W5500 Ethernet network module hardware TCP / IP 51 / STM32 microcontroller program over W5100

£7.49

SKU: ELE-COM-091 Category: Components and Sensors Tags: Ethernet network module, hardware, microcontroller program, STM32, W5100, W5500
Product Categories
  • 3D Printer
    • Controllers
    • Filament
    • Kits
    • Parts & Accessories
  • Arduino
    • Boards
    • Kits
    • Shields and Accessories
  • Cooling
    • Fan Guards
    • Fans
    • Heatsinks
  • Drone
  • Drones and More
    • Accessories
    • Antennas
    • Components
    • Drones
    • Kits
  • Electronics
    • Access Control
    • Cable
    • Components and Sensors
    • DIY Kits
  • LED Lighting
    • Accessories
    • Beads
    • Bulbs
    • Controllers
    • DMX
    • Downlights
    • Panel
    • Strips
  • Mechanical
    • Bearing
    • Bearings
      • Ball
      • Bushings
      • Flange
      • Grooved
      • Linear
      • Miniature
      • Needle
      • Self Aligning
      • Self Lube
      • Taper Roller
    • Fluid Transfer
    • Magnets
    • Mounts and Supports
    • Pulleys and Coupler
    • Rails and Carriage
    • Rods
    • Rods and Carriages
    • Timing Belt
  • Microcontrollers
  • Miscellaneous
  • Motors
    • Accessories
    • Coreless
    • DC Motors
    • Drivers
    • Spindle
    • Step
  • Other
  • Power Supply
  • Raspberry Pi
    • Boards and Kits
    • Shields and Accessories
  • Robotics
    • Components
    • Kits
  • Uncategorised
  • Virtual Reality
  • Description
  • Additional information

Description:

W5500 Ethernet Network Modules TCP/IP 51/STM32 SPI Interface For Arduino D

Supports Hardwired TCP/IP Protocols : TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
Supports 8 independent sockets simultaneously
Supports Power down mode
Supports Wake on LAN over UDP
Supports High Speed Serial Peripheral Interfac(SPI MODE 0, 3)
Internal 32Kbytes Memory for TX/RX Buffers
10BaseT/100BaseTX Ethernet PHY embedded
Supports Auto Negotiation (Full and half duplex, 10 and 100-based )
Not supports IP Fragmentation
3.3V operation with 5V I/O signal tolerance
LED outputs (Full/Half duplex, Link, Speed, Active)
48 Pin LQFP Lead-Free Package (7x7mm, 0.5mm pitch)

Specifications:

Chip Type: W5500
Supports both: 3.3V & 5V.
Hardwired TCP/IP Protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
10BaseT/100BaseTX Ethernet PHY embedded
Supports: Automatic Response (Full Duplex / Half Duplex Mode)
Supports: 8 independent sockets simultaneously
Internal 32Kbytes Memory for: Tx/Rx Buffers
Power off Mode: Support
Network Wake: Support
SPI Interface: (SPI MODE 0, 3),convenient connection with MCU
Size: 55mm x 28mm
Color: Blue

What will you receive:
1 x SPI to Ethernet/TCP/IP W5500 Module

Weight 20 g
