Description:

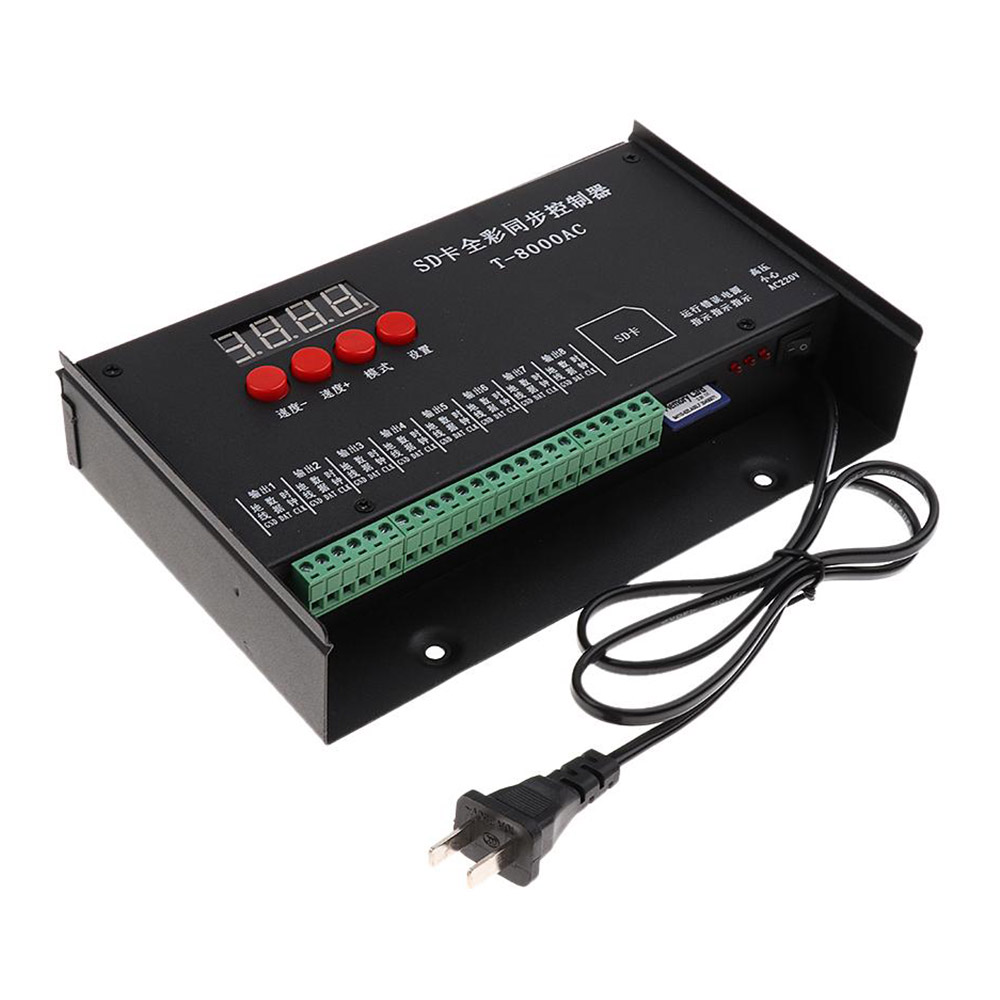

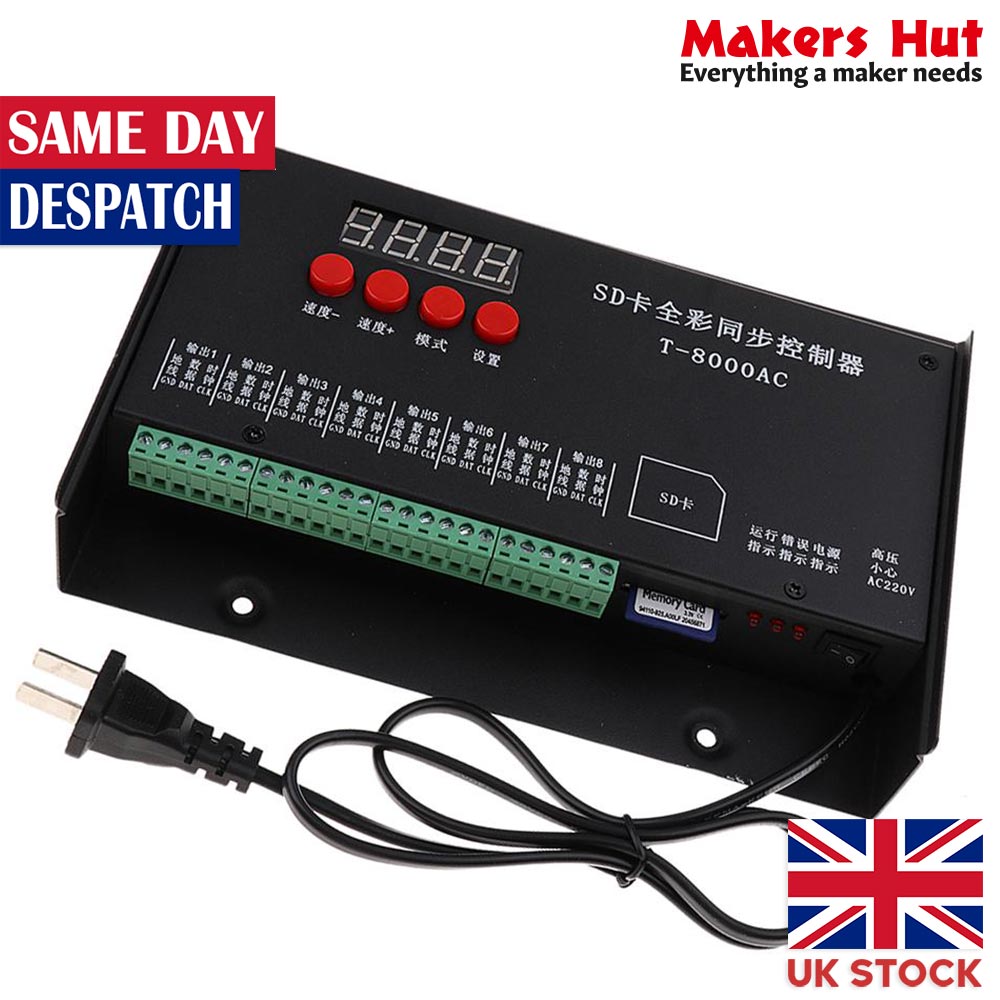

- 8 port off-line T-8000AC led sd card pixel controller,SPI(TTL)signal output,can control max 1024*8ports=8192 pixels
- Eight-port offline T-8000AC manual
- T-8000AC system features
- 32—256 Gray, Gamma correction processing software
- Combined with video encoding and broadcasting software LedEdit, support rules and specific-shaped handle, and other points, line lights source
- Eight-port output,port 512/1024 lights
- Playback content stored in SD card, can stand-alone play, also multiple cascade
Note: T-8000AC port 512 lights, the playback speed of up to 30 frames / sec, the port more than 512 lights, the frame rate with the increase in the number of lights automatically reduced. When multiple cascade, only the first controller buttons work, followed by sub-control buttons are automatically shielded, at this point can adjust playback file and speed through the first controller
Note: At this time the first controller’s buttons can control all sub-control keys
Support chips
| Chip model | Control mode for software | Pixels(MAX) | Note |
| LPD6803,D705,1101,6909, 6912 | T-8000-6803 | 8192 pixels | |
| LPD8806,LPD8809 | T-8000-8806 | 8192 pixels | |
| TM1803,TM1804,TM1809,TM1812 | T-8000-TM | 8192 pixels | TM1804 and TM1809 are divided into high and low |
| TM1903，TM1904，TM1909，TM1912 | T-8000-TM19 | 8192 pixels | |
| UCS6909，UCS6912，UCS7009，UCS5903 | T-8000-UCS-32 | 8192 pixels | |
| UCS1903，UCS1909，UCS1912 | T-8000-UCS-256 | 8192 pixels | 1903 and 1909 are divided into high and low |
| UCS3903 | T-8000-UCS-1024 | 8192 pixels | |
| DMX512 | T-8000-DMX | 1360/4096 pixels | Compatible with standard DMX512 |
| WS2801,WS2803 | T-8000-WS | 8192 pixels | |
| WS2811 | T-8000-WS2811 | 8192 pixels | WS2811 be divided into high and low |
| DS189 | T-8000-DS189 | 8192 pixels | |
| TLS3001,TLS3002，TLS3008 | T-8000-TLS | * pixels | |
| P9813 | T-8000-P9813 | 8192 pixels | |
| SM16715 | T-8000-SM16715 | 8192 pixels | SM16715 be divided into high and low |
| SM16716 | T-8000-SM16716 | 8192 pixels | |
| BS0901,BS0902 | T-8000-0901 | 8192 pixels | |
| BS0815 | T-8000-0815 | 8192 pixels |
Note：When multiple cascade, only the first controller buttons work,
followed by sub-control buttons are automatically shielded, at this point can adjust playback file
and speed through the first controller
Note: At this time the first controller’s buttons can control all sub-control keys
Special parameters:
Memory Card: Type:SD card(if control more lights, suggest using high-speed SD card)
Capacity: 256MB -2GB
Format: FAT format
Store File: *.led
Physical parameters:
Temperature: -20-85
Power Supply: DC 5V input
Power: 4W
What you will receive:
- T-8000AC RGB LED Pixel controller
- 256MB SD Card
LedEdit 2013 software link is available after your purchase, please send a note if you need it.
| Weight | 950 g |
|---|
