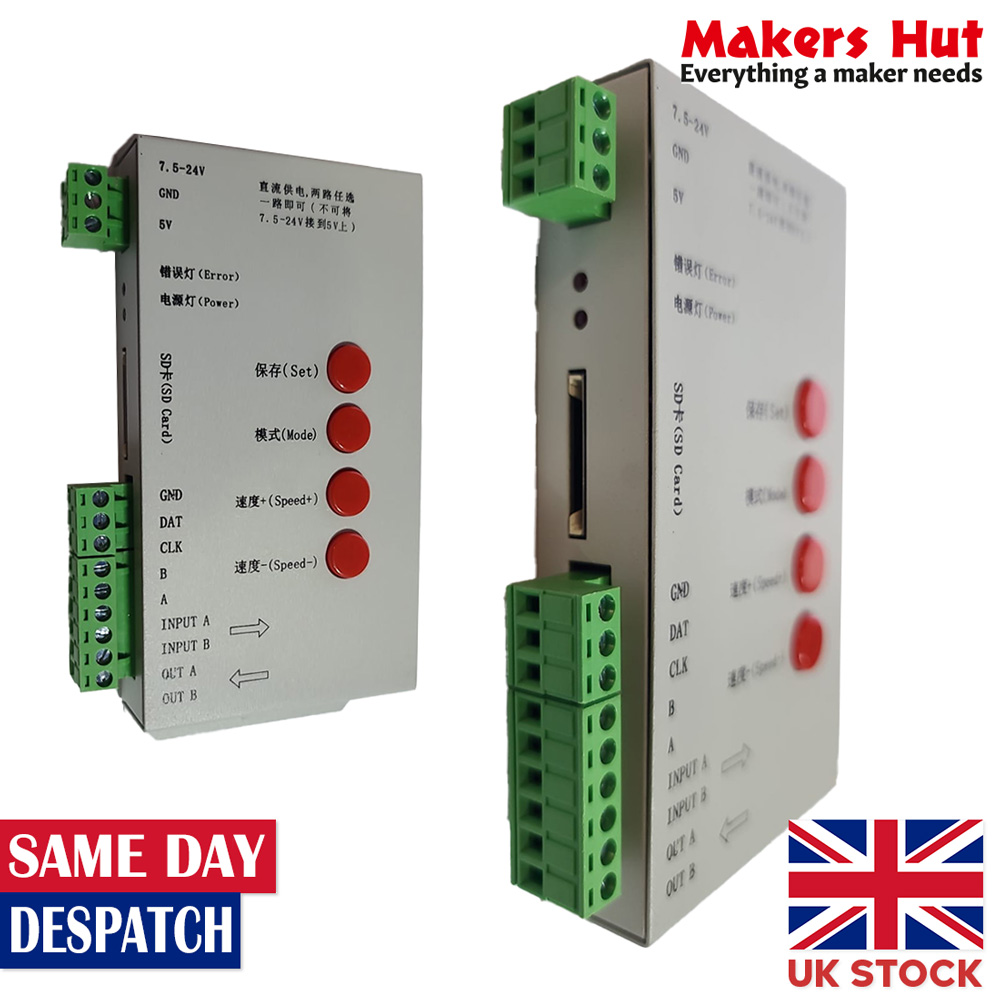

T1000S SD Card RGB LED Pixel Controller -WS2812 WS2812B LPD8806 WS2811 WS2801 T1000S

£28.99

8 in stock

T1000S SD Card RGB LED Pixel Controller -WS2812 WS2812B LPD8806 WS2811 WS2801 T1000S

£28.99

SKU: LED-CON-001-1 Category: Controllers Tags: controller, led, LPD8806, Pixel Controller, SD Card, T1000S, WS2801, ws2811, WS2812
Product Categories
  • 3D Printer
    • Controllers
    • Filament
    • Kits
    • Parts & Accessories
  • Arduino
    • Boards
    • Kits
    • Shields and Accessories
  • Cooling
    • Fan Guards
    • Fans
    • Heatsinks
  • Drone
  • Drones and More
    • Accessories
    • Antennas
    • Components
    • Drones
    • Kits
  • Electronics
    • Access Control
    • Cable
    • Components and Sensors
    • DIY Kits
  • LED Lighting
    • Accessories
    • Beads
    • Bulbs
    • Controllers
    • DMX
    • Downlights
    • Panel
    • Strips
  • Mechanical
    • Bearing
    • Bearings
      • Ball
      • Bushings
      • Flange
      • Grooved
      • Linear
      • Miniature
      • Needle
      • Self Aligning
      • Self Lube
      • Taper Roller
    • Fluid Transfer
    • Magnets
    • Mounts and Supports
    • Pulleys and Coupler
    • Rails and Carriage
    • Rods
    • Rods and Carriages
    • Timing Belt
  • Microcontrollers
  • Miscellaneous
  • Motors
    • Accessories
    • Coreless
    • DC Motors
    • Drivers
    • Spindle
    • Step
  • Other
  • Power Supply
  • Raspberry Pi
    • Boards and Kits
    • Shields and Accessories
  • Robotics
    • Components
    • Kits
  • Uncategorised
  • Virtual Reality
  • Description
  • Additional information

Description:

T1000-S RGB Pixel controller is an advanced controller that enables you to create stunning LED light displays,
shop signs, LED matrixes and screens and many more applications. It supports advanced pixel layouts all configurable from the software provided (LedEdit 2013). Each controller supports up to a maximum of 2048 pixels. More than one controller can be chained together to enable larger displays. All programs are stored on the SD card provided (16 programms MAX) and can be cycled through with a push of a button on the controller. The speed of each program can also be adjusted with buttons on the controller.

T-1000S has a built in support for single line and dual line LED ICs. If controlling up to 512 pixels speeds can reach 30fps.
If more than 512 pixels are attached fps will decrease automatically.

Specification:

Input voltage: 5-24V
Dimensions: 6.30 in x 2.95 in x 0.91 in (16.0 cm x 7.5 cm x 2.3 cm)
Weight: 8.11 oz (230 g)
Number of programs: 16 MAX
MAX number of pixels: 2048
SD card format: FAT
Supported chips:
LPD6803, D705, 1101, 6909, 6912, LPD8806, LPD8809, TM1803, TM1804, TM1809,
TM1812, M1903, TM1904, TM1909, TM1912, UCS6909, UCS6912, UCS7009, UCS5903,
UCS1903, UCS1909, UCS1912, UCS3903, WS2801, WS2803, WS2811, WS2812, WS2812B, DS189, TLS3001, DMX512 (170/512pixels),
TLS3002, TLS3008, P9813, SM16715, SM16716, BS0901, BS0902, BS0815

Note: For the TTL(SPI) signal, the controller ground must be connected to the LED ground directly.

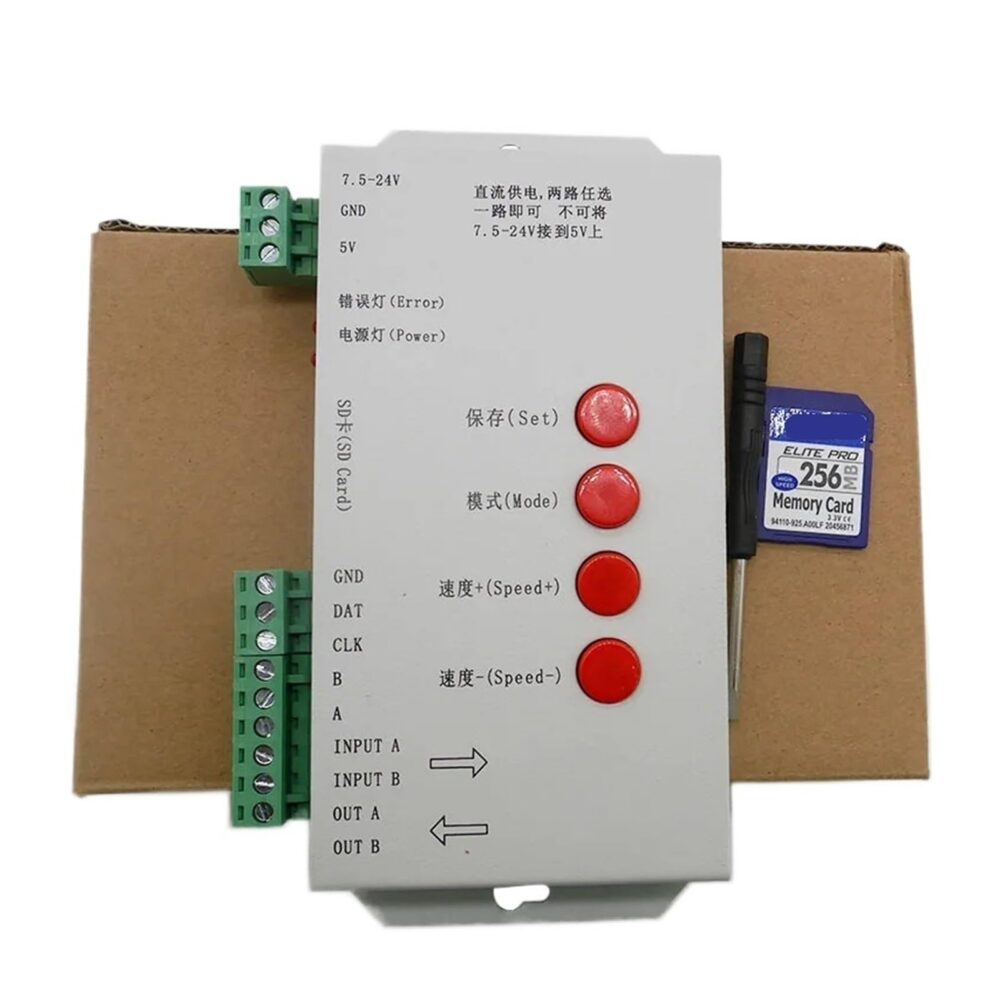

What you will receive:

  • T-1000S RGB LED Pixel controller
  • 256MB SD Card

Please contact us if you need the lededit 2013 programme.

Weight 200 g
