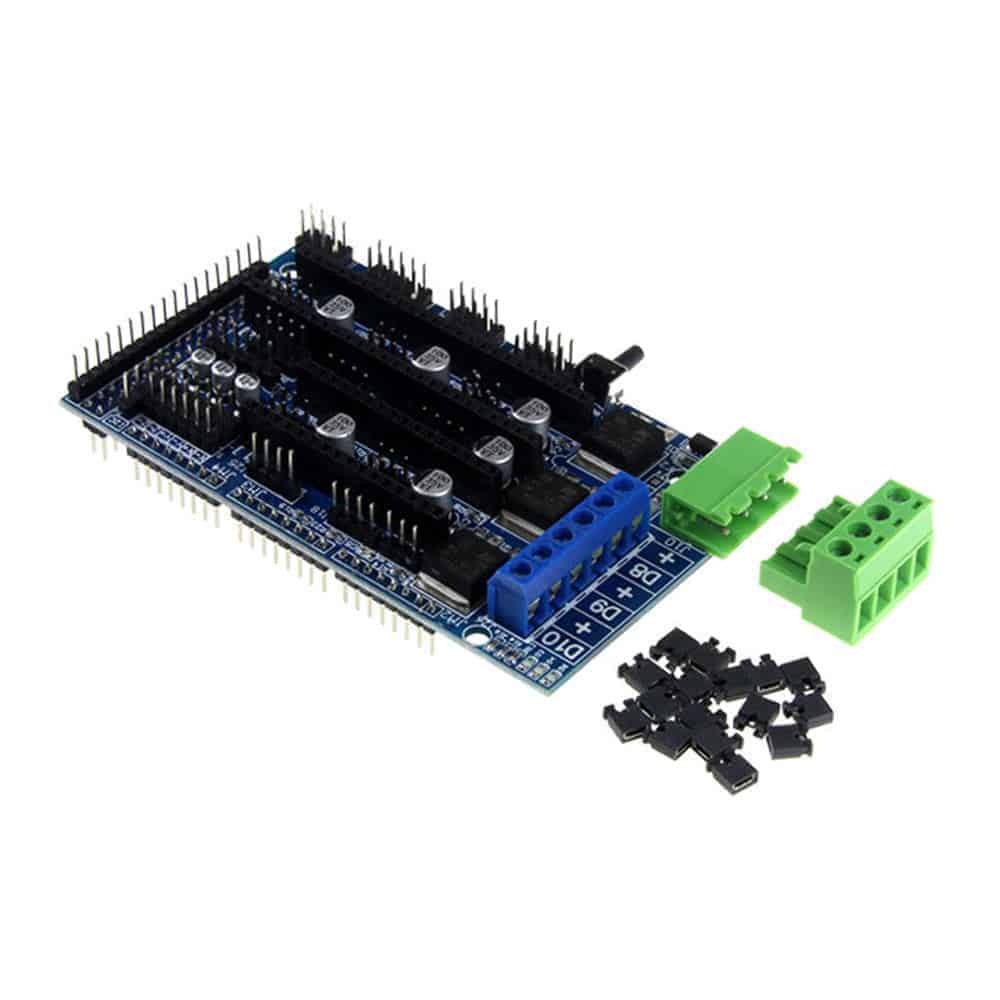

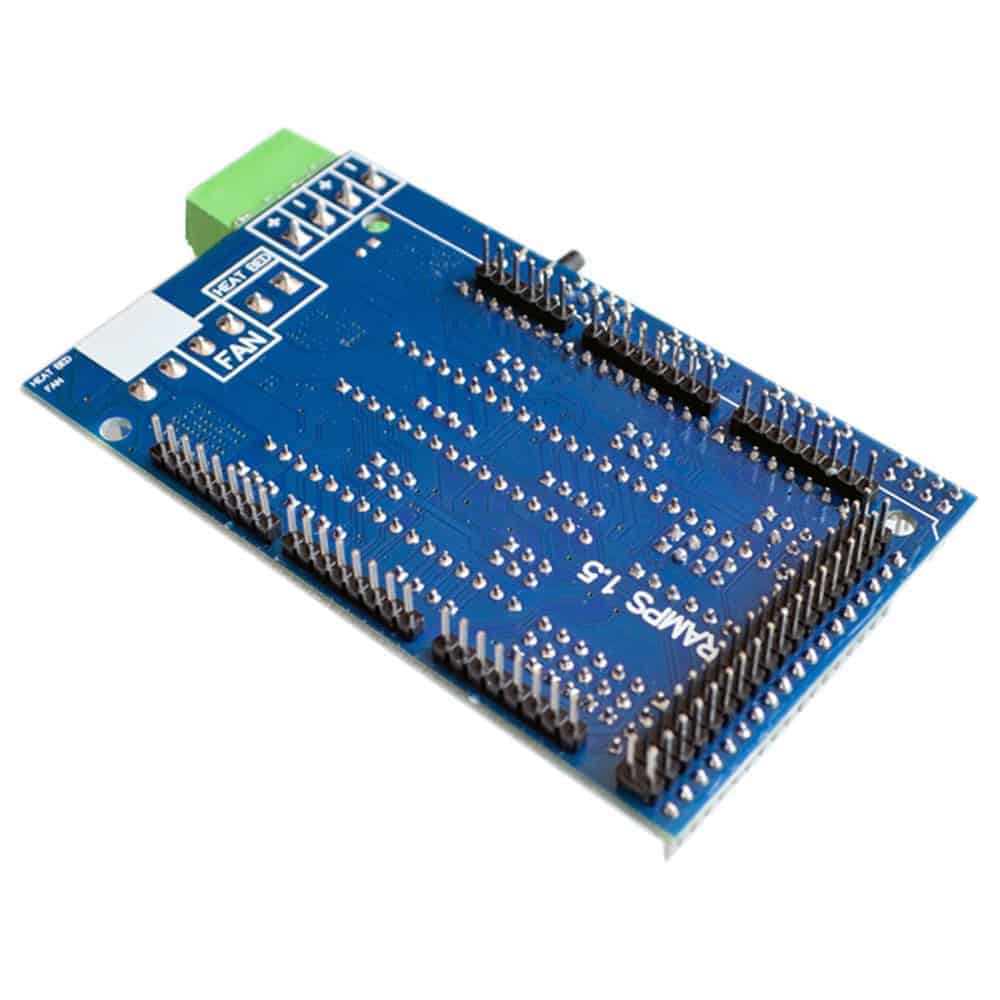

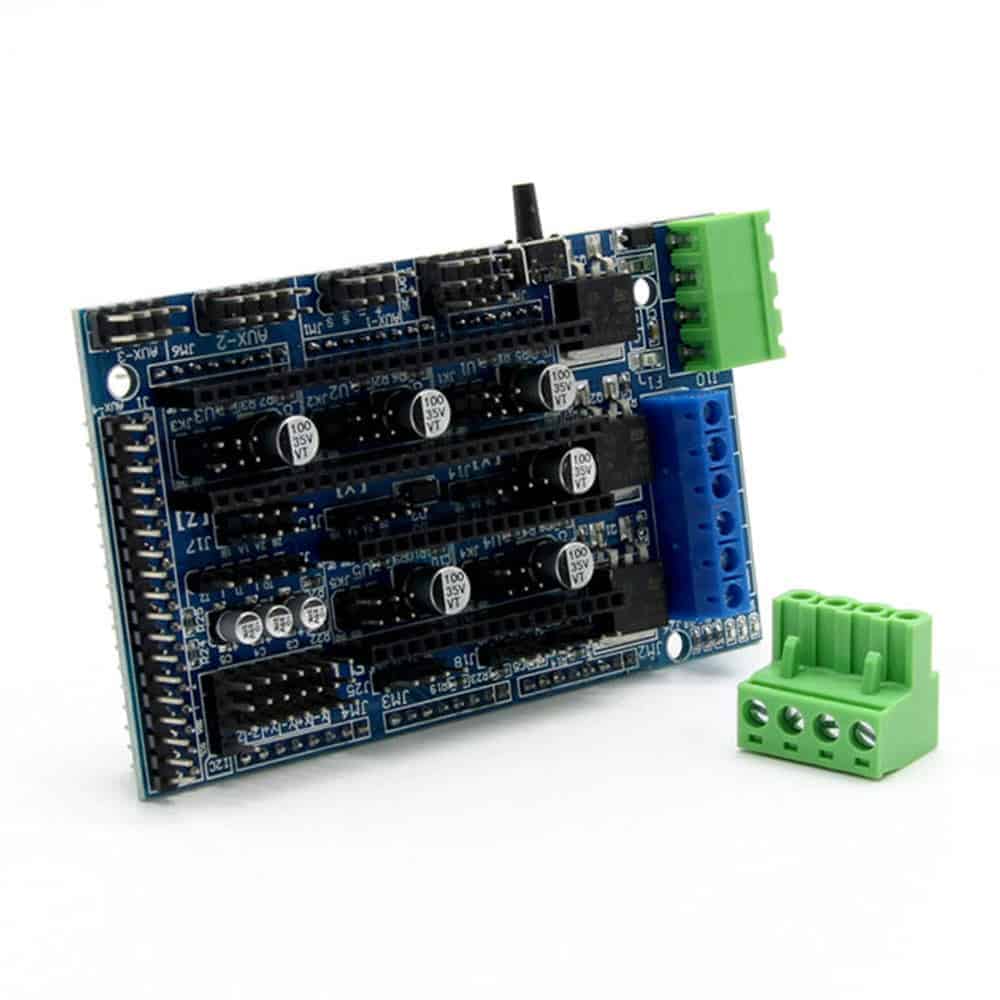

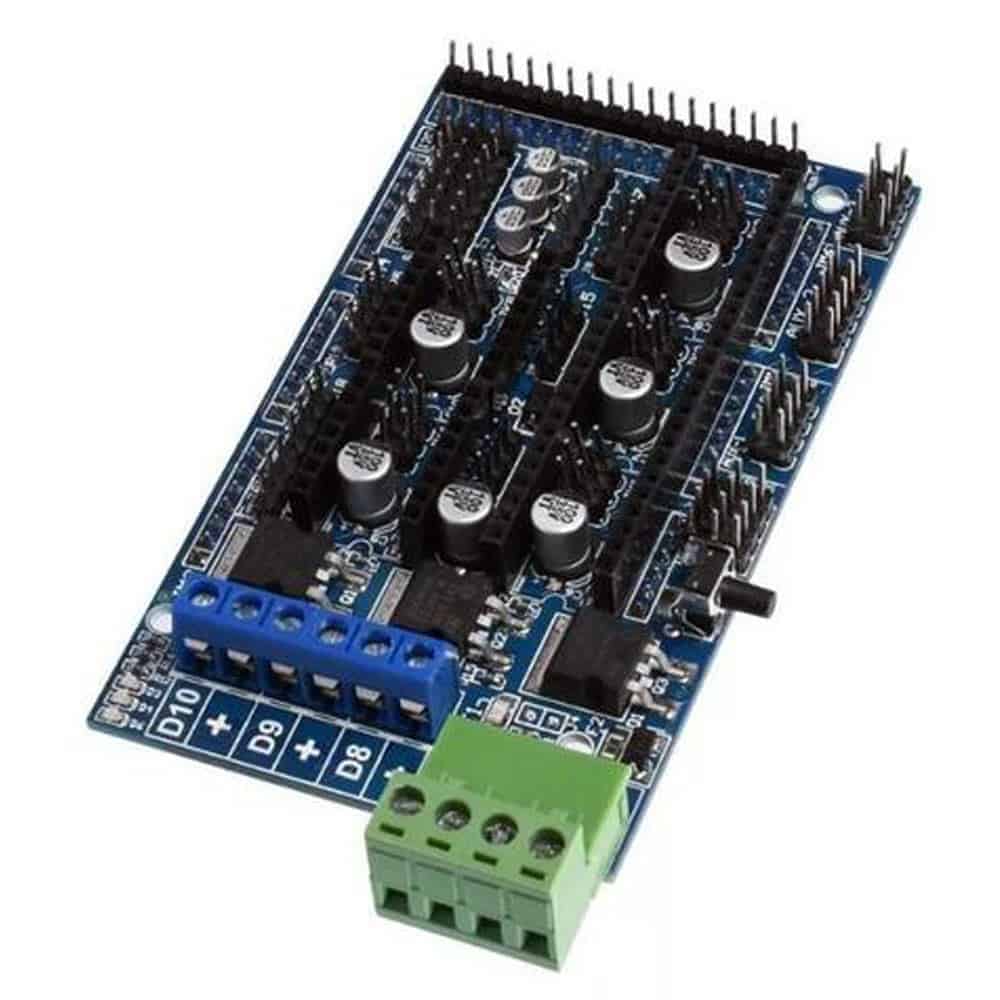

Ramps 1.5 Controller Board Upgrade – for 3D Printer

Description:

Ramps1.5 Controller Board – Upgraded from Ramps1.4

Features:

1. It has provisions for Cartesian robots and extruders.
2. Expand to control and other accessories.
3. Heater/fan output and MOSFET of 3 thermistor circuits.
4. Fusion 5A extra safety and component protection
5. Heating bed control extra 11A fuses
6. Suitable for 5 Pololu stepper drive boards
7.Pololu board pin headers so they can be easily replaced or removed for future use design.
8. The I2C and SPI pins are left for future expansion.
9. All MOSFETs are hooked into PWM pins for versatility.
10. The servo connector is used to connect to the end stop, motor and LED. These connectors are gold plated and rated at 3A and are very compact.
11. Add on SD card – now available by Kliment – Sdramps
12.LED to indicate heater output
13. Option 2 motors connected to Z Prusa Mendel

Dimensions:

Approx. 11.5 x 6 cm / 4.53 x 2.36 inch

Package included:

1 x Ramps 1.5 Board
