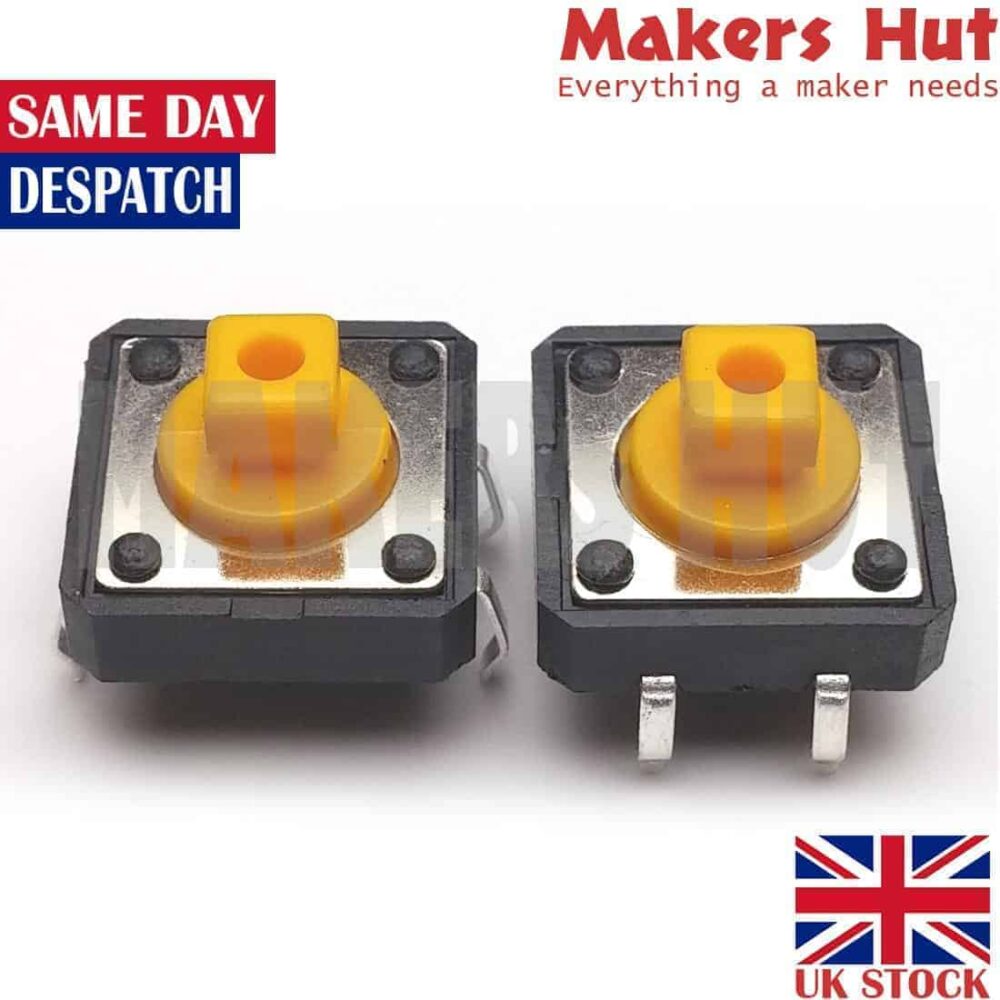

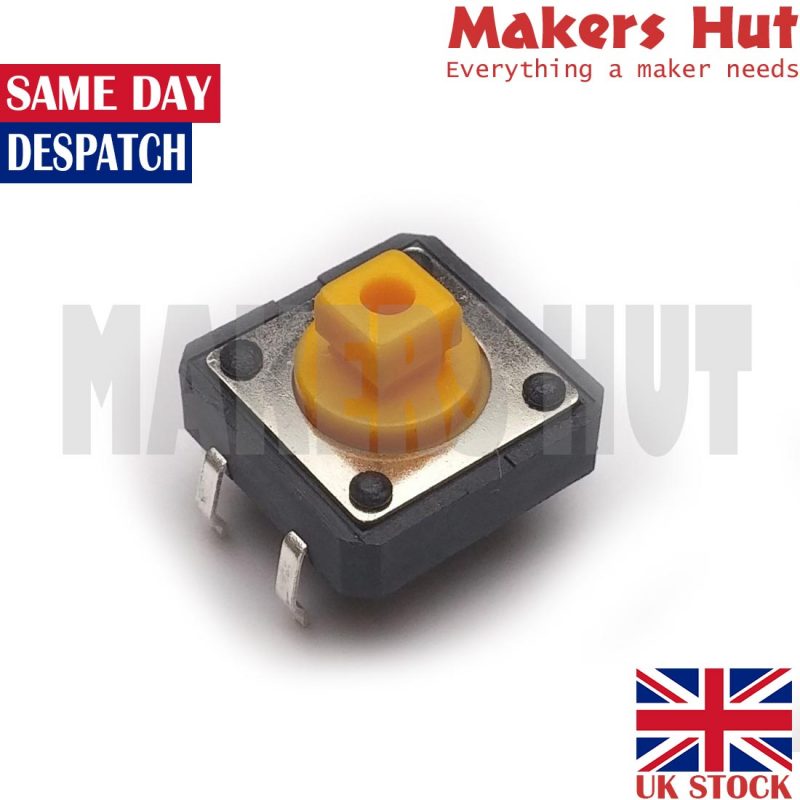

OMRON B3F-4055 12x12x7.3mm Projected Momentary Tactile Push Button Switch

Description:

OMRON B3F-4055 12mm Tactile Switches

Specifications:

Made in: JAPAN

B3F 4000 series tactile switches

Contact material: Silver plated

Plunger type: Projected

Height: 7.3mm

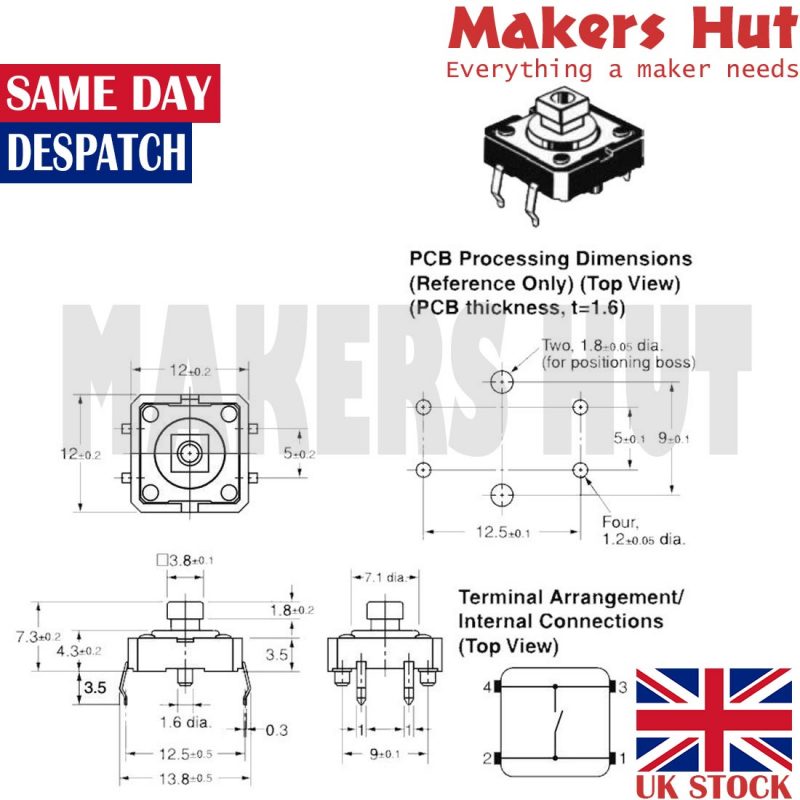

Dimensions: 12mm x 12mm

Operating force: 2.55N (260 gf)

Plunger colour: Yellow

Rating (resistive load): 1 to 50ma, 3 to 24 VDC

Minimum load: 10μA @ 1VDC

Operating temperature: -25°c to 75°c

Operating humidity: 35% to 85% @ 5°c to 35°c

Contact form: SPST-NO

Contact resistance: 100 mΩ max

Insulation resistance: 100 MΩ min

Dielectric strength: 500 VAC, 50/60 Hz for 1 min

Bounce time: 5ms MAX

Vibration resistance: Malfunction: 10 to 55 Hz, 1.5 mm double amplitude

Shock resistance (malfunction): 100 m/s2 {approx. 10G} max

Shock resistance (destruction): 1,000 m/s2 {approx. 100G} max

Durability: 1000000 operations MIN

Weight: Approx. 0.85g

Datasheet: omron.com
