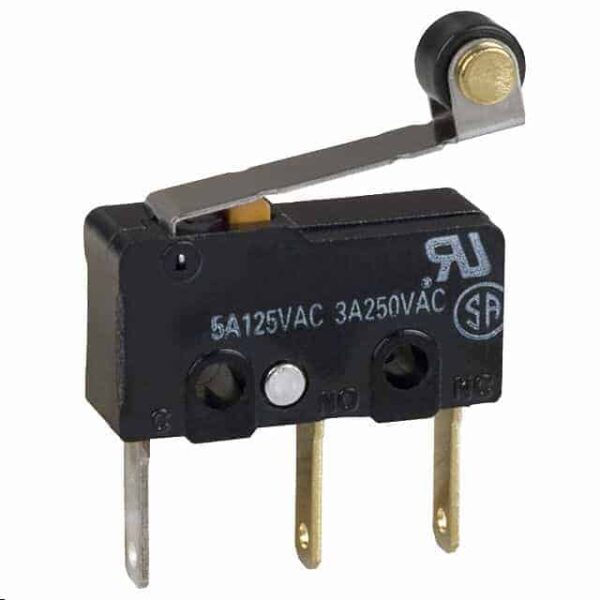

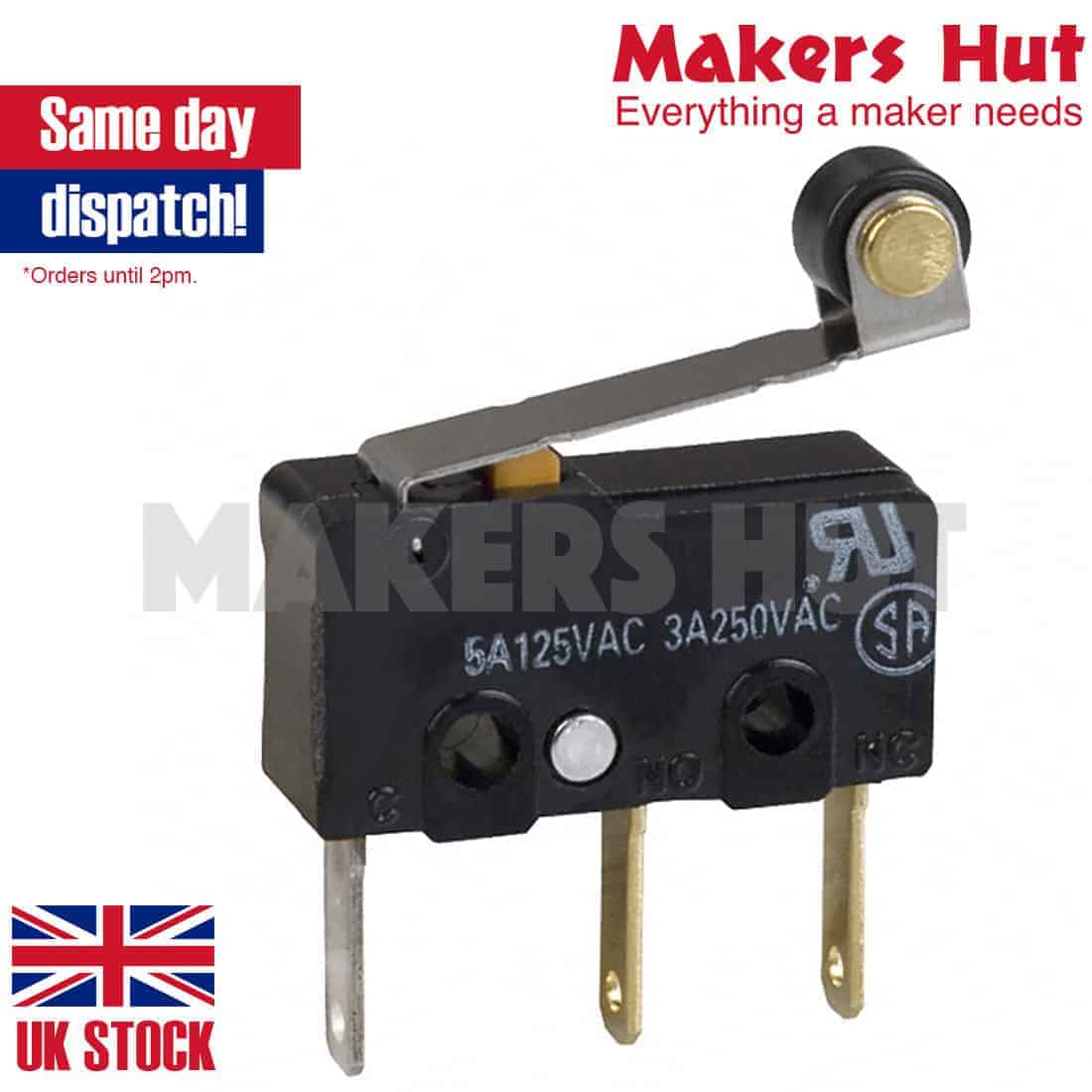

OMRON SS-5GL2 Microswitch Limit Switch 5A125VAC 3A250VAC with roller

£2.99

18 in stock

OMRON SS-5GL2 Microswitch Limit Switch 5A125VAC 3A250VAC with roller

£2.99

SKU: ELE-COM-001 Category: Components and Sensors Tags: endstop, Limit Switch, Micro Switch, omron, snap, switch
Product Categories
  • 3D Printer
    • Controllers
    • Filament
    • Kits
    • Parts & Accessories
  • Arduino
    • Boards
    • Kits
    • Shields and Accessories
  • Cooling
    • Fan Guards
    • Fans
    • Heatsinks
  • Drone
  • Drones and More
    • Accessories
    • Antennas
    • Components
    • Drones
    • Kits
  • Electronics
    • Access Control
    • Cable
    • Components and Sensors
    • DIY Kits
  • LED Lighting
    • Accessories
    • Beads
    • Bulbs
    • Controllers
    • DMX
    • Downlights
    • Panel
    • Strips
  • Mechanical
    • Bearing
    • Bearings
      • Ball
      • Bushings
      • Flange
      • Grooved
      • Linear
      • Miniature
      • Needle
      • Self Aligning
      • Self Lube
      • Taper Roller
    • Fluid Transfer
    • Magnets
    • Mounts and Supports
    • Pulleys and Coupler
    • Rails and Carriage
    • Rods
    • Rods and Carriages
    • Timing Belt
  • Microcontrollers
  • Miscellaneous
  • Motors
    • Accessories
    • Coreless
    • DC Motors
    • Drivers
    • Spindle
    • Step
  • Other
  • Power Supply
  • Raspberry Pi
    • Boards and Kits
    • Shields and Accessories
  • Robotics
    • Components
    • Kits
  • Uncategorised
  • Virtual Reality
  • Description
  • Additional information

Description:

The Omron SS series are subminiature basic switches. These switches offer high reliability and security. A variety of models are available with operating force ranging from low to high.

Features:

– Switching capacity of 10.1A at 250VAC, 5A at 125VAC, 0.1A at 30VDC
– Pin plunger, hinge, long hinge, simulated roller , hinge roller lever actuators available
– Solder, quick connect, PCB terminals available
– Operating force is 0.06N, 0.12N, 1.47N, 0.49N, 0.25N, 0.16N, 0.08N, 0.39N based on ordering
– SPDT, SPST-NC, SPST-NO contact configuration
– Two split springs ensure a high stability and durability

Specification:

Microswitch Type: Subminiature
Microswitch Actuator: Hinge Roller Lever
Contact Configuration: SPDT
Switch Terminals: Solder
Contact Current Max: 5A
Product Range: SS Series
Contact Voltage AC Nom: 125VAC
Operating Force Max: 0.49N

What you will receive:

1 x OMRON SS-5GL2 Microswitch with roller

Weight 5 g
EAN

Does not apply

Brand

Makers Hut
