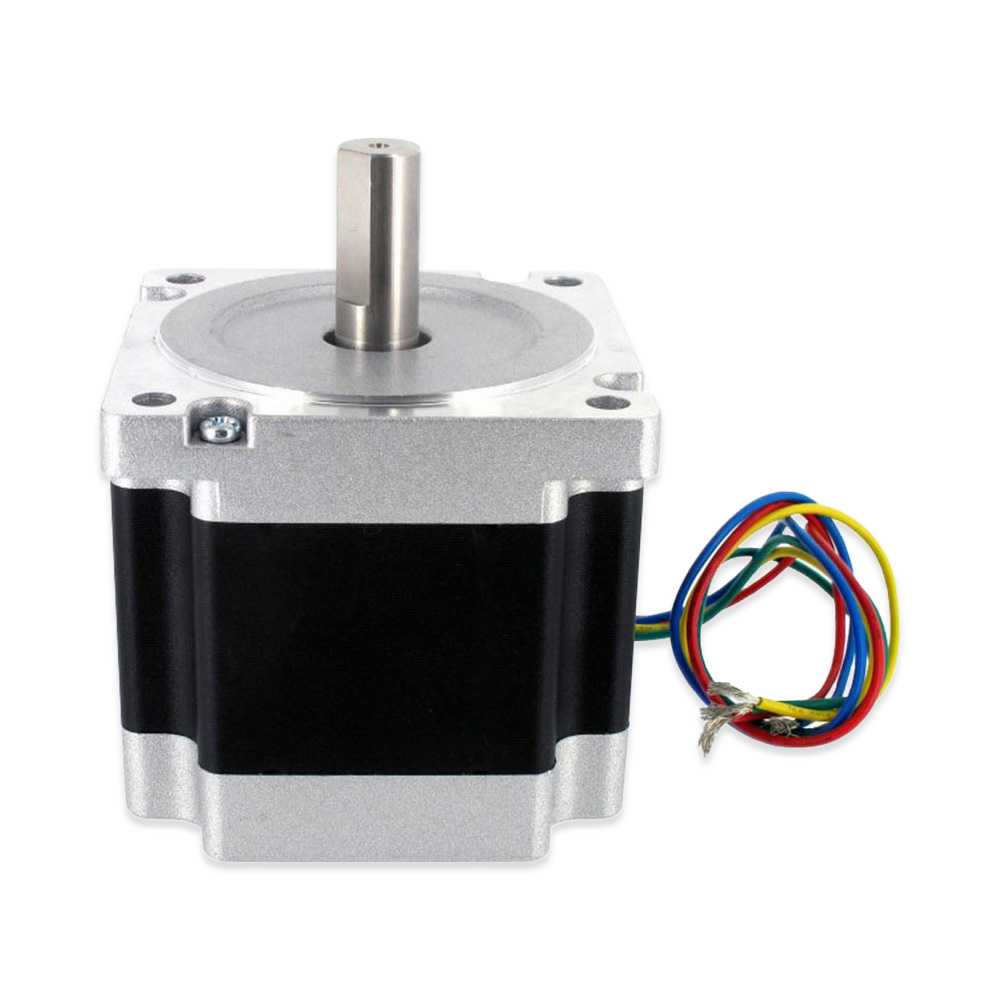

NEMA34 78mm 2.1Nm Two Phase Bipolar Stepper Motor

SKU	MOT-STE-034
Weight	2200 g
Ships from	Cardiff, UK

Description:

Two Phase Bipolar NEMA34 78mm Stepper Motor

Specification:

Motor Type: Bipolar Stepper
Step Angle: 1.8°
Holding Torque: 2.1N.m
Rated Current/phase: 4A
Resistance: .0.5m±10% ohms
Inductance: 2.3mH±20%(1KHz)
Voltage: 2V

Frame Size: 86 x 86mm
Body Length: 78mm
Shaft Diameter: 12mm
Shaft Length: 32mm
D-cut: No
Number of Leads: 4
Weight: 2.3kg

What you will receive:

1 x Two Phase Bipolar NEMA34 78mm Stepper Motor
