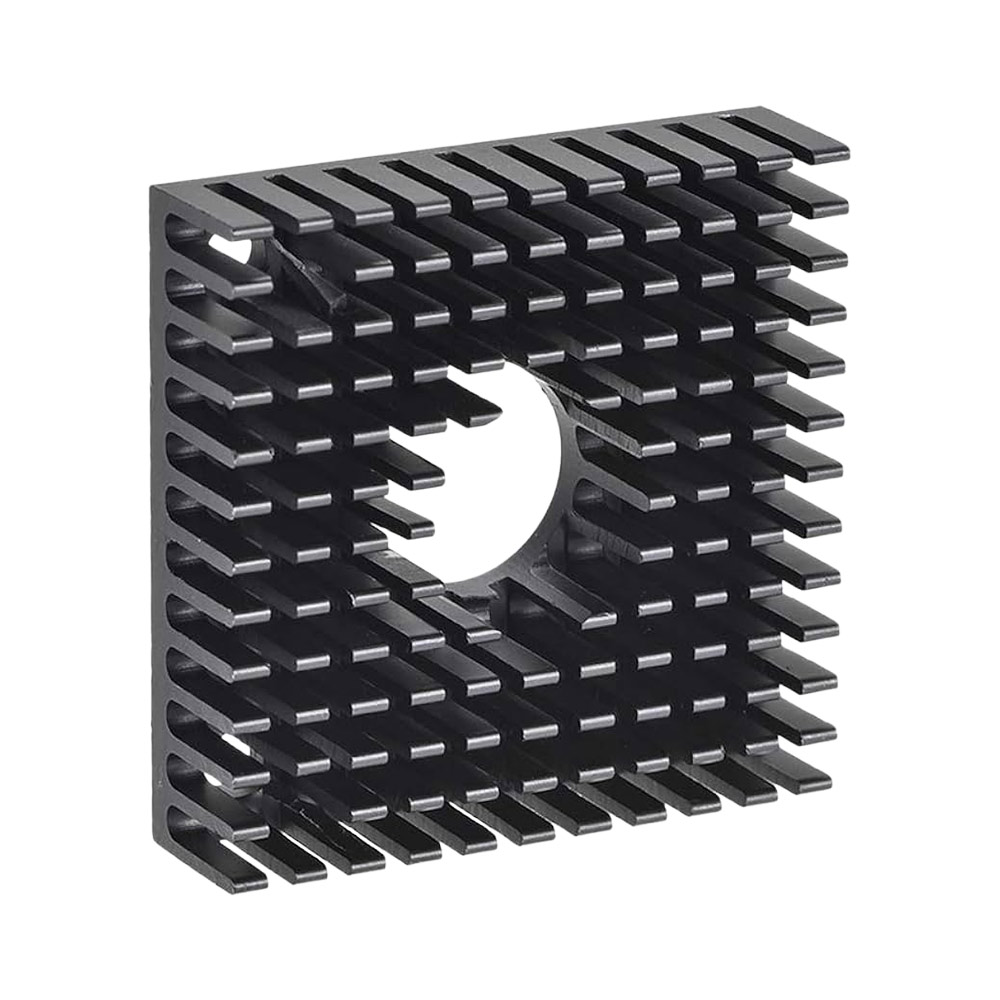

Nema17 Size Stepextruder Heatsink Heat Sink - Nema 17 - Cooling

The Nema17 stepper motor heatsink is a 42×42×12mm black anodised aluminium heat sink that mounts directly to the face of a Nema17 stepper motor body, reducing thermal build-up during long 3D printing or CNC operations.

Nema17 motors running at high current can reach temperatures that cause holding torque loss and premature bearing wear. This Nema17 stepper motor heatsink draws heat away from the motor casing by adding a passive cooling surface to the motor face. The 42×42 mm footprint matches the standard Nema17 mounting face exactly. Making it a direct drop-in for Voron, Prusa, Ender, and DIY CNC builds without any modification.

Key Features of the Nema17 Stepper Motor Heatsink

• Dimensions: 42 mm × 42 mm × 12 mm — exact footprint match for Nema17 motor face
• Black anodised aluminium — improved radiative cooling vs bare metal
• Precision-machined fins for efficient passive heat dissipation
• Reduces motor temperature during sustained high-current printing or CNC operations
• Compatible with all standard Nema17 (42×42 mm) stepper motors

Use Cases

• 3D printers with high-current Nema17 motors running long continuous jobs
• CNC router and laser engraver stepper motors that run warm during operation
• Voron, Prusa, Ender, and other builds where motor longevity is a priority
• Reducing stepper stall risk by keeping motor temperature below thermal derating threshold

Works Well With

• Nema17 Bipolar Stepper Motor 1.8° — the Nema17 stepper motor this heatsink is designed to cool
• 9×9×12mm Heatsink for A4988/DRV8825 — a compact heatsink for the A4988/DRV8825 stepper driver running alongside the motor

Project Ideas & Tutorials

• Motor Heat Sink: When and How to Add Cooling — Zbotic — explains when heatsinks are needed and how to attach them to motor drivers and ICs
• DRV8825 Stepper Motor Driver Tutorial — Maker Guides — covers the full stepper drive chain including current setting and motor thermal management

Package Contents

• 1 × 42×42×12mm black anodised aluminium Nema17 heatsink
