Digital Stepper Driver 1.0-4.2A 20-50VDC For Nema 17, 23, 24 Stepper DM542

£27.12

5 in stock

Digital Stepper Driver 1.0-4.2A 20-50VDC For Nema 17, 23, 24 Stepper DM542

£27.12

SKU: MOT-DRI-002 Category: Drivers Tags: Digital Stepper Driver, DM542, Stepper
Product Categories
  • 3D Printer
    • Controllers
    • Filament
    • Kits
    • Parts & Accessories
  • Arduino
    • Boards
    • Kits
    • Shields and Accessories
  • Cooling
    • Fan Guards
    • Fans
    • Heatsinks
  • Drone
  • Drones and More
    • Accessories
    • Antennas
    • Components
    • Drones
    • Kits
  • Electronics
    • Access Control
    • Cable
    • Components and Sensors
    • DIY Kits
  • LED Lighting
    • Accessories
    • Beads
    • Bulbs
    • Controllers
    • DMX
    • Downlights
    • Panel
    • Strips
  • Mechanical
    • Bearing
    • Bearings
      • Ball
      • Bushings
      • Flange
      • Grooved
      • Linear
      • Miniature
      • Needle
      • Self Aligning
      • Self Lube
      • Taper Roller
    • Fluid Transfer
    • Magnets
    • Mounts and Supports
    • Pulleys and Coupler
    • Rails and Carriage
    • Rods
    • Rods and Carriages
    • Timing Belt
  • Microcontrollers
  • Miscellaneous
  • Motors
    • Accessories
    • Coreless
    • DC Motors
    • Drivers
    • Spindle
    • Step
  • Other
  • Power Supply
  • Raspberry Pi
    • Boards and Kits
    • Shields and Accessories
  • Robotics
    • Components
    • Kits
  • Uncategorised
  • Virtual Reality
  • Description
  • Additional information

Description:

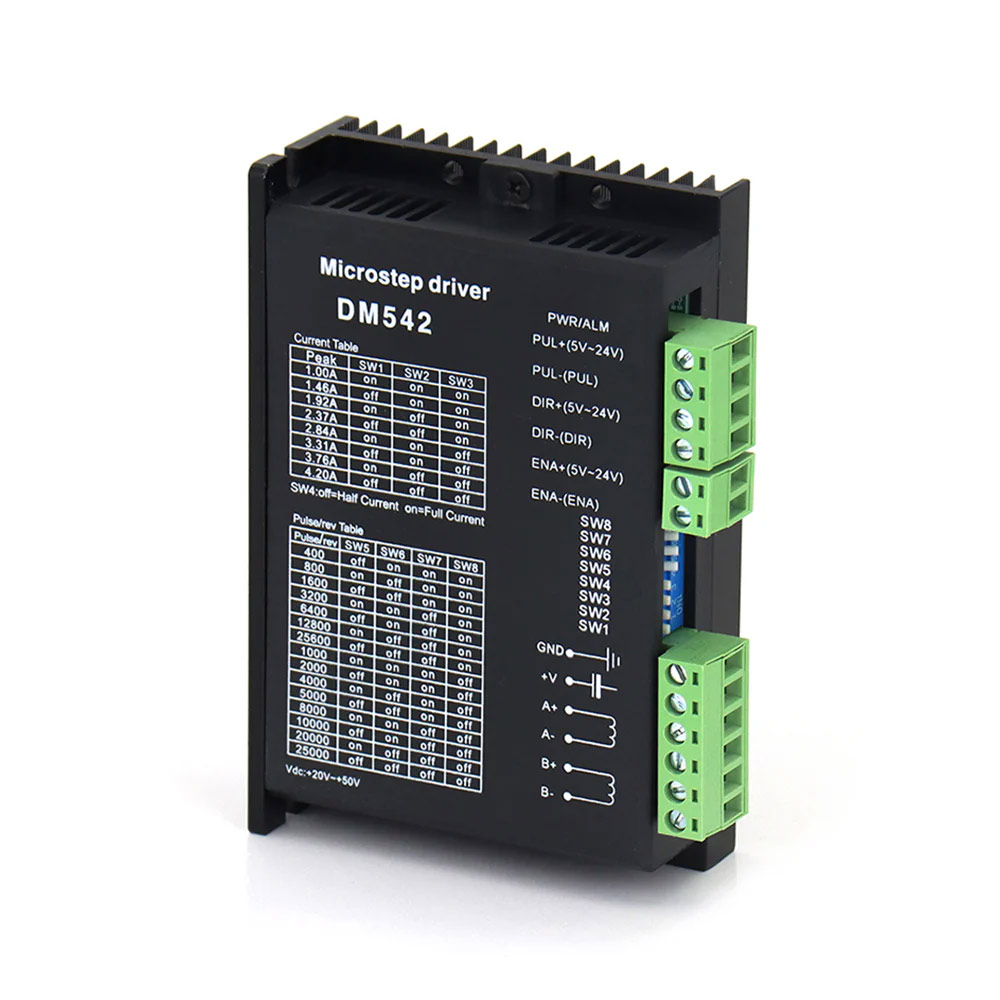

The DM542 is a fully digital stepper drive developed with advanced DSP control algorithm based on the latest motion control technology. It has achieved a unique level of system smoothness, providing optimal torque and nulls mid-range instability. Its motor auto-identification and parameter auto-configuration feature offers quick setup to optimal modes with different motors. Compared with traditional analog drives, DM542 can drive a stepper motor at much lower noise, lower heating, and smoother movement. Its unique features make DM542 an ideal choice for high requirement applications.

Key Features:

  • Input voltage 20-50VDC
  • Anti-Resonance provides optimal torque and nulls mid-range instability
  • Motor auto-identification and parameter auto-configuration when power on, offer optimal responses with different motors
  • Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement
  • 15 selectable microstep resolutions including 400, 800, 1600, 3200, 6400, 12800, 25600, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 25000
  • Soft-start with no “jump” when powered on
  • 8 selectable peak current including 1.00A, 1.46A, 1.91A, 2.37A, 2.84A, 3.31A, 3.76A, 4.20A
  • Pulse input frequency up to 200 KHz, TTL compatible and optically isolated input
  • Automatic idle-current reduction
  • Suitable for 2-phase and 4-phase motors
  • Support PUL/DIR mode
  • Over-voltage and over-current protections

Electrical Specifications:

Output Peak Current: 1.0~4.2A (3.0 RMS)
Input Voltage: +20~50VDC (Typical 36VDC)
Logic Signal Current: 7~16mA (Typical 10mA)
Pulse Input Frequency: 0~200kHz
Pulse Width: 2.5μS
Isolation Resistance: 500MΩ

Operating Environment and other Specifications (Tj = 25℃/77℉):

Cooling: Natural Cooling or Forced cooling
Environment: Avoid dust, oil fog and corrosive gases
Ambient Temperature: 0℃ - 65℃
Humidity: 40%RH-90%RH
Operating Temperature: -10℃ - 45℃
Vibration: 10-55Hz / 0.15mm
Storage Temperature: -20℃ - 65℃
Weight: Approx.210g (7.4oz)

What you will receive:

1 x  Digital Stepper Motor Driver Controller

Notes: Due to motor inductance, the actual current in the coil may be smaller than the dynamic current setting, particularly under high speed condition.

Weight 200 g
