Nema 17 Bipolar Stepper 1.8deg 12v 1.2A 400mN.m 42x42x40mm 4-wires Nema17 CNC

SKU	MOT-STE-009
Weight	300 g
Ships from	Cardiff, UK

Description:

This hybrid bipolar Nema 17 stepper motor with 1.8 degree step angle (200 Steps / Revolution).

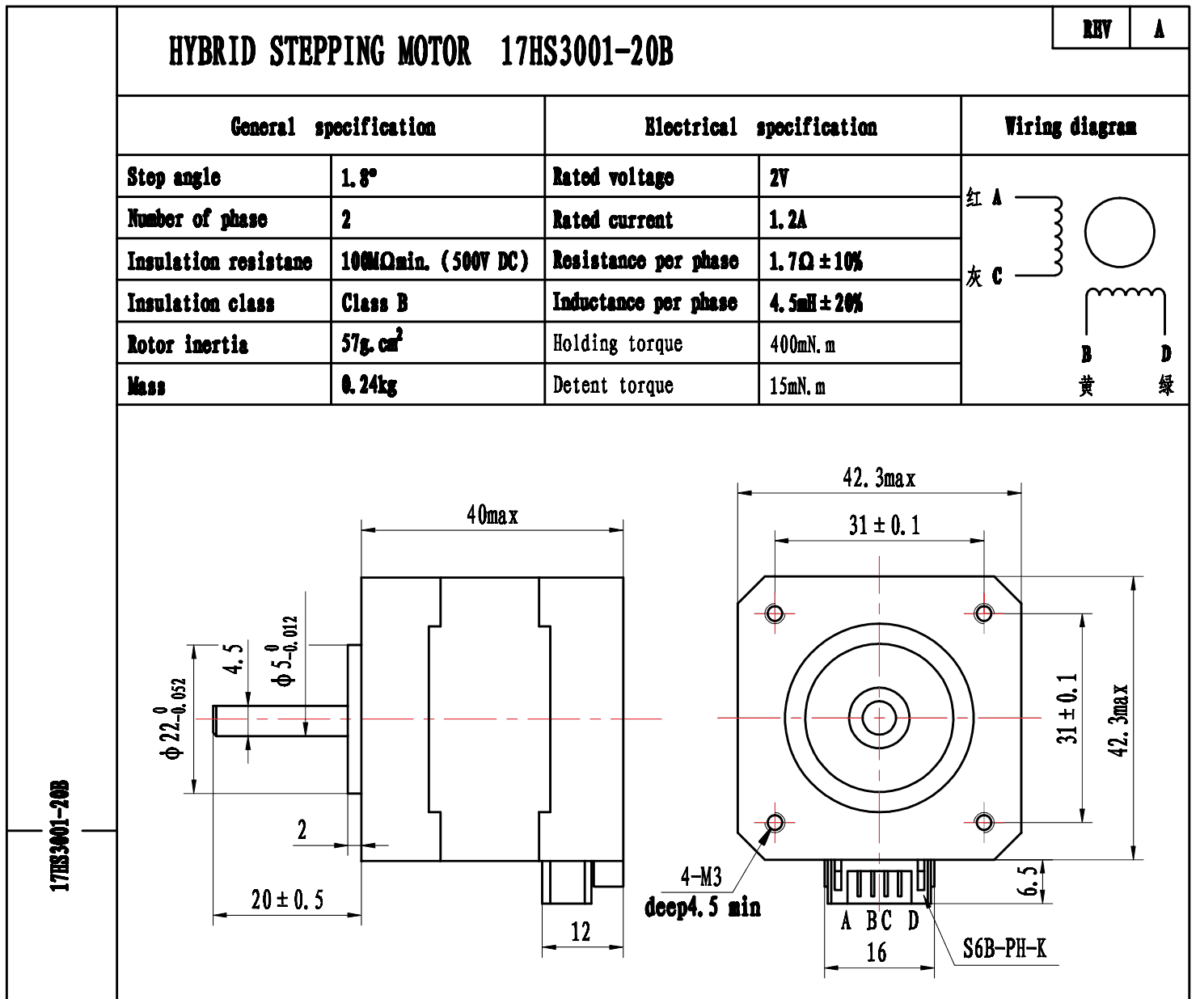

Specifications:

Manufacturer Part Number: 17HS3001-20B
Motor Type: Bipolar Stepper
Step Angle: 1.8 degree
Holding Torque: 400 mN.m
Detent Torque: 15 mN.m
Rated Current / Phase: 1.2A
Phase Resistance: 1.7ohms
Recommended Voltage: 12-24V
Inductance: 4.5 mH 20%(1KHz)
Weight: 240g
Dimensions: 40x42.3x42.3mm
Shaft Diameter: 5mm

What you will receive:

1 x Nema17 Stepper motor with connector cable
