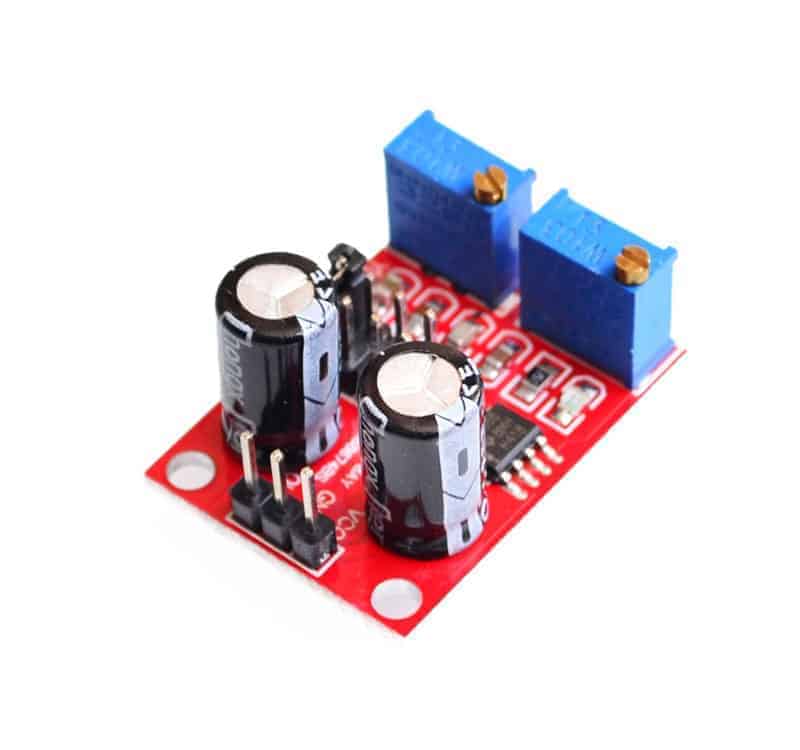

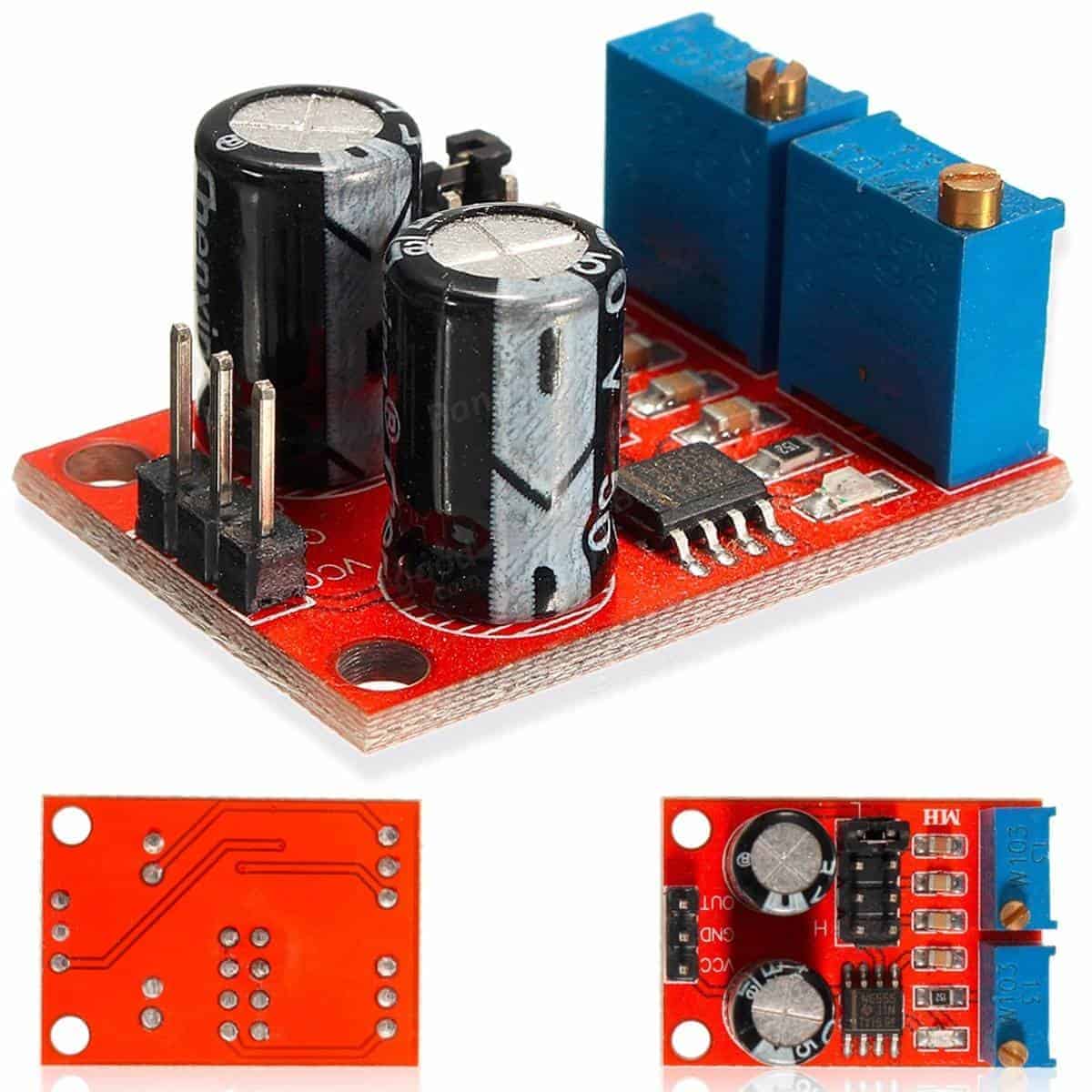

NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator

£2.49

21 in stock

NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator

£2.49

SKU: ELE-COM-085 Category: Components and Sensors Tags: Duty Cycle, ne555, Pulse Frequency, Signal Generator, Square Wave Signal Generator
Product Categories
  • 3D Printer
    • Controllers
    • Filament
    • Kits
    • Parts & Accessories
  • Arduino
    • Boards
    • Kits
    • Shields and Accessories
  • Cooling
    • Fan Guards
    • Fans
    • Heatsinks
  • Drone
  • Drones and More
    • Accessories
    • Antennas
    • Components
    • Drones
    • Kits
  • Electronics
    • Access Control
    • Cable
    • Components and Sensors
    • DIY Kits
  • LED Lighting
    • Accessories
    • Beads
    • Bulbs
    • Controllers
    • DMX
    • Downlights
    • Panel
    • Strips
  • Mechanical
    • Bearing
    • Bearings
      • Ball
      • Bushings
      • Flange
      • Grooved
      • Linear
      • Miniature
      • Needle
      • Self Aligning
      • Self Lube
      • Taper Roller
    • Fluid Transfer
    • Magnets
    • Mounts and Supports
    • Pulleys and Coupler
    • Rails and Carriage
    • Rods
    • Rods and Carriages
    • Timing Belt
  • Microcontrollers
  • Miscellaneous
  • Motors
    • Accessories
    • Coreless
    • DC Motors
    • Drivers
    • Spindle
    • Step
  • Other
  • Power Supply
  • Raspberry Pi
    • Boards and Kits
    • Shields and Accessories
  • Robotics
    • Components
    • Kits
  • Uncategorised
  • Virtual Reality
  • Description
  • Additional information

Description:

NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator

Specifications:

  • As a square wave signal generator,generates a square wave signal used for experimental development.
  • Used to drive a stepper motor for generating a square wave drive signal.
  • Generate adjustable pulse for MCU.
  • Generate adjustable pulse,to control circuitry associated.

Size: 31mm x 22mm
Main Chip: NE555
Input Voltage: 5V-15V DC. when power supply is 5 V , the output current can be 15 MA around; when 12V power supply, the output current can 35 MA around
Input Current: >=100 MA
Output Amplitude: 4.2V V-PP to 11.4V V-PP. (Different input voltage, the output amplitude will be different)
Maximum Output Current: >=15MA (5V power supply, V-PP greater than 50%), >=35MA (12V power supply, V-PP greater than 50%)
Output with LED indication(low level ,LED will on; high level,LED will off;low frequency, the LED flashes)
The Output Frequency Range: Selectable:
LF file: 1Hz ~ 50Hz
IF file: 50Hz ~ 1kHz
High-frequency file: 1KHz ~ 10kHz
HF file: 10kHz ~ 200kHz

The output duty cycle can fine-tune;duty cycle and frequency is not separately adjustable;adjusting the duty cycle will change the frequency

What you will receive:

1 x NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator

Weight 20 g
