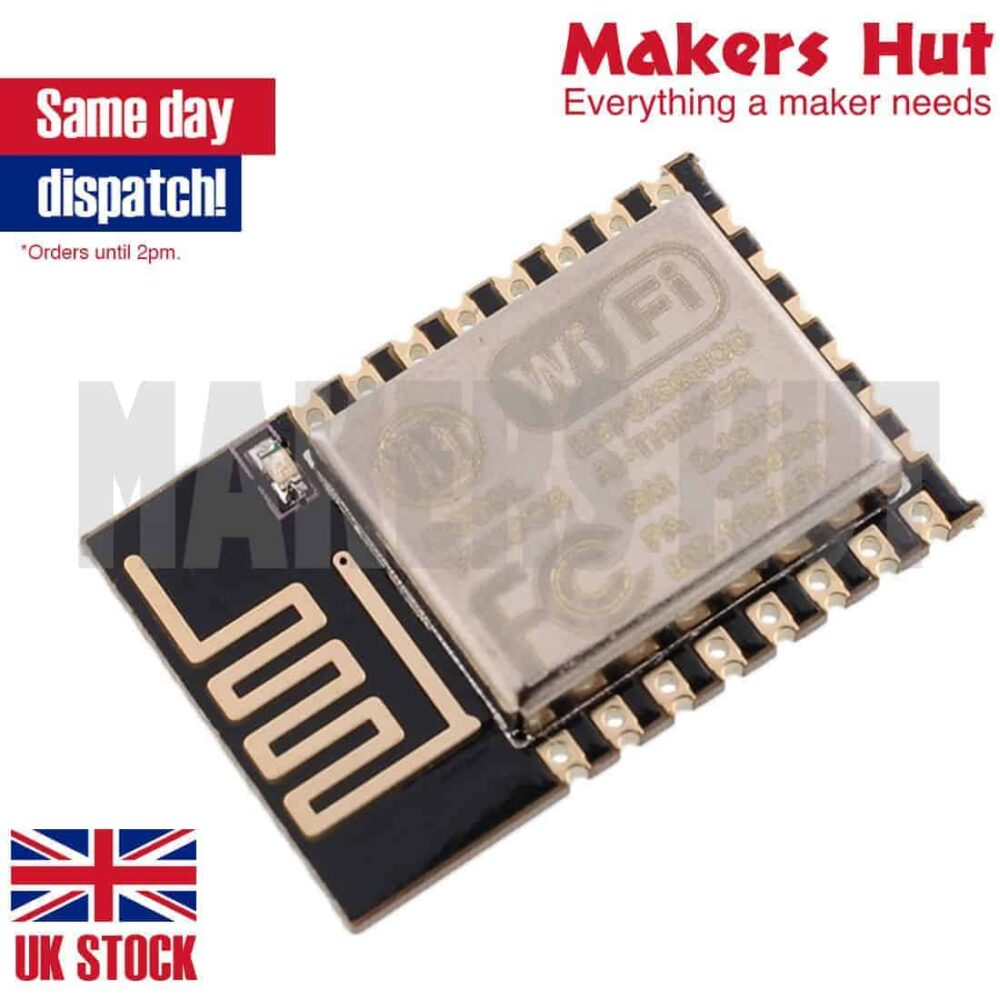

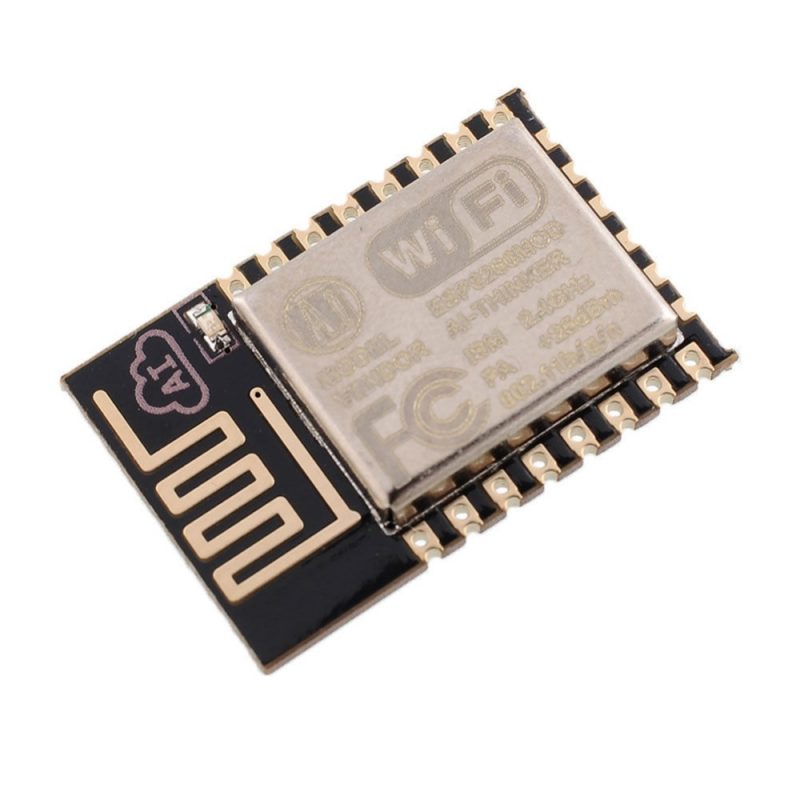

ESP8266 ESP-012E WIFI Transceiver Wireless Module with onboard antenna ARDUINO IDE

  • Barometric Pressure Sensor- BMP180 Breakout Board GY-68
  • 4x5 Matrix Extension Keyboard 20 Key Membrane Switch Keypad Keyboard For Arduino

£3.49

13 in stock

ESP8266 ESP-012 WIFI Transceiver Wireless Module with onboard antenna ARDUINO IDE
ESP8266 ESP-012E WIFI Transceiver Wireless Module with onboard antenna ARDUINO IDE

£3.49

SKU: ELE-COM-026 Category: Components and Sensors
  • Barometric Pressure Sensor- BMP180 Breakout Board GY-68
  • 4x5 Matrix Extension Keyboard 20 Key Membrane Switch Keypad Keyboard For Arduino
Product Categories
  • 3D Printer
    • Controllers
    • Filament
    • Kits
    • Parts & Accessories
  • Arduino
    • Boards
    • Kits
    • Shields and Accessories
  • Cooling
    • Fan Guards
    • Fans
    • Heatsinks
  • Drone
  • Drones and More
    • Accessories
    • Antennas
    • Components
    • Drones
    • Kits
  • Electronics
    • Access Control
    • Cable
    • Components and Sensors
    • DIY Kits
  • LED Lighting
    • Accessories
    • Beads
    • Bulbs
    • Controllers
    • DMX
    • Downlights
    • Panel
    • Strips
  • Mechanical
    • Bearing
    • Bearings
      • Ball
      • Bushings
      • Flange
      • Grooved
      • Linear
      • Miniature
      • Needle
      • Self Aligning
      • Self Lube
      • Taper Roller
    • Fluid Transfer
    • Magnets
    • Mounts and Supports
    • Pulleys and Coupler
    • Rails and Carriage
    • Rods
    • Rods and Carriages
    • Timing Belt
  • Microcontrollers
  • Miscellaneous
  • Motors
    • Accessories
    • Coreless
    • DC Motors
    • Drivers
    • Spindle
    • Step
  • Other
  • Power Supply
  • Raspberry Pi
    • Boards and Kits
    • Shields and Accessories
  • Robotics
    • Components
    • Kits
  • Uncategorised
  • Virtual Reality
  • Description
  • Additional information

Description:

The ESP8266 is one of the most talked about modules on the internet. There are so many applications this little unit can be put to, only limited by your imagination.

ESP8266 is a highly integrated chip designed for the needs of a new connected world. It offers a complete and self-contained Wi-Fi networking solution, allowing it to either host the application or to offload all Wi-Fi networking functions from another application processor.

ESP8266 has powerful on-board processing and storage capabilities that allow it to be integrated with the sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, and the entire solution, including front-end module, is designed to occupy minimal PCB area.

The ESP8266 is a highly integrated chip designed for the needs of a new connected world. It offers a complete and self-contained Wi-Fi networking solution, allowing it to either host the application or to offload all Wi-Fi networking functions from another application processor.

The ESP8266 has powerful on-board processing and storage capabilities that allow it to be integrated with the sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, and the entire solution, including front-end module, is designed to occupy minimal PCB area.

Features:

SDIO 2.0, SPI, UART

Integrated RF switch, balun, 24dBm PA, DCXO, and PMU

Integrated RISC processor, on-chip memory and external memory interfaces

Integrated MAC/baseband processors

Quality of Service management

I2S interface for high fidelity audio applications

On-chip low-dropout linear regulators for all internal supplies

Proprietary spurious-free clock generation architecture

Integrated WEP, TKIP, AES, and WAPI engines

Specification:

802.11 b/g/n

WiFi Direct (P2P), soft-AP

Integrated TCP/IP protocol stack

Integrated TR switch, balun, LNA, power amplifier and matching network

Integrated PLLs, regulators, DCXO and power management units

19.5dBm output power in 802.11b mode 19.5dBm output power in 802.11b mode

Power down leakage current of <10uA

Integrated low power 32-bit CPU could be used as application processor

SDIO 1.1/2.0, SPI, UART

STBC, 1×1 MIMO, 2×1 MIMO

A-MPDU & A-MSDU aggregation & 0.4ms guard interval

Wake up and transmit packets in < 2ms

Standby power consumption of < 1.0mW (DTIM3)

VERY IMPORTANT THIS IS A 3.3V DEVICE

What you will receive:

1 x Wifi module

Weight 20 g
