MKS TMC2160-OC Stepper Motor Driver Ultra-Quiet High Torque for Gen L SGen

£22.99

Out of stock

SKU: 3DP-PAR-285 Category: Parts & Accessories Tags: MKS, Stepper Motor Driver, TMC2160
Product Categories
  • 3D Printer
    • Controllers
    • Filament
    • Kits
    • Parts & Accessories
  • Arduino
    • Boards
    • Kits
    • Shields and Accessories
  • Cooling
    • Fan Guards
    • Fans
    • Heatsinks
  • Drone
  • Drones and More
    • Accessories
    • Antennas
    • Components
    • Drones
    • Kits
  • Electronics
    • Access Control
    • Cable
    • Components and Sensors
    • DIY Kits
  • LED Lighting
    • Accessories
    • Beads
    • Bulbs
    • Controllers
    • DMX
    • Downlights
    • Panel
    • Strips
  • Mechanical
    • Bearing
    • Bearings
      • Ball
      • Bushings
      • Flange
      • Grooved
      • Linear
      • Miniature
      • Needle
      • Self Aligning
      • Self Lube
      • Taper Roller
    • Fluid Transfer
    • Magnets
    • Mounts and Supports
    • Pulleys and Coupler
    • Rails and Carriage
    • Rods
    • Rods and Carriages
    • Timing Belt
  • Microcontrollers
  • Miscellaneous
  • Motors
    • Accessories
    • Coreless
    • DC Motors
    • Drivers
    • Spindle
    • Step
  • Other
  • Power Supply
  • Raspberry Pi
    • Boards and Kits
    • Shields and Accessories
  • Robotics
    • Components
    • Kits
  • Uncategorised
  • Virtual Reality
  • Description

Description:

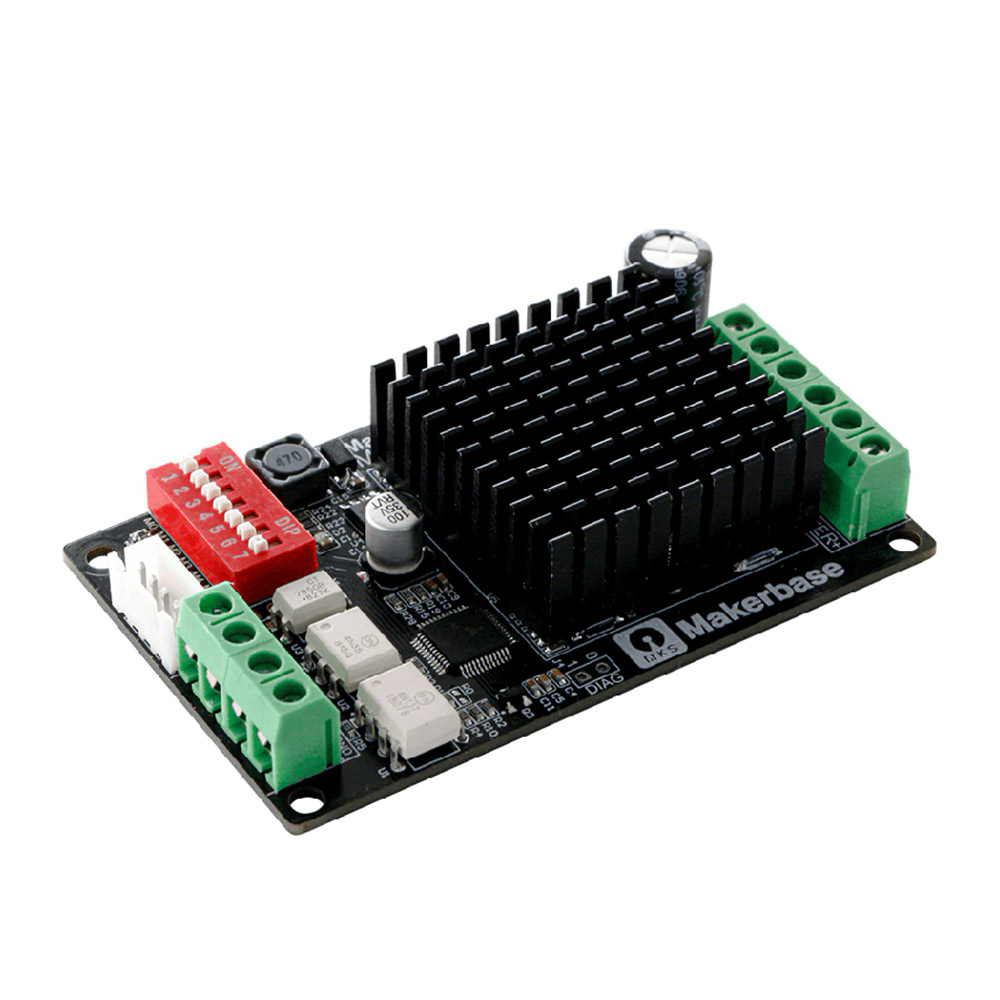

Makerbase MKS TMC2160-OC Stepper Motor Driver Ultra-Quiet High Torque for Gen L SGen CNC 3D Printer Parts

Features:

1. TMC series of driver with mute function & capable of driving up to 4.33A of current.
2. Little heat and easy to cool down.
3. Easy to modify microstep via DIP Switch, max supporting 64 microsteps.
4. Safe Optically coupled isolation signal.

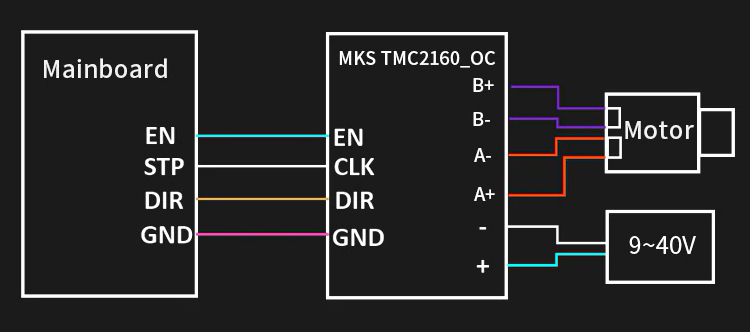

Wiring:

Driver settings:

ON = 1  OFF = 0
M0 M1 Microstep settings
0 0 8 MRES = 5
1 0 16 MRES = 4
0 1 32 MRES = 3
1 1 32 MRES = 2
M2 M3 M4 IRUN Setting Peak-Current
0 0 0 IRUN = 16 2.30A
1 0 0 IRUN = 18 2.57A
0 1 0 IRUN = 20 2.84A
1 1 0 IRUN = 22 3.11A
0 0 1 IRUN = 24 3.38A
1 0 1 IRUN = 26 3.65A
0 1 1 IRUN = 28 3.92A
1 1 1 IRUN = 31 4.33A
M5 Mode selection
0 SpreadCycle
1 StealthChop mode
M6 Chopper Setting
0 IHOLD = IRUN
1 IHOLD = 1/2IRUN

Current settings:
Calculation formula of currentIRMS(Valid value of current)= (Irun value is set via DIP Switch) The maximum current is 4.33A, while the minimum is 2.30A. There are 8 settings of current for choice, which are 2.30A, 2.57A, 2.84A, 3.11A, 3.38A, 3.65A, 3.92A and 4.33A.

Working mode:
TMC2160_OC has two working modes, SpreadCycle and StealthChop mode. It can be switched over via DIP Switch. Due to SpreadCycle mode with no mute function, it is recommended to use StealthChop mode.

IHOLD settings:
There are two IHOLD settings: IHOLD is the same as setting current (IHOLD=IRUN) and half as setting ( IHOLD=1/2 IRUN). It can be switched over via DIP Switch.

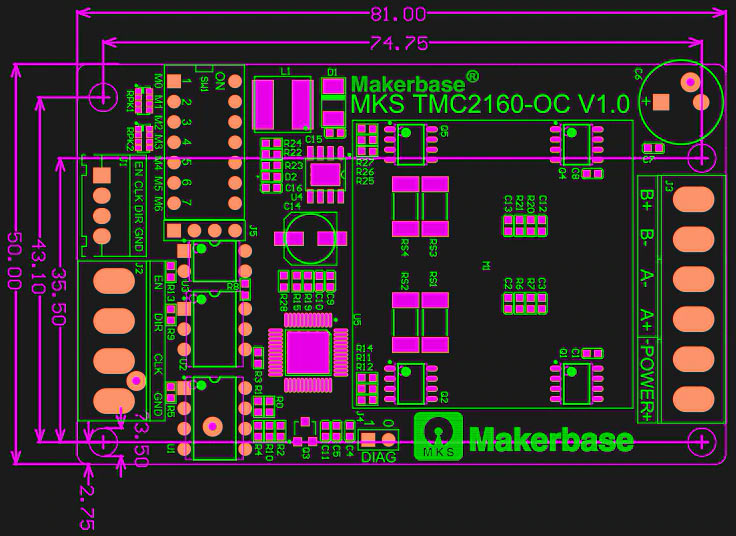

Size:



What you will receive:

1 x MKS TMC2160-OC Stepper Motor Driver Ultra-Quiet High Torque for Gen L SGen
