Leili/Minebea Nema17 Stepper Motor 1.8° Step Angle 3,20kg/cm HT for Mini CNC

£7.99

44 in stock

Leili/Minebea Nema17 Stepper Motor 1.8° Step Angle 3,20kg/cm HT for Mini CNC

£7.99

SKU: MOT-STE-037 Category: Step Tags: Leili, Minebea, Mini CNC, nema17, Stepper Motor
Product Categories
  • 3D Printer
    • Controllers
    • Filament
    • Kits
    • Parts & Accessories
  • Arduino
    • Boards
    • Kits
    • Shields and Accessories
  • Cooling
    • Fan Guards
    • Fans
    • Heatsinks
  • Drone
  • Drones and More
    • Accessories
    • Antennas
    • Components
    • Drones
    • Kits
  • Electronics
    • Access Control
    • Cable
    • Components and Sensors
    • DIY Kits
  • LED Lighting
    • Accessories
    • Beads
    • Bulbs
    • Controllers
    • DMX
    • Downlights
    • Panel
    • Strips
  • Mechanical
    • Bearing
    • Bearings
      • Ball
      • Bushings
      • Flange
      • Grooved
      • Linear
      • Miniature
      • Needle
      • Self Aligning
      • Self Lube
      • Taper Roller
    • Fluid Transfer
    • Magnets
    • Mounts and Supports
    • Pulleys and Coupler
    • Rails and Carriage
    • Rods
    • Rods and Carriages
    • Timing Belt
  • Microcontrollers
  • Miscellaneous
  • Motors
    • Accessories
    • Coreless
    • DC Motors
    • Drivers
    • Spindle
    • Step
  • Other
  • Power Supply
  • Raspberry Pi
    • Boards and Kits
    • Shields and Accessories
  • Robotics
    • Components
    • Kits
  • Uncategorised
  • Virtual Reality
  • Description

Description:

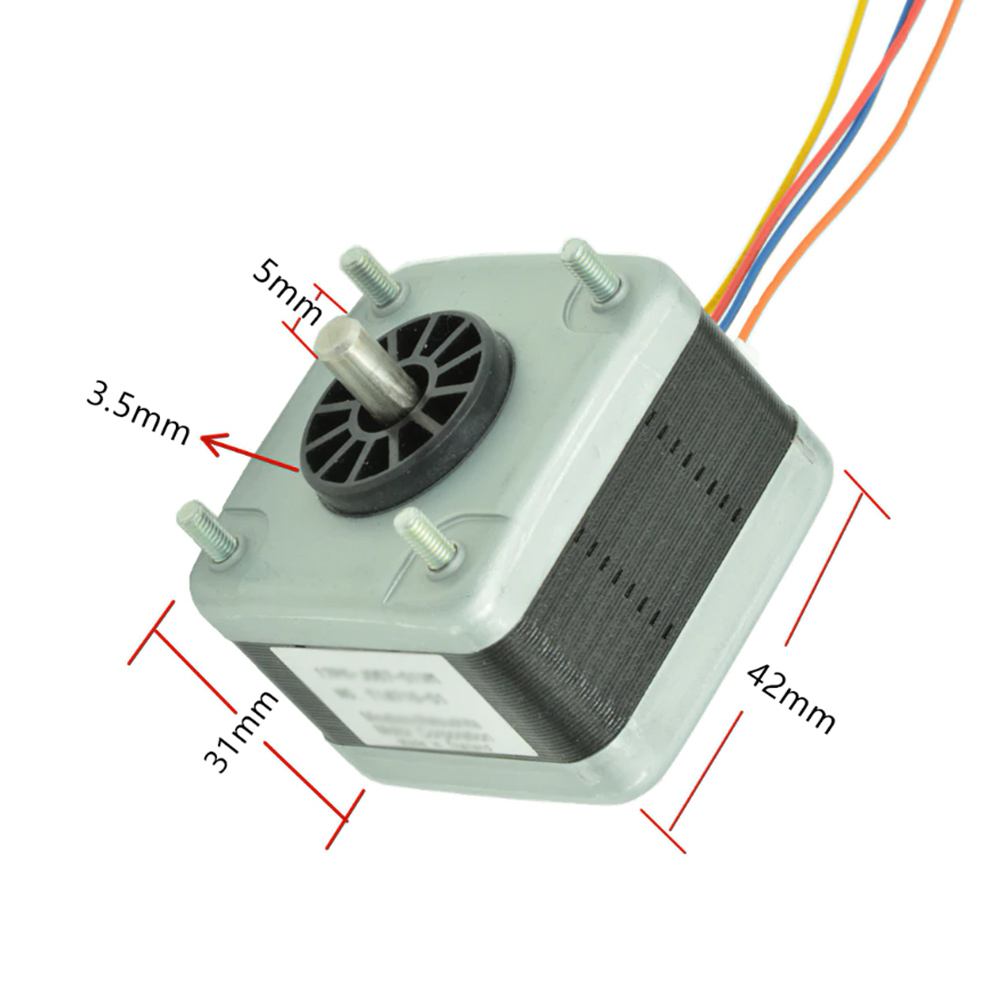

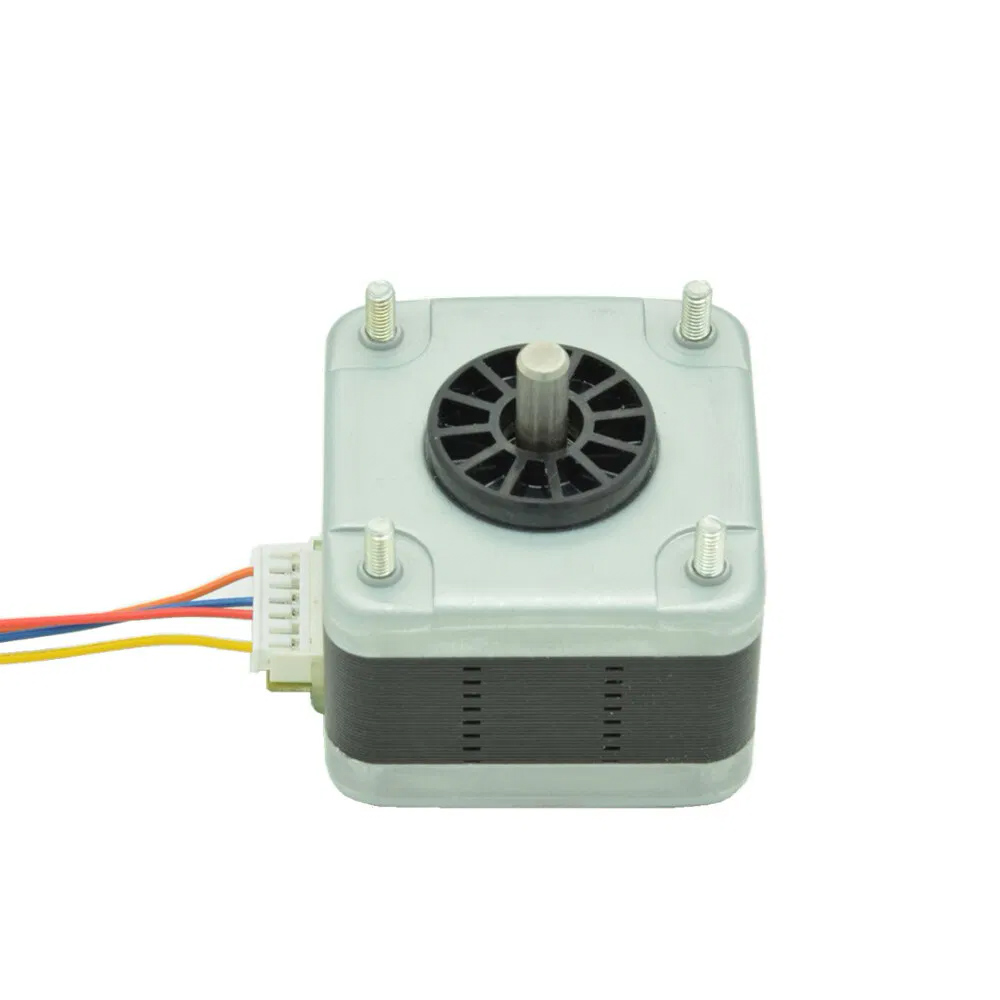

Leili / Minebea Nema17 Stepper Motor 1.8° Step Angle 3,20kg/cm Holding Torque for Mini CNC (17PM-J057-01VM)

Specification:

Current Per Phase: 1A
Phase Resistance Value: 10OHM
Phase Inductance: 17mH
Step Angle: 1.8°
Number of Steps per Tour: 200
Holding Torque: 3,20 kg / cm
Motor Shaft Thickness: 5mm
Cable Length: 20cm
Weight: 240g

What you will receive:

1 x Leili / Minebea Nema17 Stepper Motor
