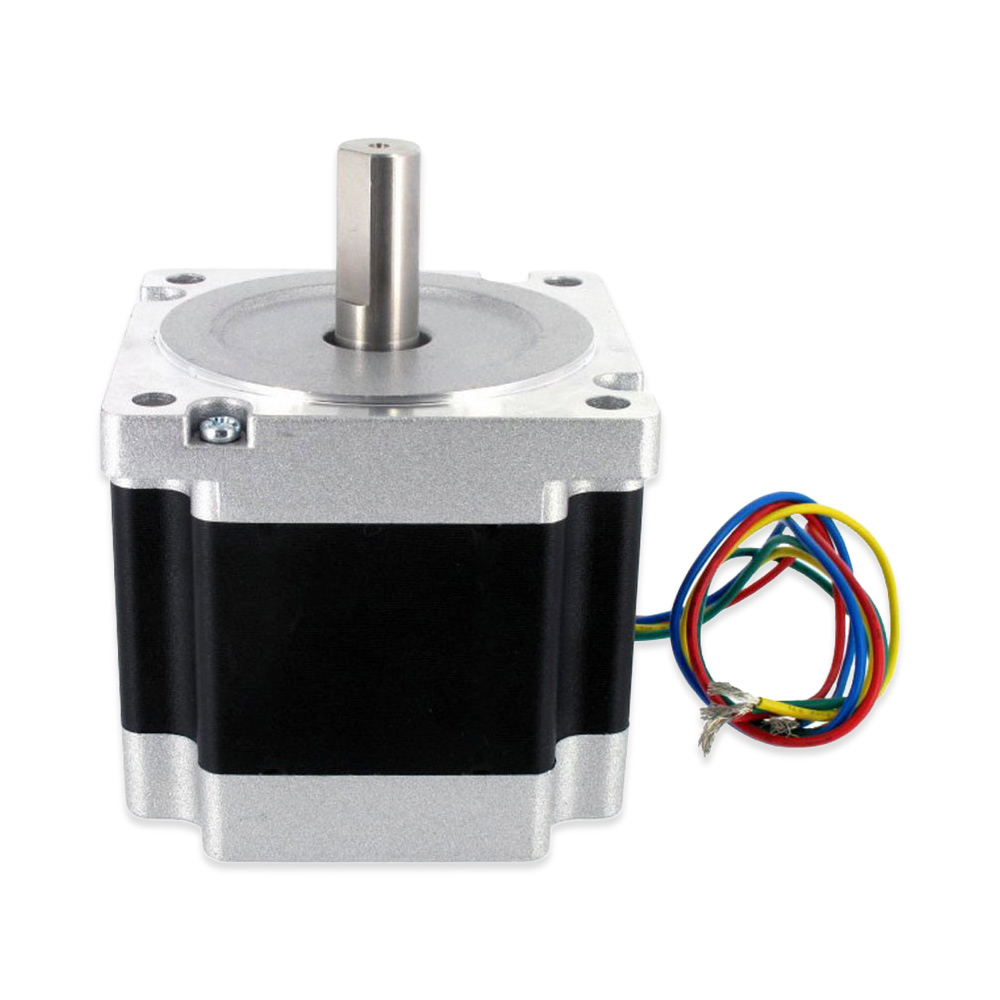

NEMA34 98mm 7Nm Two Phase Bipolar Stepper Motor

SKU	MOT-STE-035
Weight	2700 g
Ships from	Cardiff, UK

Description:

Two Phase Bipolar NEMA34 98mm Stepper Motor

Specification:

Motor Type: Bipolar Stepper
Step Angle: 1.8°
Holding Torque: 7N.m
Rated Current/phase: 6A
Resistance: 0.5m±10% ohms
Inductance: 3.8mH±20%(1KHz)
Voltage: 2.5V

Frame Size: 86 x 86mm
Body Length: 98mm
Shaft Diameter: 14mm with key slot
Shaft Length: 32mm
Number of Leads: 4
Weight: 2.7kg

What you will receive:

1 x Two Phase Bipolar NEMA34 98mm Stepper Motor

Image is for illustration purposes only
