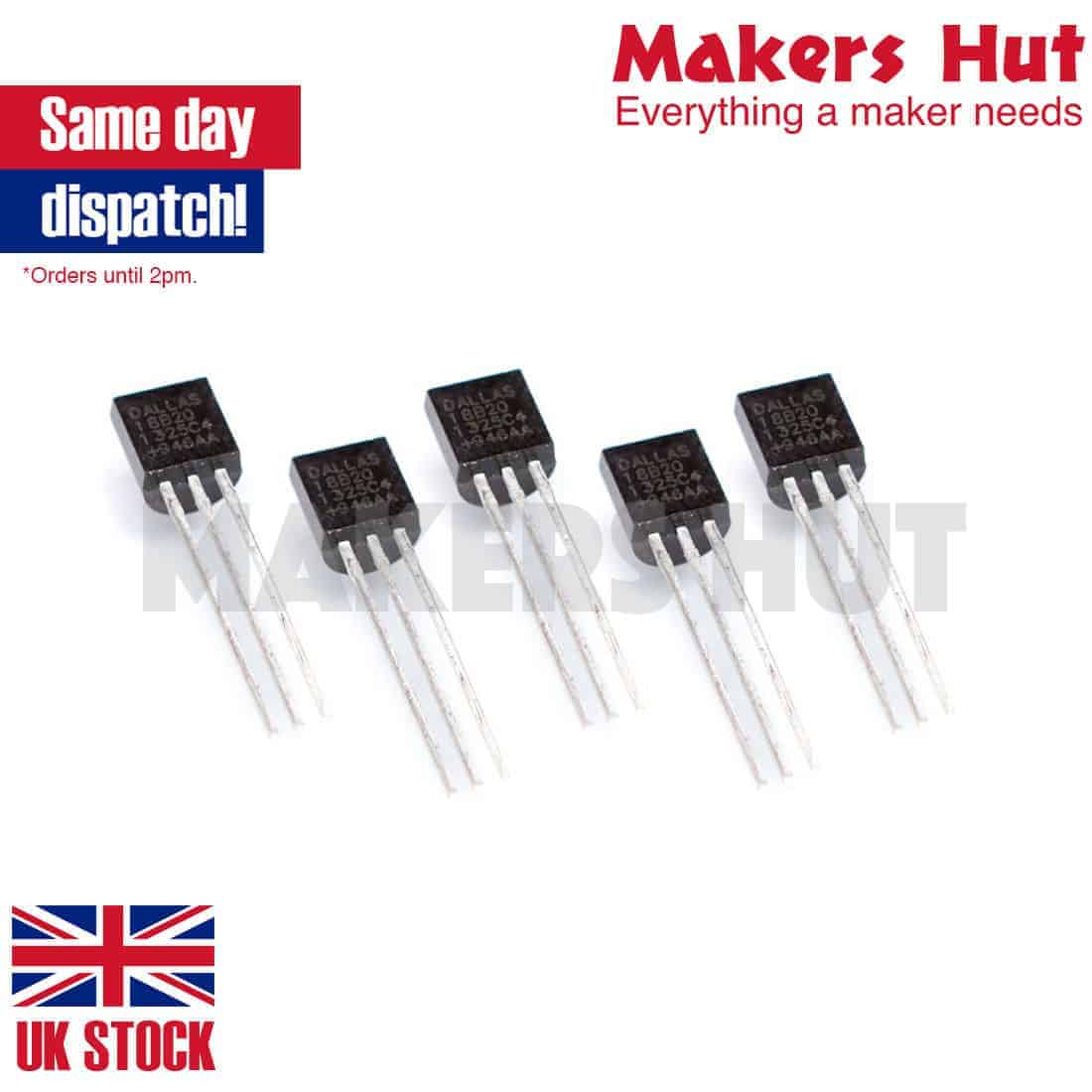

5x DS18B20 Digital Temperature Sensor Chip Dallas TO92 Thermometer Thermal

£4.59

25 in stock

5x DS18B20 Digital Temperature Sensor Chip Dallas TO92 Thermometer Thermal

£4.59

SKU: ELE-COM-017 Category: Components and Sensors Tags: Chip, Digital Temperature Sensor, Thermometer
Product Categories
  • 3D Printer
    • Controllers
    • Filament
    • Kits
    • Parts & Accessories
  • Arduino
    • Boards
    • Kits
    • Shields and Accessories
  • Cooling
    • Fan Guards
    • Fans
    • Heatsinks
  • Drone
  • Drones and More
    • Accessories
    • Antennas
    • Components
    • Drones
    • Kits
  • Electronics
    • Access Control
    • Cable
    • Components and Sensors
    • DIY Kits
  • LED Lighting
    • Accessories
    • Beads
    • Bulbs
    • Controllers
    • DMX
    • Downlights
    • Panel
    • Strips
  • Mechanical
    • Bearing
    • Bearings
      • Ball
      • Bushings
      • Flange
      • Grooved
      • Linear
      • Miniature
      • Needle
      • Self Aligning
      • Self Lube
      • Taper Roller
    • Fluid Transfer
    • Magnets
    • Mounts and Supports
    • Pulleys and Coupler
    • Rails and Carriage
    • Rods
    • Rods and Carriages
    • Timing Belt
  • Microcontrollers
  • Miscellaneous
  • Motors
    • Accessories
    • Coreless
    • DC Motors
    • Drivers
    • Spindle
    • Step
  • Other
  • Power Supply
  • Raspberry Pi
    • Boards and Kits
    • Shields and Accessories
  • Robotics
    • Components
    • Kits
  • Uncategorised
  • Virtual Reality
  • Description
  • Additional information

Description:

The DS18B20 digital thermometer provides 9-bit to 12-bit Celsius temperature measurements and has an alarm function with nonvolatile user- programmable upper and lower trigger points. The DS18B20 communicates over a 1-Wire bus that by definition requires only one data line (and ground) for communication with a central microprocessor. It has an operating temperature range of -55C to 125C and is accurate to 0.5C over the range of -10C to 85C.

Each DS18B20 has a unique 64-bit serial code, which allows multiple DS18B20s to function on the same 1-Wire bus. Thus, it is simple to use one microprocessor to control many DS18B20s distributed over a large area. Applications that can benefit from this feature include HVAC environmental controls, temperature monitoring systems inside buildings, equipment, or machinery, and process monitoring and control systems.

Specification:

Supply Voltage: 3.0 _ 5.5V
Supply Current: 1 _ 1.5mA
Accuracy:  0.5 (-10C to 85C),  2 (-55C to 125C)
Resolutio Bit: 12bit
Package Type: TO-92
Pins: 3
Operating Temperature Range: -55C to 125C
Output Type: Digital

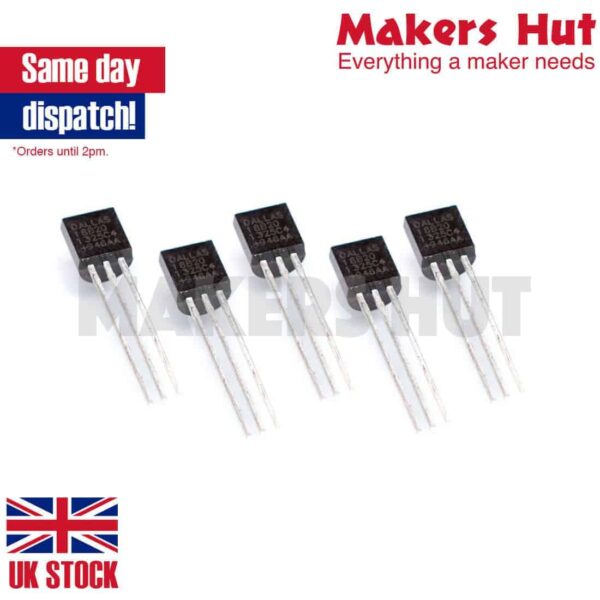

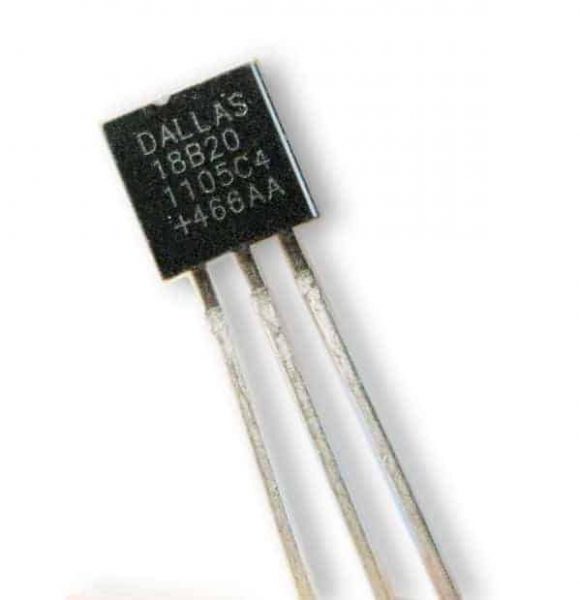

The image is for illustration purposes only.

What you will receive:

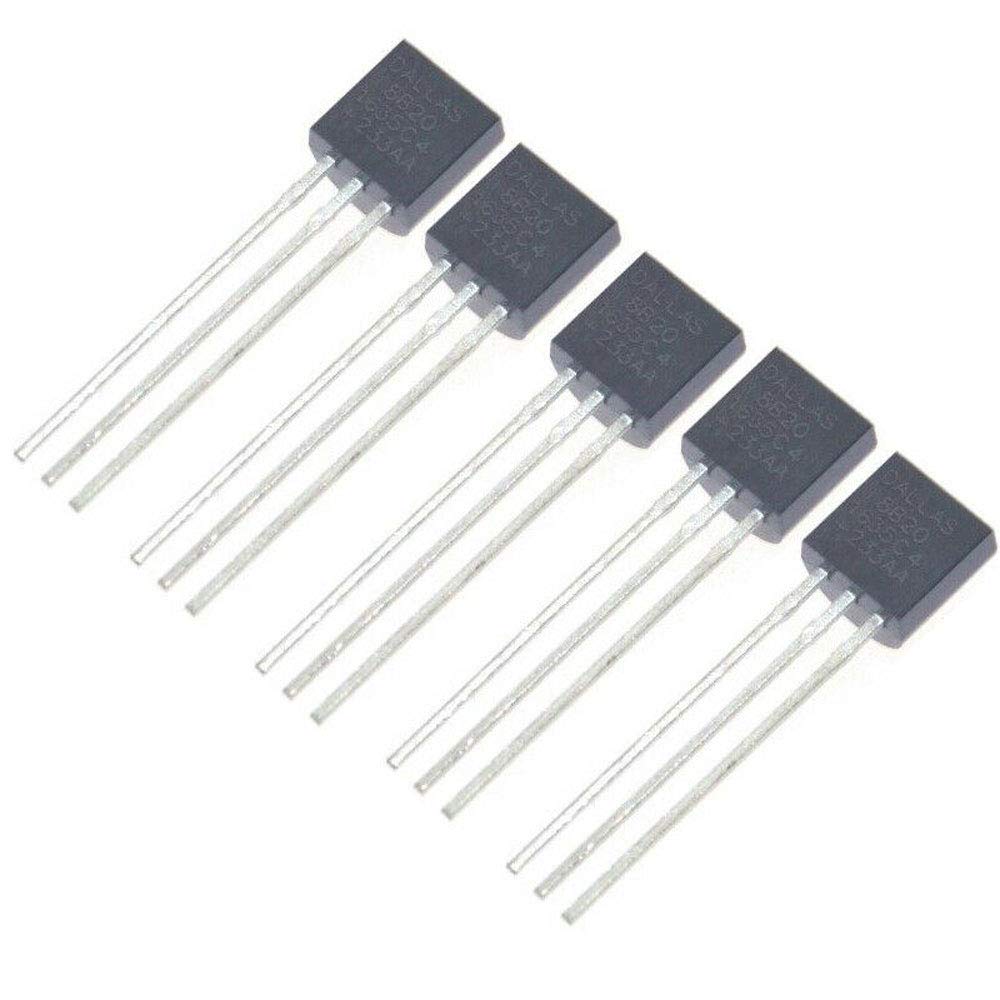

5 x DS18B20 Digital Temperature Sensor

Weight 5 g
EAN

Does not apply

Brand

Makers Hut
