Description:

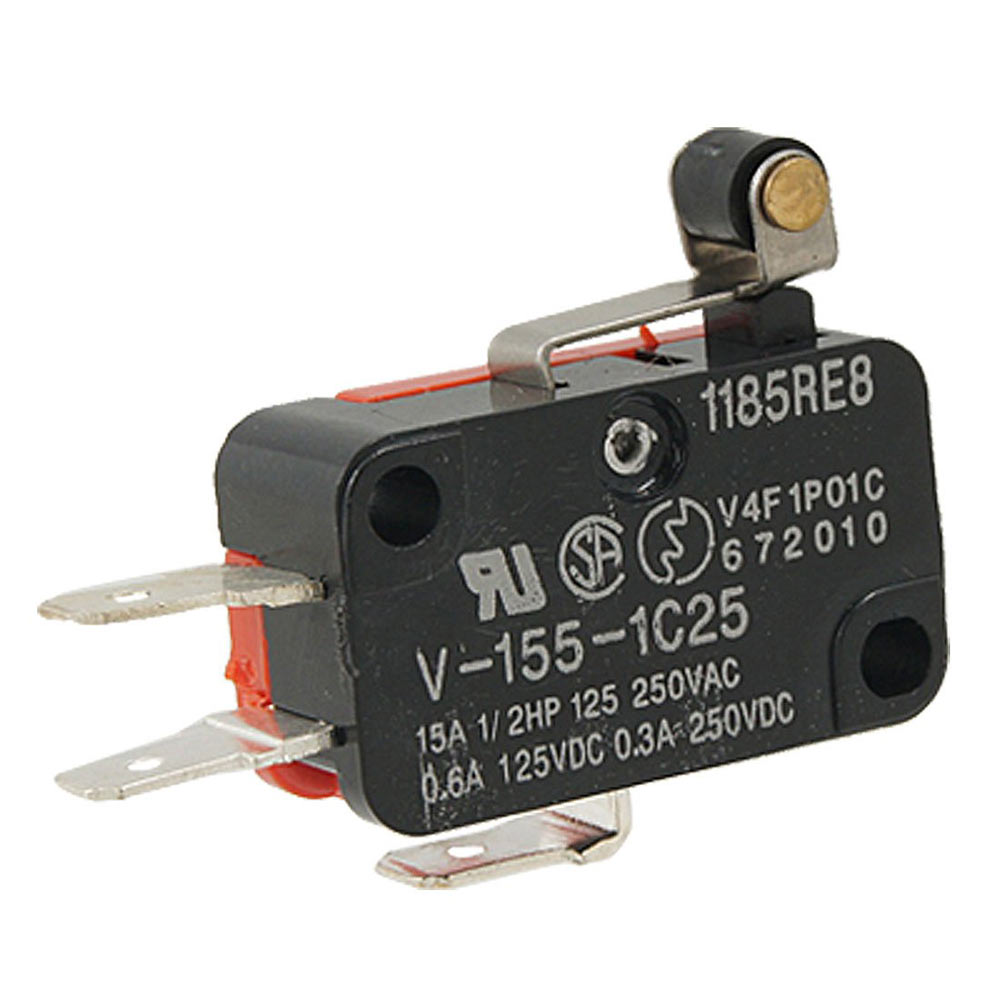

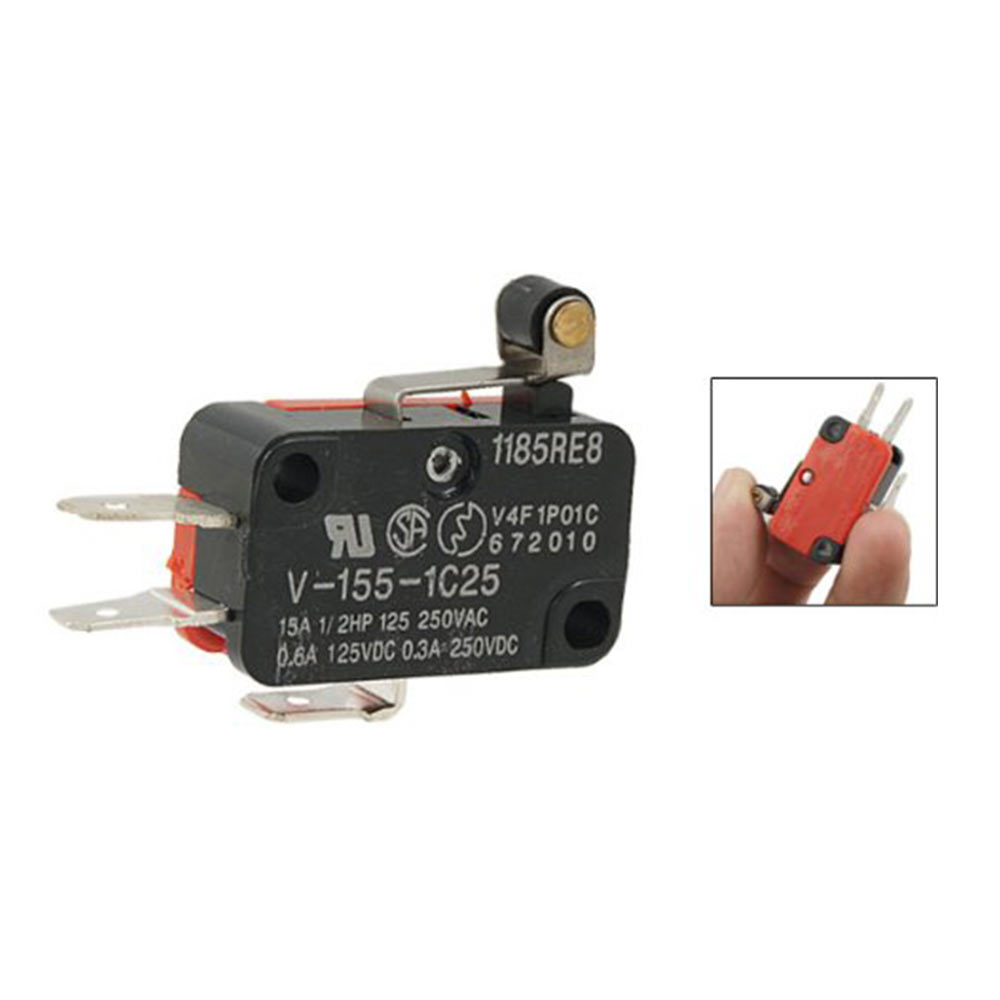

Short Hinge Roller Lever Actuator, 1NO+1NC Conatact Congfiguration, 3 Terminals. Designed to control the movement of a mechanical part. Typically utilized in industrial control applications to automatically monitor and indicate whether the travel limits of a particular device have been exceeded. High precision mechanism design offering acute operation and long life.
Specification:
Manufacturer: Omron Electronics Inc-EMC Div
| Product Attributes | ||
| Circuit | SPDT | |
|---|---|---|
| Switch Function | On-Mom | |
| Current Rating | 15A (AC), 10A (DC) | |
| Voltage Rating – AC | 250V | |
| Voltage Rating – DC | 30V | |
| Actuator Type | Lever, Roller | |
| Mounting Type | Chassis Mount | |
| Termination Style | Quick Connect – 0.187″ (4.7mm) | |
| Ingress Protection | IP40 | |
| Features | – | |
| Operating Force, Torque | 240gf | |
| Release Force | 50gf | |
| Pretravel | 0.063″ (1.6mm) | |
| Differential Travel | 0.025″ (0.6mm) | |
| Overtravel | 0.030″ (0.76mm) | |
| Operating Position | 0.815″ (20.7mm) | |
| Mechanical Life | 50,000,000 Cycles | |
| Electrical Life | 100,000 Cycles | |
| Operating Temperature | -25°C ~ 80°C |
What you will receive:
1 x Endstop Limit Switch
| Weight | 5 g |
|---|---|
| EAN | |
| MPN | |
| Brand |
