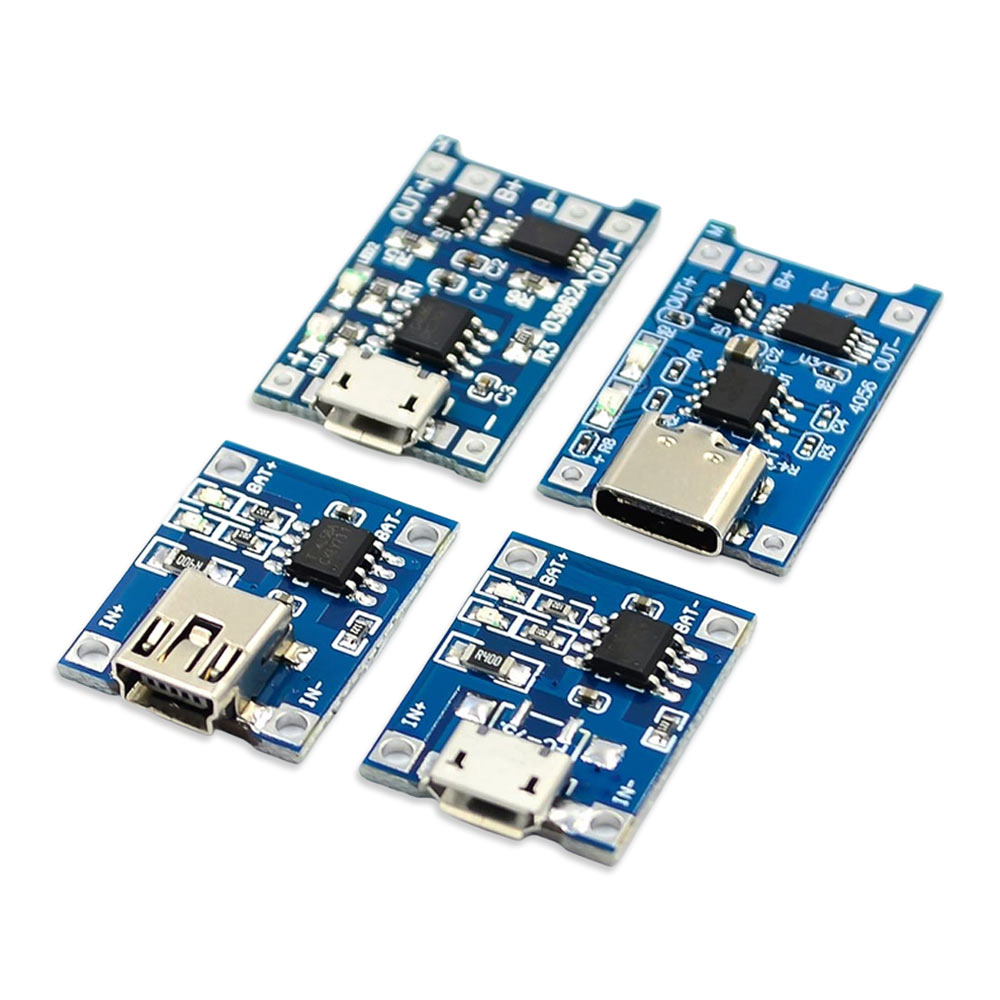

TP4056 / 18650 Lithium Battery Charger Modules 3.7v 3.6V 4.2V 1A

Description:

18650 Lithium Battery Charger Module Protection Micro USB / Mini USB / TYPE-C 5V 1A – 3.7v 3.6V 4.2V

Features:

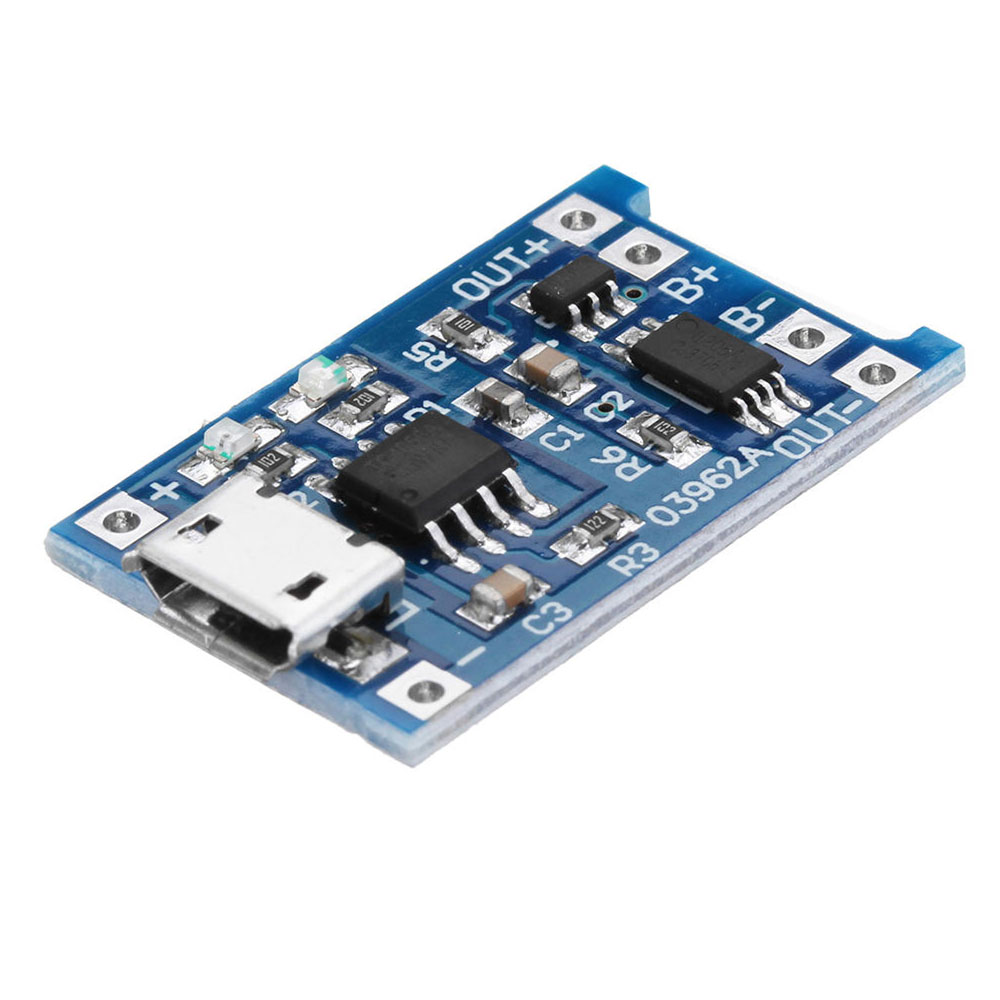

Micro USB Interface Lithium Battery Charger

Charge cut-off voltage: 4.2 V + / – 1%
Battery over-current protection current: 3 A
Maximum charging current: 1000 mA
Input interface: Micro USB
The battery overcharge protection voltage: 2.5 V
The input voltage: 5V
Size: 2.8cm x 1.7cm

Input port with micro 5pin USB female, can directly use mobile charger for input to the lithium battery,and still retain the input voltage wiring solder joints, can be very convenient.
Connect the battery to B + B – , insert mobile phone charger to the USB Female then red light is charging and green is full of charged.

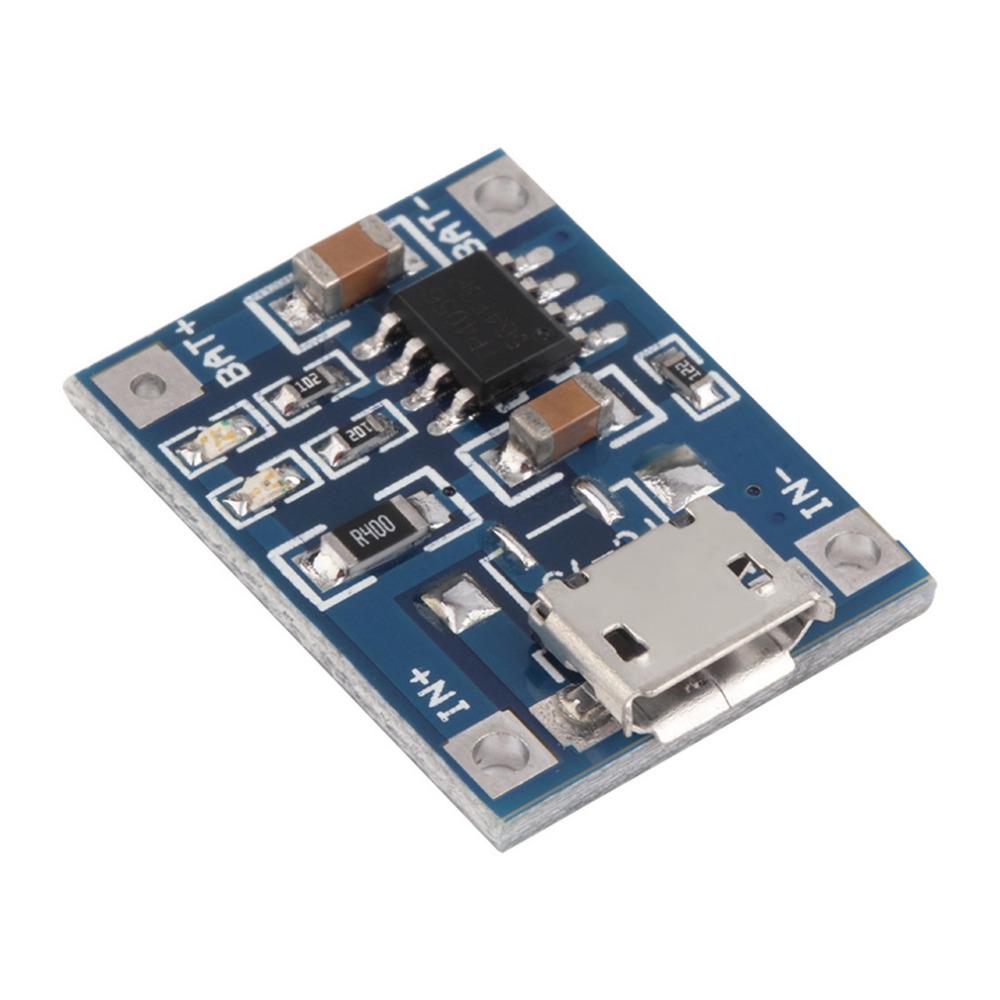

Mini USB Interface Lithium Battery Charger

Charging Method: Linear Charging
Charging Current: 1A
Accuracy: 1.5%
Input Voltage: 4.5V-5.5V
Full Charge Voltage: 4.2V
Can not reverse
Size: 2.2cm x 1.7cm

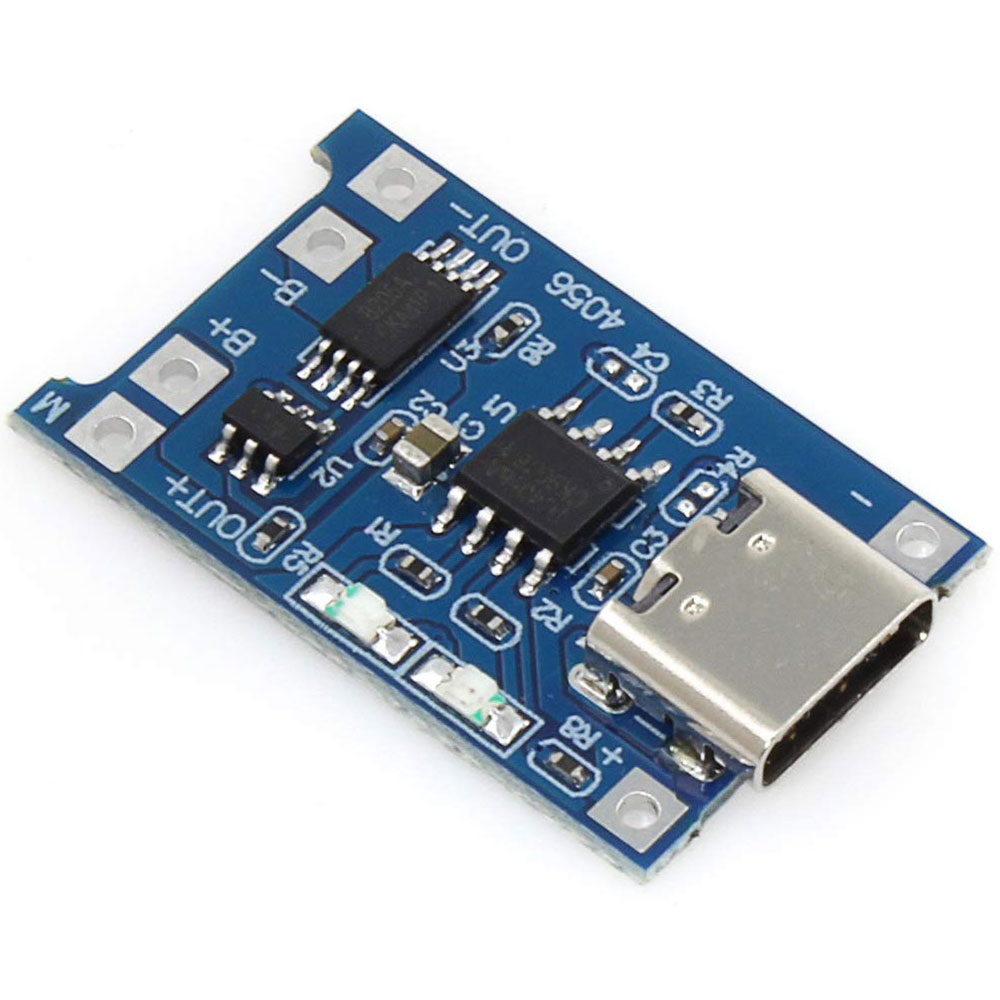

TYPE-C Interface USB Lithium Battery Charger

Charge cut-off voltage: 4.2 V + / – 1%
Battery over-current protection current: 3 A
Maximum charging current: 1000 mA
Input interface: TYPE-C
The battery overcharge protection voltage: 2.5 V
The input voltage: 5V
Size: 2.8cm x 1.7cm

What you will receive:

1 x Charge Module, Please Select Model
