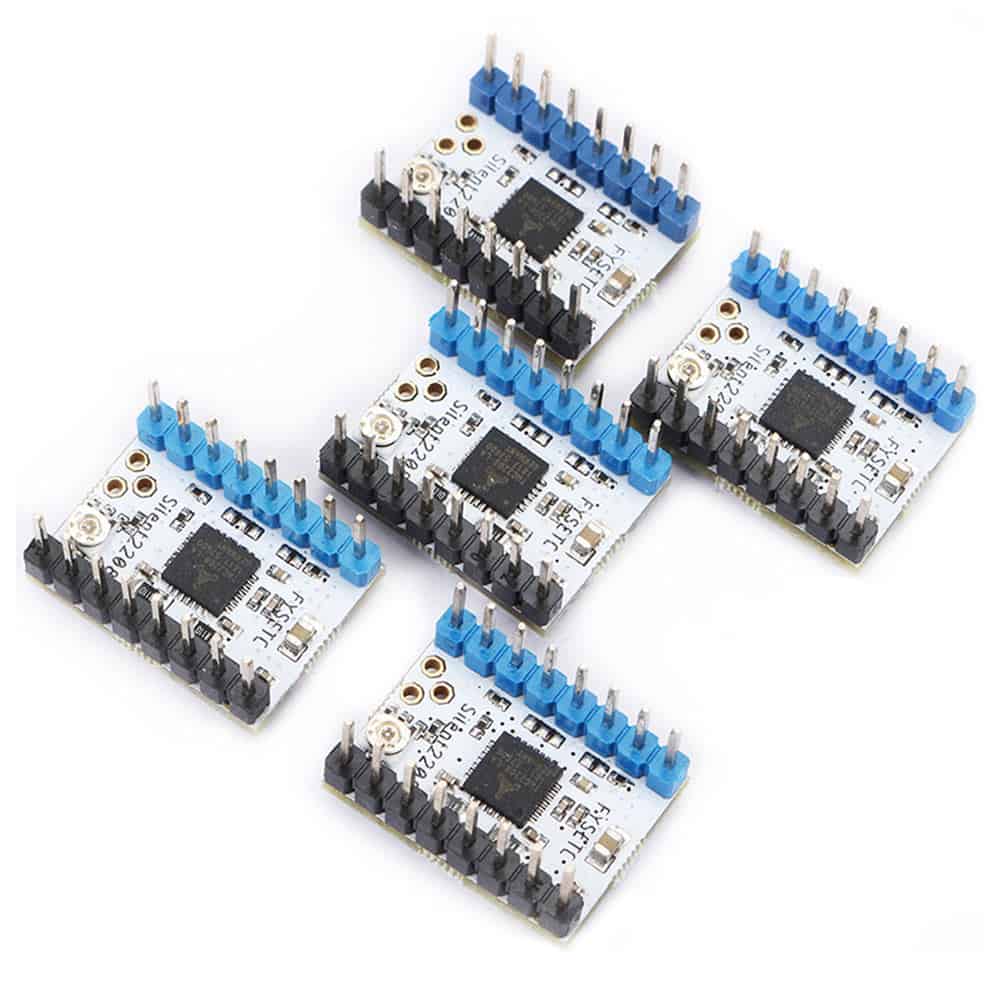

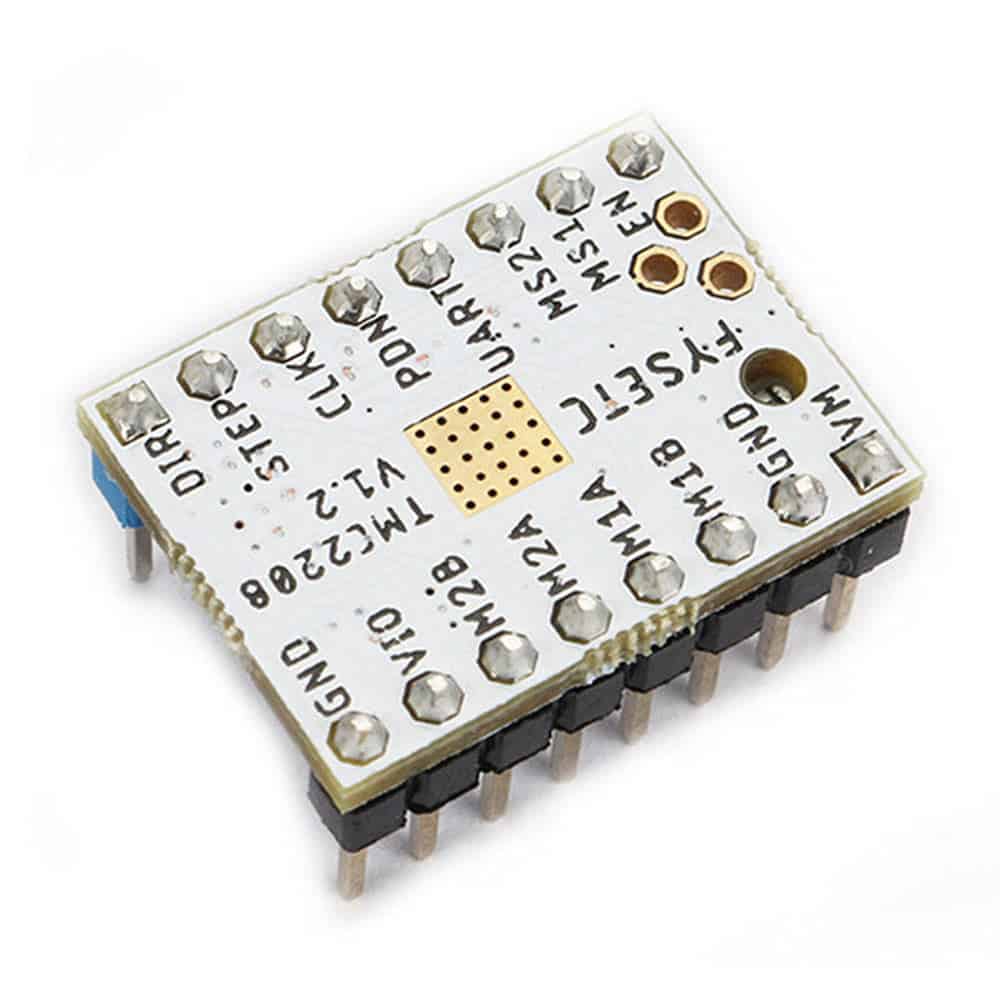

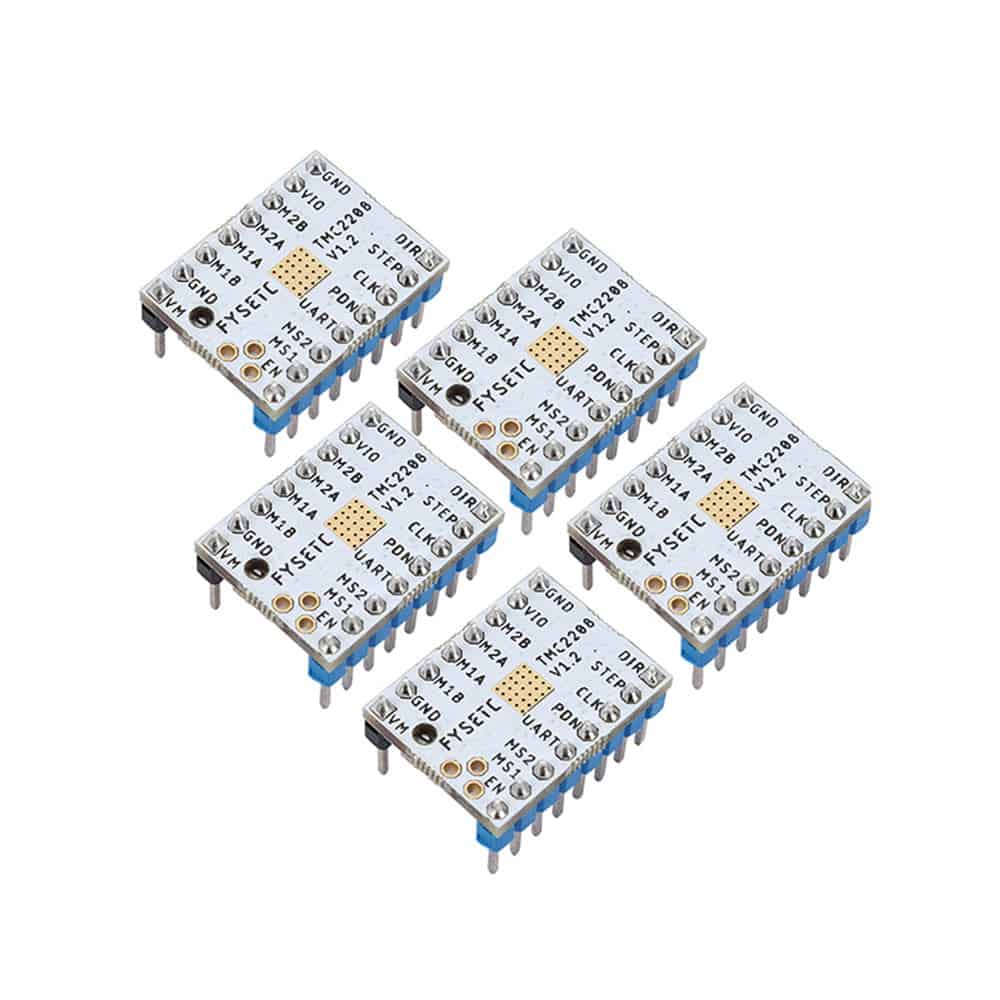

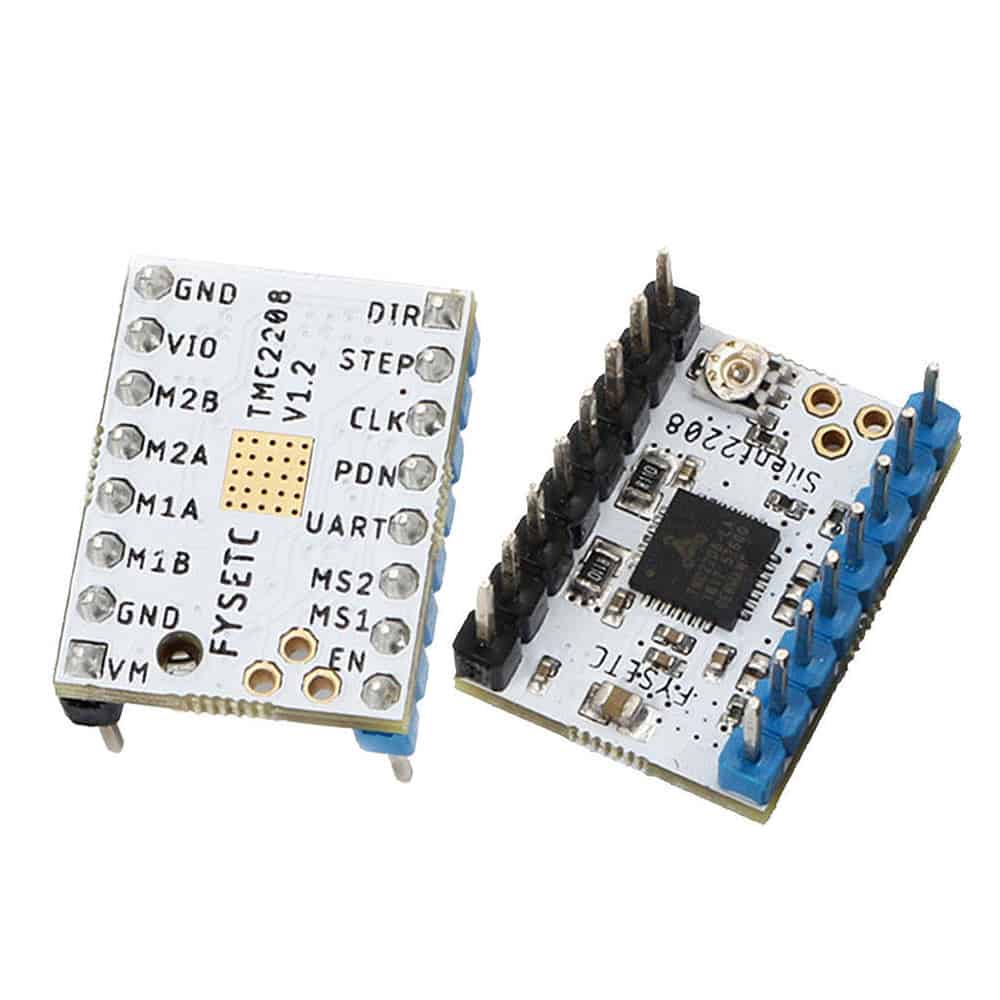

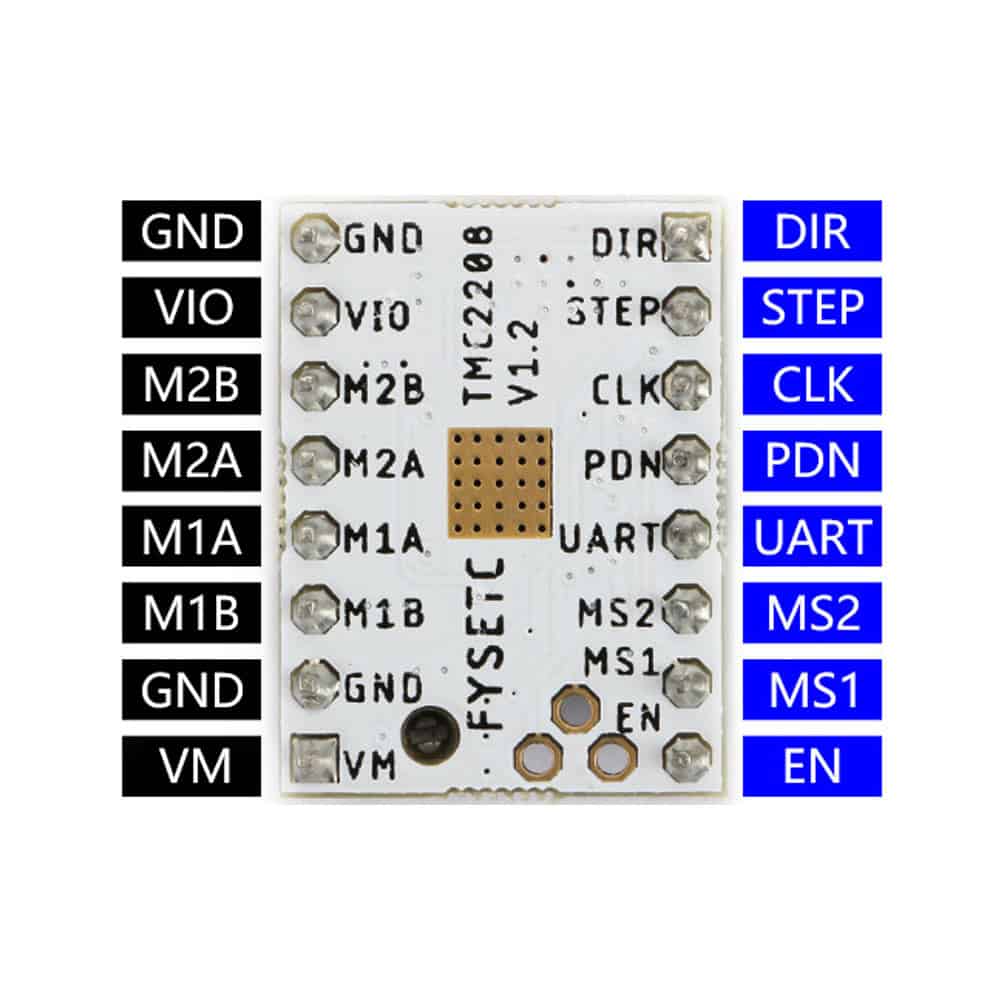

TMC2208 v1.2 Stepping Motor Mute Driver Stepstick Silent

Description:

The Silent-Step-Stick is a Stepper Motor Driver Board for 2-Phase Motors based on a Trinamic TMC 2100, Trinamic TMC 2130or Trinamic TMC 2208.

Features:

Interface: Step/Dir
Configuration: CFG Pins or UART
MicrIsteps: 256 segments
Model: Stepper Motor Driver TMC2208
Drive Current: 1.4A
Peak Current: 2A
Logic Voltage: 3-5V
Motor Drive Voltage: 5.5-36V
Size (LWH): 20 x 15 x 11 mm/ 0.78″ x 0.59 x 0.43

Note !!!:

• Make sure not to connect the motor when measuring voltage, otherwise driver will burn out.
• When used on Ramps1.4 or MKS Gen, please remove the 3 jumpers under socket.
• Pay attention to direction, don’t insert wrongly, or it will burnt out.
• The motor direction is opposite to that of A4988 and DRV8825, please adjust the firmware or adjust the motor wiring if you want to replace A4988.

What you will receive:

1 x TMC2208 Driver
