Double Shaft Nema17 48mm Stepper Motor 3D Pinter DIY CNC

Description:

Two phase bipolar 4 lead wire Nema17 48mm double shaft stepper motor

Specifications:

Manufacturer Part Number: 17HS5005-24S24
Motor Type: Bipolar Stepper
Step Angle: 1.8 ± 5%
Holding Torque: 0.44 N.m (62 oz in)
Rated Current/Phase: 1.5A
Phase Resistance: 2 ohms
Recommended Voltage: 12-24V
Inductance: 3.8 mH 20%(1KHz)
Weight: 380g

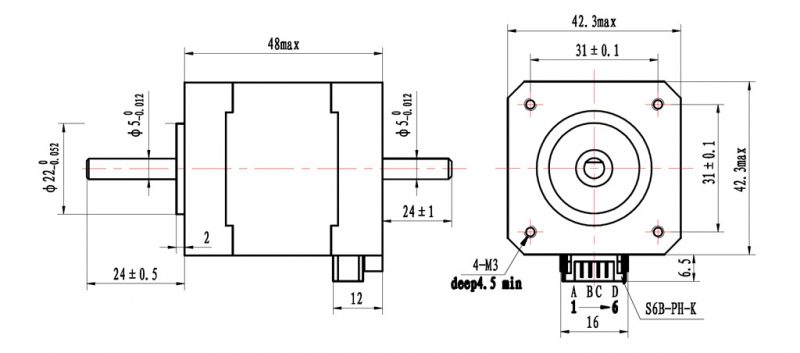

Dimensions: 48×42.3×42.3mm
Shaft Diameter: 5mm

What you will receive:

1 x Nema17 Stepper Motor Double Shaft
