Raindrop Detection Sensor Module Humidity Rain Drop For Arduino PI

Description:

• Raindrop Detection Sensor Module
• The sensor uses the FR-04 high-quality double-sided materials, King Size 5.0 * 4.0CM, and with the surface of the nickel plating
  treatment, against oxidative, conductivity, superior performance and longevity
• The comparator output, the signal is clean, waveform, driving ability over 15mA
• Distribution bit to adjust sensitivity
• Operating voltage 3.3V-5V
• The output in the form: digital switching outputs (0 and 1) and analog AO voltage output
• A fixed bolt hole for easy installation
• Voltage: 5V
• Power indicator, the output signal LED indicator.
• TTL-level output, TTL output valid signal is low. Driving capability 100MA so, can directly drive relays, buzzer, a small fan, and so on.
• Sensitivity can be adjusted via potentiometer
• LED lights up when there is no rain output is high, raindrop up, the output ground level, LED light.
• Raindrops and control panels are separate, easy to wire leads.

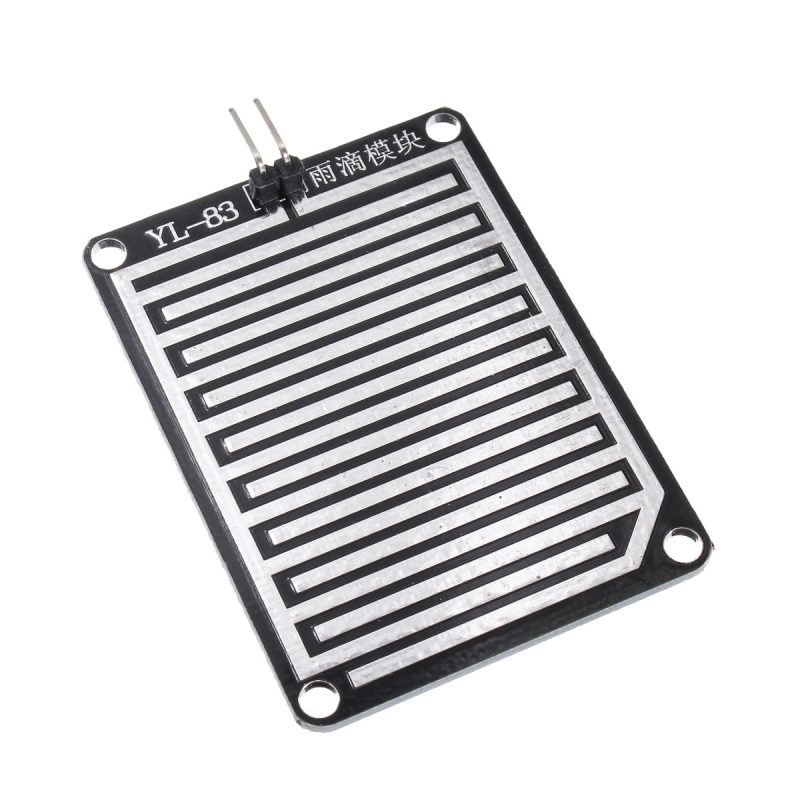

• A large area of rain board, more conducive to detect rain.
• Board with positioning holes to facilitate installation

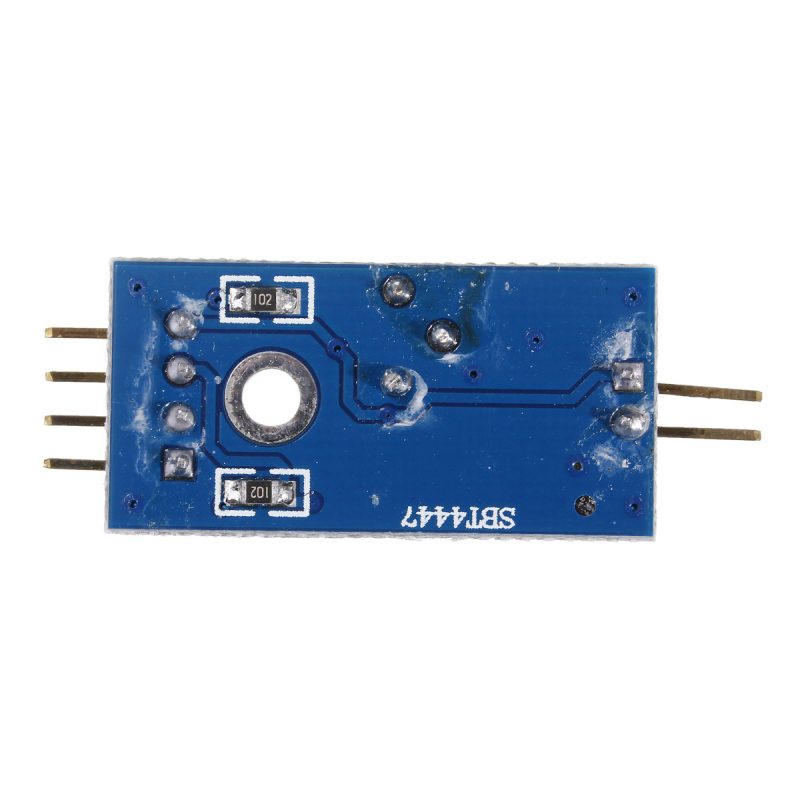

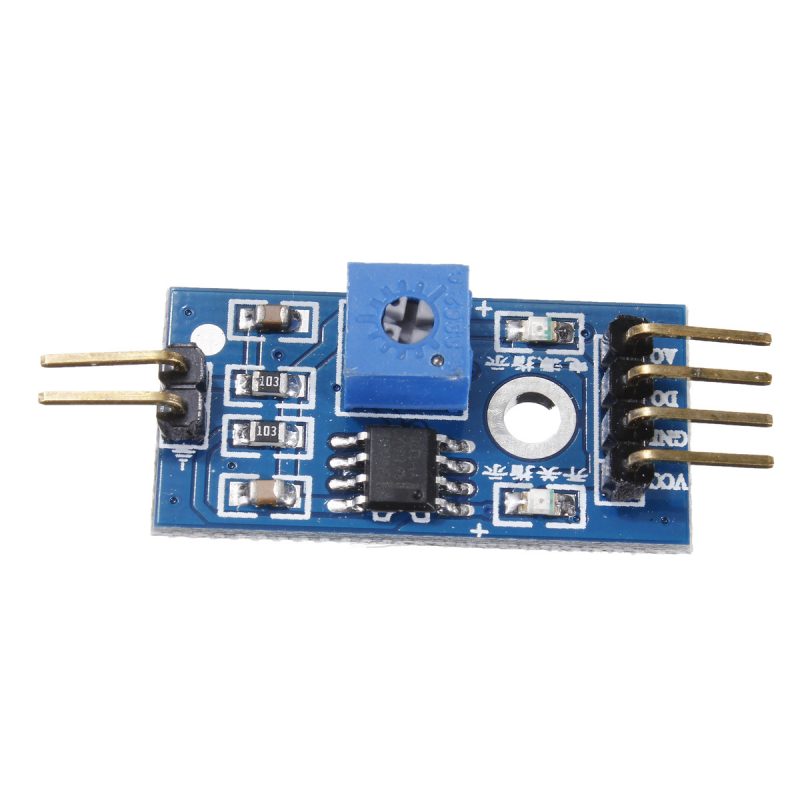

• Small board PCB size: 3.2cm x 1.4cm
• Wide voltage LM393 comparator

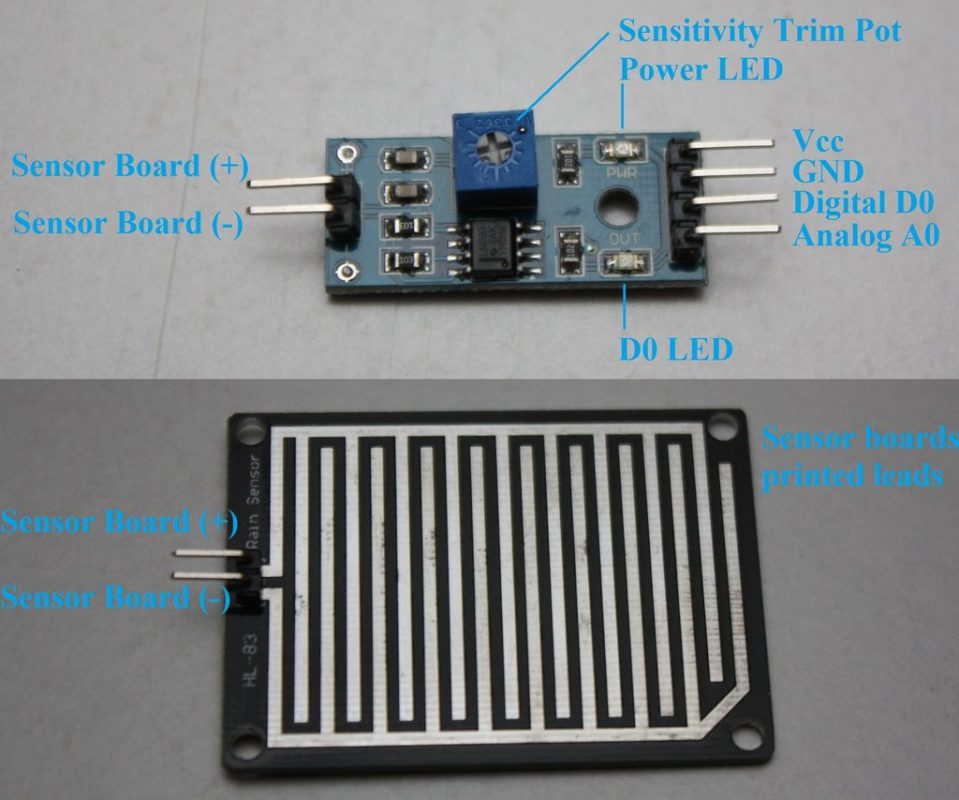

Connection Mode:

VCC: positive power supply (3-5V)
GND: negative one.
DO: TTL switching signal output
AO: Analog signal output

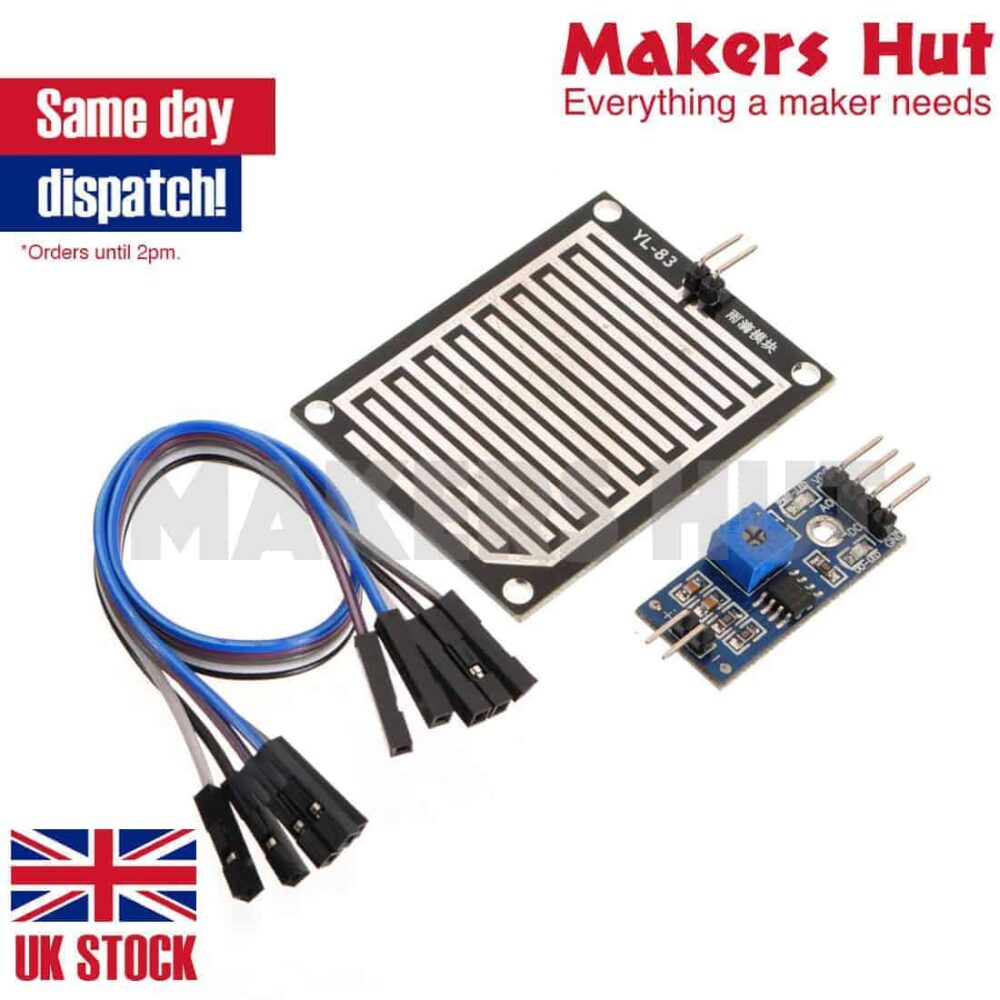

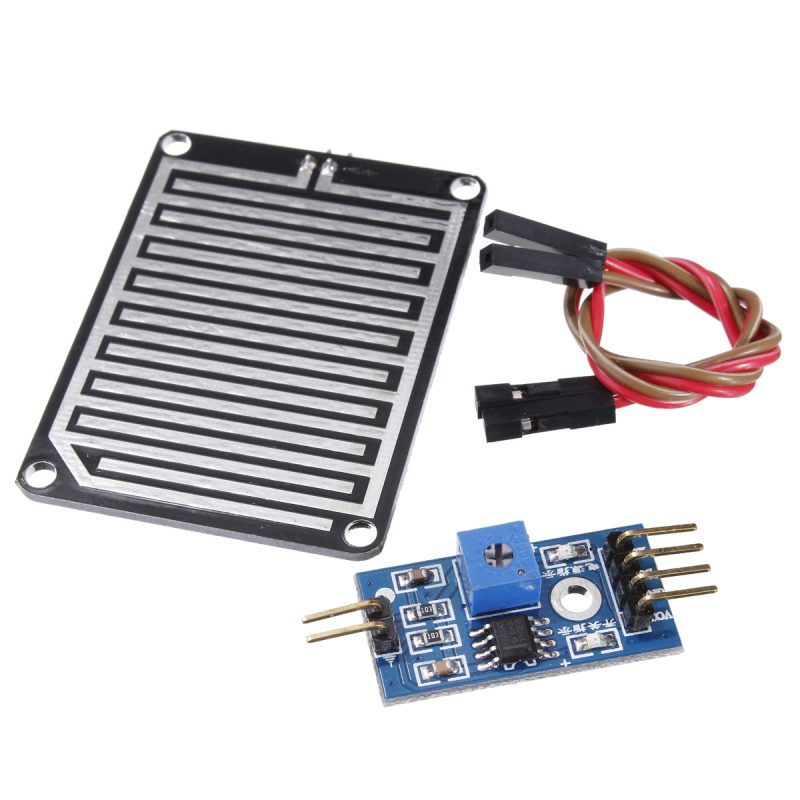

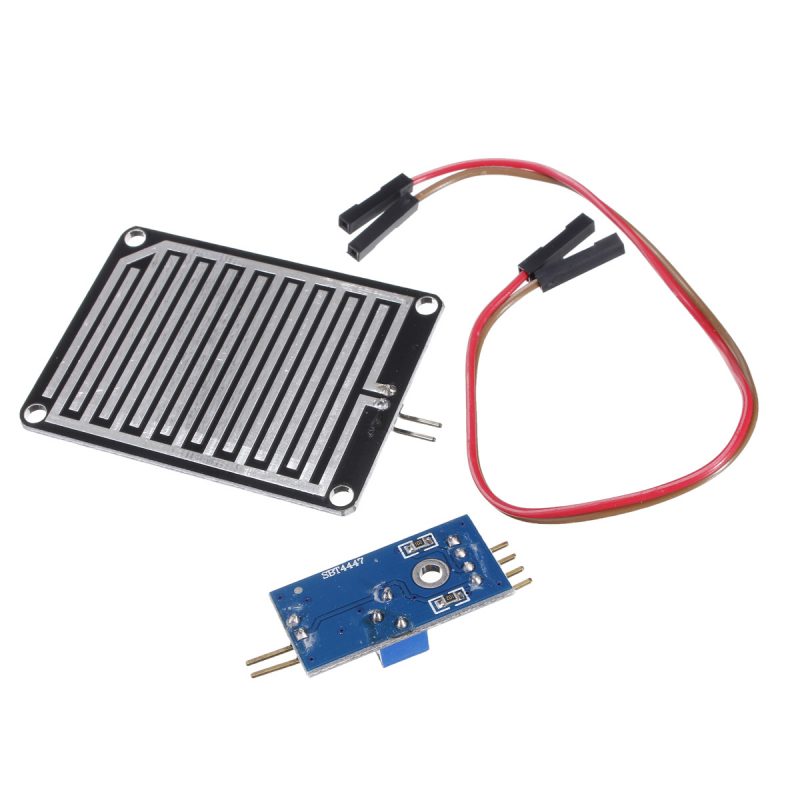

What you will receive:

1 x Rain sensing board
1 x Control board

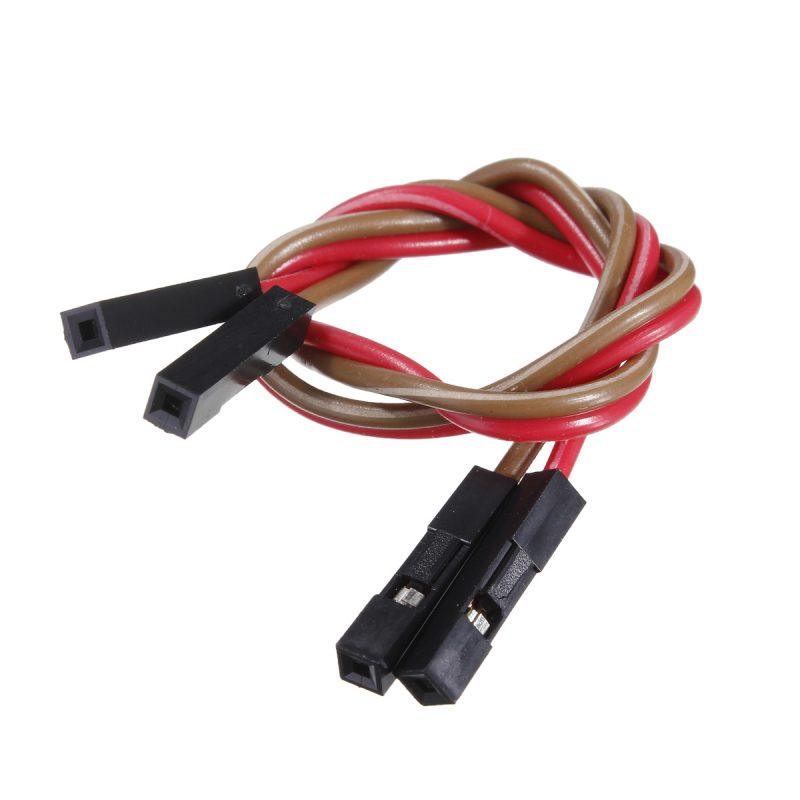

5 x F-Dupont Line
