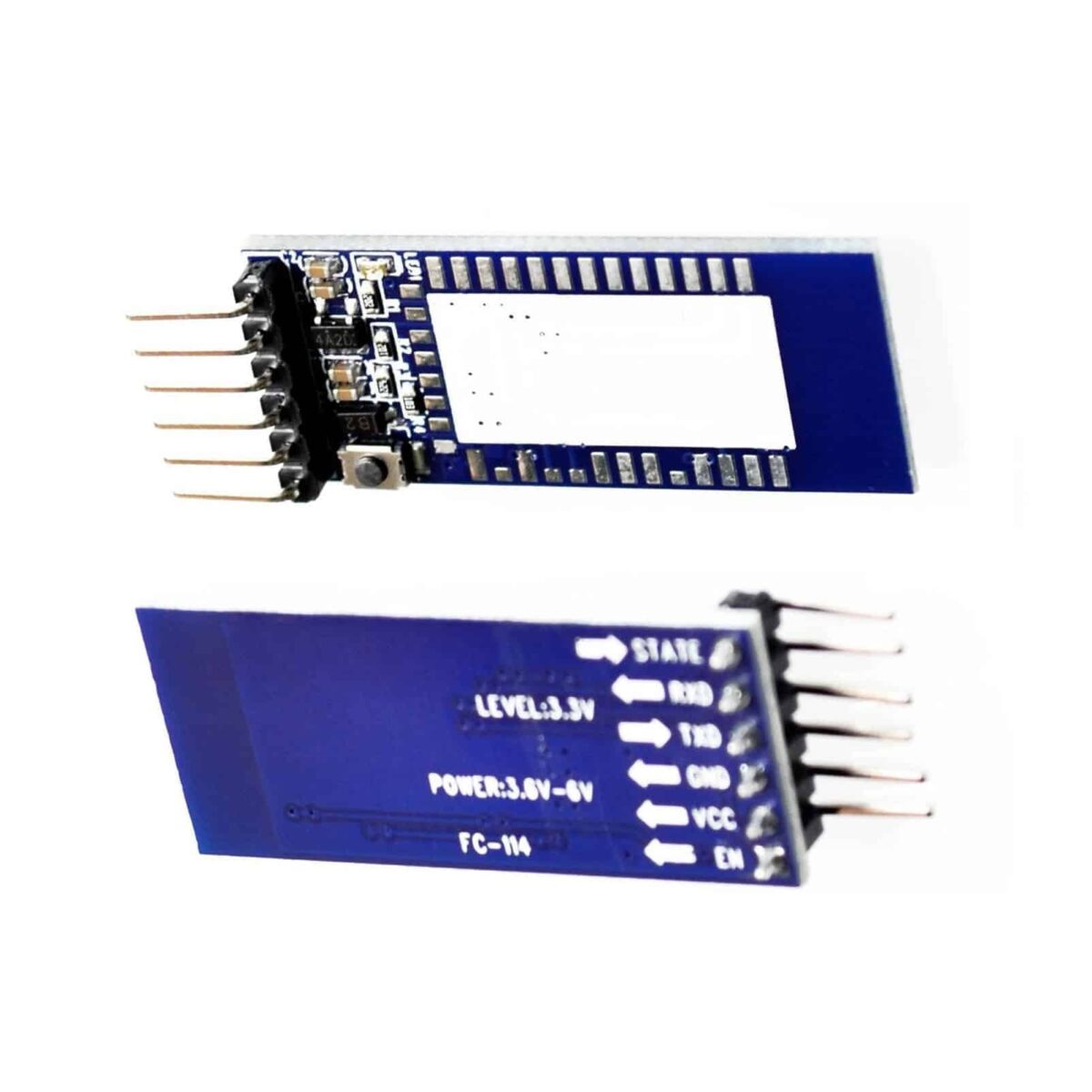

An easy way to connect a bluetooth module to and Arduino or similar board.
Requires a bluetooth module such as HC05 – HC07, BC04 or similar type.
(Blutooth module not included.)
Pins incluude EN, VCC, GND, TXD. RXD and State.
Power 3.6V-6V. FC-114
Easy Pin identification
What you will receive:
Interface Base Breakout Board for Bluetooth Transceiver- HC-09 HC-07 HC-06 HC-05
