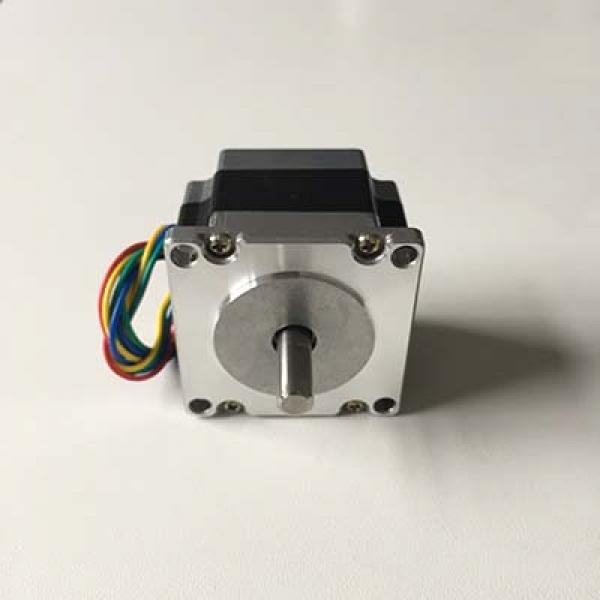

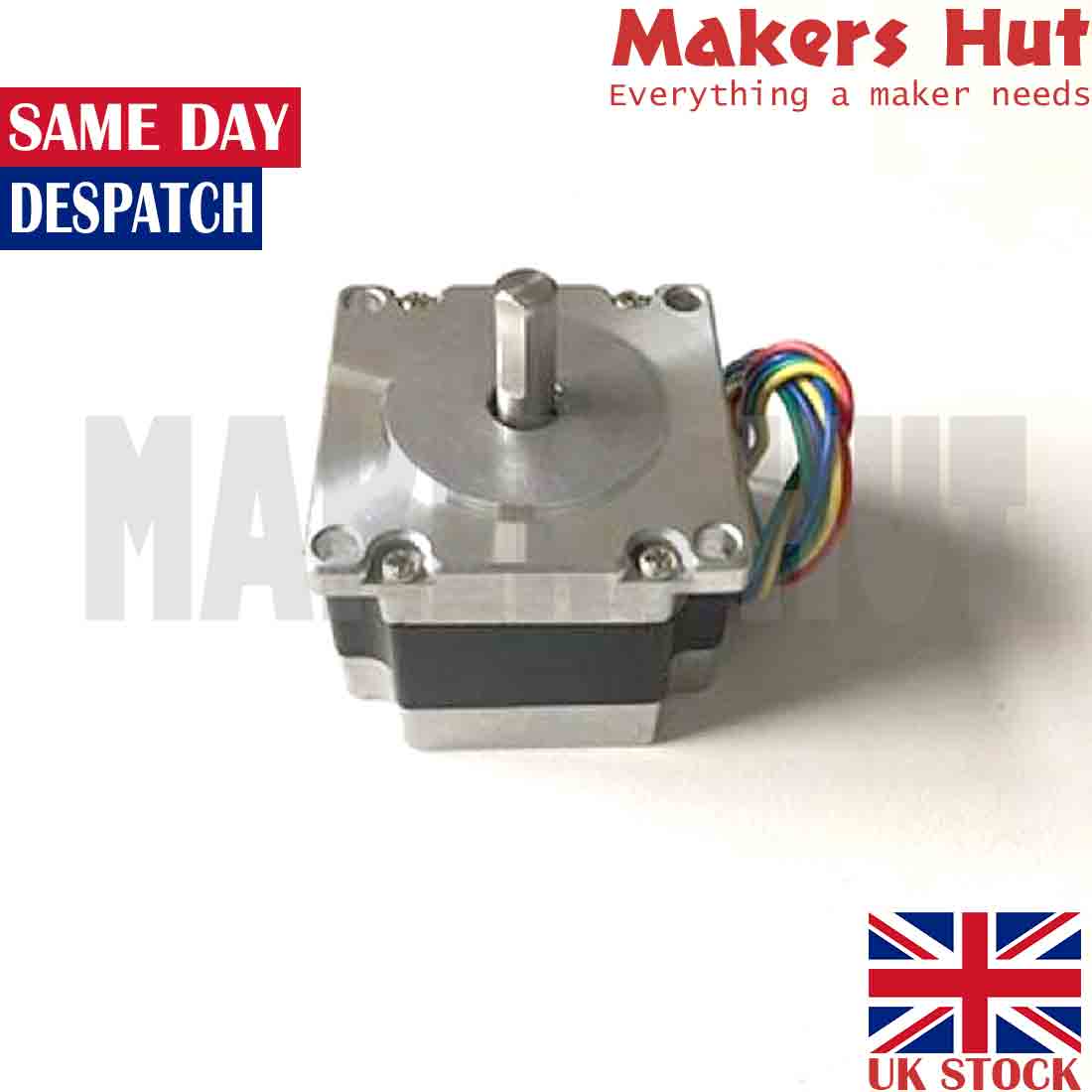

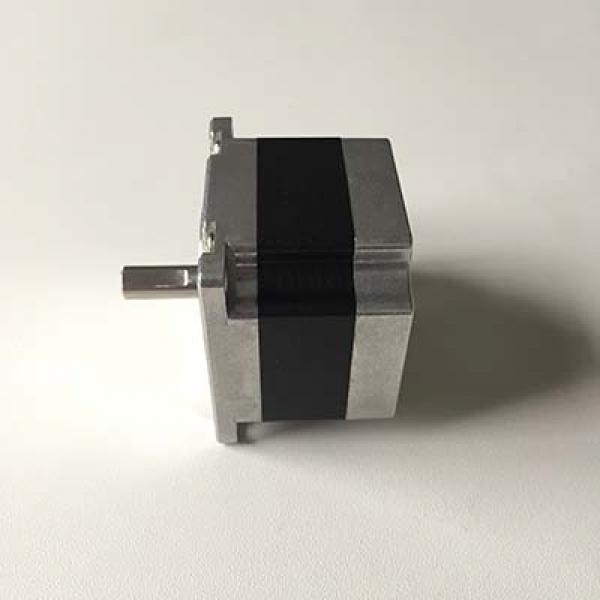

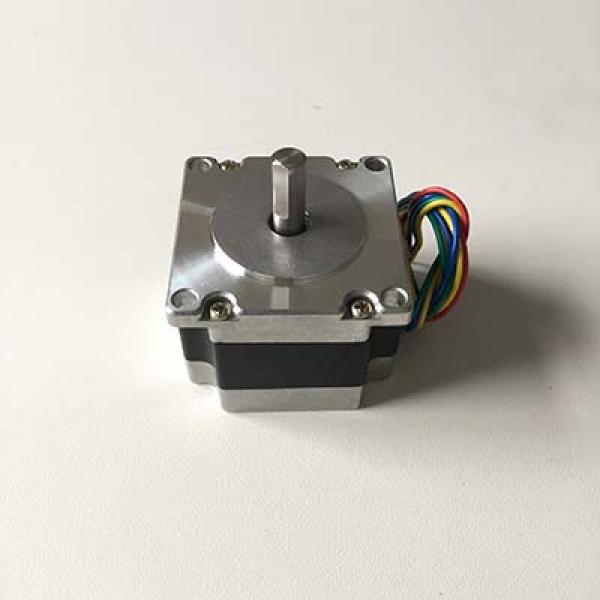

Nema23 42mm Stepper Motor

SKU	MOT-STE-026
Weight	600 g
Ships from	Cardiff, UK

Description:

This hybrid bipolar Nema 23 stepper motor with 1.8 degree step angle (200 steps/revolution).

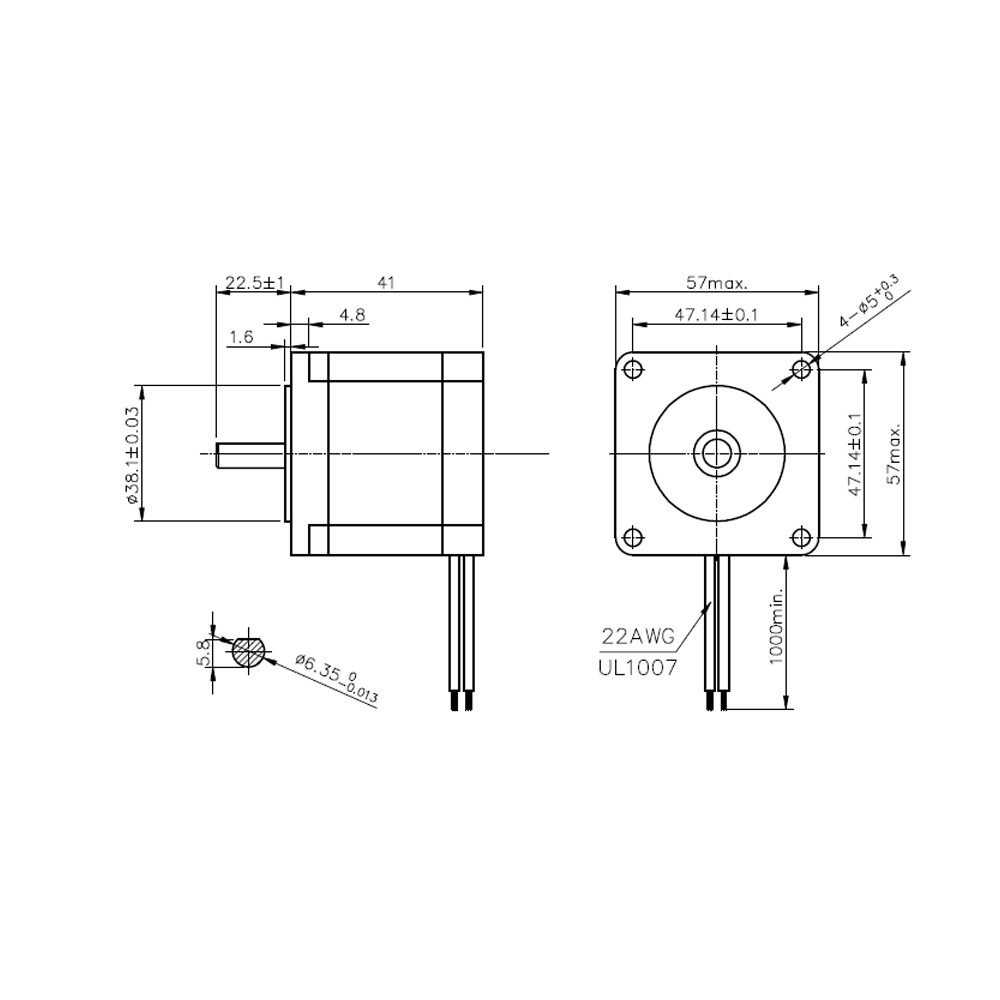

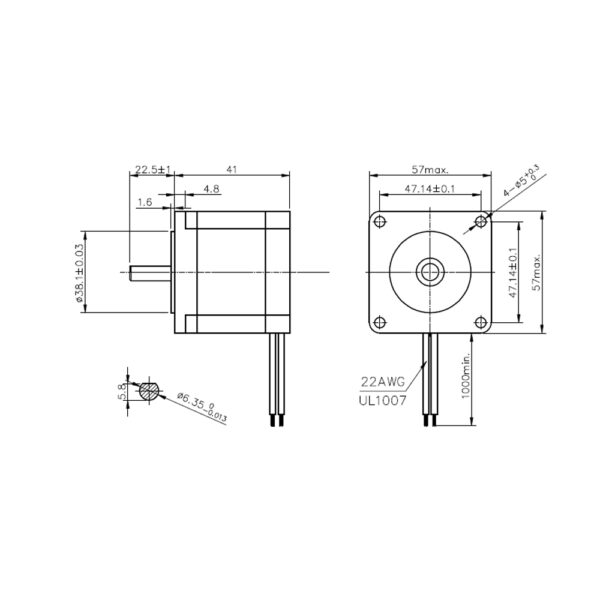

Specifications:

Motor Depth: 42mm
Stepper: Two phase 4 lead wires bipolar stepper
Step Angle: 1.8 degree
Rated Current: 2.84A
Rated Voltage: 3.3V
Holding Torque: 5.5Kg.cm
Lead Wires: Bipolar 4 , Red n Green, Yellow n Blue
Shaft: 6.35mm Single Flat

What you will receive:

1 x Nema23 42mm Stepper Motor with Connector Cable
