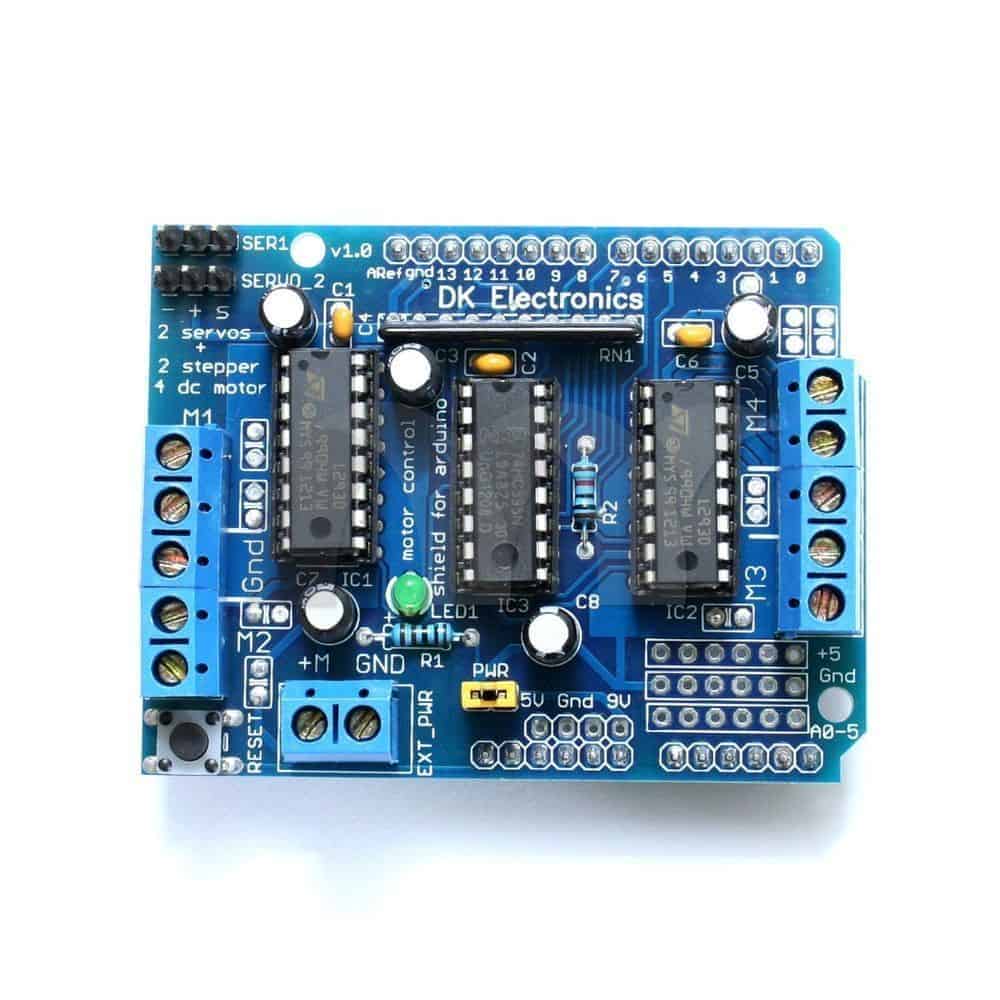

Motor Drive Expansion Shield Board Module L293D For Arduino Duemilanove Mega UNO

£3.99

46 in stock

Motor Drive Expansion Shield Board Module L293D For Arduino Duemilanove Mega UNO

£3.99

SKU: ARD-SHI-061 Category: Shields and Accessories Tags: arduino, Duemilanove, Expansion Shield Board, Motor Drive
Product Categories
  • 3D Printer
    • Controllers
    • Filament
    • Kits
    • Parts & Accessories
  • Arduino
    • Boards
    • Kits
    • Shields and Accessories
  • Cooling
    • Fan Guards
    • Fans
    • Heatsinks
  • Drone
  • Drones and More
    • Accessories
    • Antennas
    • Components
    • Drones
    • Kits
  • Electronics
    • Access Control
    • Cable
    • Components and Sensors
    • DIY Kits
  • LED Lighting
    • Accessories
    • Beads
    • Bulbs
    • Controllers
    • DMX
    • Downlights
    • Panel
    • Strips
  • Mechanical
    • Bearing
    • Bearings
      • Ball
      • Bushings
      • Flange
      • Grooved
      • Linear
      • Miniature
      • Needle
      • Self Aligning
      • Self Lube
      • Taper Roller
    • Fluid Transfer
    • Magnets
    • Mounts and Supports
    • Pulleys and Coupler
    • Rails and Carriage
    • Rods
    • Rods and Carriages
    • Timing Belt
  • Microcontrollers
  • Miscellaneous
  • Motors
    • Accessories
    • Coreless
    • DC Motors
    • Drivers
    • Spindle
    • Step
  • Other
  • Power Supply
  • Raspberry Pi
    • Boards and Kits
    • Shields and Accessories
  • Robotics
    • Components
    • Kits
  • Uncategorised
  • Virtual Reality
  • Description
  • Additional information

Description:

L293D is a monolithic integrated, high voltage, high current, 4-channel driver.Basically this means using this chip you can use DC motors and power supplies of up to 36 Volts, thats some pretty big motors and the chip can supply a maximum current of 600mA per channel, the L293D chip is also what’s known as a type of H-Bridge.

  • The H-Bridge is typically an electrical circuit that enables a voltage to be applied across a load in either direction to an output, e.g. motor.
  • 2 interface for 5V Servo connected to For Arduino’s high-resolution dedicated timer – no jitter!
  • Can drive 4 DC motors or 2 stepper motors or 2 Servo
  • Up to 4 bi-directional DC motors with individual 8-bit speed selection

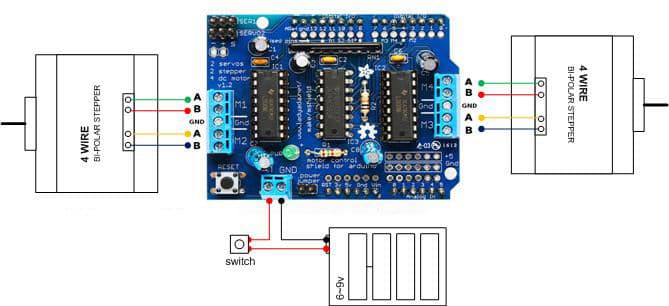

  • Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil or interleaved stepping.
  • 4 H-Bridges: per bridge provides 0.6A (1.2A peak current) with thermal protection, can run motors on 4.5V to 36V DC
  • Pull down resistors keep motors disabled during power-up
  • Reset button

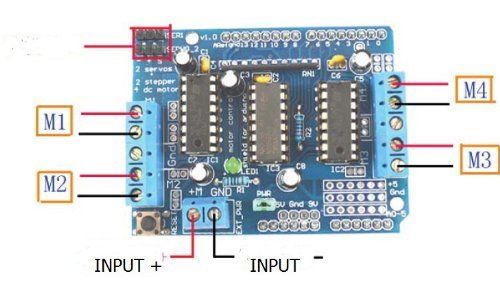

  • 2 external terminal power interface, for seperate logic/motor supplies
  • Tested compatible for Arduino Mega, Diecimila & Duemilanove

What you will receive:

1 x Motor Drive Expansion Shield Board Module L293D For Arduino Duemilanove Mega UNO

Weight 40 g
EAN

Does not apply

MPN

Does not apply

Brand

Makers Hut
