MKS UPS 12V/24V Module 3D Printer Parts Power Outage Detection

Description:

Makerbase MKS UPS module is used to lift Z axis when the power off. It can remove extruder from the model to protect the model.

Notice:

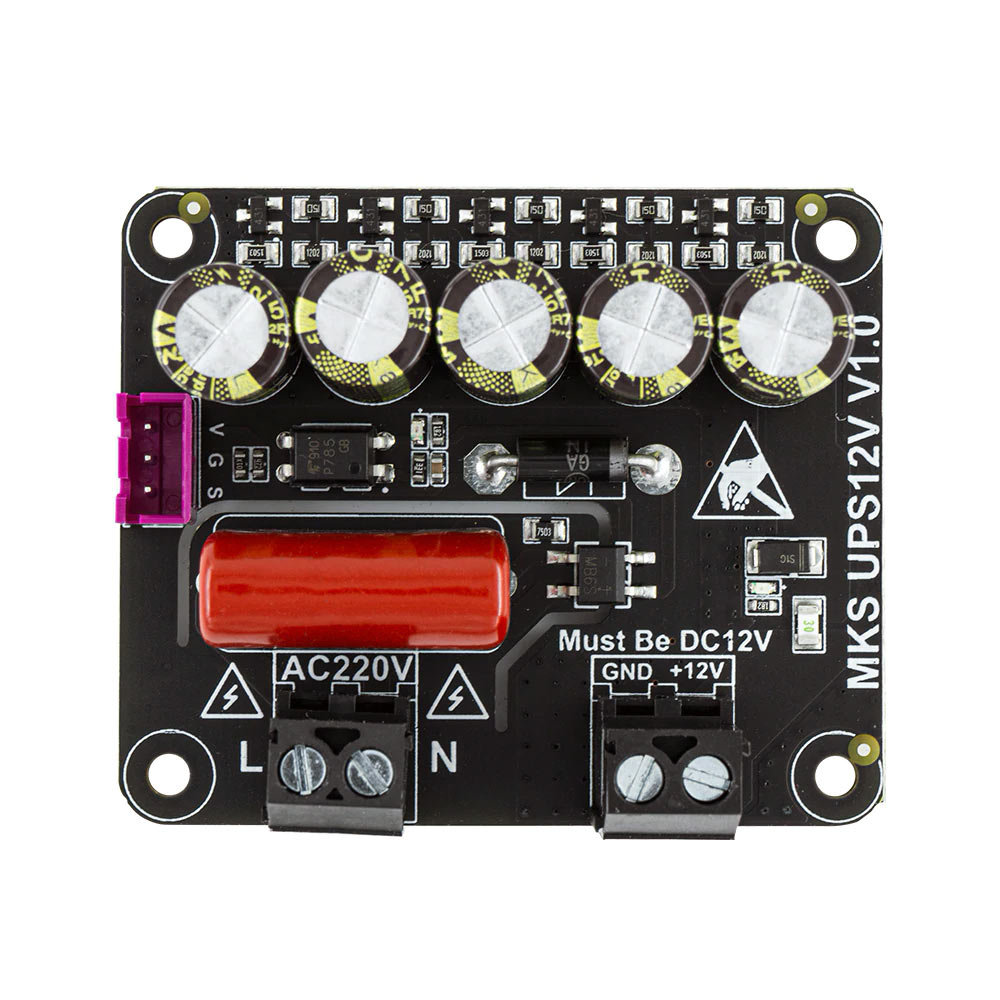

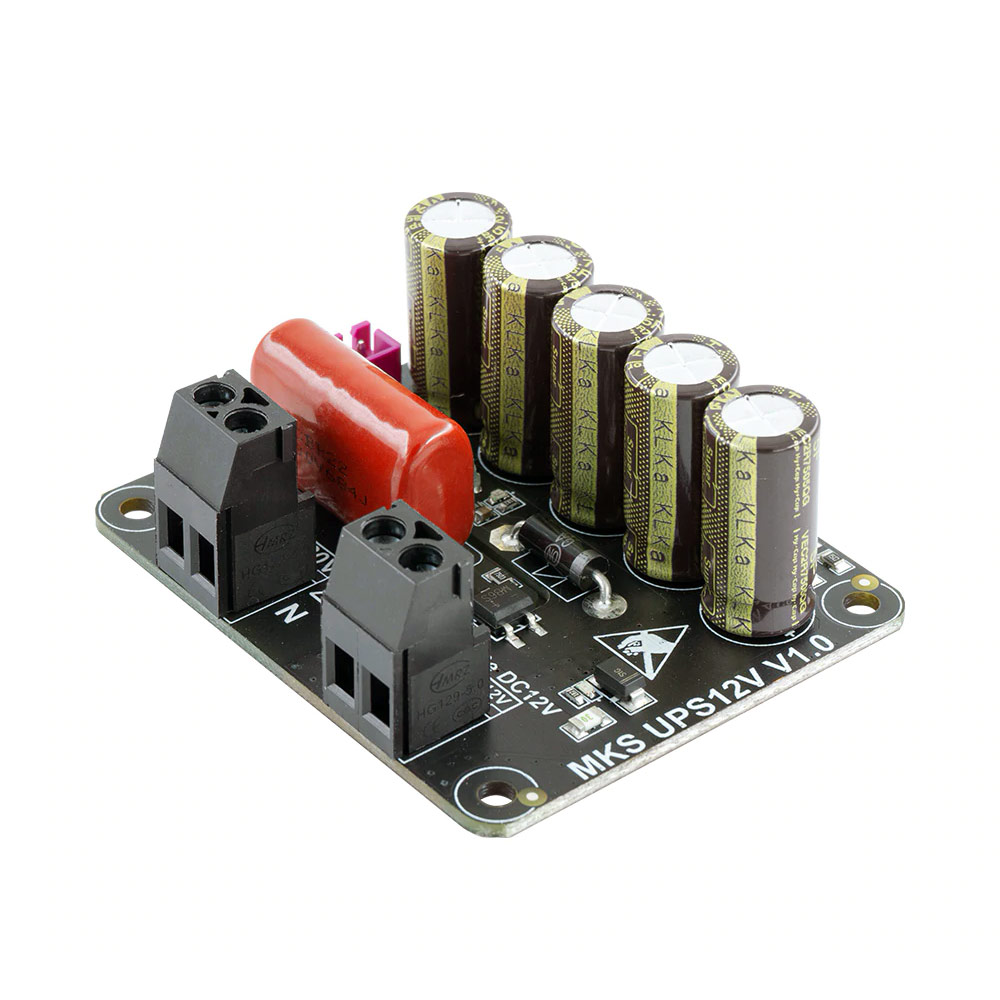

MKS UPS12V can only be used for DC12V power.

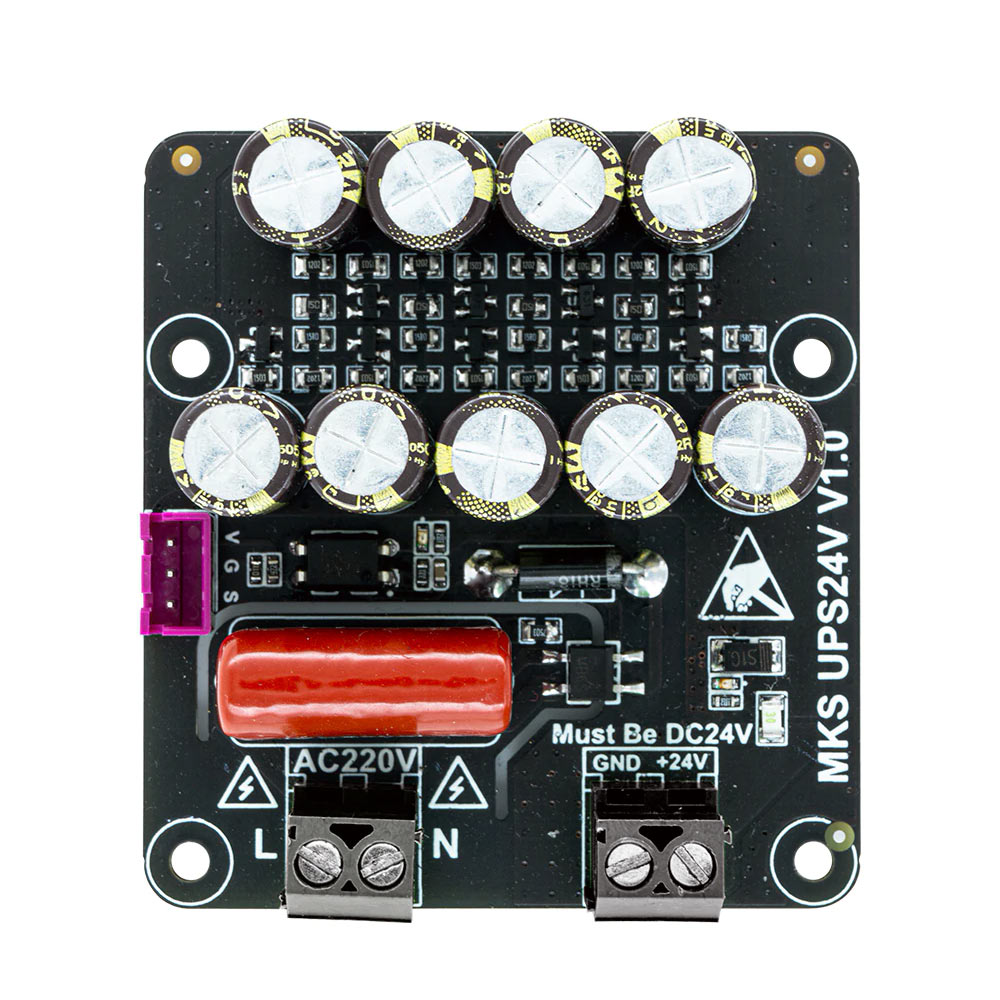

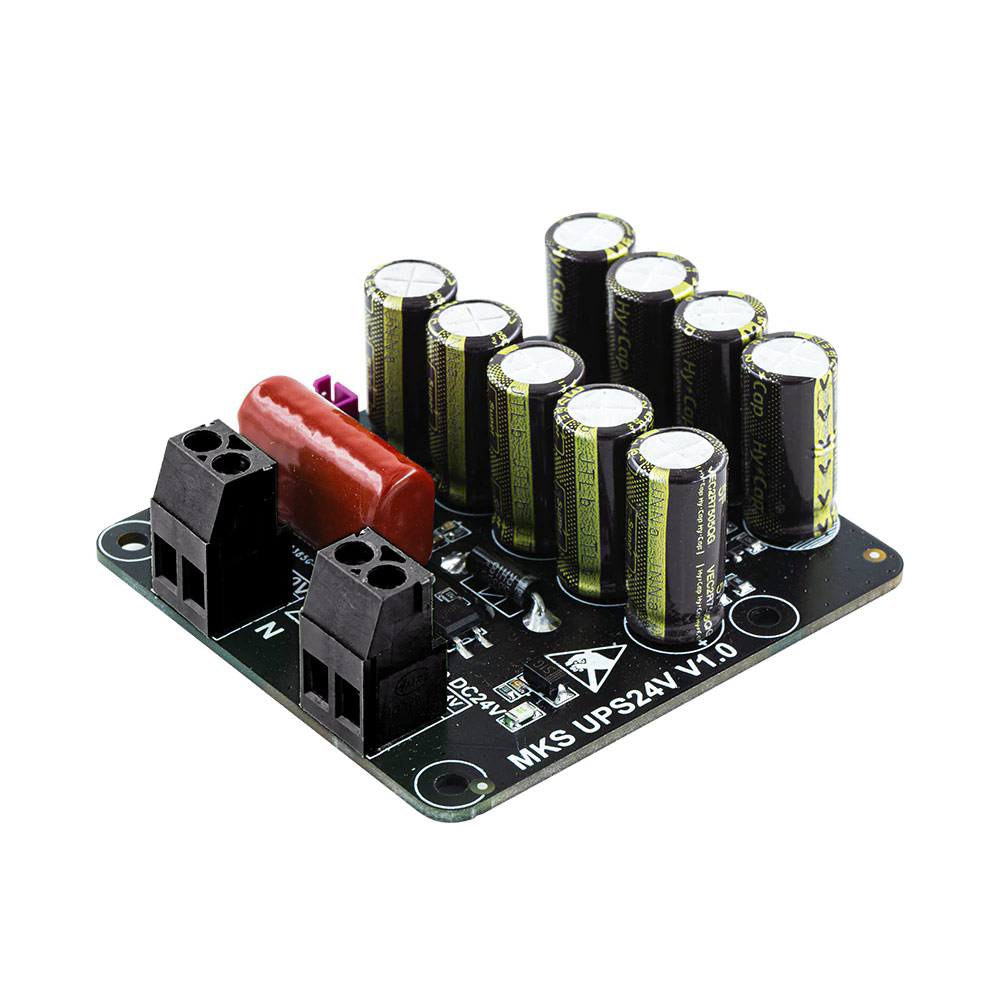

MKS UPS24V can only be used for DC24V power.
Motherboard needs to use Marlin2.0 firmware with 12864/2004 LCD screen.
Temporarily does not support MKS Robin series (except Robin E3 / E3D) and MKS TFT screen.
MKS UPS12V and MKS UPS24V modules detect external AC power supply.

Working process:
When AC power supply is cut off, the MKS UPS detects it and send signal to motherboard;
The power stored in the MKS UPS and PSU continues to supply power to the motherboard;
Motherboard detects the power-off signal, stop printing, turn off hotbed and hotend, lift z axis;
The power stored in MKS UPS is generally lift z axis 20mm-200mm;
When power supply is restored, resume printing through the 12864/2004 LCD screen.

Wiring:

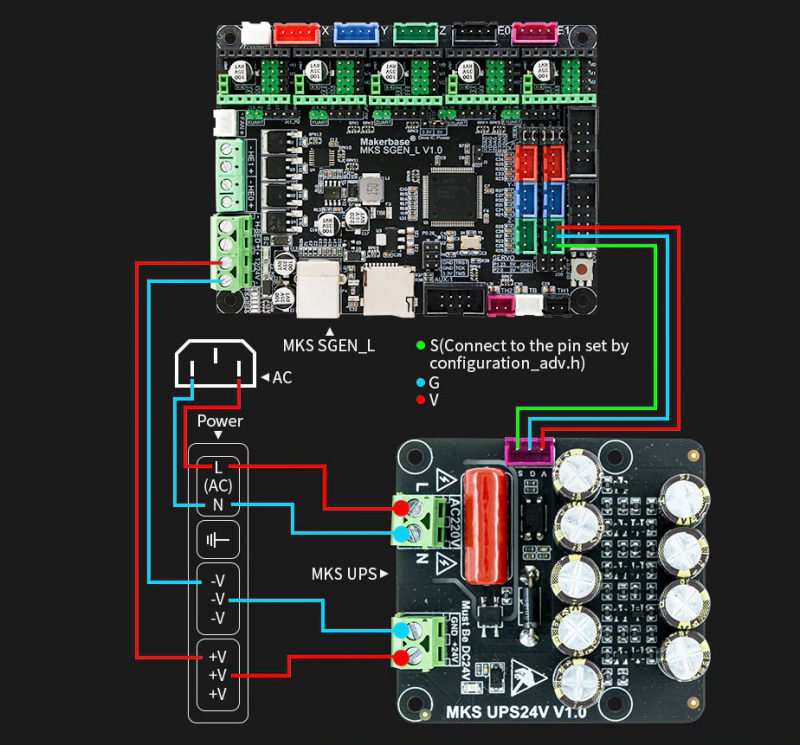

Take MKS SGEN_L as an example

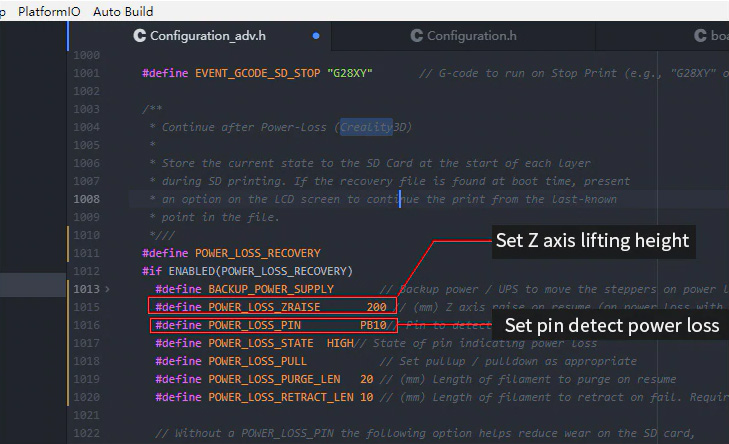

Firmware Settings:

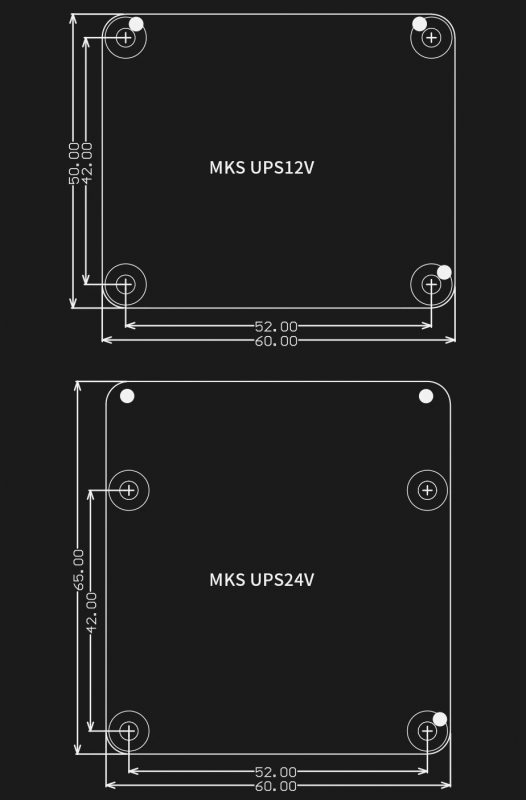

Size:

Open Source File/Instructions:
https://github.com/makerbase-mks/MKS-Power-Control
Work with Lcd12864 and MKS Gen_L MKS SGen_L MKS Robin E3/E3D:

Work with MKS TFT35 and MKS Gen_L MKS SGen_L MKS Robin E3/E3D:

Work with MKS Robin Nano:

What you will receive:

1pcs x MKS UPS12V or UPS24V (Please Select)
