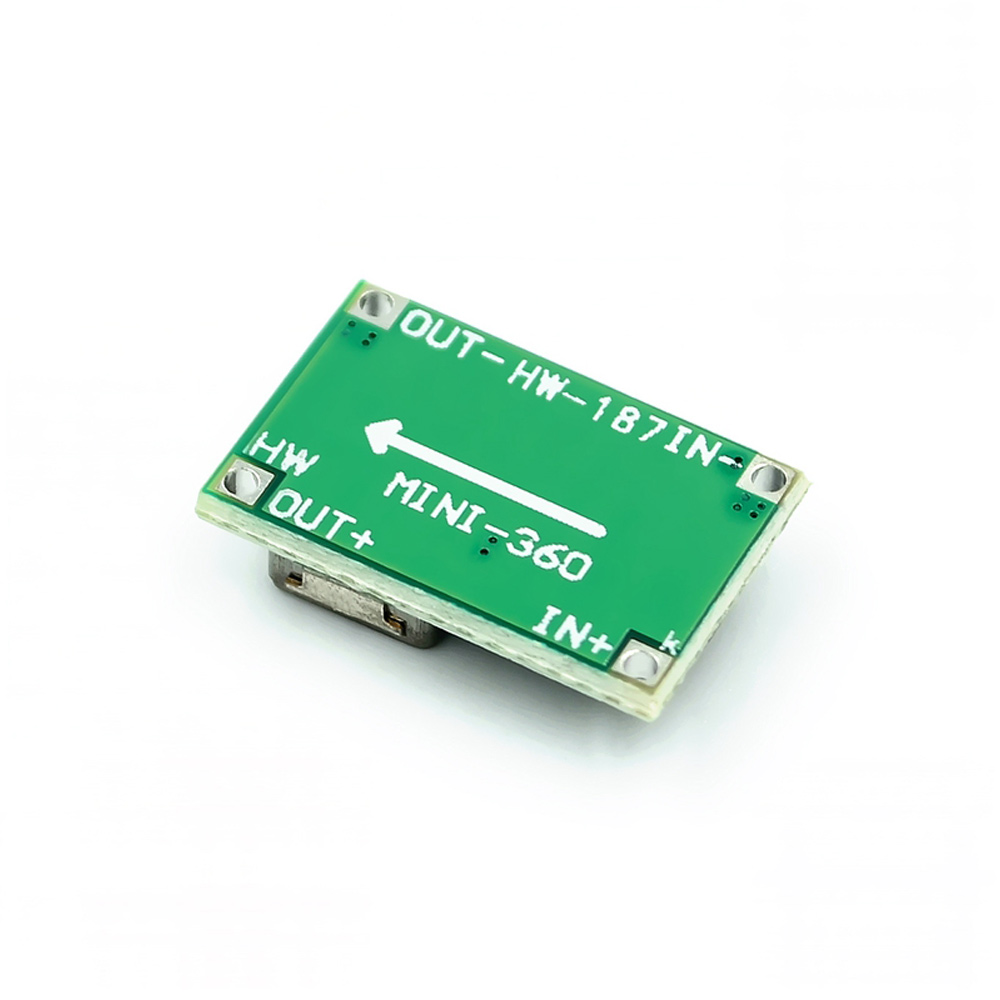

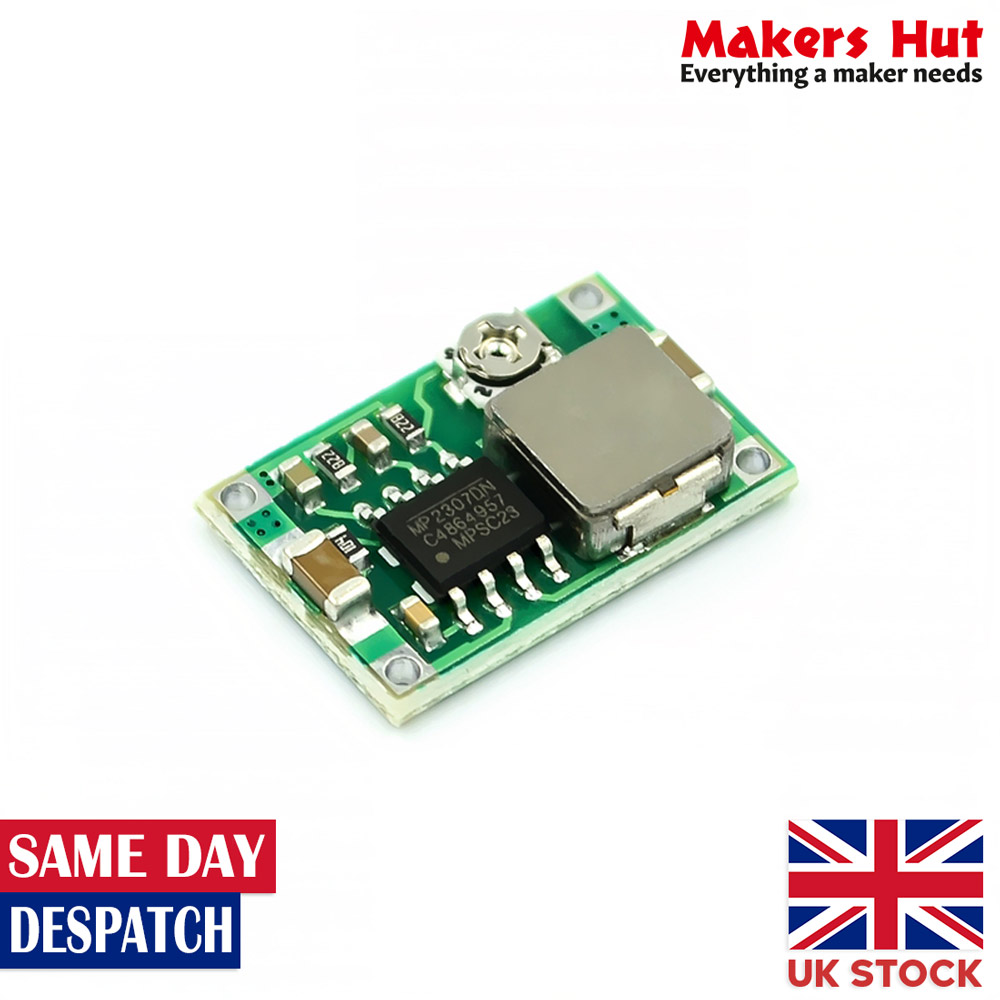

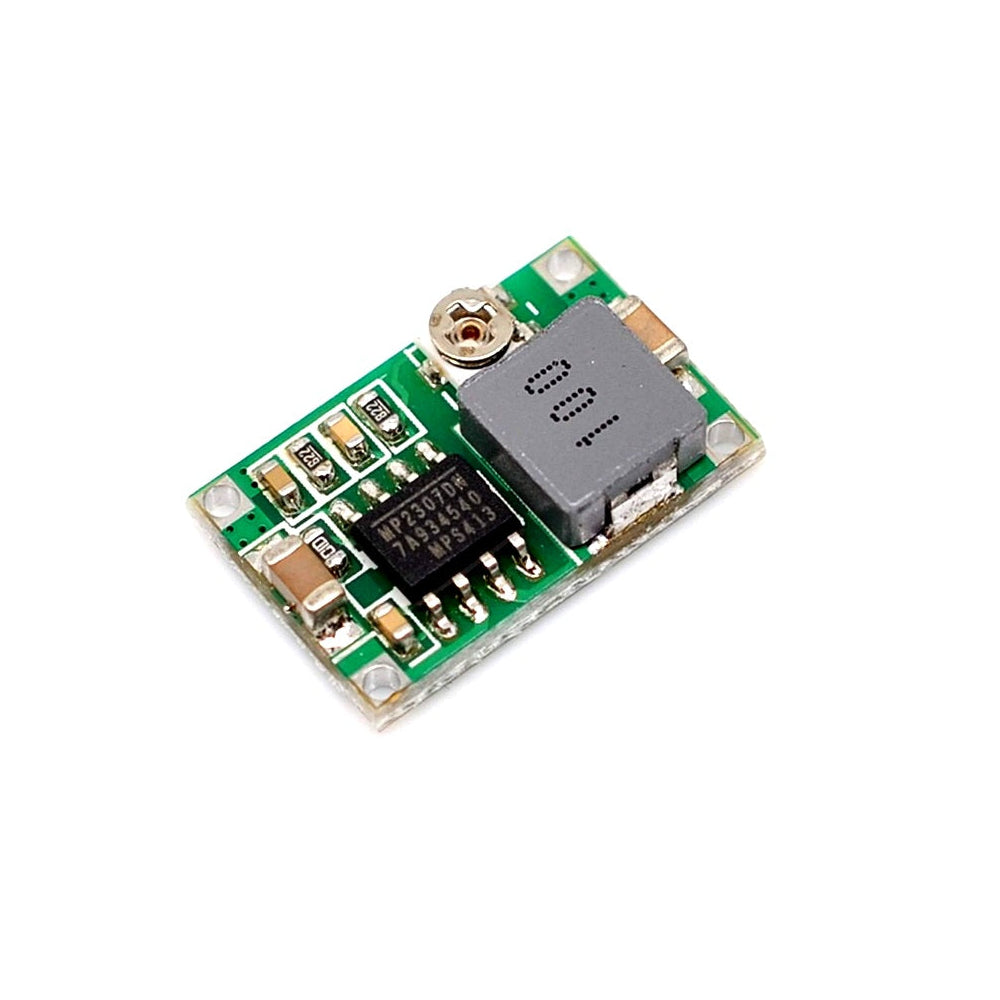

Mini-360 LM2596 Power Module DC-DC Buck Converter Step Down Module

£2.79

4 in stock

Mini-360 LM2596 Power Module DC-DC Buck Converter Step Down Module

£2.79

SKU: ELE-COM-032 Category: Components and Sensors Tags: Buck Converter, LM2596, Power Module, Step Down Module
Product Categories
  • 3D Printer
    • Controllers
    • Filament
    • Kits
    • Parts & Accessories
  • Arduino
    • Boards
    • Kits
    • Shields and Accessories
  • Cooling
    • Fan Guards
    • Fans
    • Heatsinks
  • Drone
  • Drones and More
    • Accessories
    • Antennas
    • Components
    • Drones
    • Kits
  • Electronics
    • Access Control
    • Cable
    • Components and Sensors
    • DIY Kits
  • LED Lighting
    • Accessories
    • Beads
    • Bulbs
    • Controllers
    • DMX
    • Downlights
    • Panel
    • Strips
  • Mechanical
    • Bearing
    • Bearings
      • Ball
      • Bushings
      • Flange
      • Grooved
      • Linear
      • Miniature
      • Needle
      • Self Aligning
      • Self Lube
      • Taper Roller
    • Fluid Transfer
    • Magnets
    • Mounts and Supports
    • Pulleys and Coupler
    • Rails and Carriage
    • Rods
    • Rods and Carriages
    • Timing Belt
  • Microcontrollers
  • Miscellaneous
  • Motors
    • Accessories
    • Coreless
    • DC Motors
    • Drivers
    • Spindle
    • Step
  • Other
  • Power Supply
  • Raspberry Pi
    • Boards and Kits
    • Shields and Accessories
  • Robotics
    • Components
    • Kits
  • Uncategorised
  • Virtual Reality
  • Description
  • Additional information

Description:

Mini-360 LM2596 Power Module DC-DC Buck Converter Step Down Module
Ultra-small DC-DC synchronous rectification step-down module

Application Areas:

DIY mobile power, car power, communication equipment power supply, various occasions with strict requirements on volume and weight (such as aviation models, etc.)

Features:

The use of integrated power inductors and synchronous rectification control chip, smaller size and higher efficiency

Product Details :

Module: Mini360 (Ultra-Small size DC-DC synchronous rectification buck module)
Type: Mini
Step-down: Non-Isolated Buck
Rectification: Synchronous

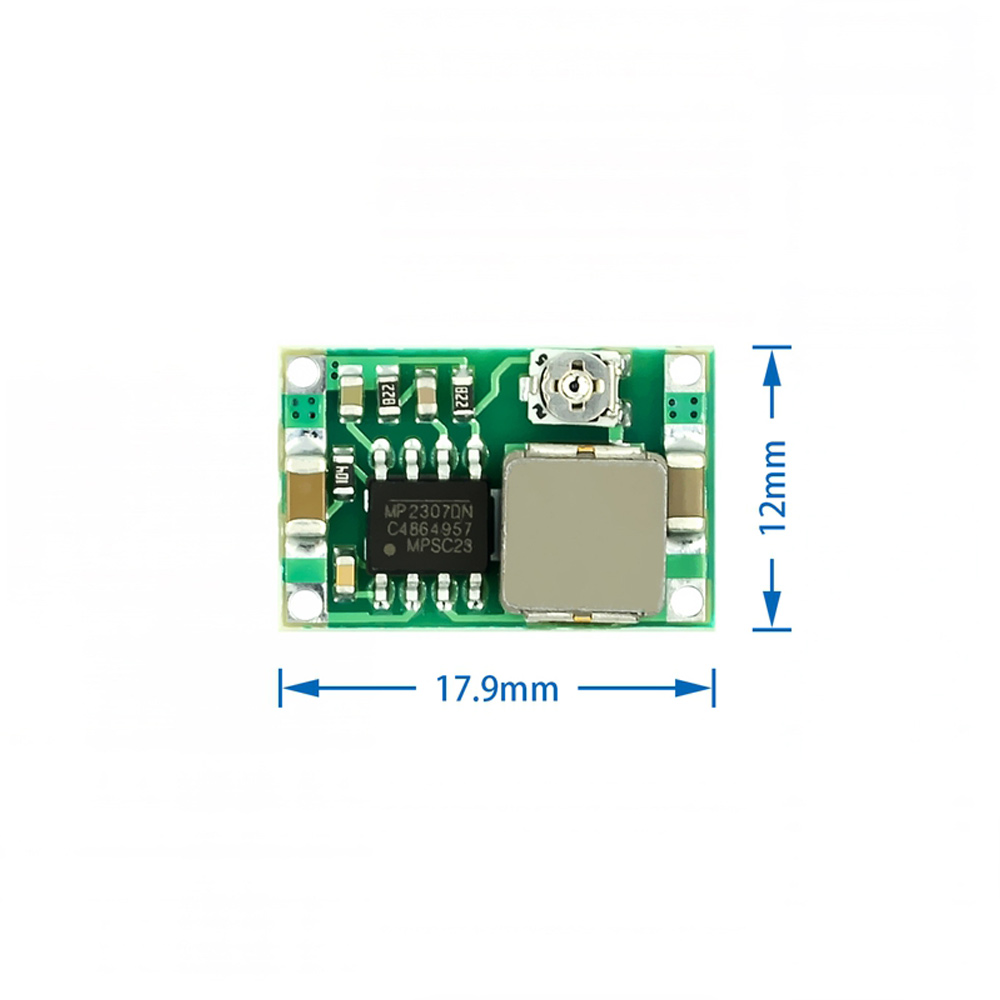

Size: Approx. 17 x 11 x 3.8mm
Input Voltage: 4.75V – 23V
Output Voltage: 1.0V – 17V
Current Output: Peak 3A, 1.8A sustained
Transfer Efficiency: 96% ( Highest)
Switching Frequency: 340KHz
Output Ripple: 30mV (at No-load)
Load Regulation: ±0.5%
Voltage Regulation: ±2.5%
Operating Temperature: -40°C ~ 85°C

What will you receive:

1 x Buck Converter Module

Weight 10 g
EAN

Does not apply

Brand

Makers Hut
