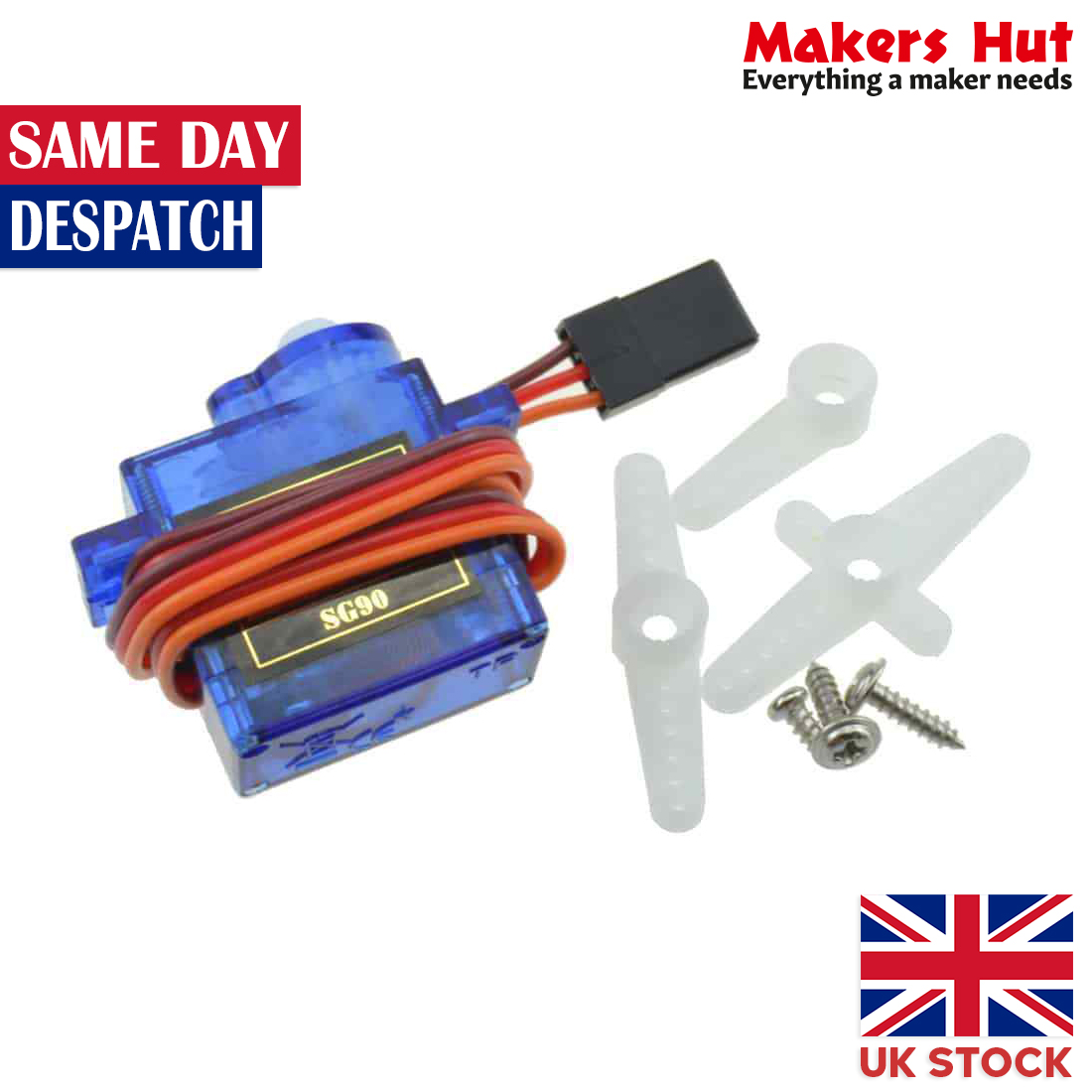

Micro Servo SG90 9g – High Torque Mini Servo Motor for RC, Robotics & Arduino Projects

SKU	DRO-ACC-010
Ships from	Cardiff, UK

Micro Servo SG90 9g – High Torque Mini Servo Motor for RC, Robotics & Arduino Projects

The SG90 9g Micro Servo Motor is a compact, lightweight and high-performance servo designed for RC models, robotics, and DIY electronics projects. Ideal for RC airplanes, helicopters, cars, boats, robot arms, walking robots and Arduino applications, this servo offers reliable torque and precise control in a small form factor.

Product Features

• High quality construction with excellent price-performance ratio
• Durable all-nylon gear system
• High stall torque up to 1.6kg (at 6.0V)
• Lightweight 9g design – ideal for small-scale projects
• 245mm connector wire for flexible installation
• Includes 3 servo horn sets and mounting fittings

Technical Specifications

• Model: SG90 Micro Servo
• Operating Voltage: 3.0V – 7.2V DC
• Operating Speed (4.8V, no load): 0.12 sec / 60°
• Stall Torque: 1.2kg (4.8V) / 1.6kg (6.0V)
• Dead Band Width: 7µs
• Temperature Range: -30°C to 60°C
• Dimensions: 32 x 30 x 12 mm
• Weight: Approx. 9g
• Connector Wire Length: 24.5cm

Applications

Suitable for a wide range of projects including:

• RC aircraft and helicopters
• RC cars and boats
• Robot arms and walking robots
• Arduino and Raspberry Pi projects
• Educational STEM kits
• DIY automation systems

Package Contents

Mini SG90 Servo Motor with servo horn set and mounting accessories. Please select the required quantity before purchase.

Important: Ensure your power supply voltage matches the servo specifications to avoid damage.



We also offer MG90 version,

https://makers-hut.com/product/mg90s-high-speed-micro-servo-rc-plane-helicopter-boat/
