Description:

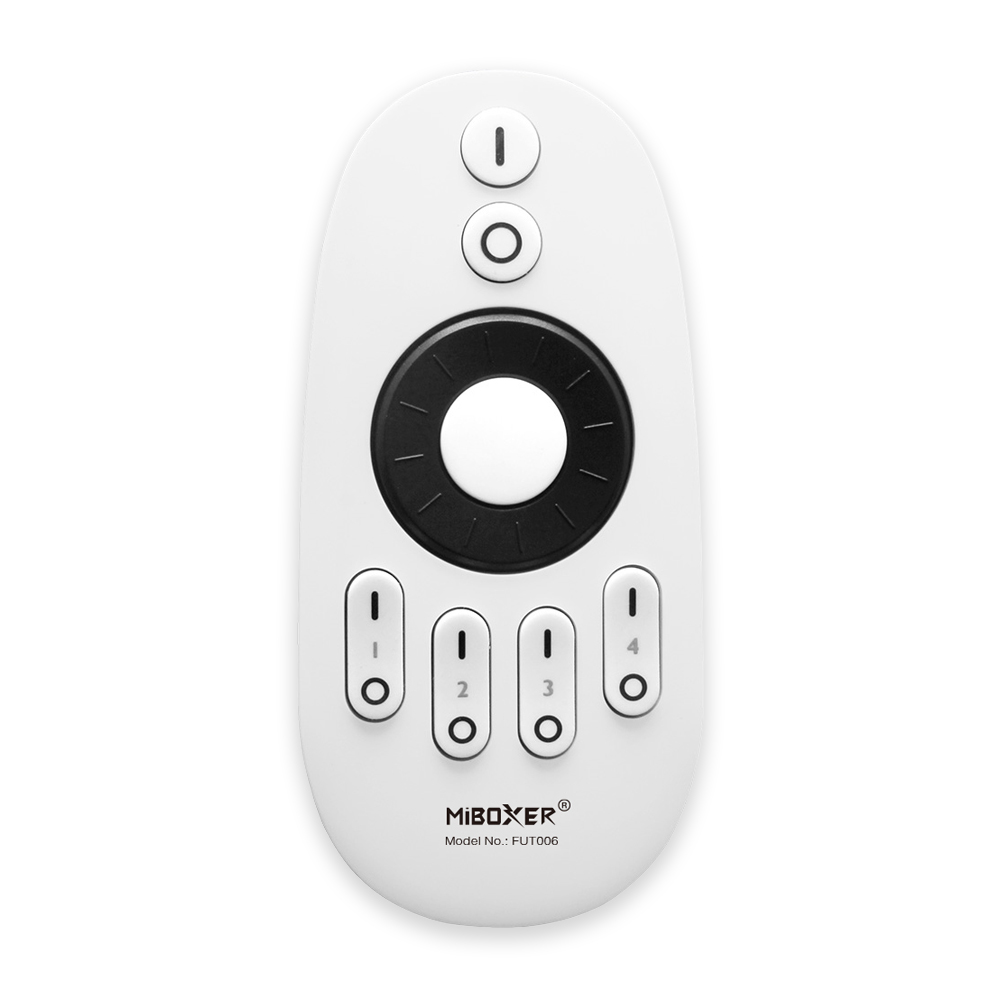

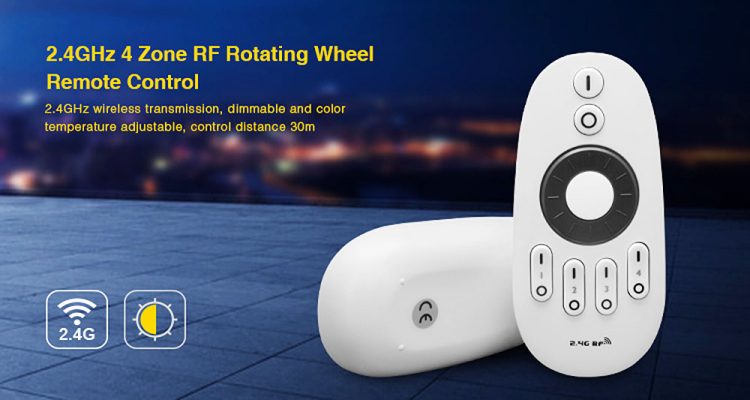

LED Remote Controller Milight FUT006 Brightness Adjustable 2.4G RF 4 Zones Rotating Wheel CCT
- Dimming and brightening of connected LED lighting
- Control each zone separately
- All zones can be turned on / off at the same time
- Two operating modes – mono and CCT (change in colour temperature)
- Immediate brightness reduction (night mode)
- Four zones to use
- Battery powered (2×1,5V AAA)
- Radio communication with receivers (2.4GHz)
- Cooperation with a Wi-Fi controller (additional option)
- The possibility of expanding the installation at any time
The basic communication with the receiver takes place by means of a radio route. Obtaining an optional control by connecting to a Wi-Fi network, which allows control of lighting with the help of mobile devices (eg smartphone or tablet), is available only after using the appropriate Wi-Fi module. Available cooperating devices can be found in the table below or in the category “related products”.

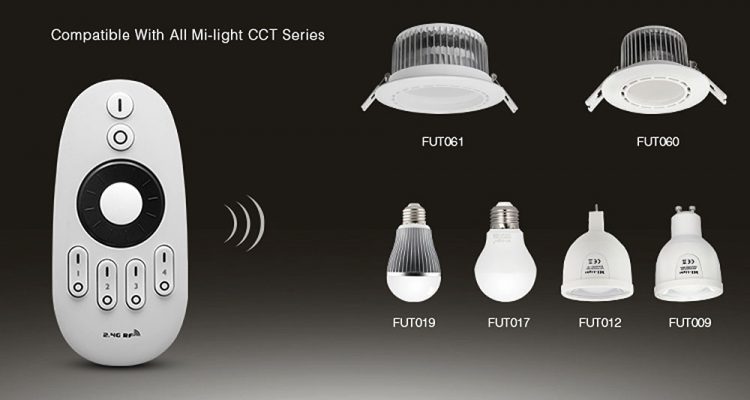

Table 1. Cooperating devices with LED remote control – Mi-Light – FUT006
| Product code | Product name |
|---|---|
| FUT036 | Mi-Light 2.4GHz multi white wireless WiFi dimmer FUT036 |
| FUT035 | Mi-Light 4-zone colour temperature dual white LED strip controller FUT035 |
| FUT060 | Mi-Light 6W dual white LED downlight FUT060 |
| FUT061 | Mi-Light 12W dual white LED downlight FUT061 |
| IBOX1 | Mi-Light WiFi iBox smart light iBox1 |
| IBOX2 | Mi-Light WiFi controller iBox2 |
Full control – cooperation with receiving devices
Each of the transmitting devices of the Mi-light LED driver series is characterized by the ability to assign not only one device to it. Built-in invisible under the housing electronics works on the principle of a receiving device thus connecting to our LED driver. One zone in the remote control is also not an obstacle because we can assign to it many devices such as LED bulbs, downlights or receivers cooperating with the given model. Many devices do not interfere with each other and make this connection easy to use and easy to control. Below you will find a full table showing all the devices that work with the given model.
Construction of the remote control – the control was not so easy

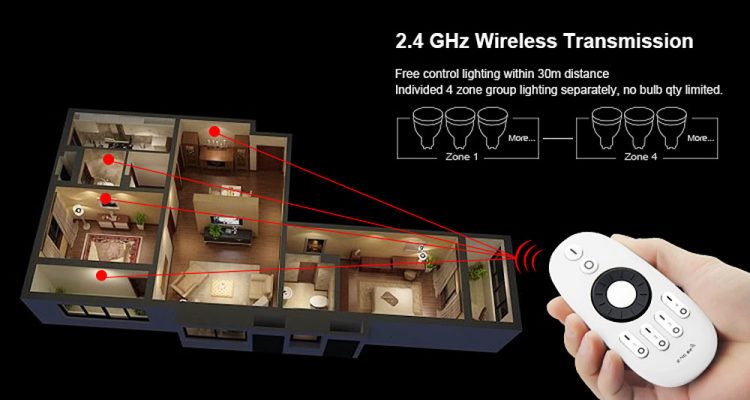

The whole room at your fingertips – zone control
| Application | For monochrome installations (single colour) |
| Number of supported zones/channels | 4 |
| The way of control | radio |
| Type of control | buttons |
| The range of radio communication | up to 30 meters in the open area |
| Powering the remote control | 2x pcs. 1.5V AAA battery |
| Signal modulation | GFSK |
| Transmission type | One-way |
| Frequency of transmission | 2.4GHz |
| Power consumption in operating mode | 6dBm |
| Power consumption in standby mode | 20uA |
| Colour | White |
| Cooperation with receivers | See ‘Product description table no. 1’ |
| IP rating | IP20 |
| Retome dimensions | 53mm x 22mm x 110.5mm (width length height) |
| Declarations | RoHS, CE |
What you will receive:
1 x LED Remote Controller Milight FUT006
