Description:

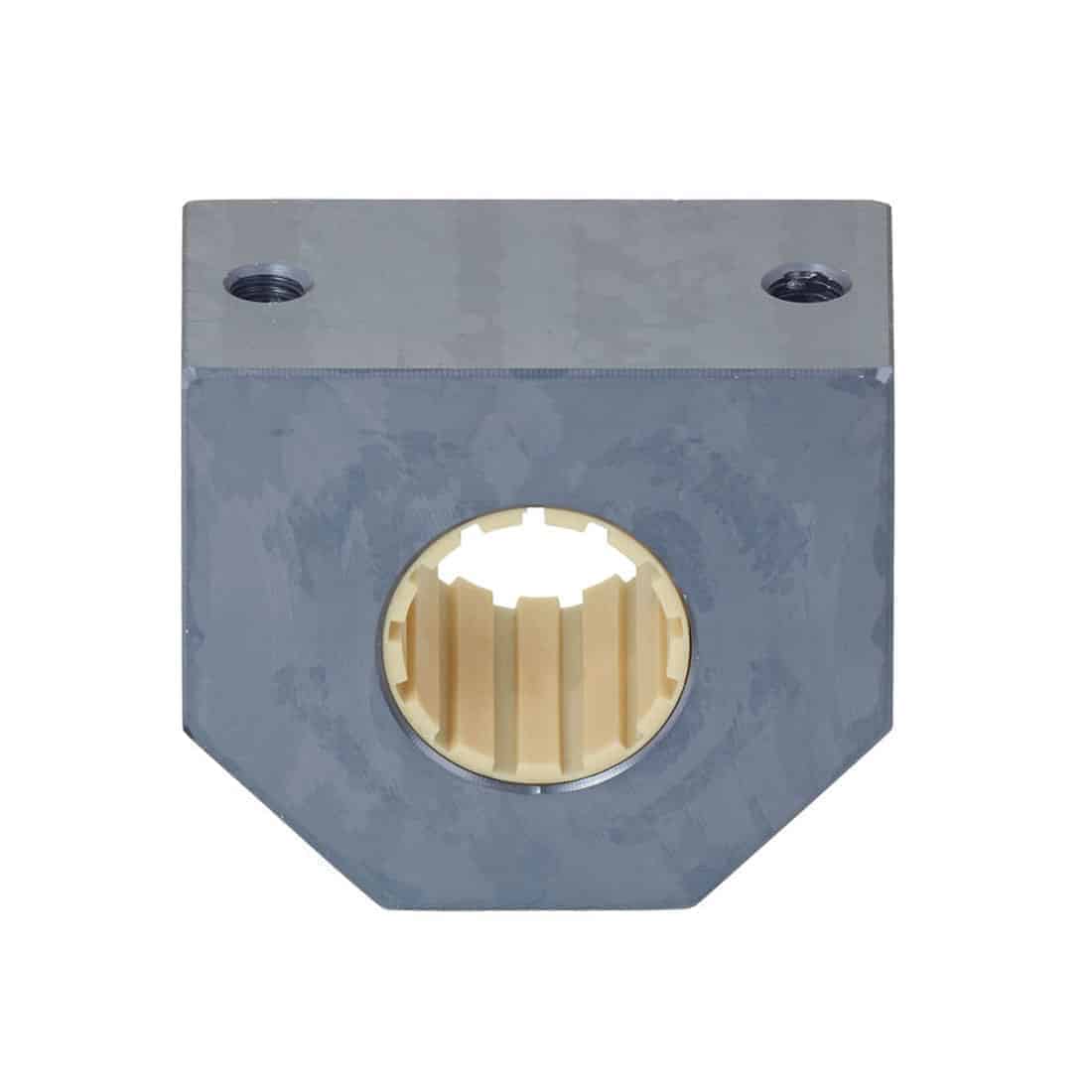

Material sliding element iglidur® J
Special design with pressfit sleeve bearing
Housing material aluminium

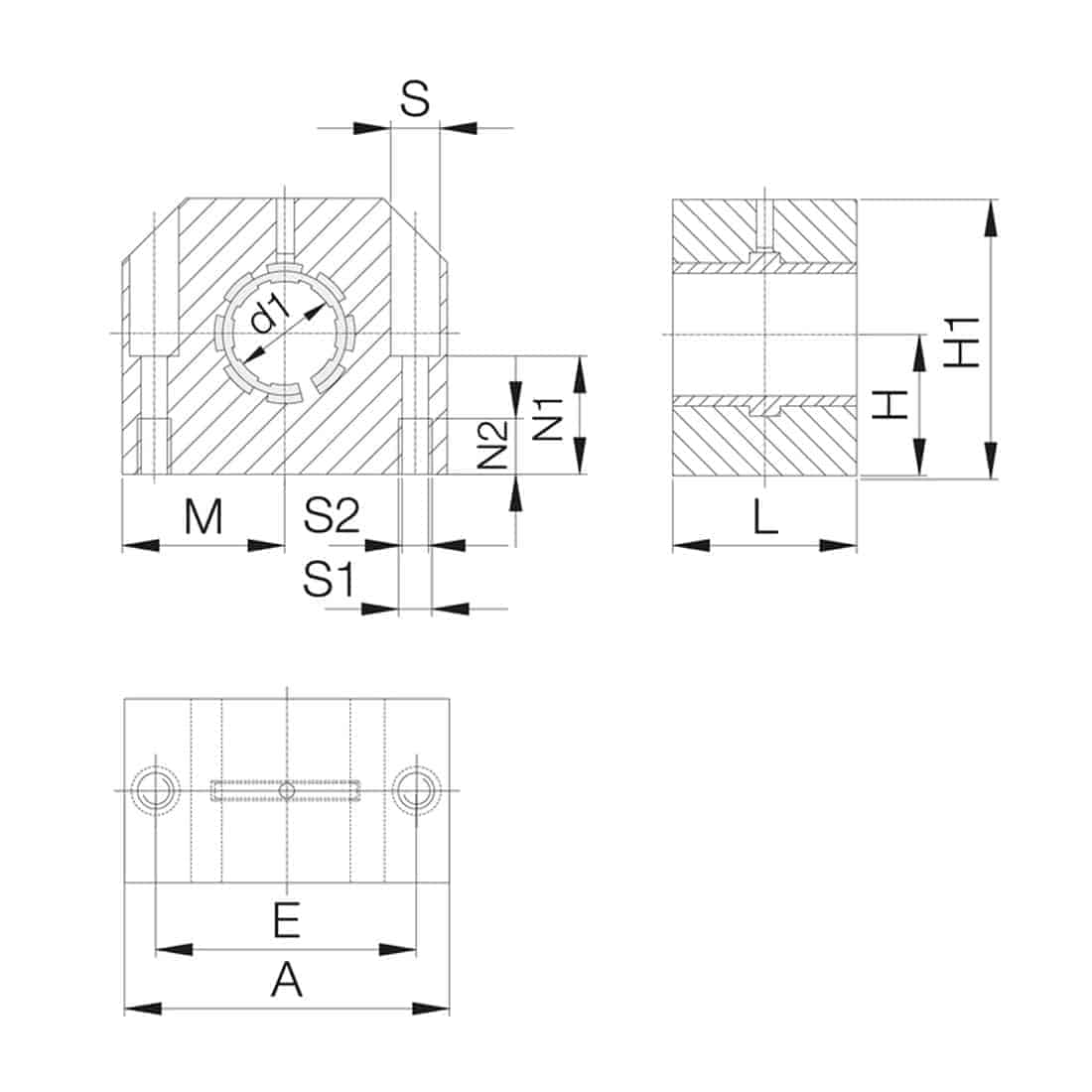

Dimensions:
Ø d1 8.00 mm
H 14 mm
H1 27 mm
A 32.0 mm
M 16.0 mm
E 23 mm
Ø S 6.0 mm
S1 M4
Ø S2 3.40 mm
N1 13.0 mm
N2 9.0 mm
L 24 mm
Production and installation tolerances:
d1-Tolerance 0.032 0.070 mm
h-Tolerance -0.014 0.01 mm
h1-Tolerance -0.02 0.01 mm
e-Tolerance ±0.15 mm
Mechanical properties:
Fmax. dynamic, P = 5 MPa 960 N
Fmax. static, P = 35 MPa 6,720 N
