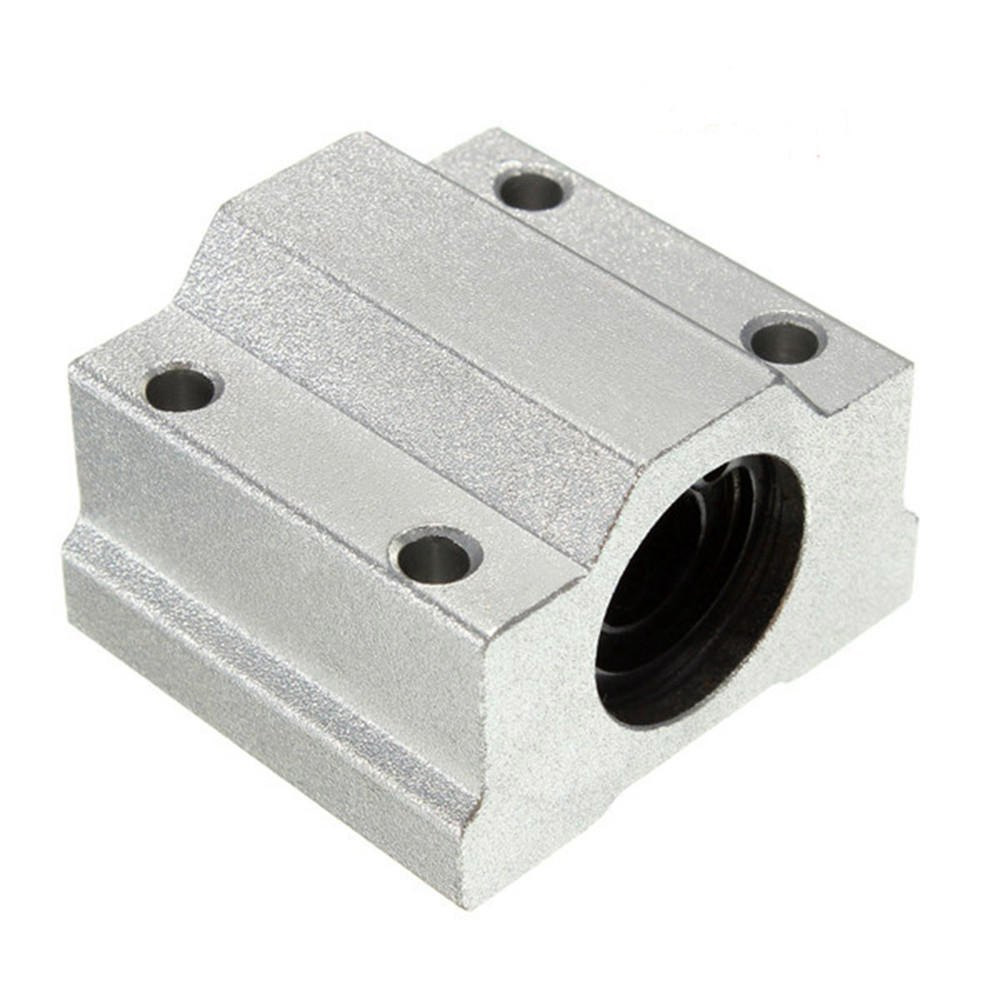

SCS8UU SC8UU 8mm Linear Motion Ball Bearing Slide Unit Bushing CNC Router

£2.99 – £23.99

Clear
SCS8UU SC8UU 8mm Linear Motion Ball Bearing Slide Unit Bushing CNC Router
SKU: MEC-BEA-027 Category: Linear Tags: ball bearing, cnc, Linear Motion Ball Bearing, Router, SCS8UU, Slide Unit Bushing
Product Categories
  • 3D Printer
    • Controllers
    • Filament
    • Kits
    • Parts & Accessories
  • Arduino
    • Boards
    • Kits
    • Shields and Accessories
  • Cooling
    • Fan Guards
    • Fans
    • Heatsinks
  • Drone
  • Drones and More
    • Accessories
    • Antennas
    • Components
    • Drones
    • Kits
  • Electronics
    • Access Control
    • Cable
    • Components and Sensors
    • DIY Kits
  • LED Lighting
    • Accessories
    • Beads
    • Bulbs
    • Controllers
    • DMX
    • Downlights
    • Panel
    • Strips
  • Mechanical
    • Bearing
    • Bearings
      • Ball
      • Bushings
      • Flange
      • Grooved
      • Linear
      • Miniature
      • Needle
      • Self Aligning
      • Self Lube
      • Taper Roller
    • Fluid Transfer
    • Magnets
    • Mounts and Supports
    • Pulleys and Coupler
    • Rails and Carriage
    • Rods
    • Rods and Carriages
    • Timing Belt
  • Microcontrollers
  • Miscellaneous
  • Motors
    • Accessories
    • Coreless
    • DC Motors
    • Drivers
    • Spindle
    • Step
  • Other
  • Power Supply
  • Raspberry Pi
    • Boards and Kits
    • Shields and Accessories
  • Robotics
    • Components
    • Kits
  • Uncategorised
  • Virtual Reality
  • Description
  • Additional information

Description:

Make your robot or CNC move on rails super fast with a linear bearing platform.
The platform is 34mm x 30mm and has four holes tapped for M4 machine screws so you can attach pretty much anything you want.
All you need to get started is two 8mm supports and a precision-ground 8mm rod. Often times,
CNC projects will have two of these on opposite sides to support a larger platform.

Specifications:

For 8mm linear railings
Dynamic Load rating: 260 N
Static Load rating: 400 N
Weight: 56 grams
Four ball races
Shaft Diameter: 8mm
h: 11mm
E: 17mm
W: 34mm
L: 30mm
F: 22mm
G: 18mm
T: 6mm
B: 24mm
C: 18mm
K: 5mm
S1: M4
S2: 3.4mm
I: 8mm

What you will receive:

1 x Block Bearing

Weight N/A
Qty

1, 2, 4, 8, 12
