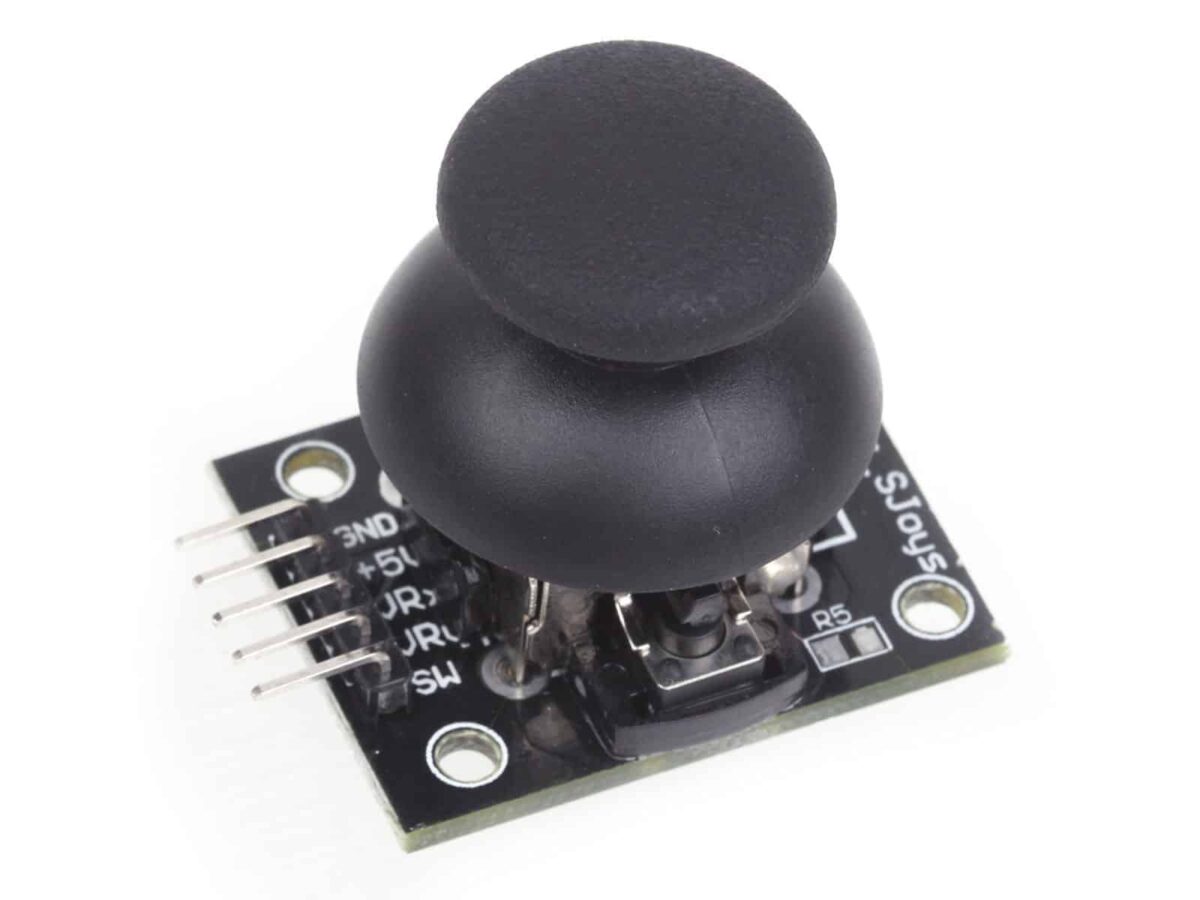

Dual-axis XY Joystick Module PS2 Joystick Control Lever Sensor For Arduino KY-023

£2.69

3 in stock

Dual-axis XY Joystick Module PS2 Joystick Control Lever Sensor For Arduino KY-023

£2.69

SKU: ARD-SHI-043 Category: Shields and Accessories
Product Categories
  • 3D Printer
    • Controllers
    • Filament
    • Kits
    • Parts & Accessories
  • Arduino
    • Boards
    • Kits
    • Shields and Accessories
  • Cooling
    • Fan Guards
    • Fans
    • Heatsinks
  • Drone
  • Drones and More
    • Accessories
    • Antennas
    • Components
    • Drones
    • Kits
  • Electronics
    • Access Control
    • Cable
    • Components and Sensors
    • DIY Kits
  • LED Lighting
    • Accessories
    • Beads
    • Bulbs
    • Controllers
    • DMX
    • Downlights
    • Panel
    • Strips
  • Mechanical
    • Bearing
    • Bearings
      • Ball
      • Bushings
      • Flange
      • Grooved
      • Linear
      • Miniature
      • Needle
      • Self Aligning
      • Self Lube
      • Taper Roller
    • Fluid Transfer
    • Magnets
    • Mounts and Supports
    • Pulleys and Coupler
    • Rails and Carriage
    • Rods
    • Rods and Carriages
    • Timing Belt
  • Microcontrollers
  • Miscellaneous
  • Motors
    • Accessories
    • Coreless
    • DC Motors
    • Drivers
    • Spindle
    • Step
  • Other
  • Power Supply
  • Raspberry Pi
    • Boards and Kits
    • Shields and Accessories
  • Robotics
    • Components
    • Kits
  • Uncategorised
  • Virtual Reality
  • Description
  • Additional information

Description:

This module is designed to bring joystick control to your project. This is a thumbstick module which can be used to provide X and Y positions for potential use in control input. Furthermore as with gaming console thumbsticks this module includes a push switch when the stick is pressed in. As a means of adding control to your project there is no more intuitive a method then one that modern day has accustomed us to through game consoles.

Many tutorials and guides are available for use with microcontrollers such as the Arduino, if you require any assistance with using the module please to not hesitate to contact us using the “Ask a question” below.

The pins are suited to standard sockets with a pin pitch of 2.54mm.

Pin Description

GND 0V

5V 5V DC

VRx X position

VRy Y position

SW Switch state

Features:

Single Joystick Module

34 x 27 x 35mm (l x w x h)

Potentiometer for both X and Y movements

5 Pin connection

Press button

Spring return joystick

Rubberized thumbstick

Fast activation time

M3.5 27/20mm separated mounting holes

Compatible with Arduino

Designed to be compatible with standard 2.54mm sockets

What you will receive:

1x KY-023 Joystick Module

Weight 10 g
Brand

Makers Hut

MPN

Does not apply

EAN

Does not apply
