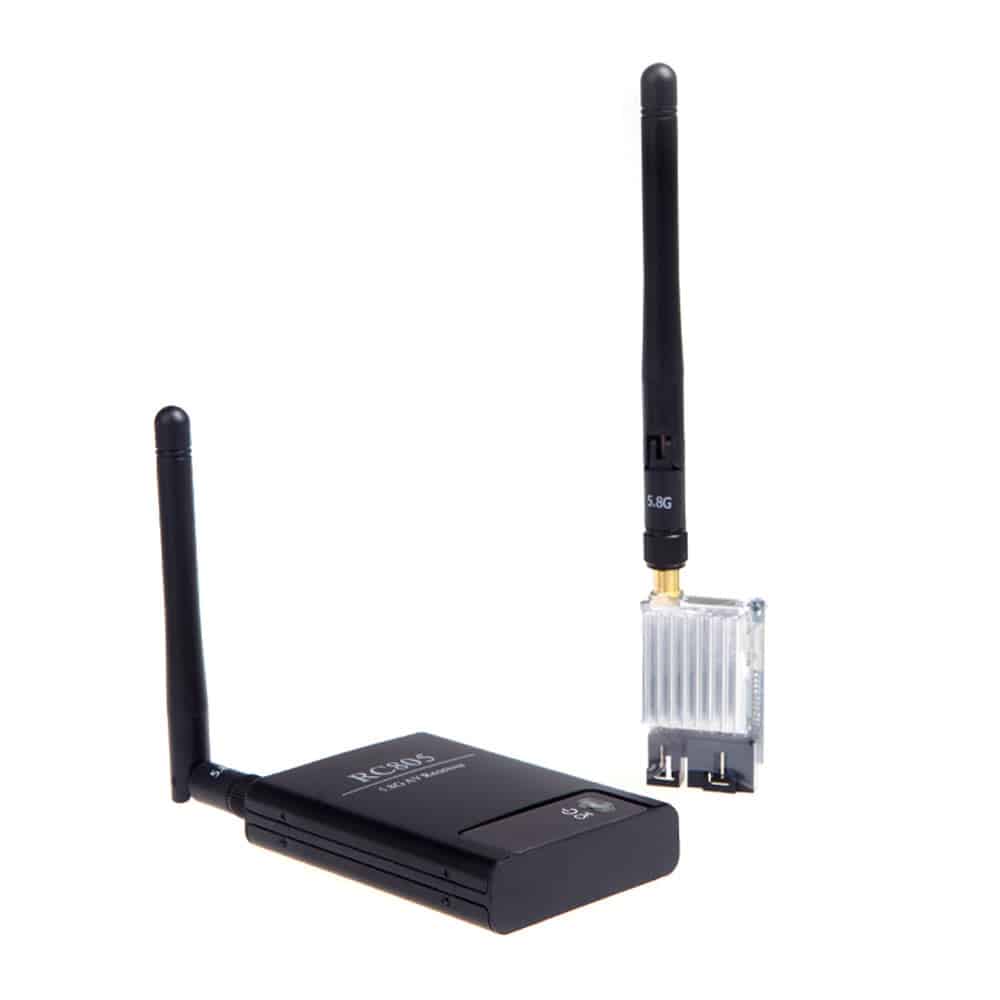

5.8G 8 Channels FPV AV Wireless Transmitter Receiver TS351 + RC805 Kit

  • Universal RP-SMA 2.4GHz 9dBi WIFI Wireless Antenna Booster WLAN 39 CM LONG

£42.99

2 in stock

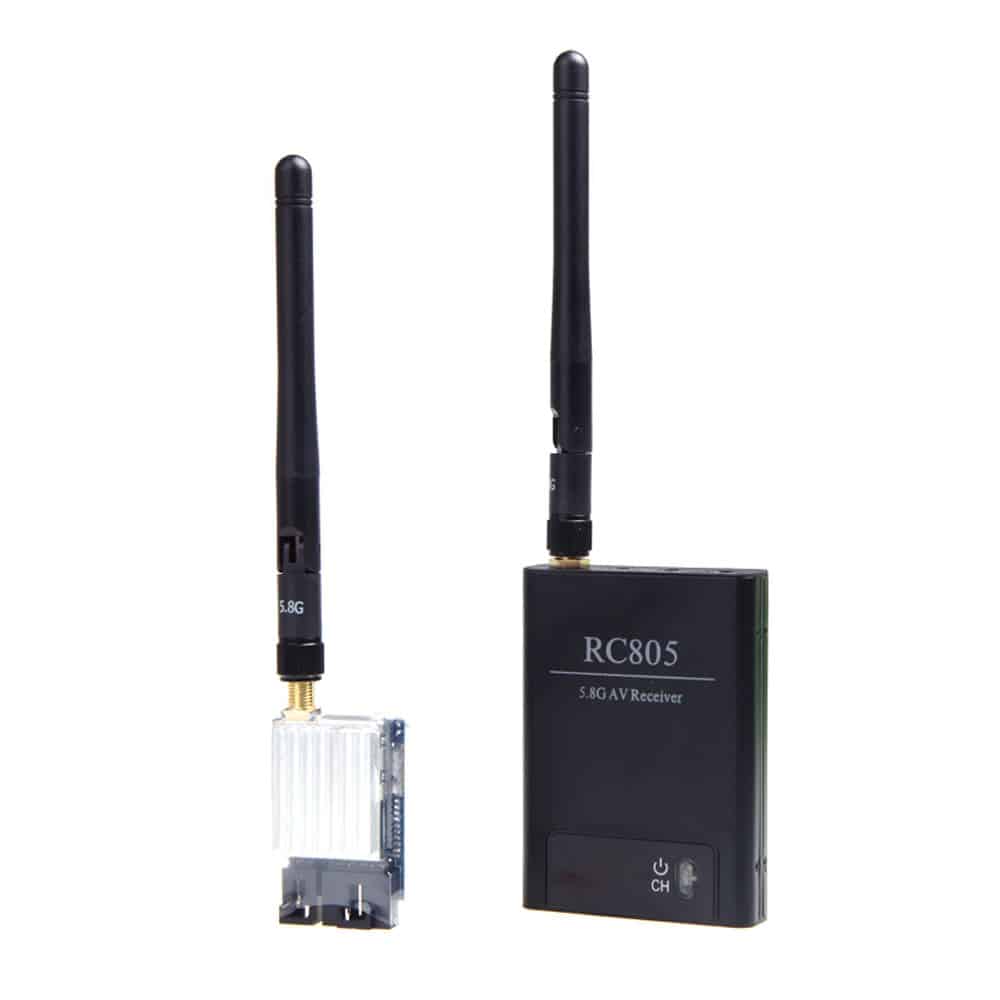

5.8G 8 Channels FPV AV Wireless Transmitter Receiver TS351 + RC805 Kit

£42.99

SKU: DRO-COM-006 Category: Antennas Tags: 200mW, 5.8GHz, 8 Channels, NTSC / PAL, RC805, Receiver, Transmitter, TS351, Wireless
  • Universal RP-SMA 2.4GHz 9dBi WIFI Wireless Antenna Booster WLAN 39 CM LONG
Product Categories
  • 3D Printer
    • Controllers
    • Filament
    • Kits
    • Parts & Accessories
  • Arduino
    • Boards
    • Kits
    • Shields and Accessories
  • Cooling
    • Fan Guards
    • Fans
    • Heatsinks
  • Drone
  • Drones and More
    • Accessories
    • Antennas
    • Components
    • Drones
    • Kits
  • Electronics
    • Access Control
    • Cable
    • Components and Sensors
    • DIY Kits
  • LED Lighting
    • Accessories
    • Beads
    • Bulbs
    • Controllers
    • DMX
    • Downlights
    • Panel
    • Strips
  • Mechanical
    • Bearing
    • Bearings
      • Ball
      • Bushings
      • Flange
      • Grooved
      • Linear
      • Miniature
      • Needle
      • Self Aligning
      • Self Lube
      • Taper Roller
    • Fluid Transfer
    • Magnets
    • Mounts and Supports
    • Pulleys and Coupler
    • Rails and Carriage
    • Rods
    • Rods and Carriages
    • Timing Belt
  • Microcontrollers
  • Miscellaneous
  • Motors
    • Accessories
    • Coreless
    • DC Motors
    • Drivers
    • Spindle
    • Step
  • Other
  • Power Supply
  • Raspberry Pi
    • Boards and Kits
    • Shields and Accessories
  • Robotics
    • Components
    • Kits
  • Uncategorised
  • Virtual Reality
  • Description

Description:

Features:

  • Small size and lightweight.
  • High output power, low power consumption, and low harmonic radiation of the transmitter.
  • Easy 8 channels for selection via the micro dip switches.
  • Wireless transmission distance up to 800 meters without any obstacles and interfering
    signal( Actual transmission distance depends on specific environment).
  • Ideal for FPV, wireless remote control aircraft, wireless remote control vehicle and so on.

Specifications:

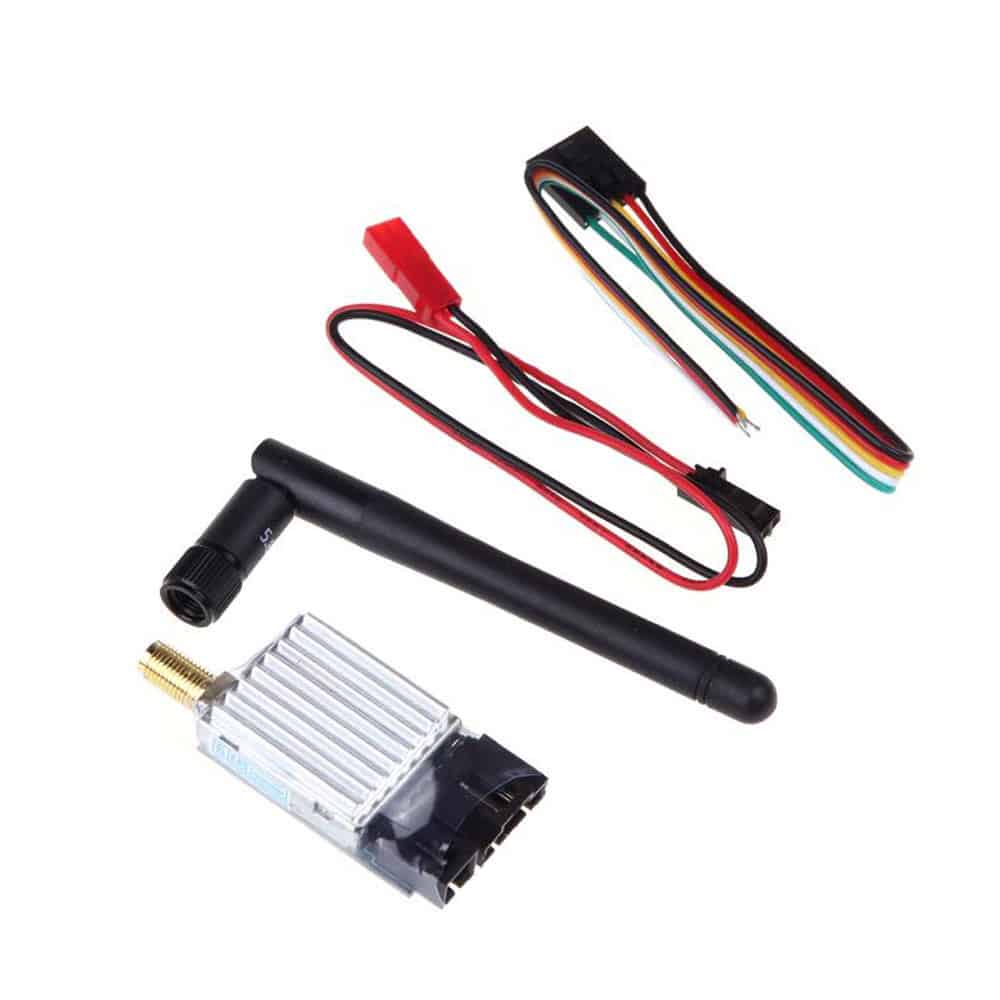

Wireless transmitter
Model no. TS351
5.8G 200 mW 8 channel AV transmitter
Modulation Wideband FM modulation
Video format NTSC / PAL
Output impedance 50Ohm
Output power 22dBm (21~23dBm)
Channel frequency CH1 5705/ CH2 5685/ CH3 5665/ CH4 5645
CH5 5885/ CH6 5905/ CH7 5925/ CH8 5945 MHz
Operating voltage 12V (7.0-15V)
Supply current 150mA
Operating temperature -10 ~ +85 Degree
Video band width 8.0MHz
Audio carrier frequency 6.5MHz
Video input level 1.0Vp-p (0.8~1.2Vp-p)
Video input impedance 75ohm
Audio input level 0.5~2.0Vp-p
Audio input impedance 10Kohm
Antenna connector SMA
Product size Approx. 5.5 * 2.6 * 1.7cm / 2.2 * 1.0 * 0.7in (No including antenna)
Product net weight Approx. 25g / 0.88oz (No including antenna)

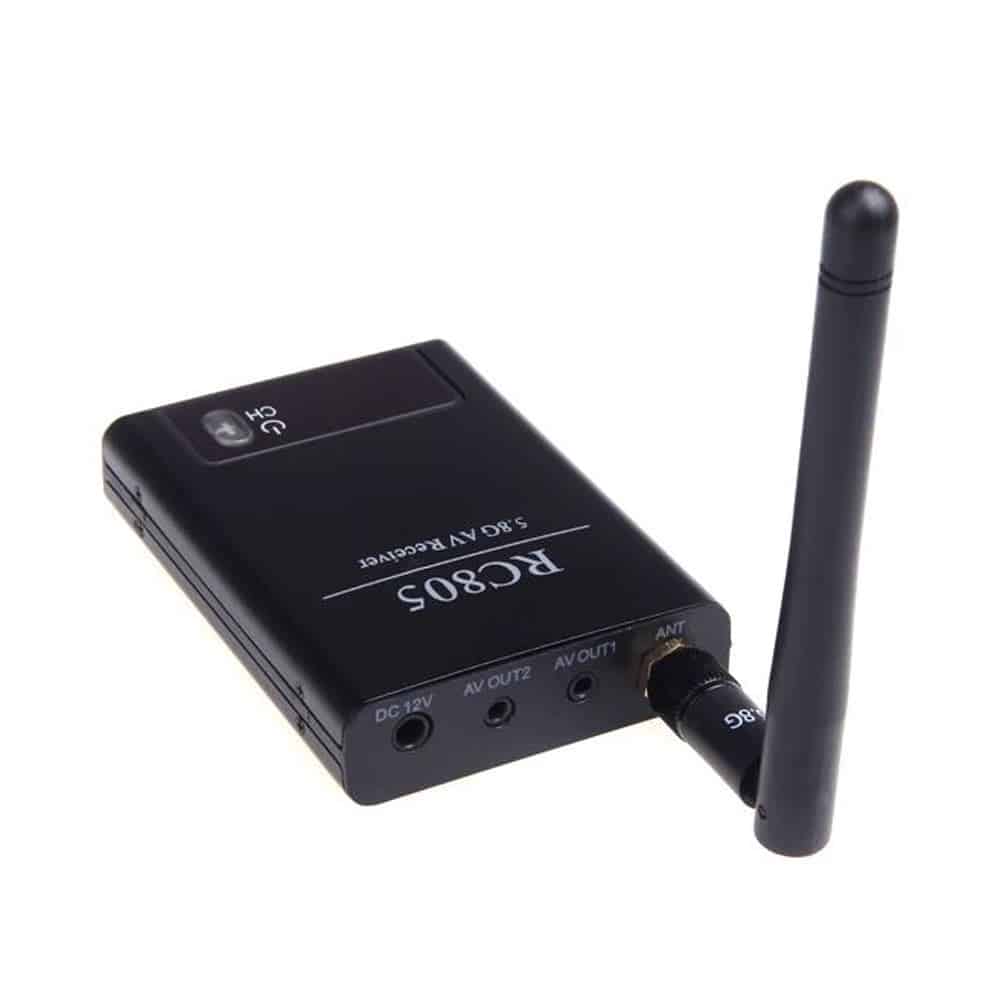

Wireless receiver

Model no. RC805
Receiving frequency 5725 ~ 5865MHz; 8 Channels
Receiving sensitivity -90dBm
Frequency control Built-in frequency and phrase lock loop
Double lines AV output Analog AV signal output
Antenna connectors Inside the needle
Power supply voltage 6.5V ~ 12V
Supply current 150mA
Operating temperature -10 ~ +50 C/ +14 ~ +122F
Storage temperature -20 ~ +60C / -4 ~ +140F
Operating humidity 85% RH
Housing color Black
Product size Approx.7.5 * 5.4 * 1.6cm / 3.0 * 2.1 * 0.6in(No including antenna)
Product net weight Approx. 42g / 1.47oz (No including antenna)
Total information
Package size Approx. 13.6 * 6.7 * 7.2cm / 5.4 * 2.6 * 2.8in
Package weight Approx. 177g / 6.24oz

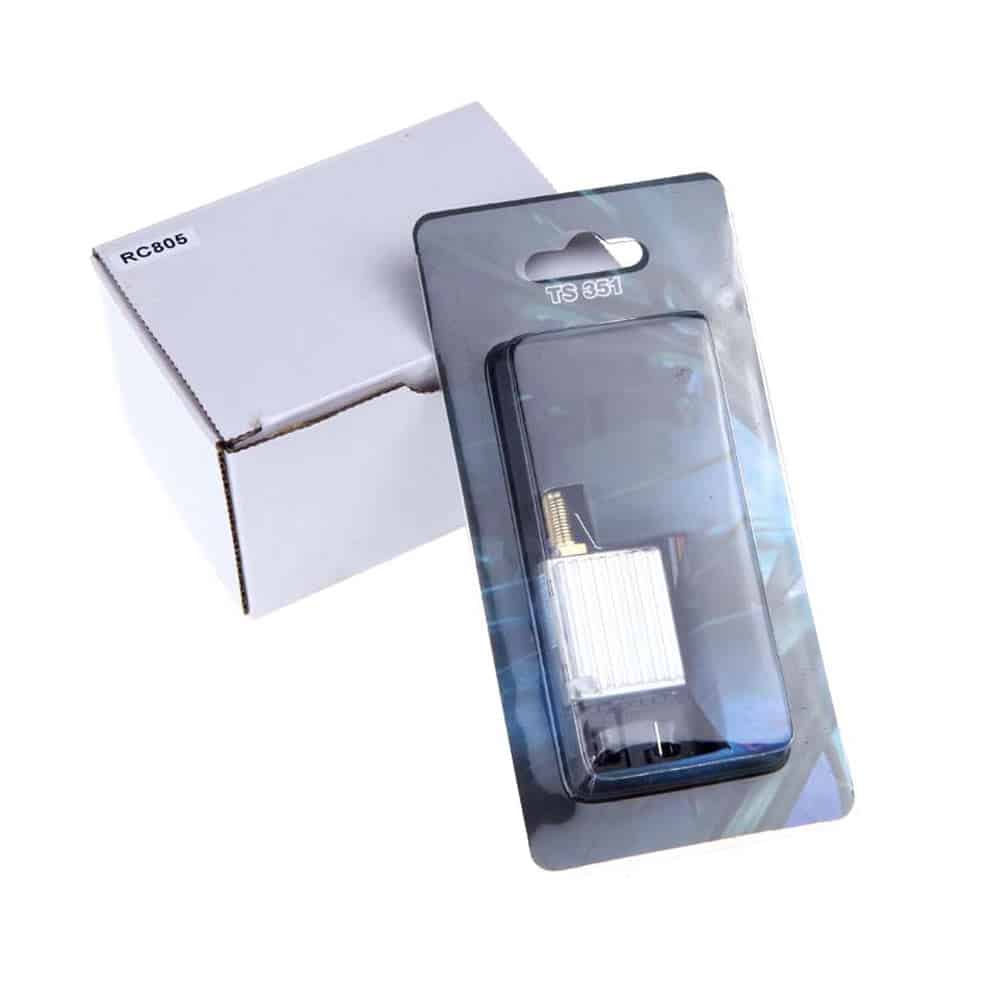

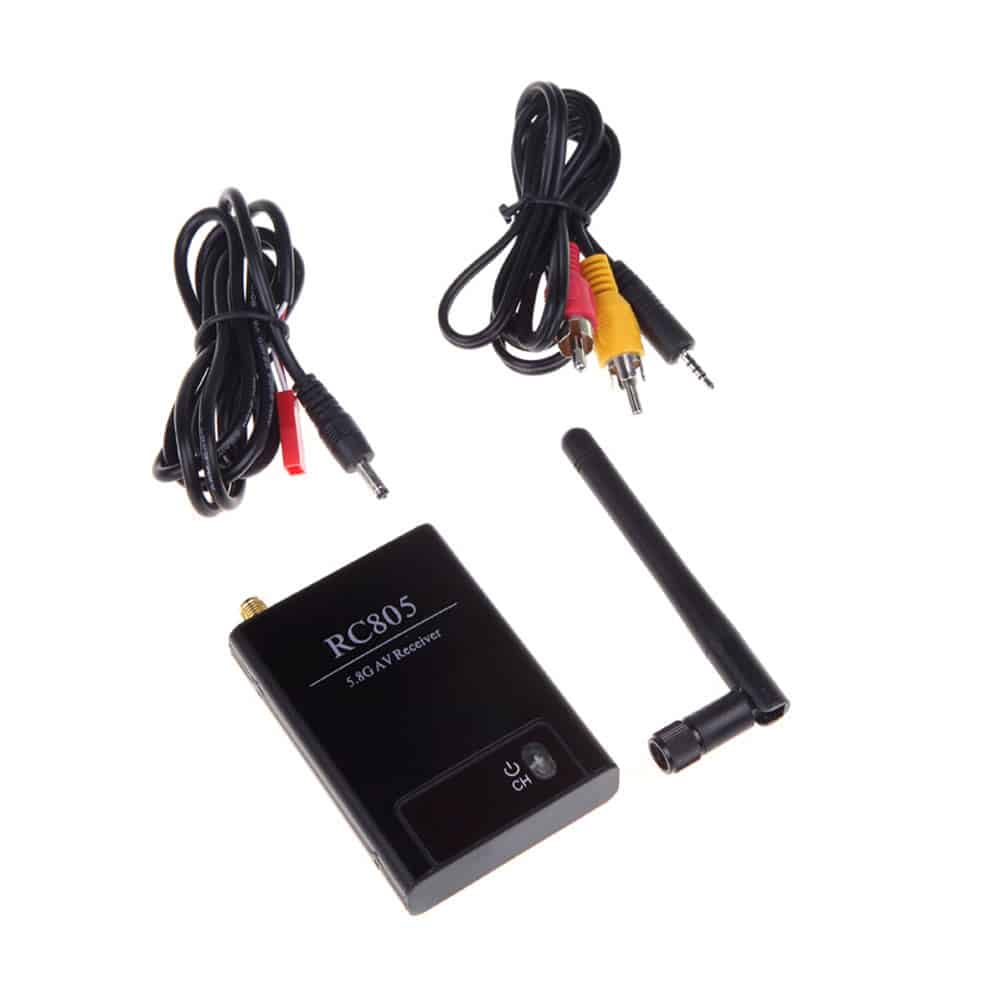

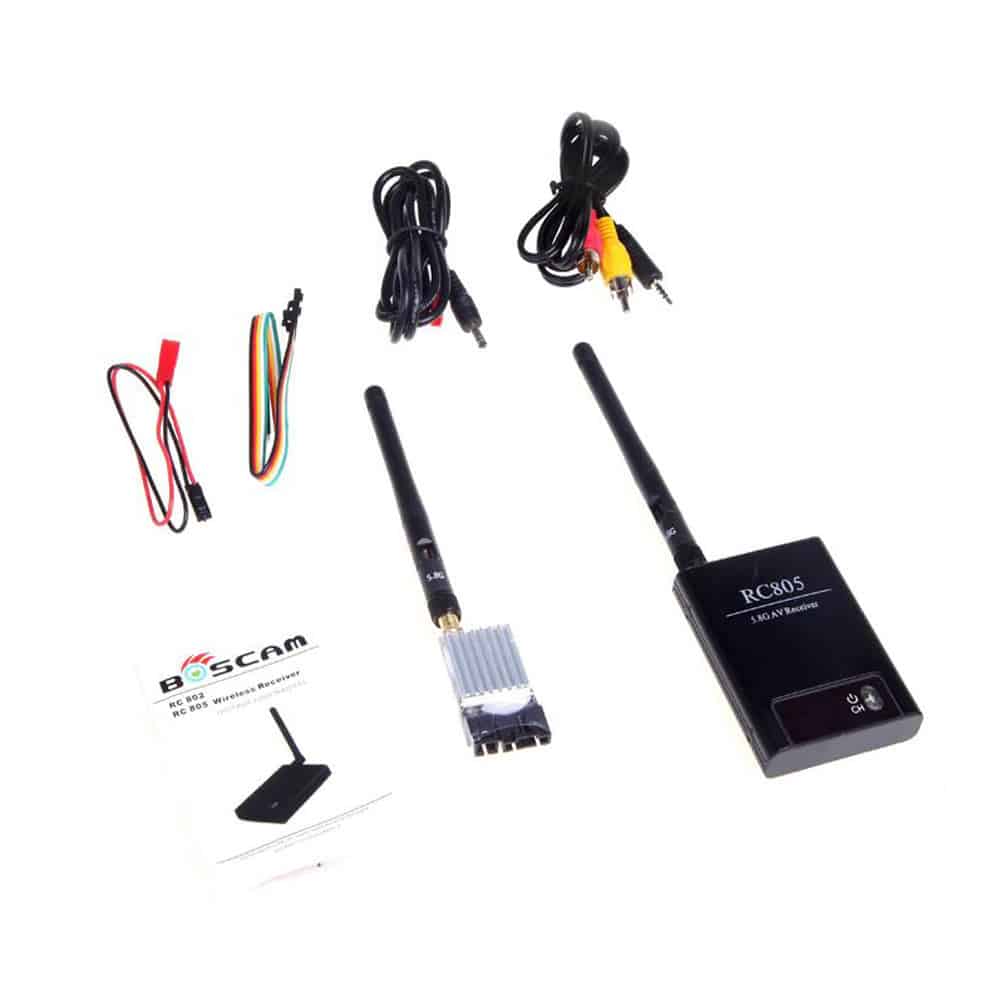

What you will receive:

1 * RC805 Wireless Receiver
1 * TS351 Wireless Transmitter
2 * 2dBi Antenna
1 * Power Cable for Transmitter
1 * Power Cable for Receiver
1 * AV Cable for Transmitter
1 * AV Cable for Receiver
1 * Instruction Manual of Receiver(English)
