Ultimaker 2 v2.1.4 Motherboard with Display and Control Board – Extended UM2

£199.99

3 in stock

Ultimaker 2 v2.1.4 Motherboard with Display and Control Board – Extended UM2

£199.99

SKU: 3DP-PAR-087 Category: Parts & Accessories Tags: control-board, display, Extended UM2, Motherboard, ultimaker 2
Product Categories
  • 3D Printer
    • Controllers
    • Filament
    • Kits
    • Parts & Accessories
  • Arduino
    • Boards
    • Kits
    • Shields and Accessories
  • Cooling
    • Fan Guards
    • Fans
    • Heatsinks
  • Drone
  • Drones and More
    • Accessories
    • Antennas
    • Components
    • Drones
    • Kits
  • Electronics
    • Access Control
    • Cable
    • Components and Sensors
    • DIY Kits
  • LED Lighting
    • Accessories
    • Beads
    • Bulbs
    • Controllers
    • DMX
    • Downlights
    • Panel
    • Strips
  • Mechanical
    • Bearing
    • Bearings
      • Ball
      • Bushings
      • Flange
      • Grooved
      • Linear
      • Miniature
      • Needle
      • Self Aligning
      • Self Lube
      • Taper Roller
    • Fluid Transfer
    • Magnets
    • Mounts and Supports
    • Pulleys and Coupler
    • Rails and Carriage
    • Rods
    • Rods and Carriages
    • Timing Belt
  • Microcontrollers
  • Miscellaneous
  • Motors
    • Accessories
    • Coreless
    • DC Motors
    • Drivers
    • Spindle
    • Step
  • Other
  • Power Supply
  • Raspberry Pi
    • Boards and Kits
    • Shields and Accessories
  • Robotics
    • Components
    • Kits
  • Uncategorised
  • Virtual Reality
  • Description
  • Additional information

Description:

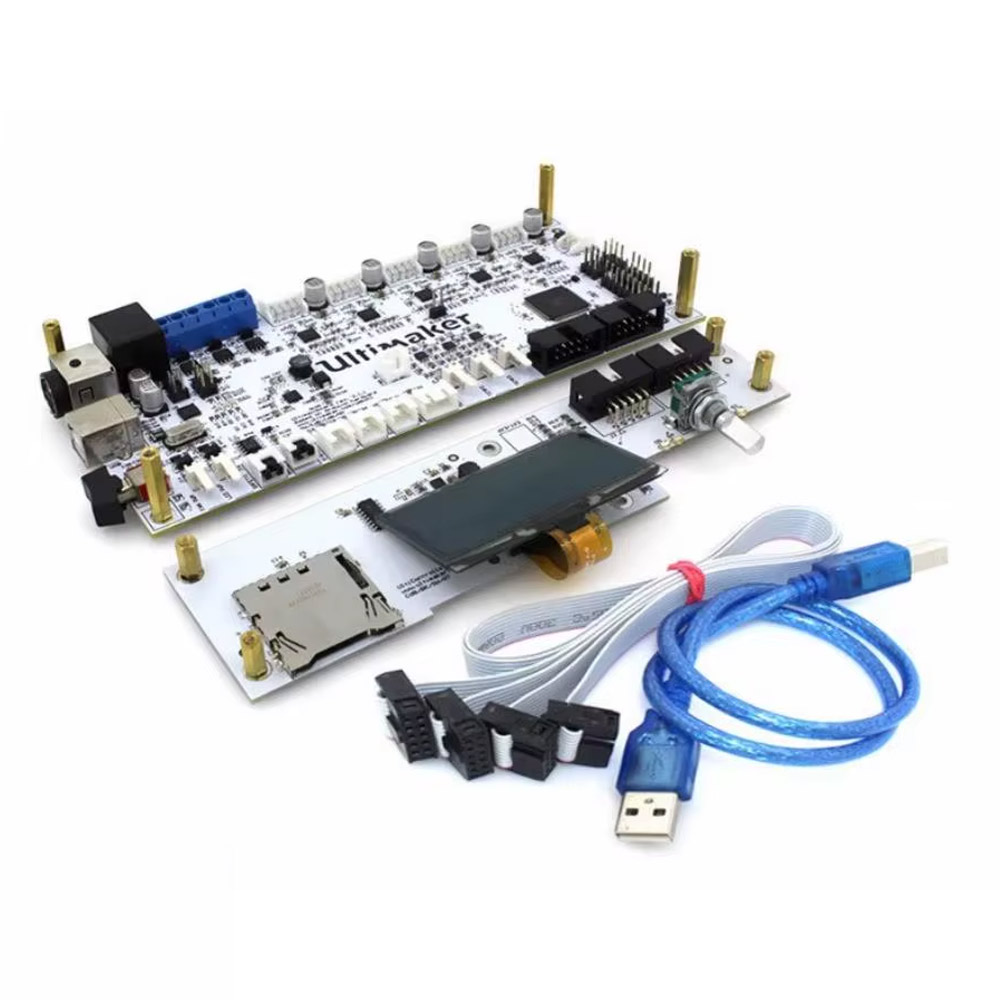

Ultimaker 2 Motherboard with Display, control knob and wires.
Version V2.1.4 is the latest version (2016)
  • Based on MEGA 2560, single-board solution, higher stability
  • Supports dual extrusion
  • Supports heated bed (maximum current not to exceed 9A, temperature controlled below 100 C )
  • Power: 19-24V DC (you can use a laptop power supply or switching power supplies)
  • Three temperature sensors (PT100, -200-650 ), Texas Instruments INA826 dedicated chip, high precision anti-interference ability
  • Three limit switches, the default reset position 0, the default bed size: 230 x 225 x 205
  • High scalability, reserved way ANALOG IN, other unused I / O port pin were also set aside, for user expansion
  • Two Safety switches (which can be accessed smoke sensors, to prevent the occurrence of accidents)
  • Three fan Interfaces: Adjustable fan connectors (J14, FAN PWM, 24V), 5V fan (J34, FAN 5V), 24V fan (J20, FAN 19-24V)
  • Dimmable LED Interface (J15, LED PWM, 24V)
What you will receive:

1 x Mainboard
1 x LED Display
1 x Control Knob
1 x Wiring for LED Display and Control Knob
1 x USB Cable

Weight 300 g
