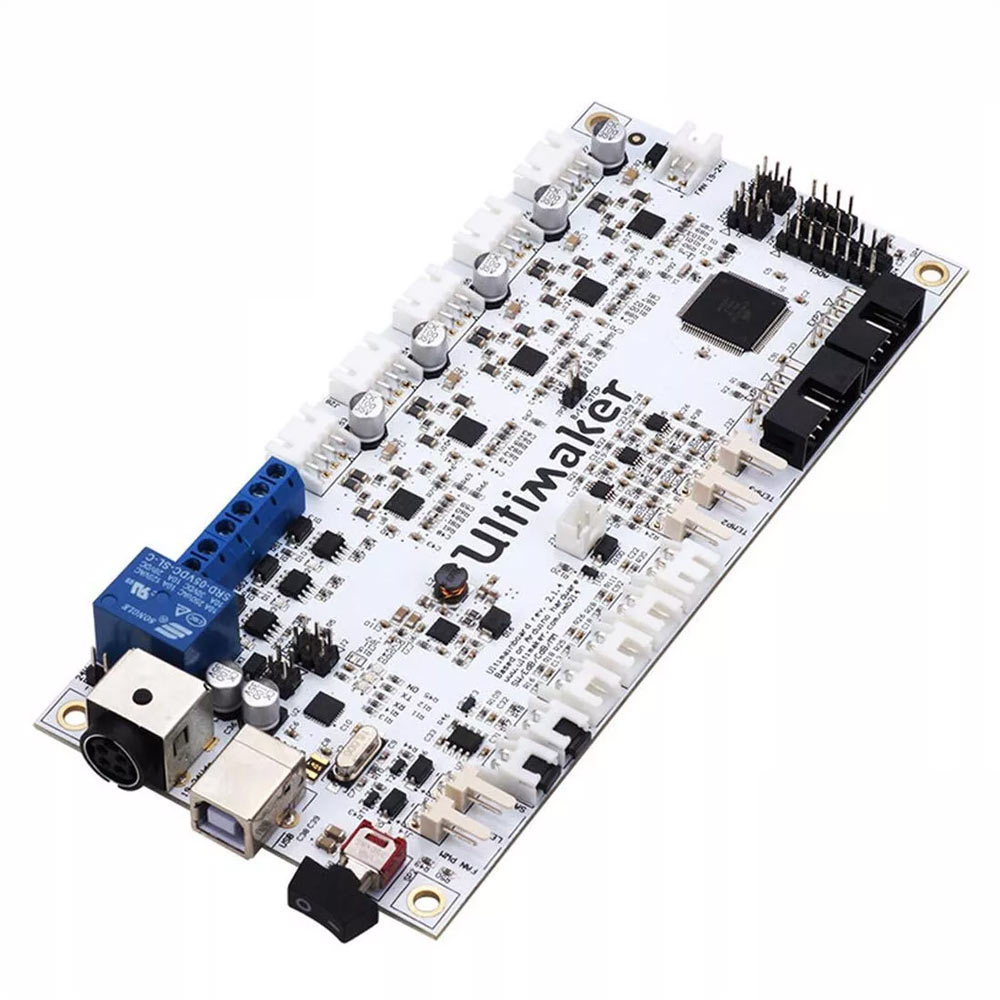

Ultimaker 2 Control Board v2.1.4 Motherboard – UM2 Extended UM2 3D Printer

Description:

Ultimaker 2 Motherboard

We also offer Motherboard, Display and Dial. Please contact us if you can’t locate the listing.

Version V2.1.4 is the latest version (2016)

• Based on MEGA 2560, single-board solution, higher stability
• Supports dual extrusion
• Supports heated bed (maximum current not to exceed 9A, temperature controlled below 100 C )
• Power: 19-24V DC (you can use a laptop power supply or switching power supplies)
• Three temperature sensors (PT100, -200-650 ), Texas Instruments INA826 dedicated chip, high precision anti-interference ability
• Three limit switches, the default reset position 0, the default bed size: 230 x 225 x 205
• High scalability, reserved way ANALOG IN, other unused I / O port pin were also set aside, for user expansion
• Two Safety switches (which can be accessed smoke sensors, to prevent the occurrence of accidents)
• Three fan Interfaces: Adjustable fan connectors (J14, FAN PWM, 24V), 5V fan (J34, FAN 5V), 24V fan (J20, FAN 19-24V)
• Dimmable LED Interface (J15, LED PWM, 24V)
