Timing Belt MXL, GT2, GT2 Steel PU, GT2 Steel, HTD3M, HTD5M, T5 / 6,9,12,15mm

Description:

Timing Belt MXL, GT2, GT2 Steel PU, GT2 Steel, HTD3M, HTD5M, T5 / 6,9,12,15mm – Reprap Rostock Mendel 3D Printer CNC

• Timing belt transmission is from the inside of a surface with the same distance between the annular belt and tooth belt.
• When running, the belt teeth and groove mesh and transfer the movement and power.
• It is a combination of belt transmission, chain and gear drive that respective advantages of the new belt transmission.
• Accurate transmission ratio, no slip, constant speed ratio can be obtained, is stable and can absorb vibration,
  low noise, large range of transmission ratio, allowing high linear velocity, high transmission efficiency, compact structure,
  and also suitable for multi-axle transmission, do not need lubrication, no pollution.

Sold Per Meter – Please Select Profile
Maximum Length is 10m

MXL Timing Belt – 6mm and 9mm Width

Specification:

Colour: Black
Type: MXL
Pitch: 2.032mm/0.08”
Material: Neoprene Rubber Material, Nylon Cloth Base and Fiberglass Reinforced
Length: Per Meter
Width: 6mm or 9mm

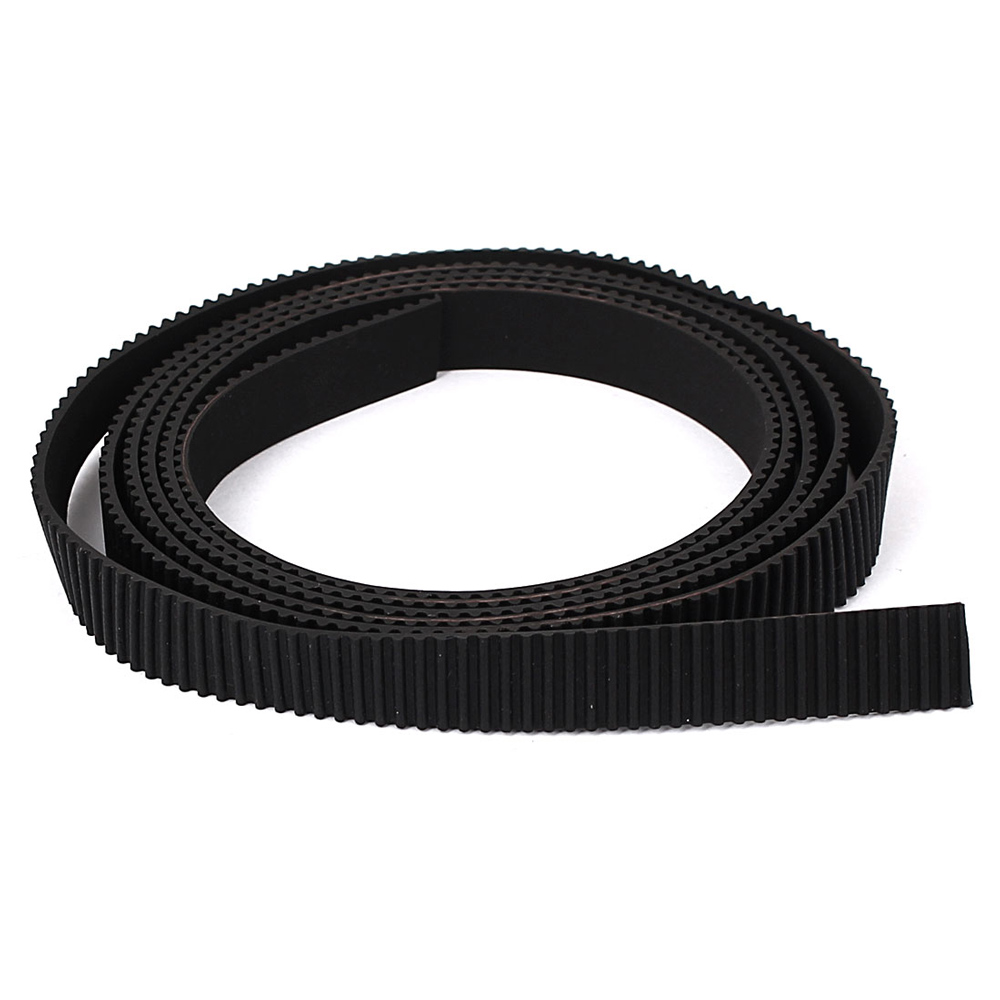

GT2 Timing Belt – 2mm Pitch, 6mm / 9mm Width

Specification:

Colour: Black
Type: GT2
Material: Rubber
Length: Per Meter
Width: 6mm or 9mm



Steel Wire Reinforced GT2 Timing Belt – 2mm Pitch, 6mm Width

Specification:

Colour: Black
Type: GT2
Material: Steel-reinforced Polyurethane
Length: Per Meter
Width: 6mm

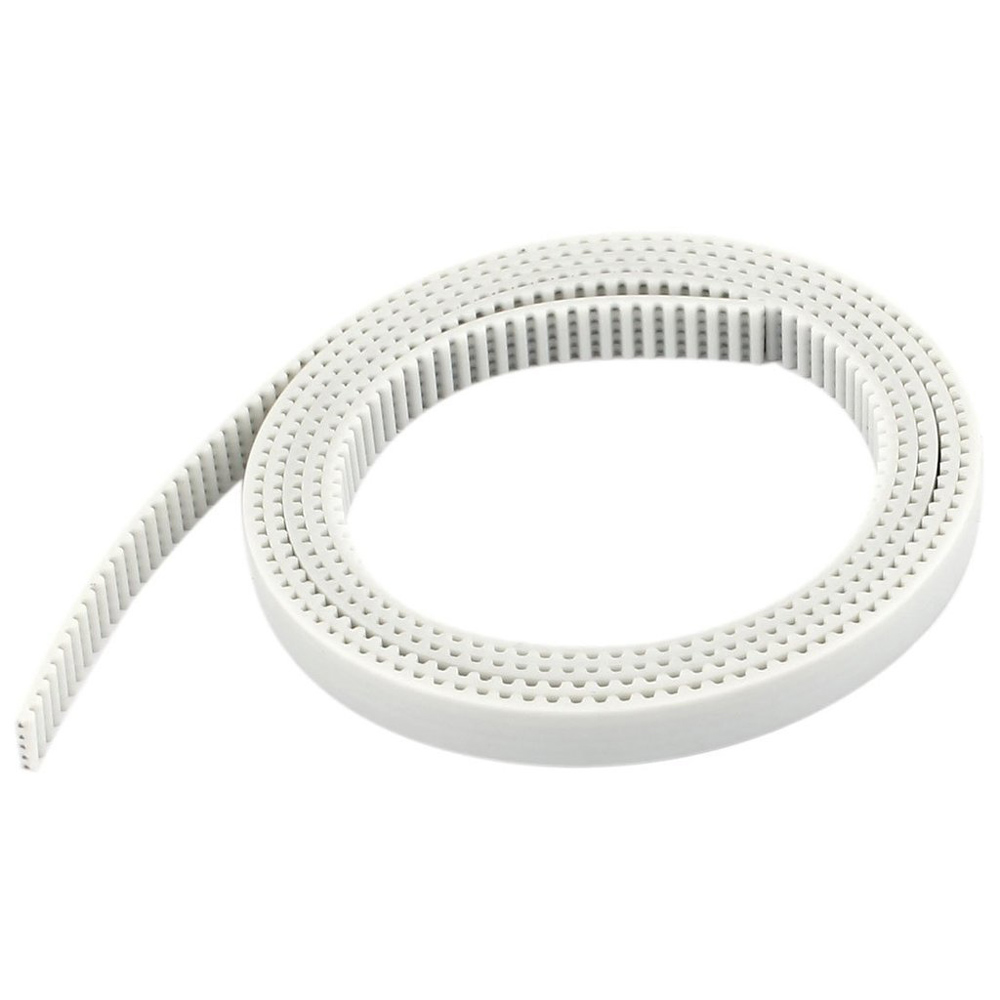

Steel Wire Reinforced GT2 PU Timing Belt – 2mm Pitch, 9mm Width

Description:

This belt is made from polyurethane, steel reinforced, extruded endless.
Long service life, bearing wear and tear, resistant to oil, heat
Good anti-cracking performance, and small extending rate
Good surface without crack

Specification:

Colour: White
Type: GT2
Material: Polyurethane With Steel Core
Length: Per Meter
Width: 9mm



Open Ended HTD3M Timing Belt 3mm Pitch, 6mm / 9mm Width

Description:

HTD3M Timing Belt
Neoprene Rubber with Fiberglass Reinforced.

Specifications:

• 3mm Pitch
• Open Ended
• 3M Round Tooth Profile Timing Belt



Open Ended HTD5M Timing Belt 5mm Pitch, 9mm / 12mm / 15mm Width

Description:

HTD5M Timing Belt
Neoprene Rubber with Fiberglass Reinforced.

Specifications:

• 5mm Pitch
• Open Ended
• 5M Round Tooth Profile Timing Belt



T5 Timing Belt 5mm Pitch, 9mm wide for Prusa Mendel

Description:

9mm Width T5 Timing Belt in Neoprene Rubber w/ Fiberglass Reinforced

Specifications:

Tooth Profile: T5
Pitch: 5mm
Material: Neoprene Rubber w/ Fiberglass Reinforced
Color: Black
It’s similar result of XL Pulley n Belt.



T5 Timing Belt 5mm Pitch, 15mm wide for Prusa Mendel

Description:

15mm Width T5 Timing Belt in Neoprene Rubber w/ Fiberglass Reinforced

Specifications:

Tooth Profile: T5
Pitch: 5mm
Material: Neoprene Rubber w/ Fiberglass Reinforced
Color: Black
It’s similar result of XL Pulley n Belt.



What you will receive:

Sold Per Meter – Please Select Profile
Maximum Length is 10m
